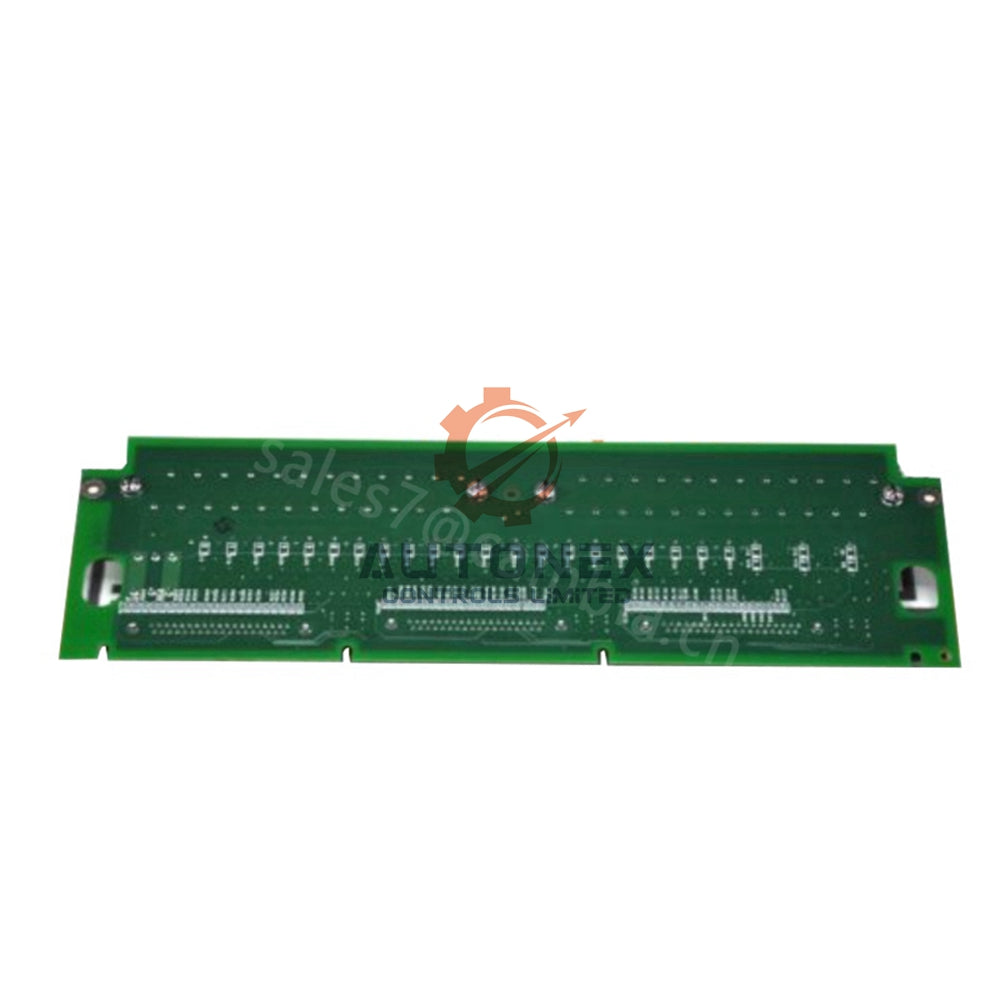

IS200TRLYH1BGG GE Mark VIe Coil Sensing Terminal Board

IS200TRLYH1BGG Coil Sensing Terminal Board – General Electric Mark VIe

Technical Specifications

• Brand: General Electric
• Model: IS200TRLYH1BGG
• Category: Coil Sensing Terminal Board
• Series: Mark VIe
• Manufacturer: General Electric
• Country of Manufacture: United States of America (USA)
• Product Type: Coil Sensing Terminal Board
• Availability: In Stock
• Maximum Response Time ON: 25 ms typical
• Maximum Response Time OFF: 25 ms typical
• Maximum Inrush Current: 10 A
• Contact Material: Silver cad-oxide
• Board Dimensions: 17.8 cm wide × 33.02 cm high
• Operating Temperature: -30°C to +65°C

Relay Configuration and Channel Structure

• The board supports 12 plug-in magnetic relays for flexible control.
• The first six relay circuits are configurable through jumpers.
• The first six relays support dry Form-C contacts or external solenoid driving.
• The board supports standard 125 VDC and 115/230 VAC field solenoid power.
• An optional 24 VDC source is also supported.
• Individual jumper-selectable fuses are included.
• Integrated suppression circuits improve field solenoid protection.
• Relays 7 through 11 provide isolated unpowered Form-C contacts.
• Relay 12 is dedicated for special applications such as ignition transformers.
• Six relays support optional solenoid driver voltages.
• Five relays provide dry contacts only.
• One relay includes a 7 A rating for higher current applications.

FAQ

• Q: What is the part number and brand?
  A: The part number is IS200TRLYH1BGG, and the brand is General Electric.
• Q: Which series does this board belong to?
  A: It belongs to the General Electric Mark VIe control system platform.
• Q: What is the operating temperature range?
  A: The board operates from -30°C to +65°C.
• Q: How many relays does the board support?
  A: It supports 12 plug-in magnetic relays with flexible configuration options.
• Q: What is the maximum inrush current?
  A: The maximum inrush current is 10 A.
• Q: What is the response time?
  A: The typical response time is 25 ms for both ON and OFF states.
• Q: What contact material does the board use?
  A: The contacts use silver cad-oxide material for reliable switching.
• Q: What are the board dimensions?
  A: The board measures 17.8 cm wide × 33.02 cm high.
• Q: Does the board support fault detection?
  A: Yes, it monitors relay coil current and detects solenoid excitation loss.
• Q: What is the load current for 125 VDC operation?
  A: The maximum load current is 0.6 A for 125 VDC operation.
• Q: What is the load current for 24 VDC operation?
  A: The maximum load current is 3.0 A for 24 VDC operation.
• Q: What is the load current for 115/230 VAC operation?
  A: The maximum load current is 3.0 A for 115/230 VAC, 50/60 Hz operation.
• Q: What is the special rating for Relay 12?
  A: Relay 12 supports 6 A at 115 VAC for special applications.
• Q: How does the board handle communication failure?
  A: Relay outputs automatically de-energize during communication failure conditions.
