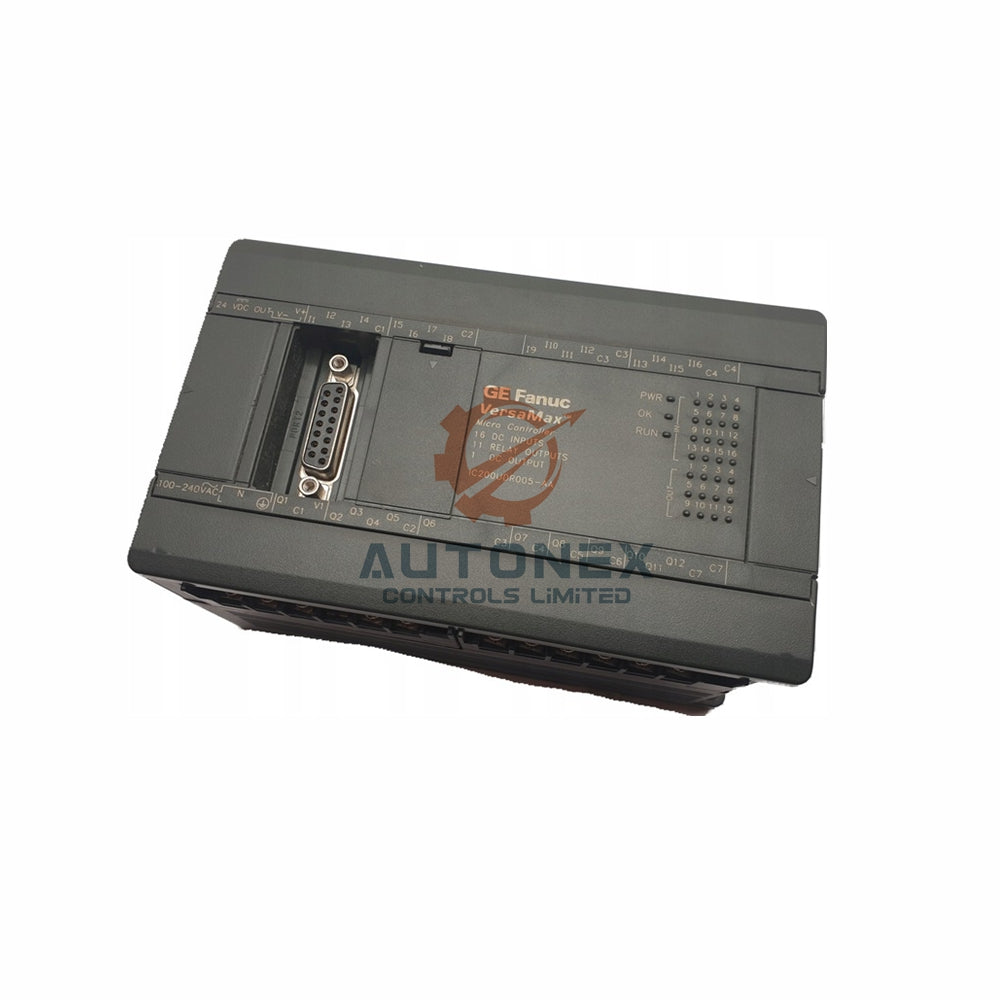

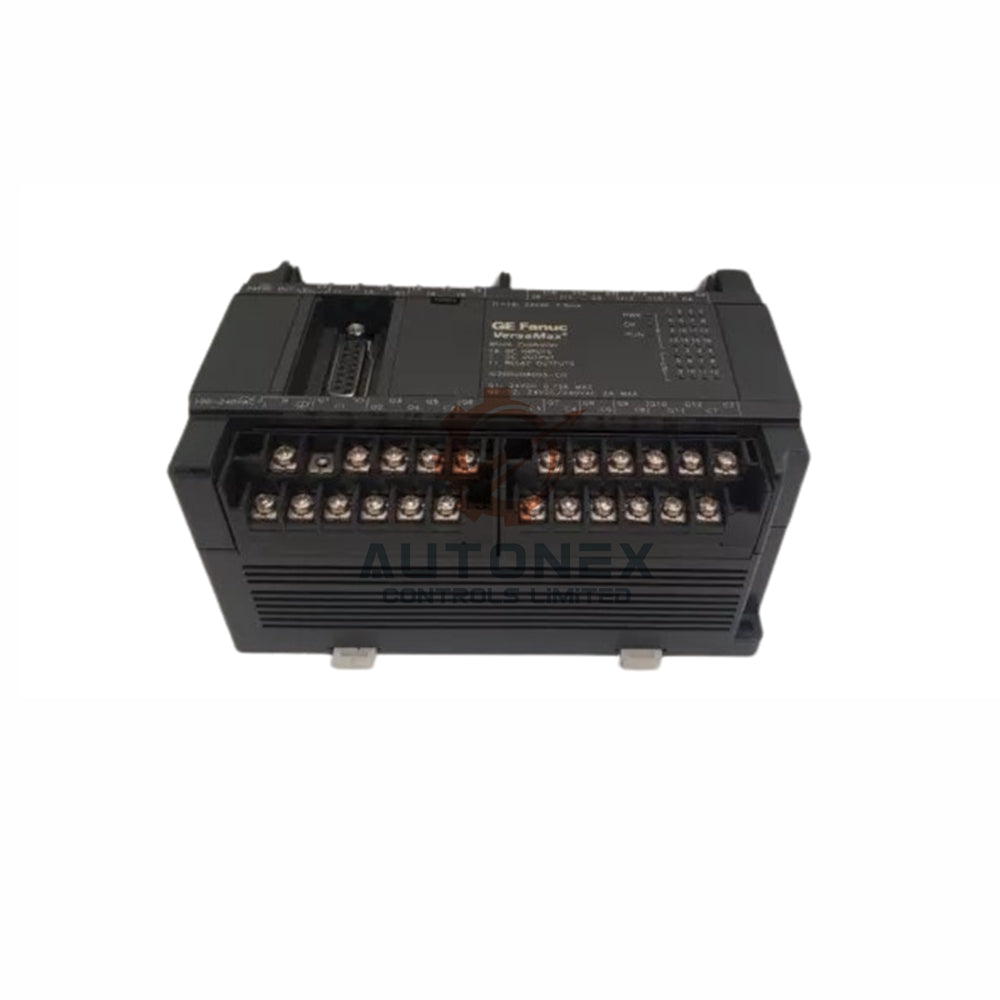

IC200UDR040 GE Fanuc PLC VersaMax Micro 24 In 16 Relay Out

IC200UDR040 GE Fanuc VersaMax Micro 40-Point PLC – 24VDC Input, 16 Relay Output

Technical Specifications

• Brand: GE Fanuc
• Model: IC200UDR040
• Series: VersaMax Micro
• Manufacturer: GE Fanuc
• Category: 40-point programmable logic controller (PLC)
• Digital Inputs: 24 channels, 24VDC sinking or sourcing
• Relay Outputs: 16 channels, Form A contacts
• Output Rating: 2A per point, 8A per common
• Input Voltage Range: 20.4 to 28.8VDC
• Input Frequency: DC, no AC ripple sensitivity
• Isolation: 1500VAC between field and logic
• Response Time: 10ms typical for input to output
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 2g at 10–500Hz

Frequently Asked Questions

• Q: What input voltage does the IC200UDR040 accept?
  A: The 24 digital inputs work with 20.4 to 28.8VDC. You can wire them as sinking or sourcing.
• Q: How many relay outputs does this PLC provide?
  A: It offers 16 relay outputs. Each point handles up to 2A, and each common handles 8A.
• Q: What is the operating temperature range?
  A: The controller runs from 0°C to +60°C. Store it between -40°C and +85°C.
• Q: Can I mount the IC200UDR040 on a DIN rail?
  A: Yes. It ships with a DIN rail clip. You can also panel mount it directly.
• Q: Which programming software supports this model?
  A: GE Fanuc VersaPro and Logicmaster 90 support the VersaMax Micro series.
• Q: Does this PLC have certified isolation?
  A: Yes. It provides 1500VAC isolation between field wiring and logic circuits.
• Q: How fast does the unit respond to input changes?
  A: Typical input-to-output response time is 10ms. This suits most relay control tasks.
