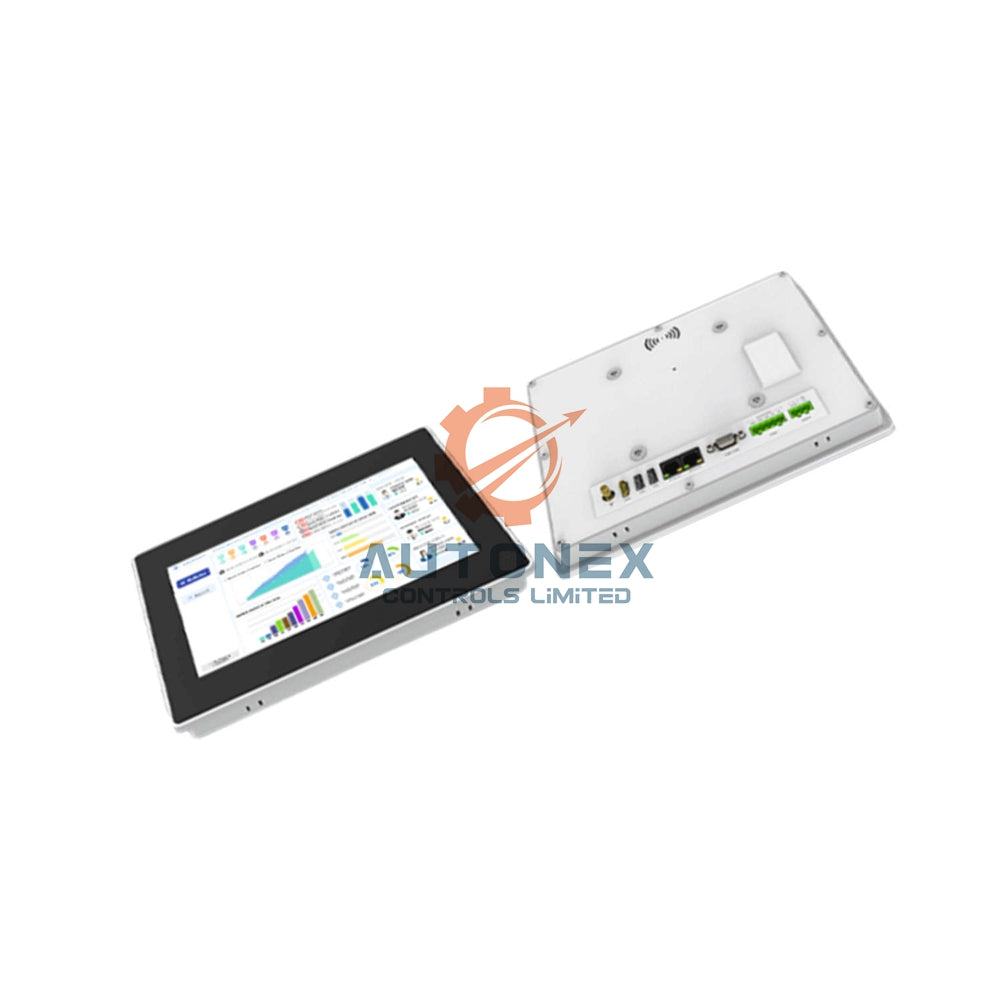

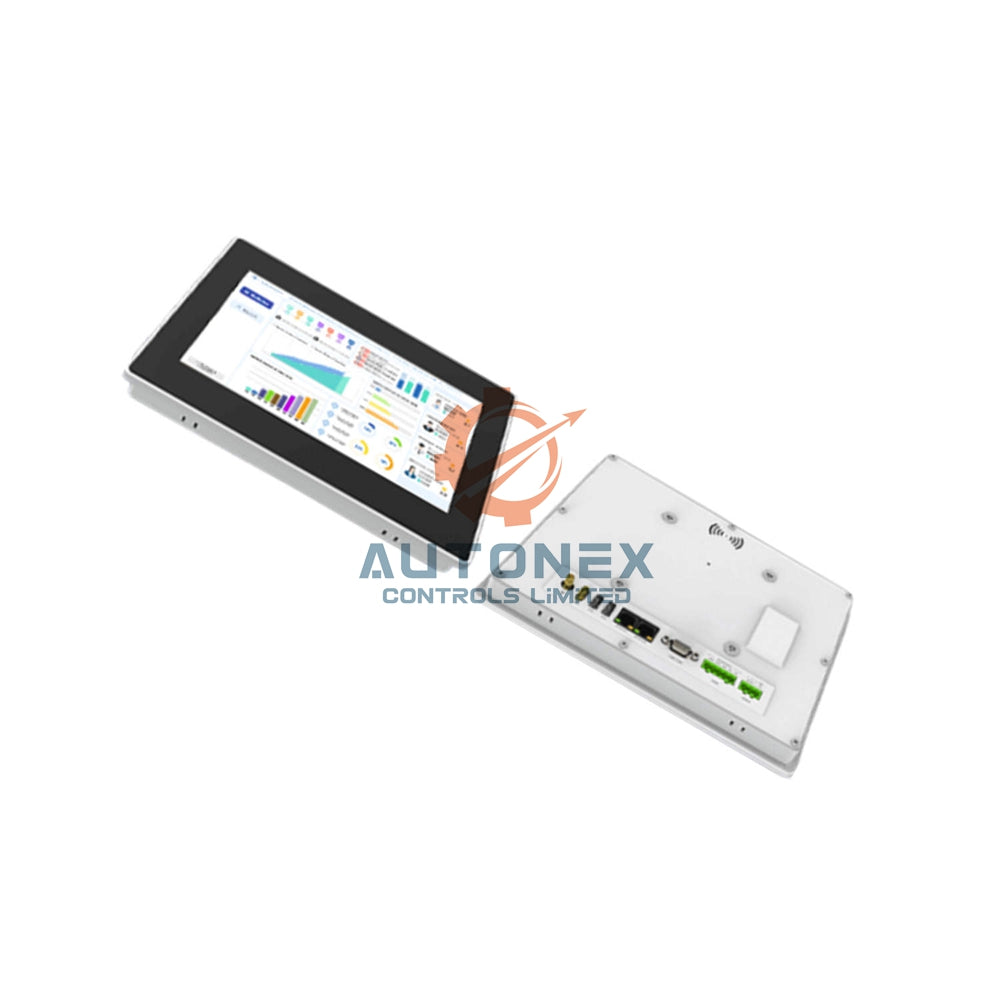

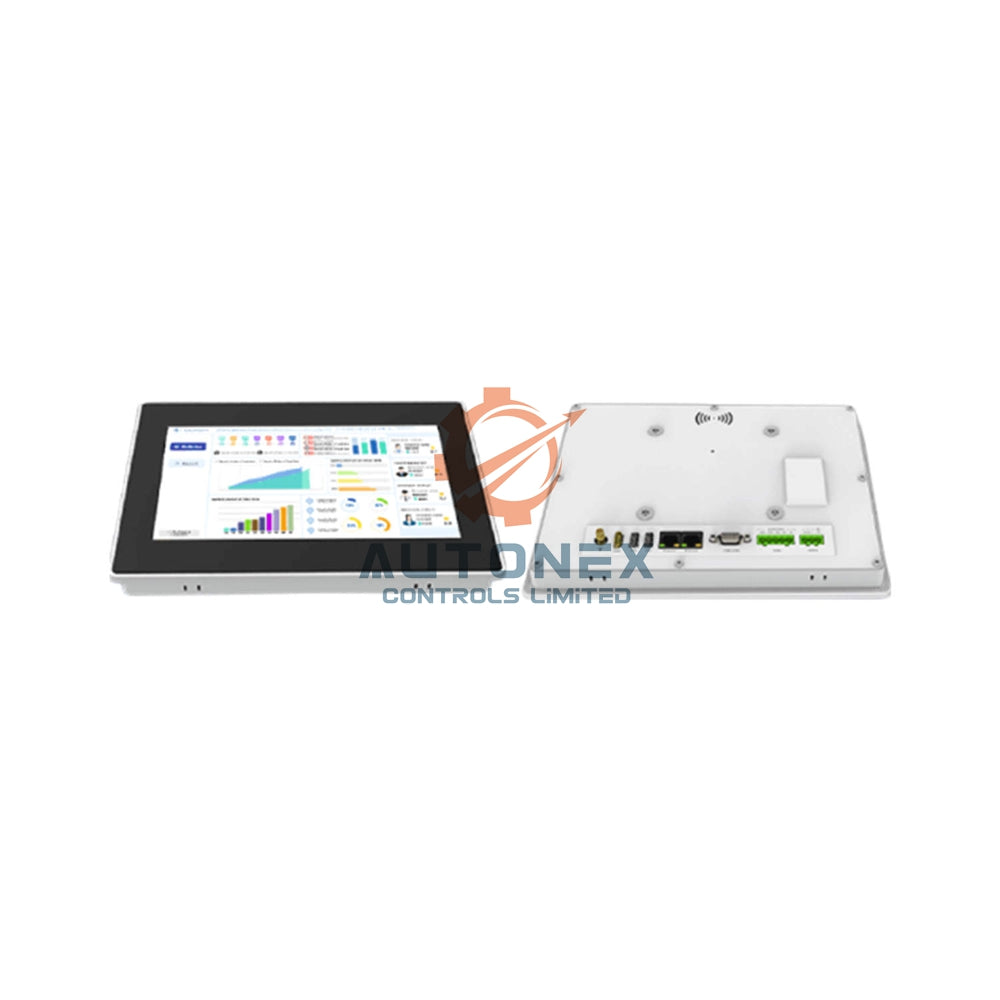

Flexem FPAD710 Industrial HMI Panel PC

Introducing the Flexem FPAD710: Your Next-Generation Industrial IoT HMI

Core Technical Specifications & Performance

• Brand & Model: This unit is the Flexem FPAD710.
• Display: It features a vibrant 10.1-inch TFT LCD with a 16:10 aspect ratio.
• High-Definition Visuals: The screen offers a sharp 1280x800 resolution and 24-bit color depth.
• Superior Brightness: With 400 cd/m² brightness and wide 85° viewing angles, content is always clear.
• Processing Power: A 64-bit quad-core Cortex-A55 CPU clocked at 2.0 GHz handles complex tasks smoothly.
• Graphics & Storage: The Mali G52 GPU and 16GB eMMC + 2GB DDR4 memory ensure responsive performance.
• Touch Interface: Interaction is via a durable 4-wire industrial resistive touch screen.

Connectivity & Expansion Options

• Network Ports: The device includes two Gigabit Ethernet ports for high-speed data transfer.
• USB & Display: You get two USB 3.0 Type-A ports and one HDMI 2.0A port for external monitors.
• Serial Communication: It offers multiple serial ports (RS232/RS485/RS422) for legacy device connection.
• Wireless Options: Both WiFi and 4G cellular connectivity are available as optional upgrades.
• Operating System: The HMI runs on a stable and versatile Linux platform.

Robust Environmental Durability

• Operating Temperature: It performs reliably in temperatures from -10°C to 60°C.
• Protection Rating: The front panel meets IP65 (NEMA) standards, and the back is rated IP20.
• Power Input: It accepts DC 24V power with a working range from 18V to 28V.
• Vibration Endurance: The design withstands vibration tests of 2G in X, Y, Z directions.
• Construction: A sturdy non-ferrous alloy housing protects the internal components.
• Cooling & Lifetime: The system uses natural cooling, and the LCD backlight lasts 50,000 hours.

Installation & Packaging

• Installation Method: This panel is designed for clean, flush-mounted installation.
• Cutout Dimensions: Prepare a panel cutout of 260mm by 202mm for proper mounting.
• Package Contents: You will receive the Flexem FPAD710 HMI unit, a compatible power adapter, and mounting hardware.
• Shipping: We ship all units via reliable global carriers like FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

• Q: What is the delivery time after I place my order?
  A: We process and ship orders within 5 business days.
• Q: Which logistics providers do you use?
  A: We commonly use DHL, FedEx, and UPS for international shipments.
• Q: What is the resolution and screen size of this HMI?
  A: It has a 10.1-inch screen with a high-definition resolution of 1280 x 800 pixels.
• Q: Can this device operate in a cold environment?
  A: Yes, the FPAD710 has an operating temperature range of -10°C to 60°C.
• Q: What is your return policy?
  A: We offer a 30-day return policy for your peace of mind.

For detailed wiring diagrams and advanced configuration guides, we recommend downloading the official product manual.
