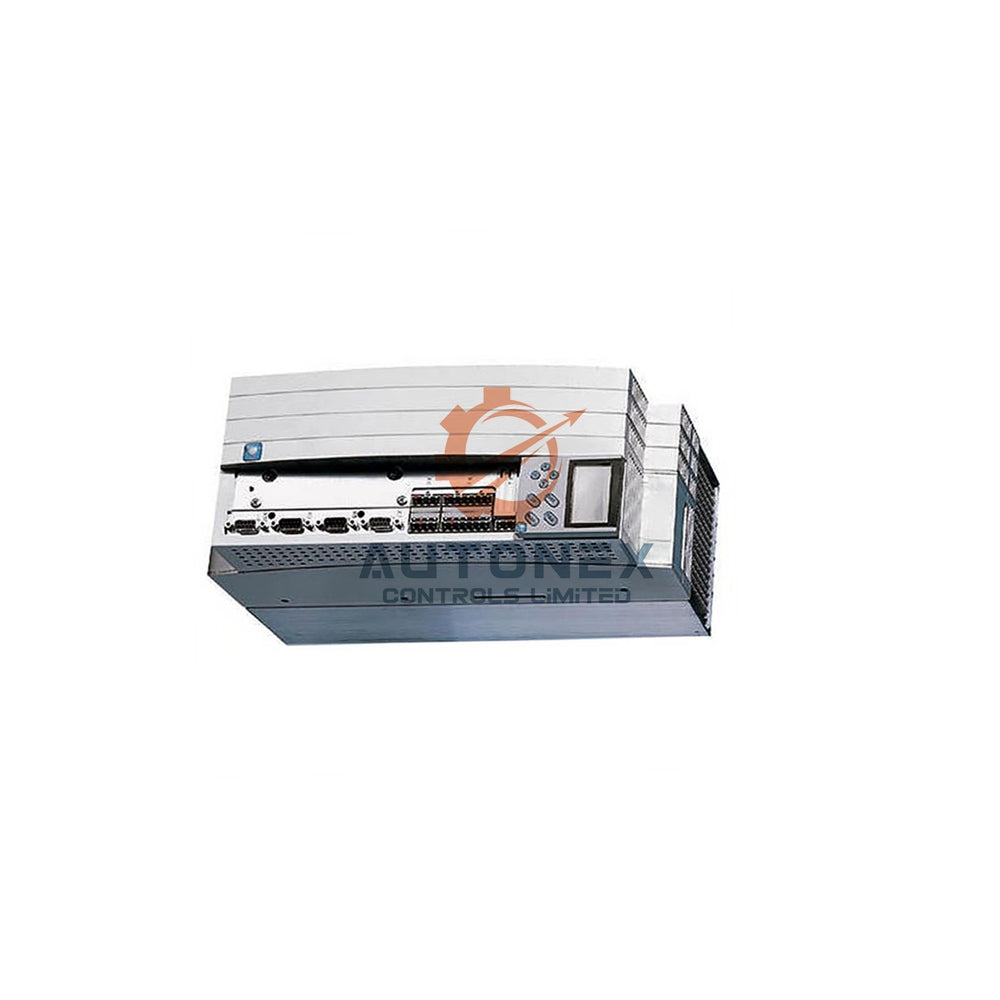

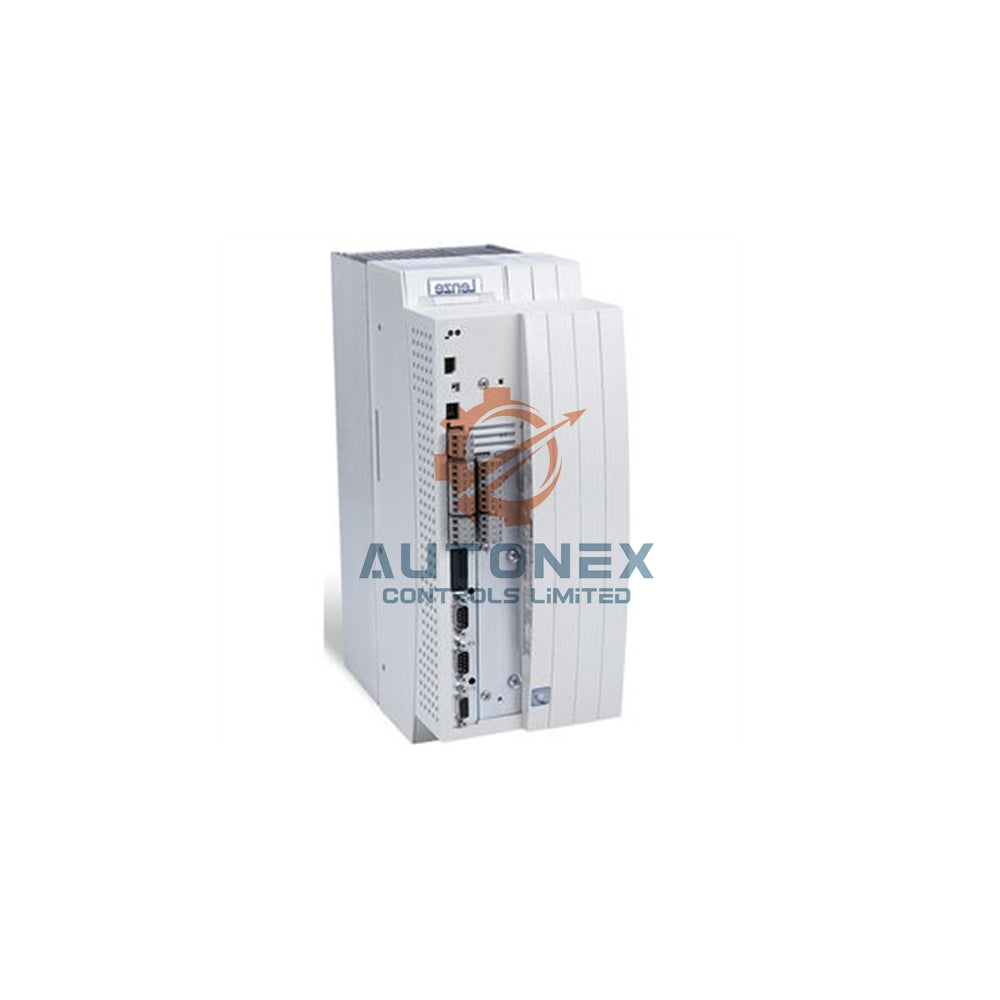

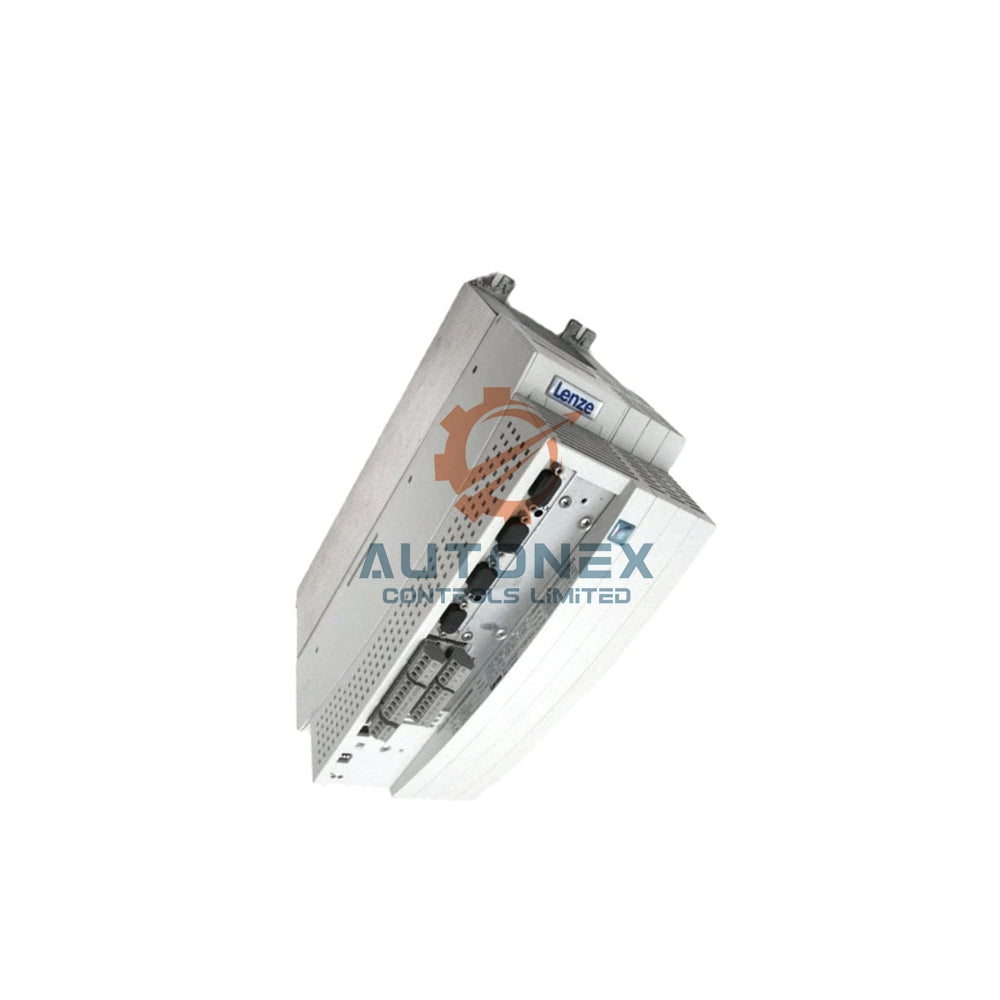

EVS9324-EP Lenze Series 9300 Axis Module 11kW Brake

Lenze EVS9324-EP Servo Inverter Axis Module for 3 kW Motor Control

• Manufacturer Lenze designs this servo inverter axis module for continuous industrial duty.
• It supports a mains voltage range of 3/PE AC 320–528 Volts with 45–65 Hz input frequency.
• An alternative DC supply input accepts 460–740 Volts DC for flexible system configurations.
• Rated mains current reaches 7 Amperes when using an external mains choke.
• Rated output current delivers 7.0 Amperes at 8 kHz and 5.2 Amperes at 16 kHz.
• Maximum output current peaks at 10.5 Amperes (8 kHz) and 7.8 Amperes (16 kHz).
• Brake chopper provides 11 kilowatt continuous power and 25 kilowatt peak braking power.
• Minimum brake resistance is specified at 27 Ω ±10% for reliable regenerative braking.
• Power loss measures only 200 Watts, demonstrating high operational efficiency.
• Dimensions are 350 mm height, 97 mm width, and 250 mm depth with 5 kg mass.

Technical Excellence and Advanced Braking Capability

• EVS9324-EP maintains precise control across its 8 kHz default switching frequency.
• Maximum output current of 10.5 Amperes at 8 kHz handles momentary torque demands effectively.
• The integrated brake chopper supports 11 kW continuous braking with 25 kW peak power.
• Minimum brake resistance of 27 Ω ensures consistent and reliable regenerative energy dissipation.
• Permissible motor cable length extends to 50 meters shielded for flexible machine layouts.
• The unit withstands demanding industrial environments with robust thermal management.
• Built-in electromagnetic interference filtering minimizes disturbances in sensitive networks.
• Alternative DC supply capability enhances system design flexibility for specialized installations.

Frequently Asked Questions

• Is the Lenze EVS9324-EP brand new and original? Yes, we supply only 100% brand new and original units directly from the manufacturer.
• Do you have this model in stock? Yes, we have this model in stock and available for immediate dispatch.
• How quickly can you ship the inverter? We ship within 5 days after receiving your order confirmation.
• Which logistics carriers do you use? We ship via DHL, FedEx, and UPS for fast global delivery.
• Can I return the item if it does not fit my application? Yes, we support 30-day returns, provided the unit is unused and in original packaging.
• What is the braking capability of the EVS9324-EP? It features an integrated brake chopper with 11 kW continuous power and 25 kW peak braking power.
• Can I power this inverter from a DC supply? Yes, the EVS9324-EP accepts an alternative DC input from 460 to 740 VDC.
• What is the maximum motor cable length? You can use shielded motor cables up to 50 meters in length without performance degradation.
• What are the physical dimensions of this unit? It measures 350 mm height, 97 mm width, and 250 mm depth, weighing approximately 5 kg.
