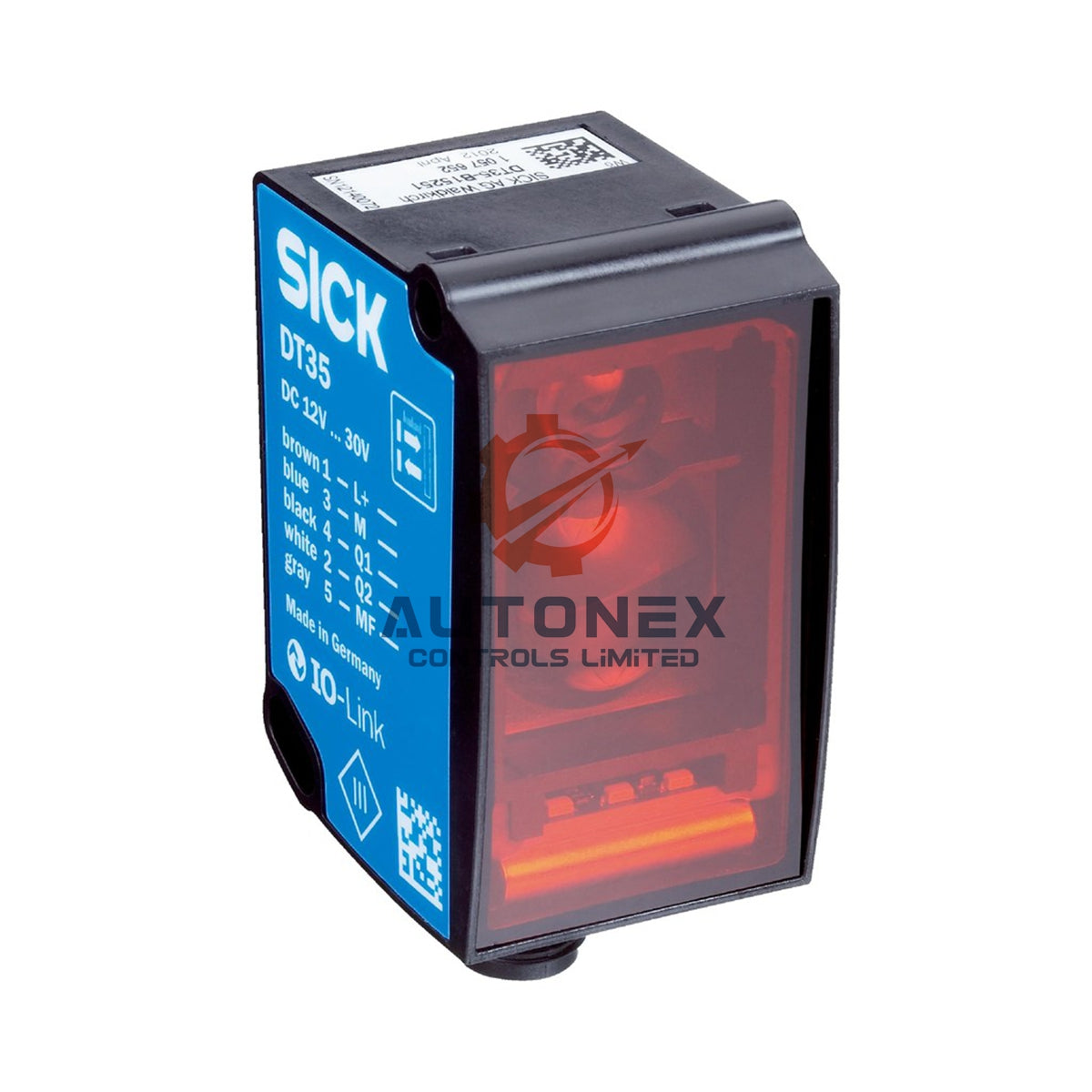

DT35-B15551S04 SICK Dx35 Time-of-Flight Sensor

SICK DT35-B15551S04 Dx35 Time-of-Flight Sensor

Core Technical Specifications

• Brand: SICK
• Model: DT35-B15551S04
• Series: Dx35
• Category: Time-of-flight sensors
• Measuring range: 50 mm to 12,000 mm at 90% remission factor
• Measuring range: 50 mm to 5,300 mm at 18% reflection factor
• Measuring range: 50 mm to 3,100 mm at 6% remission factor
• Target: Natural objects
• Resolution: 100 µm
• Repeatability: ≥ 0.5 mm
• Measurement accuracy: Typ. ± 10 mm
• Response time: 4.5 ms to 192.5 ms with selectable steps
• Switching frequency: 166 Hz / 50 Hz / 25 Hz / 12 Hz / 3 Hz
• Output time: 2 ms to 64 ms with selectable steps

Optical and Laser Data

• Light source: Laser, red
• Type of light: Visible red light
• Typical light spot size: 15 mm x 15 mm at 2 m
• Normative reference: IEC 60825-1:2014, EN 60825-1:2014
• Laser class: Class 1
• Average laser service life: 100,000 h at 25 °C

Outputs, Interfaces, and Additional Functions

• Digital output: 1 to 2, push-pull PNP/NPN
• Maximum output current: IA ≤ 100 mA
• Analog output: 1, current or voltage output
• Analog current: 4 mA to 20 mA, ≤ 450 Ω
• Analog voltage: 0 V to 10 V, ≥ 50,000 Ω
• Analog resolution: 12 bit
• Analog hysteresis: 0 mm to 11,950 mm
• Output Q2: Adaptable as current output, voltage output, or digital output

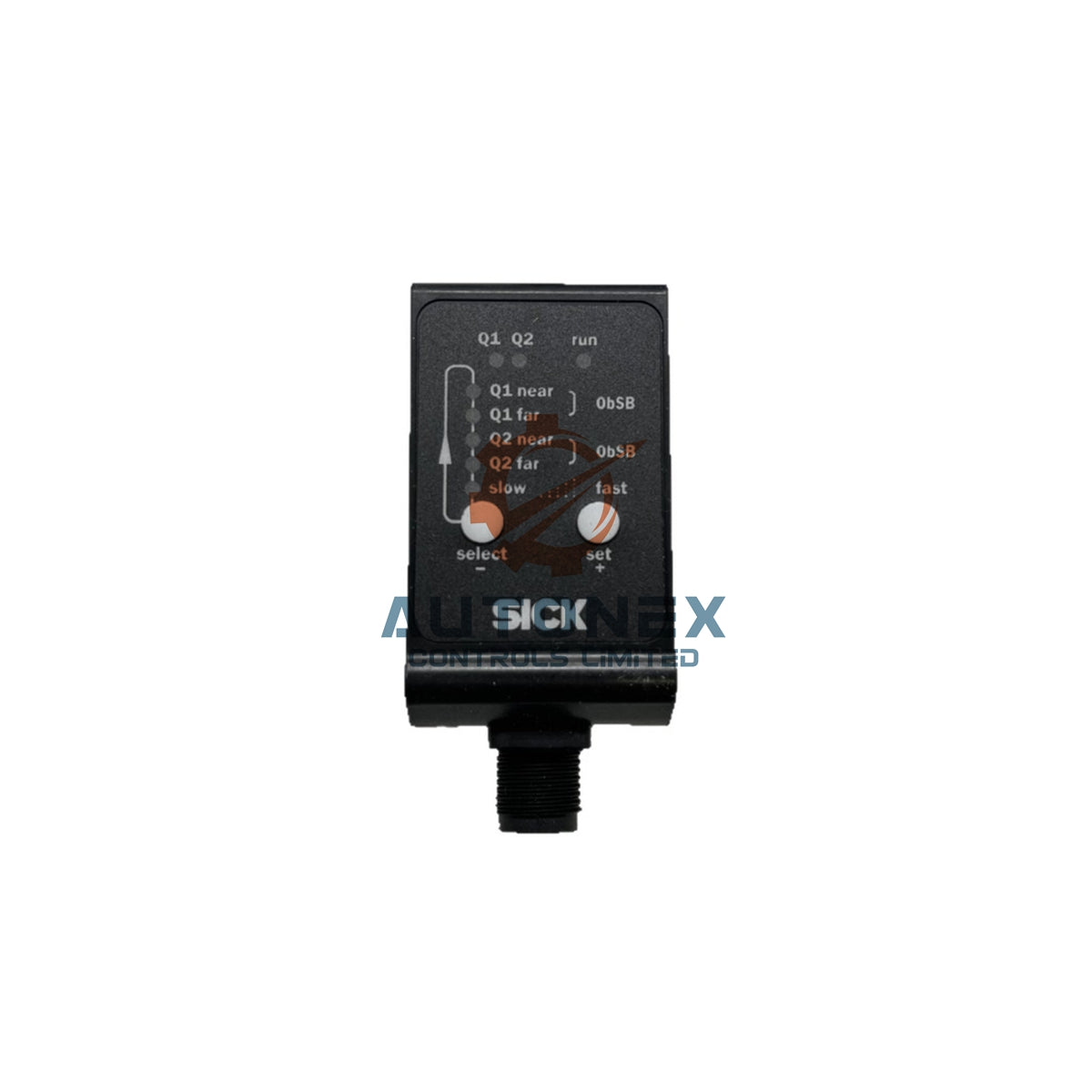

• Switching mode: Distance to Object (DtO), switching window, or object between sensor and background (ObSB)
• Additional functions: Set speed, teach-in of analog output, invertible analog output, teach-in of digital output, invertible digital output
• Multifunctional input: Laser off, external teach, or deactivated
• Reset: Reset to factory default
• Special characteristic: Other software for IO-Link V1.1

IO-Link and Communication

• IO-Link: Yes, IO-Link V1.1
• IO-Link COM mode: COM2 (38.4 kBaud)
• Functions: Process data, parameterization, diagnosis, data storage
• Data transmission rate: 38.4 kbit/s

Electrical and Mechanical Details

• Supply voltage: DC 12 V to 30 V
• Power consumption: ≤ 1.7 W
• Ripple: ≤ 5 Vpp
• Initialization time: ≤ 500 ms
• Warm-up time: ≤ 20 min
• Display: LEDs
• Enclosure rating: IP65 and IP67
• Protection class: III
• Connection type: Male connector
• Dimensions: 32 mm x 58.67 mm x 42.7 mm
• Housing material: Plastic (ABS/PC)
• Window material: Plastic (PMMA)
• Weight: 65 g

Environmental Tolerance and Safety Parameters

• Ambient temperature, operation: –30 °C to +55 °C, Uv ≤ 24 V
• Ambient temperature, storage: –40 °C to +75 °C
• Max. relative humidity: ≤ 95 %, not condensing
• Vibration resistance: EN 60068-2-6, EN 60068-2-64
• Shock resistance: EN 60068-2-27
• Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
• MTTFD: 101 years
• DCavg: 0%

Installation Guide

• Mount the sensor with a stable bracket to avoid vibration and misalignment.
• Keep the light spot clear of dust, water droplets, and reflective obstructions.
• Align the sensor perpendicular to the target surface for the best measurement results.
• Use the male connector to wire supply voltage, outputs, and IO-Link correctly.
• Set the response time and output time based on your application speed.
• Teach the analog or digital output after installation to match your target distance.
• Verify the enclosure rating IP65 and IP67 during installation for reliable protection.

Package List

• 1 x SICK DT35-B15551S04 Dx35 time-of-flight sensor
• 1 x Male connector
• 1 x Quick start guide

Shipping and Support

• We ship by FedEx, UPS, and DHL.
• We dispatch in-stock items within 5 days.
• We support 30-day returns.
• We provide brand-new original products.

FAQ

• Q: What is the measuring range of the SICK DT35-B15551S04?
  A: It measures 50 mm to 12,000 mm at 90% remission factor.
• Q: How fast does the DT35-B15551S04 respond?
  A: It offers a response time from 4.5 ms to 192.5 ms.
• Q: Does the DT35-B15551S04 support IO-Link?
  A: Yes, it supports IO-Link V1.1 with COM2 at 38.4 kBaud.
• Q: What is the laser class of this sensor?
  A: It uses a Class 1 red laser.
• Q: What is the operating temperature range?
  A: It operates from –30 °C to +55 °C with Uv ≤ 24 V.
• Q: What output options does the sensor provide?
  A: It provides current output, voltage output, and digital output on Q2.
• Q: Is the DT35-B15551S04 in stock?
  A: Yes, we have stock and we ship within 5 days.
