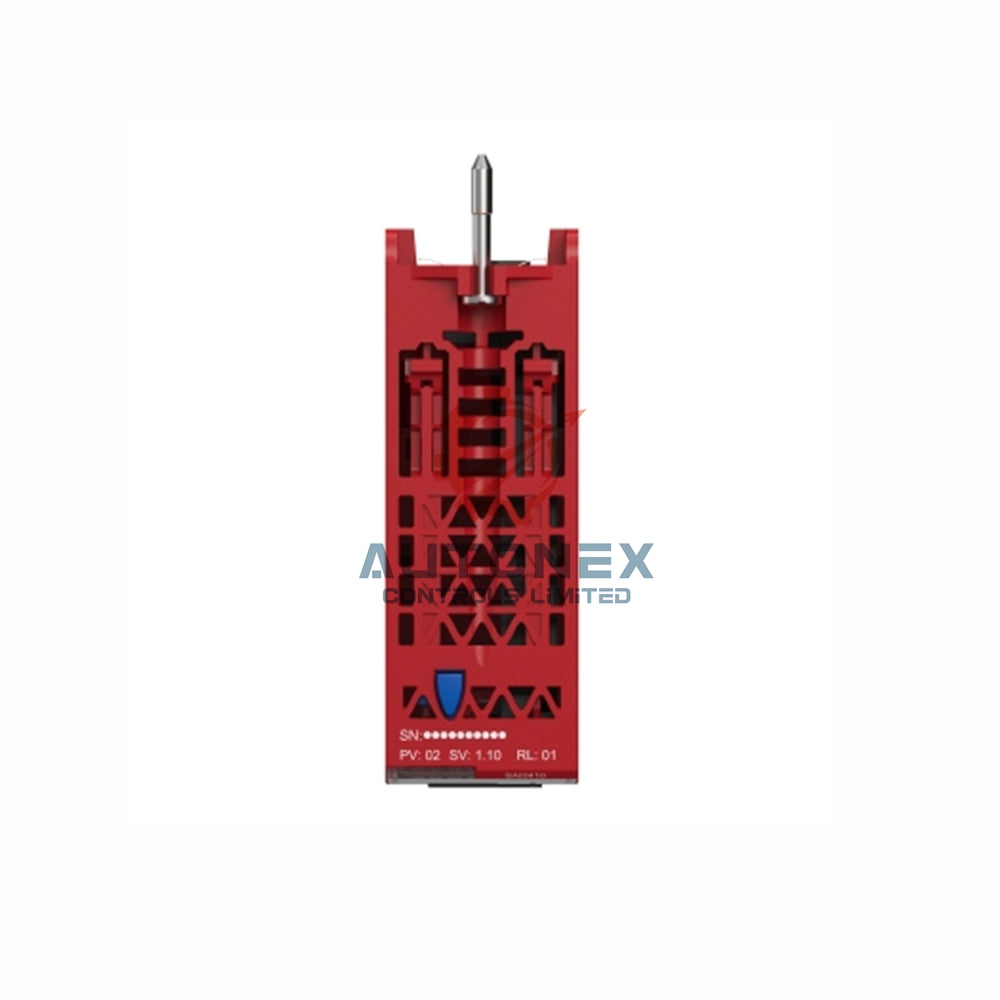

BMXSRA0405 Schneider Modicon X80 Safety Relay Output Module

BMXSRA0405 Schneider Modicon X80 Safety Relay Output Module

Key Technical Specifications

• Brand & Model: Schneider Electric BMXSRA0405 belongs to the Modicon X80 product family.
• Discrete Outputs: Provides 4 isolated relay outputs compliant with EN/IEC 61131-2 standards.
• Output Voltage Range: Supports 24 to 240V AC (10 to 264V AC) and 12 to 24V DC (10 to 34V DC).
• Conventional Free Air Thermal Current: Rated at 5 A per output channel.
• Response Time: Delivers 12 ms activation time and 6 ms deactivation time.
• Insulation Resistance: Provides >10 MOhm insulation resistance at 500V DC.
• Power Dissipation & Consumption: Dissipates 3.9 W with typical consumption of 240 mA at 3.3V DC and 130 mA at 24V DC.
• MTBF Reliability: Offers exceptional reliability with 624,000 hours MTBF.
• Minimum Switching Current: Requires 10 mA minimum at 5V DC for reliable switching.
• Maximum Switching Voltage: Supports up to 230V AC switching capability.
• Mechanical Durability: Achieves 10,000,000 mechanical cycles for long service life.
• Electrical Durability: Provides extensive cycle ratings for AC-15, AC-12, DC-13, and DC-12 load categories at various power levels.
• Switching Frequency: Supports up to 50 Hz switching frequency.

Protection & External Component Requirements

• External Short-Circuit Protection: Requires one fast-blow fuse per channel or per group of channels.
• External Overload Protection: Use one fast-blow fuse per channel or per group of channels for overload protection.
• Overvoltage Protection for AC Loads: Use RC circuit or ZNO surge limiter on each AC output.
• Overvoltage Protection for DC Loads: Use discharge diode on each DC output for inductive load protection.
• Recommended Fuse: Install appropriate fast-blow fuses based on connected load specifications.

Environmental & Mechanical Durability

• Operating Temperature: Functions reliably from -25°C to 60°C (-13°F to 140°F).
• Storage Temperature: Withstands -40°C to 85°C (-40°F to 185°F) for long-term storage.
• Humidity & Coatings: Handles 5% to 95% relative humidity at 55°C without condensation and includes conformal coating protection.
• Environmental Resistance: Rated for gas resistant class Gx, 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, and mold growth resistant class 3B2.
• Vibration & Shock: Resists 3 gn vibration and 15 gn shock for robust industrial use.
• Operating Altitude: Supports 0 to 2000 meters normally, with derating up to 5000 meters.
• Dielectric Strength: Provides 2000V AC for 1 minute between output circuits and ground.
• IP Protection: Rated IP20 for protection in control cabinet environments.

Frequently Asked Questions (FAQ)

• Is the BMXSRA0405 a new original module?
  Yes, we supply only brand new and original products directly from authorized sources.
• Do you have this module in stock?
  Yes, we maintain available stock for the Schneider Electric BMXSRA0405. Orders process quickly.
• What is the typical lead time for shipping?
  We ship within 5 days after order confirmation. Expedited options are available upon request.
• Which carriers do you use for delivery?
  We commonly ship via FedEx, UPS, and DHL to ensure reliable and trackable delivery worldwide.
• Can I return the module if it does not meet my needs?
  Yes, we support returns within 30 days of delivery. Please contact us for return authorization.
• What voltage ranges does this relay output module support?
  The BMXSRA0405 supports 24 to 240V AC (10 to 264V AC) and 12 to 24V DC (10 to 34V DC).
• What external protection does this module require?
  It requires fast-blow fuses per channel. For inductive loads, use discharge diodes for DC or RC circuits for AC.
• What is the response time for relay outputs?
  The module provides 12 ms activation time and 6 ms deactivation tim
• What is the maximum current per output channel?
  Each relay channel supports up to 5 A conventional free air thermal current.
• Is this module suitable for switching inductive loads?
  Yes, with appropriate external protection components like discharge diodes or RC circuits.
