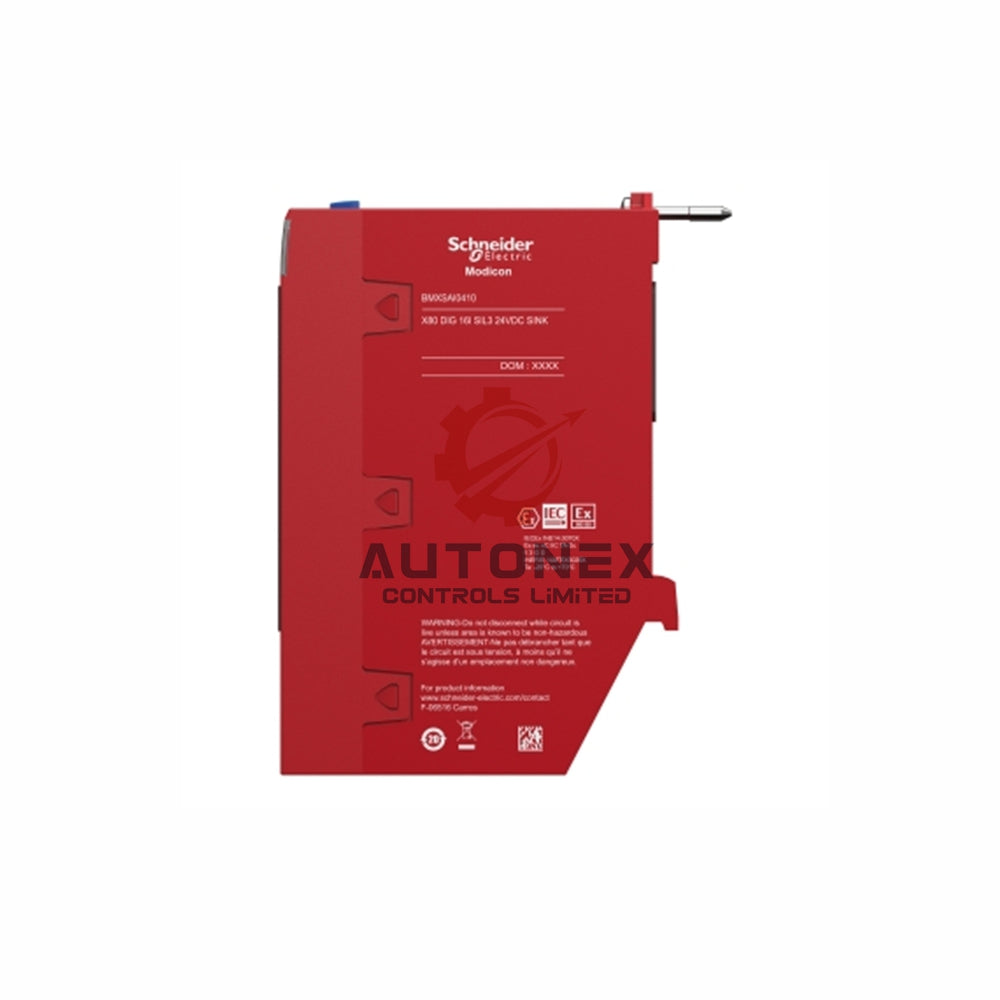

BMXSAI0410 Schneider Modicon X80 Safety Analog Input Module

BMXSAI0410 Schneider Modicon X80 Safety Analog Input Module

Key Technical Specifications

• Brand & Model: Schneider Electric BMXSAI0410 belongs to the Modicon X80 product family.
• Analog Inputs: Provides 4 isolated high-level analog inputs for 4 to 20 mA current signals.
• Analog to Digital Conversion: Features 16-bit conversion with 13-bit effective resolution (0 to 12500 counts).
• Input Impedance: Offers 286 Ohm input impedance with 0.1% precision internal conversion resistor.
• Measurement Range: Supports 4 to 20 mA with overload protection up to 25 mA.
• Measurement Resolution: Achieves 2 µA resolution for precise current measurement.
• Nominal Scan Time: Completes full scan of 4 channels in 6 ms.
• Measurement Error: Delivers ≤ 0.3% of full scale error across -25°C to 60°C operating range.
• Temperature Drift: Maintains 30 ppm/°C stability for reliable measurement.
• Digital Value Format: Provides ±32000 in user scale or ±10000 by default scaling.
• Isolation Voltage: Provides 500V DC between channels, 1500V DC between channels and ground, and 1500V DC between channels and bus.
• Minimum Crosstalk Attenuation: Achieves 120 dB for minimal channel interference.
• Filter Type: Utilizes second-order digital filtering for noise rejection.
• MTBF Reliability: Offers exceptional reliability with 463,000 hours MTBF.
• Current Consumption: Consumes 200 mA at 3.3V DC and 115 mA at 24V DC.

Environmental & Mechanical Durability

• Operating Temperature: Functions reliably from -25°C to 60°C (-13°F to 140°F).
• Storage Temperature: Withstands -40°C to 85°C (-40°F to 185°F) for long-term storage.
• Humidity & Coatings: Handles 5% to 95% relative humidity at 55°C without condensation and includes conformal coating protection.
• Environmental Resistance: Rated for gas resistant class Gx, 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, and mold growth resistant class 3B2.
• Vibration & Shock: Resists 3 gn vibration and 15 gn shock for robust industrial use.
• Operating Altitude: Supports 0 to 2000 meters normally, with derating up to 5000 meters.
• IP Protection: Rated IP20 for protection in control cabinet environments.
• Product Certifications: Compliant with TÜV, CSA, EAC, RCM, UL, ATEX, and Merchant Navy standards.
• Standards: Meets CSA C22.2 No 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201, and UL 61010-2-201.

Status Indicators & Diagnostics

• LED Indicators: Features a green RUN LED for module operating status.
• Per-Channel LEDs: Includes one green LED per channel for channel-specific diagnostics.
• Error Indications: Provides a red ERR LED for module error and a red I/O LED for I/O fault alerts.

Frequently Asked Questions (FAQ)

• Is the BMXSAI0410 a new original module?
  Yes, we supply only brand new and original products directly from authorized sources.
• Do you have this module in stock?
  Yes, we maintain available stock for the Schneider Electric BMXSAI0410. Orders process quickly.
• What is the typical lead time for shipping?
  We ship within 5 days after order confirmation. Expedited options are available upon request.
• Which carriers do you use for delivery?
  We commonly ship via FedEx, UPS, and DHL to ensure reliable and trackable delivery worldwide.
• Can I return the module if it does not meet my needs?
  Yes, we support returns within 30 days of delivery. Please contact us for return authorization.
• What analog input signal does this module accept?
  The BMXSAI0410 accepts 4 to 20 mA current signals from transmitters and sensors.
• What is the scan time for all 4 channels?
  The module completes a full scan of all 4 channels in just 6 ms.
• What is the measurement resolution?
  The module provides 2 µA resolution with 16-bit analog to digital conversion.
• Are the input channels isolated from each other?
  Yes, the module provides 500V DC isolation between channels and 1500V DC isolation to ground and bus.
• What overload protection does this module have?
  It permits up to 25 mA overload on 4 to 20 mA inputs without damage.
• What is the measurement accuracy?
  Accuracy is ≤ 0.3% of full scale across the entire operating temperature range.
