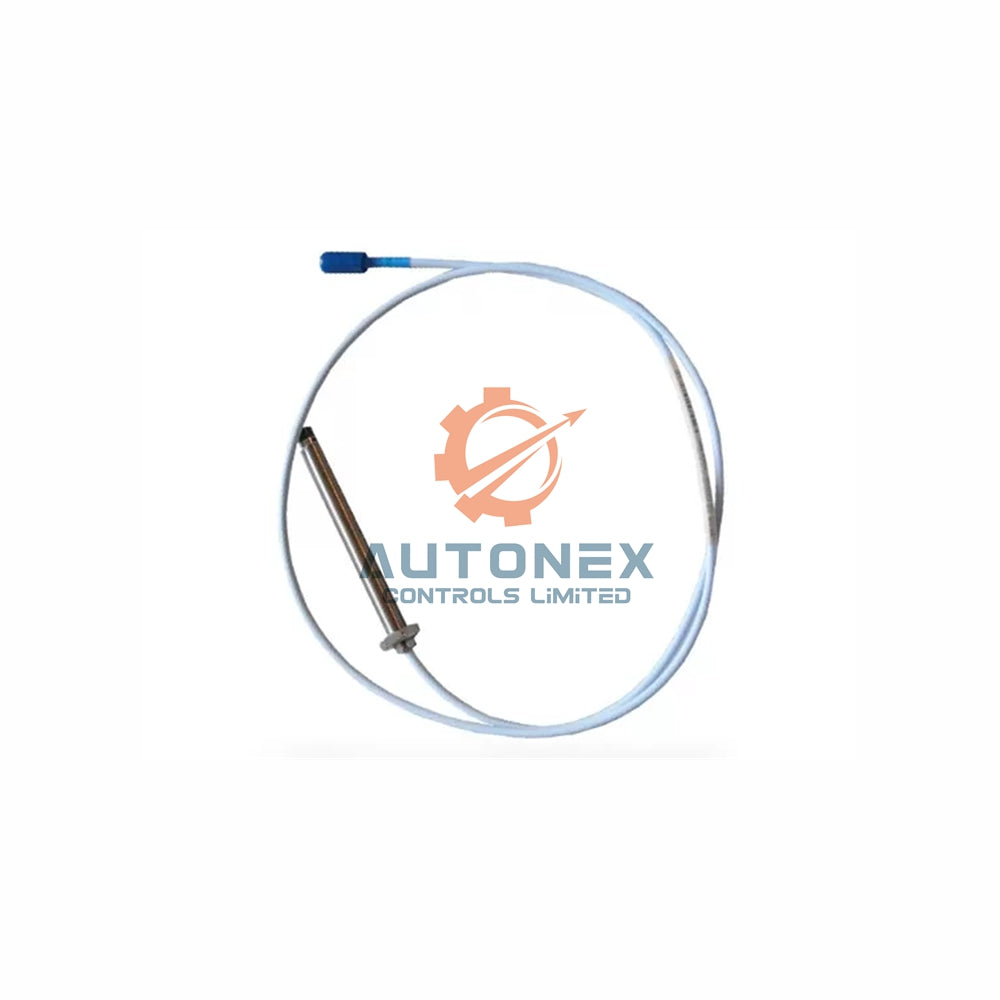

Bently Nevada 3300 XL 25mm Proximity Probe: Precision in Extreme Conditions

Core Product Specifications

• Brand & Model: Bently Nevada 330851-02-000-060-90-00-CN.
• Measurement Range: Designed for a standard 25mm gap measurement.
• Electrical Accuracy: Features a precise coil resistance of 8.8Ω ±1.1Ω.
• Integrated Cable: Comes with a 9-meter 75Ω Triaxial FluidLoc™ cable (no armor).
• Temperature Performance: Operates from -35°C to +200°C continuously, with short-term tolerance to 250°C.

Model Suffix Explained

• Code "02": Indicates an M30x2 threaded probe case for secure mounting.
• Code "060": Specifies the probe's 60mm overall body length.
• Code "00": Denotes that the unit has no external stainless steel armor.
• Code "CN": Confirms inclusion of necessary country-specific certifications.

Durability and Design Features

• Sensing Tip: Utilizes a PEEK (Polyether Ether Ketone) tip for excellent wear and chemical resistance.
• Case Material: Constructed from AISI 304 Stainless Steel for superior corrosion protection.
• System Compatibility: Serves as a direct upgrade replacement for older 7200 series and DE Integral system probes.

Installation and Mounting Instructions

• Maximum Torque: Apply no more than 68 N·m (50 ft·lb) during installation.
• Probe Weight: The unarmored version weighs approximately 230 grams.
• Mounting Thread: Install using the standard M30x2 threaded connection.
• Safety Integration: Compatible with intrinsic safety barriers (refer to Bently Nevada drawing 141092).

Global Certifications and Safety

• Electromagnetic Compliance: Meets FCC and RoHS standards for electronic equipment.
• Maritime Approval: Certified for use in marine applications per ABS Maritime rules.
• Hazardous Area Safety: Approved for use in Explosion-proof Zone 0 and Zone 2 environments.

Packaging and Delivery Information

• Packaging Contents: Includes one 330851-02 probe with a factory-attached 9m cable.
• Shipping Services: We deliver internationally via DHL, FedEx, and UPS.
• Processing Time: In-stock items are packed and shipped within 5 working days.

Frequently Asked Questions (FAQ)

• Q: Is this Bently Nevada probe brand new and authentic?
  A: Absolutely. We guarantee every 330851-02-000-060-90-00-CN is new, original, and authentic.
• Q: What does the "00" suffix mean for the armor?
  A: The "00" suffix means this specific probe model is supplied without a stainless steel armored jacket on the cable.
• Q: Can this sensor withstand steam turbine temperatures?
  A: Yes, its rating of 200°C continuous operation makes it ideal for steam turbine monitoring and other hot machinery.
• Q: What is your return policy for this item?
  A: We offer a 30-day return guarantee for all unused products in their original packaging.
• Q: How long is the cable, and is it replaceable?
  A: This model has a fixed, 9-meter (30ft) FluidLoc™ triaxial cable. The cable is integrated and not user-replaceable.

Access the comprehensive system manual for wiring and setup details here: 3300 XL Proximity Transducer System.pdf

For product inquiries, pricing, or to order the Bently Nevada 330851-02 probe, reach out to our team.
