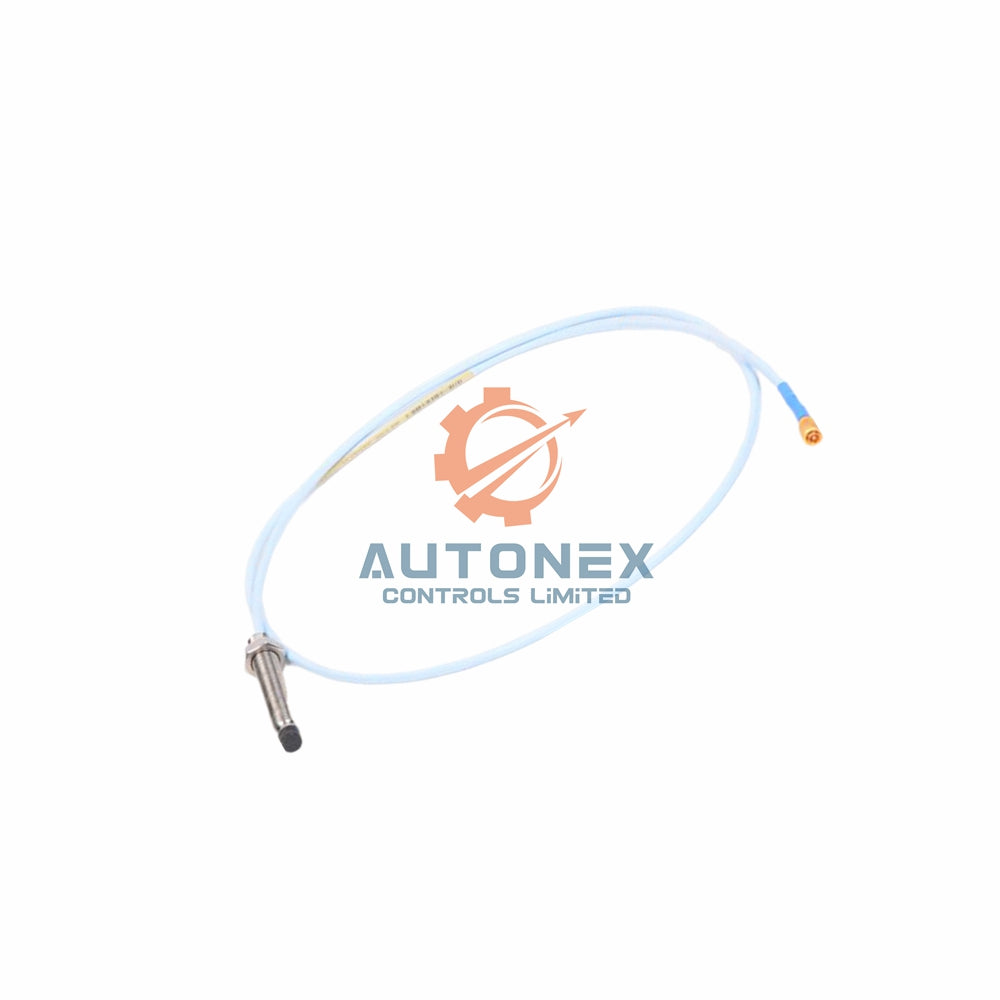

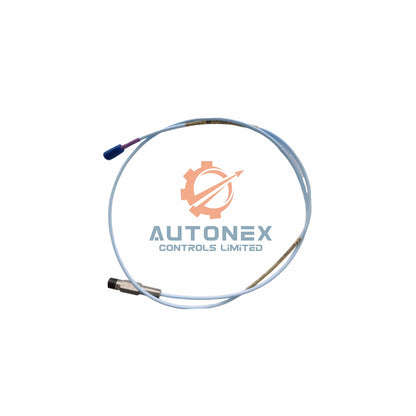

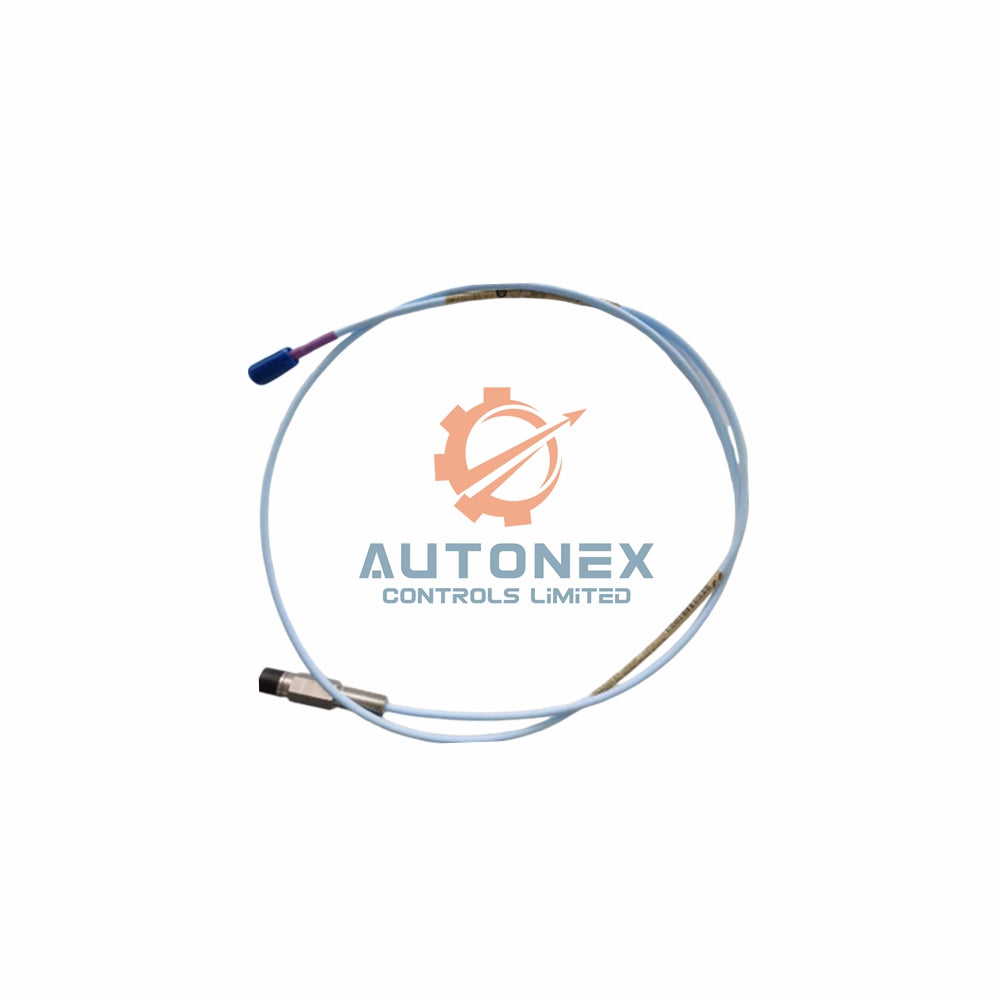

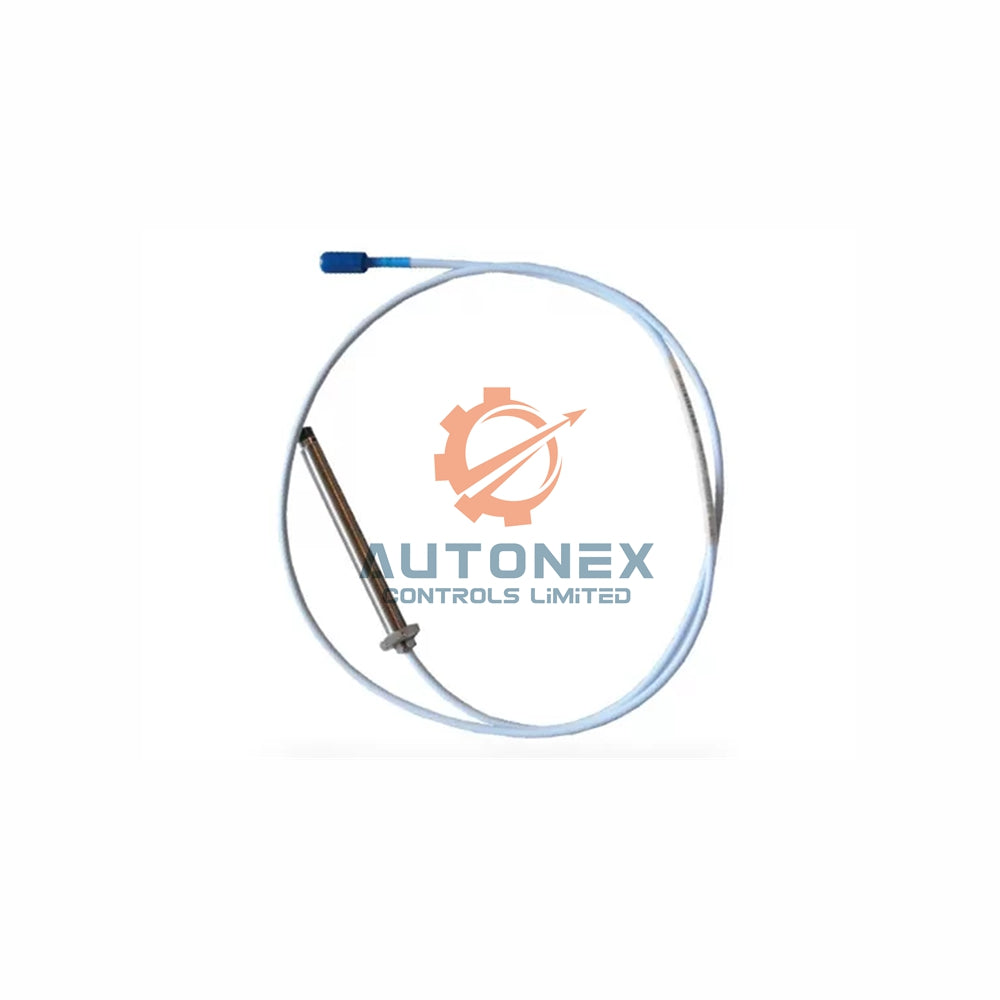

Bently Nevada 330903-00-03-05-12-00 | 3300 NSv Proximity Probe

Bently Nevada 3300 NSv Proximity Probe – Model 330903-00-03-05-12-00

Complete Suffix Breakdown – 330903-00-03-05-12-00

• 330903 = Base model – 3300 NSv Proximity Probe
• -00- = Unthreaded length: 0 mm
• -03- = Overall case length: 30 mm
• 05 = Total cable length: 0.5 m (20 in)
• 12 = Connector type: Miniature Coaxial ClickLoc with FluidLoc cable
• -00 = No agency approval required

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330903-00-03-05-12-00 (3300 NSv Series)
• Linear measurement range: 0.25 to 1.75 mm (10 to 70 mils)
• Factory recommended gap: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm ±12.5%/-20%
• System frequency response: 0 to 10 kHz with cable up to 305 m
• Operating temperature: -52°C to +177°C (-62°F to +351°F)
• Probe tip material: Polyphenylene Sulfide (PPS)
• Case material: Stainless steel AISI 304
• Maximum installation torque: 0.56 N·m (5 in·lb)
• Pressure sealing: Viton O-ring (not pressure tested)

Frequently Asked Questions

• Is this 330903 probe brand new or refurbished?
  We supply 100% genuine, factory-new Bently Nevada 3300 NSv probes. No used or refurbished stock.
• What is the difference between -00- and other unthreaded options?
  The -00- suffix indicates zero unthreaded length, meaning threads start immediately at the probe tip.
• Can I extend the 0.5 m cable on this model?
  Yes, Bently Nevada system supports up to 305 m total cable with proper driver.
• Does this probe work with 3300 XL monitor systems?
  Yes, 330903-00-03-05-12-00 is fully compatible with 3300 XL NSv monitors and drivers.
• Is the probe tip replaceable if damaged?
  The tip is permanently molded; replace the entire probe to maintain accuracy.
• What tools do I need for ClickLoc connector installation?
  ClickLoc requires no tools – push connector until it clicks, then pull gently to confirm lock.

Download the official Bently Nevada 3300 XL NSv datasheet for full specifications and system drawings:
3300 XL NSv Proximity Transducer System Datasheet – 147385 (PDF)
