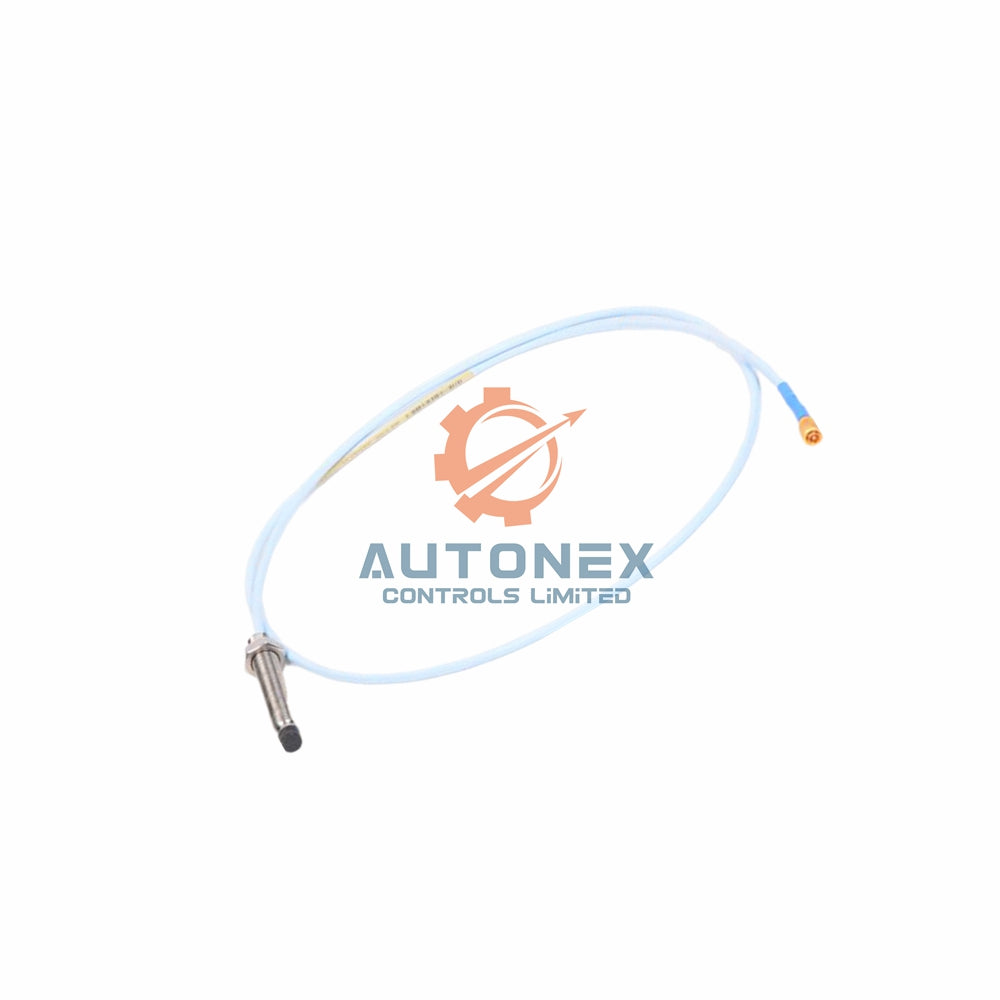

Bently Nevada 330903-00-02-10-11-00 3300 NSv Proximity Probe

Bently Nevada 330903-00-02-10-11-00 3300 NSv Proximity Probe Overview

Key Technical Specifications

• Brand: Bently Nevada, a leading name in machinery protection.
• Model / Part Number: 330903-00-02-10-11-00 belongs to the 3300 NSv family.
• Thread & Case: It features an M8x1 thread with a 20 mm unthreaded case length and AISI 304 stainless steel construction.
• Cable Assembly: The unit includes a 1.0 meter (39 inch) coaxial cable with FEP insulation and a ClickLoc miniature connector with FluidLoc protection.
• Electrical Output: It provides a negative voltage output from -1 to -13 Vdc, with a recommended gap of 1.0 mm (40 mils).
• Measurement Range: Its linear range spans 0.25 mm to 1.75 mm (10 to 70 mils), ensuring accurate proximity sensing.
• Sensitivity: The scale factor is 7.87 V/mm (200 mV/mil) with a tolerance of +12.5%/-20%.
• Linearity: Deviation from straight line is only ±0.06 mm (±2.3 mils), providing high-fidelity readings.
• Frequency Response: It operates from 0 to 10 kHz (±3 dB typical), suitable for dynamic vibration analysis.
• Environmental Tolerance: The probe withstands -52°C to +177°C operating temperatures and uses a Viton O-ring for pressure sealing.
• Target & Mounting: Minimum target diameter is 8.9 mm; recommended 13 mm. Apply finger-tight torque (max 5 in·lb).
• Durability: PPS probe tip material and a minimum bend radius of 25.4 mm ensure long service life.

Frequently Asked Questions (FAQ)

• Q: Is the Bently Nevada 330903-00-02-10-11-00 brand new and original?
  A: Yes, we supply only genuine Bently Nevada parts. This 3300 NSv probe is factory-new and never refurbished.
• Q: What is the availability of this 330903-00-02-10-11-00 model?
  A: We maintain ample stock of the 330903-00-02-10-11-00 and ship most orders within five working days.
• Q: Which shipping carriers do you use for this proximity probe?
  A: We dispatch via DHL, FedEx, or UPS – you can choose your preferred courier at checkout.
• Q: Can I return this 3300 NSv probe if it doesnʼt fit my application?
  A: Absolutely. We offer a 30-day return privilege on unused items in original condition.
• Q: Does this 1.0 meter cable length include the connector?
  A: Yes, the total cable length of 1.0 meter includes the integral ClickLoc connector and FluidLoc protector.
• Q: What is the minimum target size for accurate measurement?
  A: The probe requires a minimum target diameter of 8.9 mm; we recommend 13 mm for best performance.

Technical Documentation

• For detailed installation and system integration, please download the official datasheet: 3300 XL NSv Proximity Transducer System Datasheet - 147385.pdf.
