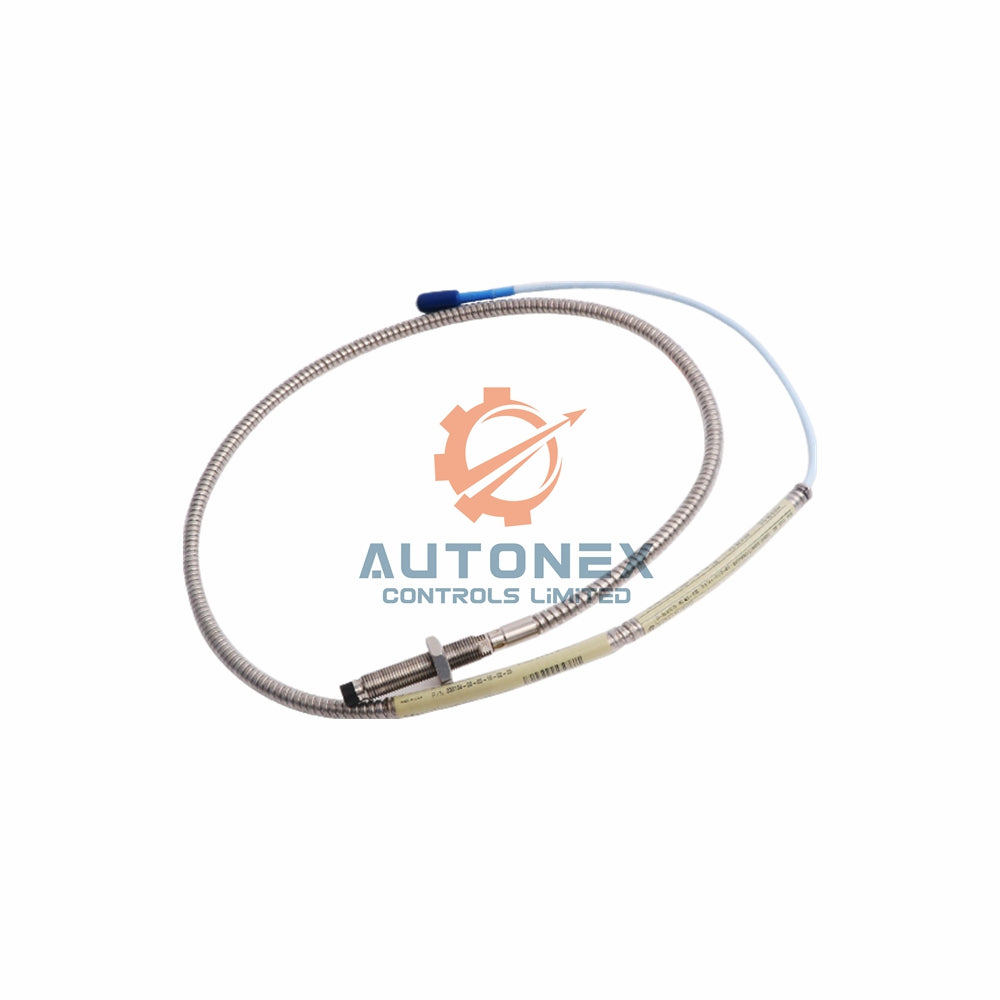

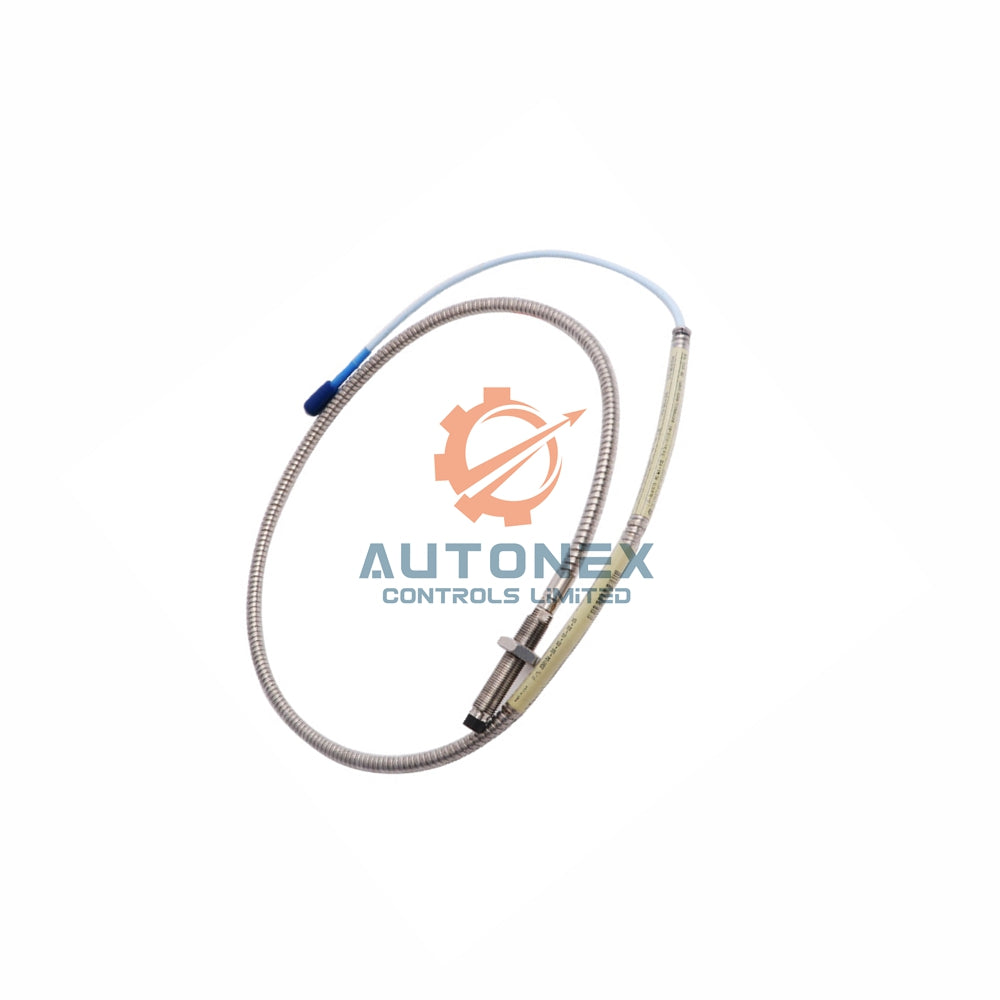

Bently Nevada 330102-00-68-05-02-05 - Proximity Armored Probes

Bently Nevada 3300 XL 8mm Proximity Probe

Primary Technical Specifications

• Brand & Manufacturer: Bently Nevada
• Model Number: 330102-00-68-05-02-05
• Measurement Range: 2mm (80 mils) peak-to-peak, 0.25mm to 2.3mm linear range
• Output Signal & Voltage: -1V to -17V DC, ratiometric to supply
• Probe Tip Material: Durable PPS (Polyphenylene Sulfide) for wear resistance
• Operating Temp Range: -62°F to +500°F (-52°C to +260°C)
• Housing Material: Corrosion-resistant stainless steel body
• Integral Cable: 1.6 feet (0.5 meters) of shielded cable

Model Number Decoder

• 00: Specifies no unthreaded (smooth) body section.
• 68: Indicates a total case length of 6.8 inches.
• 05: Signifies intrinsic safety and explosion-proof certification.

Standout Features

• Engineered with an intrinsically safe, explosion-proof design for Zone 0/1 hazardous locations.
• Maintains accuracy across an exceptionally wide temperature spectrum.
• The stainless steel housing and PPS tip ensure maximum durability against chemicals and physical stress.
• Carries comprehensive global certifications including ATEX, IECEx, and CSA for worldwide compliance.
• Provides excellent signal integrity and noise rejection in electrically noisy industrial environments.

Installation & Setup Guide

• Use only high-quality, double-shielded coaxial cable for extensions to prevent signal loss.
• Set the initial air gap (probe to target) to 50 mils (1.27 mm) as a standard starting point.
• The maximum recommended extension cable length is 1000 feet (305 meters) for reliable operation.
• For proper mounting, engage threads to a depth of 0.56 inches (14.2 mm) and torque correctly.
• Ensure all connections are secure and the system is properly grounded to minimize electrical interference.

What You Will Receive

• One genuine Bently Nevada 3300 XL 8mm proximity probe, weighing 11.4 ounces.
• One high-performance Viton® O-ring seal for a leak-proof installation.
• Every item is 100% original, brand new, and in sealed factory condition.
• We ship all orders promptly using global carriers like DHL, FedEx, or UPS.

Frequently Asked Questions

• Q: Is this the genuine Bently Nevada product?
  A: Absolutely. The 330102-00-68-05-02-05 is authentic Bently Nevada stock, guaranteed original.
• Q: What is the linear measurement range of this probe?
  A: The probe offers a usable linear range from 0.25 mm up to 2.3 mm from the sensing tip.
• Q: Do you have this model in stock ready to ship?
  A: Yes, we maintain ready stock and process shipments within 5 business days of order confirmation.
• Q: What safety certifications does this sensor hold?
  A: It is approved for AEx/Ex ia IIC (Zone 0), AEx/Ex nA (Zone 2), and carries ATEX/IECEx/CSA marks.
• Q: What is your return policy for this item?
  A: We offer a straightforward 30-day return policy from the date of delivery for your confidence.

For complete wiring diagrams, performance curves, and mechanical dimensions, access the official technical document. Download the Full 3300 XL 8mm Proximity Transducer System Datasheet PDF Here.
