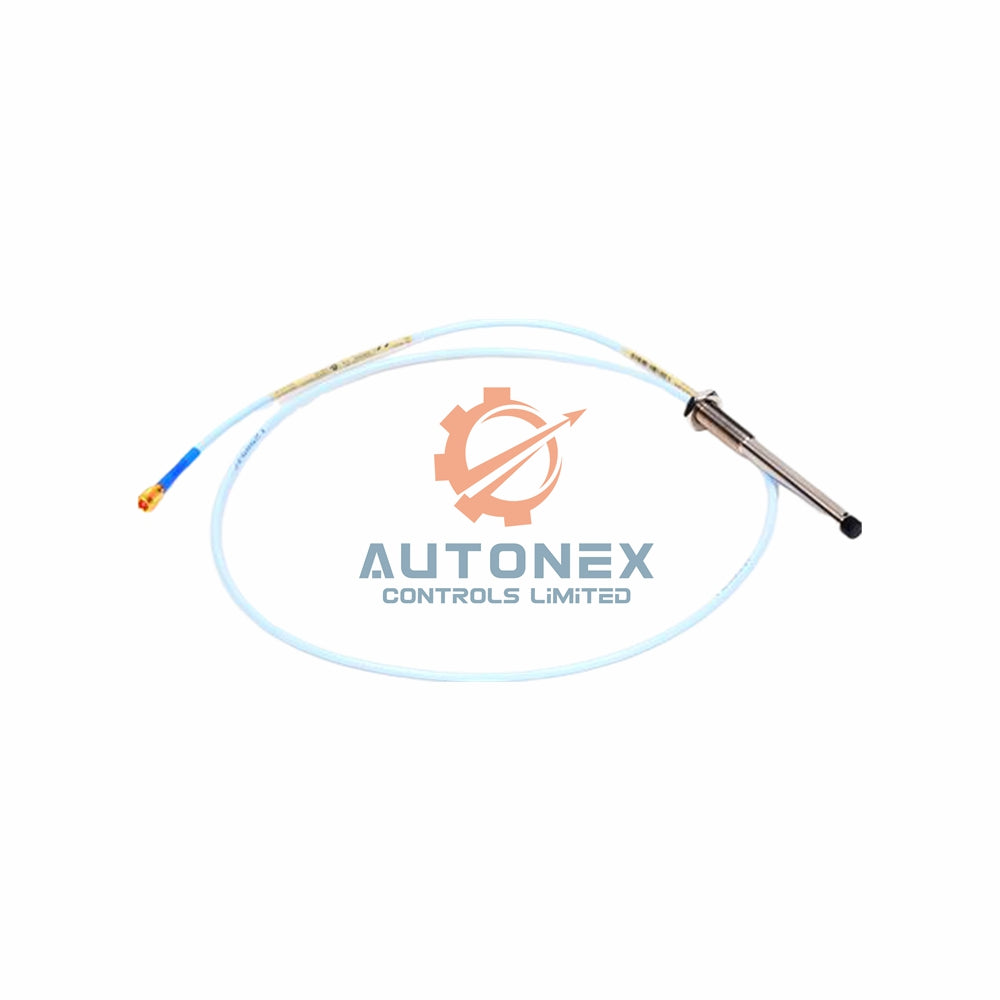

330903-00-02-70-11-05 Probe | New Original Bently Nevada

330903-00-02-70-11-05 3300 NSv Proximity Probes Product Overview

Key Technical Specifications

• Brand & Model: Bently Nevada 330903-00-02-70-11-05 from the 3300 NSv Proximity Probes family.
• Linear Range: 1.5 mm (60 mils) starting from 0.25 mm (10 mils) off target.
• Recommended Gap Setting: 1.0 mm (40 mils) for optimal linear performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical across 305 m (1000 ft) field wiring.
• Probe DC Resistance (RPROBE): 5.9 ± 0.9 ohms for this 7.0-meter probe length.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS) for enhanced chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable Type: 75 Ω coaxial with FEP insulation; total length at 7.0 meters.
• Connector Type: Miniature coaxial ClickLoc connector with connector protector and FluidLoc cable.
• Agency Approval: Option 05 provides Multiple Approvals for global compliance.
• Minimum Bend Radius: 25.4 mm (1.0 in) even with SST armor.
• Maximum Probe Case Torque: 7.3 N•m (65 in•lb); recommended at 5.1 N•m (45 in•lb).
• Thread Engagement Length: M8x1 probe case allows up to 12 mm maximum engagement.
• Pressure Sealing: Viton O-ring design seals differential pressure between tip and case.

Frequently Asked Questions (FAQ)

• Q: Is this item new and original?
  A: Yes, we supply 330903-00-02-70-11-05 as new & original in factory packing.
• Q: What is the shipping time?
  A: We dispatch within 5 days after order confirmation.
• Q: Which carriers do you use?
  A: We ship via FedEx, UPS, and DHL for reliable worldwide delivery.
• Q: Can I return this probe?
  A: Yes, you may return the item within 30 days from delivery.
• Q: How does temperature affect this probe?
  A: The probe operates reliably from -52°C to +177°C without performance loss.
• Q: Is this probe compatible with older 3300 RAM systems?
  A: Yes, it is mechanically and electrically interchangeable with previous 3300 RAM probes.
• Q: What field wiring length works best?
  A: Use up to 305 meters (1000 feet) of three-conductor shielded triad cable for full frequency response.
• Q: What approvals does the -05 option include?
  A: Option 05 provides Multiple Approvals for international industrial requirements.
• Q: What does the connector protector do?
  A: The connector protector adds durability and protects the ClickLoc connection from damage.
