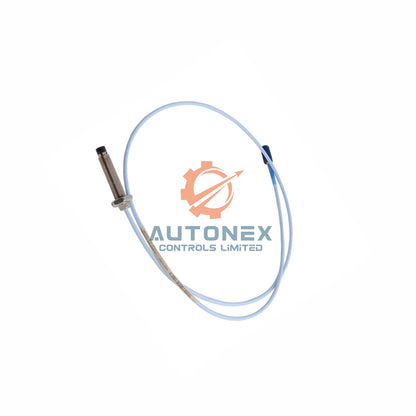

330901-00-12-05-02-00 Bently Nevada Proximity Probe 0.5m Cable

330901-00-12-05-02-00 3300 NSv Proximity Probe – Precision Monitoring for Critical Machinery

Key Features & Technical Specifications

• Measurement Range: 0.25 mm to 2.3 mm (10 mils to 90 mils) – ideal for close clearance monitoring.
• Temperature Tolerance: Operates from -52°C to +177°C (-62°F to +351°F), suitable for extreme environments.
• Material Construction: Stainless Steel AISI 304 case with a PPS (Polyphenylene Sulfide) tip provides exceptional chemical resistance.
• Sealing: Viton O-ring ensures differential pressure sealing, making it reliable in wet or corrosive areas.
• Cable Assembly: 0.5 meter (19.7 inches) 75 Ω coaxial cable with FEP insulation and Miniature ClickLoc connector (type 02).
• Electrical Data: Resistance 4.2 ± 0.5 Ω (for 1.0 m cable; shorter cable yields slightly lower resistance).
• Mechanical Limits: Recommended torque 5.1 N·m (45 in·lb) · Thread engagement limit 0.375 inch (9.52 mm).
• Linearity Error: Less than ±1.5% over calibrated range · Vibration resistance up to 20 g peak.
• Weight: Approximately 14 g to 150 g depending on cable configuration.

Model Number Breakdown: 330901-00-12-05-02-00

• 330901 – Base model: 3300 NSv Proximity Probe, 1/4-28 UNF thread, no armor.
• 00 – No unthreaded extension (standard unthreaded length 2.2 inches / 55.9 mm).
• 12 – Case length: 1.2 inches (30.5 mm).
• 05 – Total cable length: 0.5 meter (19.7 inches).
• 02 – Connector type: Miniature ClickLoc with standard cable.
• 00 – Agency approval option: none (standard multiple international approvals included).

Frequently Asked Questions

• What is the exact linear range of the 330901-00-12-05-02-00? The calibrated linear range is 0.25 mm to 2.3 mm (10 to 90 mils) with less than ±1.5% deviation.
• Can I use this probe with longer cables? Yes, you can extend it using Bently Nevada 3300 XL NSv extension cables (available in 0.5 m, 5.0 m, and 7.0 m). The system must be calibrated with the total cable length.
• What makes this probe suitable for wet areas? The Viton O-ring and stainless steel case provide excellent sealing against moisture, while the PPS tip resists chemical attack.
• Do you ship internationally? Absolutely. We use FedEx, UPS, and DHL for fast, trackable delivery worldwide.
• What is the difference between this model and the 330901-22-10-10-02-05? The main differences are cable length (0.5 m vs 1.0 m) and case length (1.2 inches vs 1.0 inch). Both share the same 3300 NSv platform.
• How do I verify correct installation? After mounting, measure the probe gap voltage with the driver; it should fall within the transducer's linear midpoint range (typically -9 to -11 Vdc).

Technical Documentation

For complete specifications, mounting drawings, and system interconnect details, download the official datasheet: 3300 XL NSv Proximity Transducer System Datasheet – 147385 (PDF).
