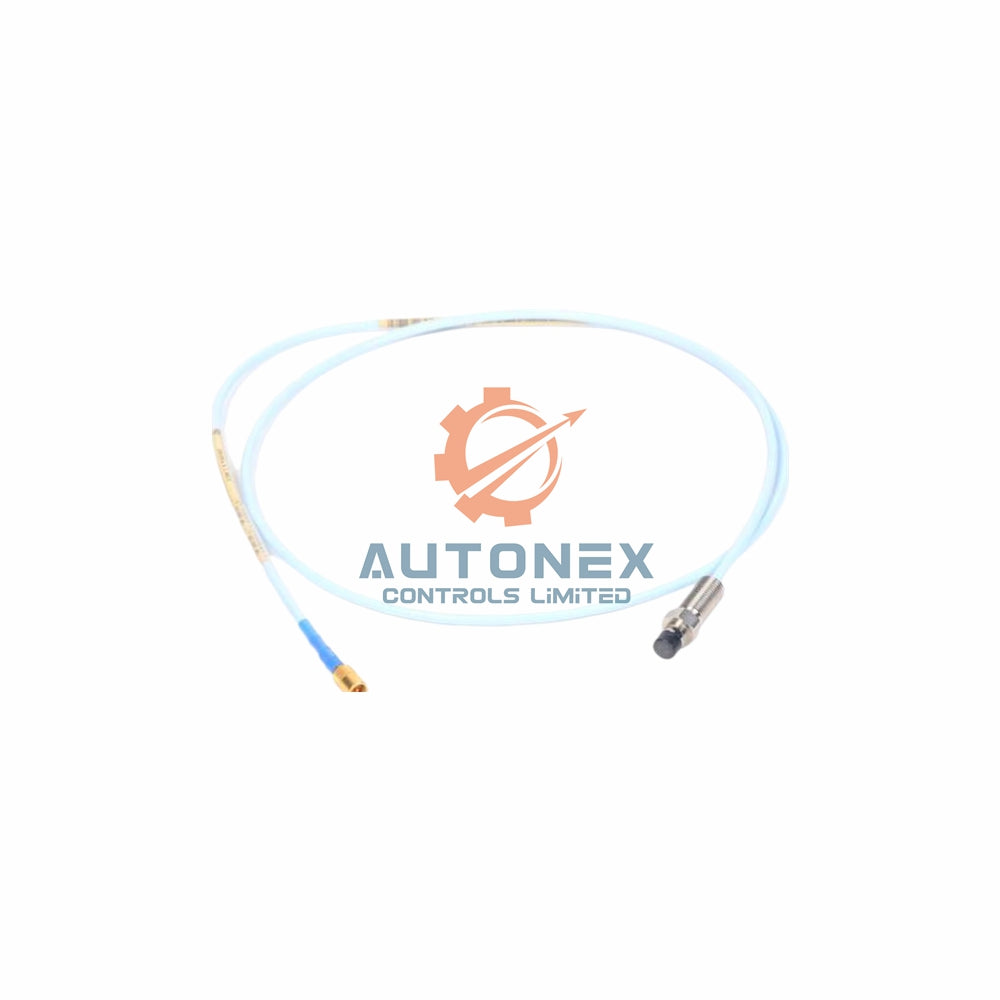

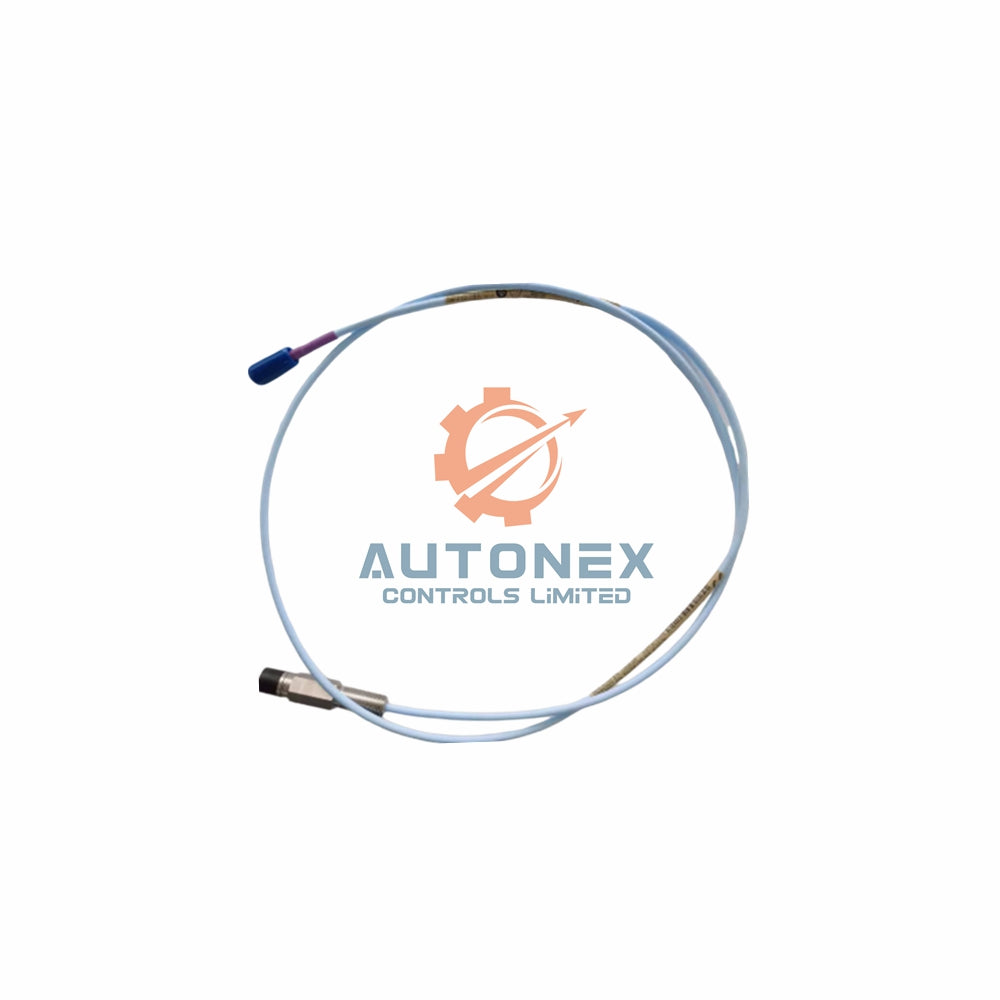

330709-000-080-50-12-00 Bently Nevada 11 mm Probe

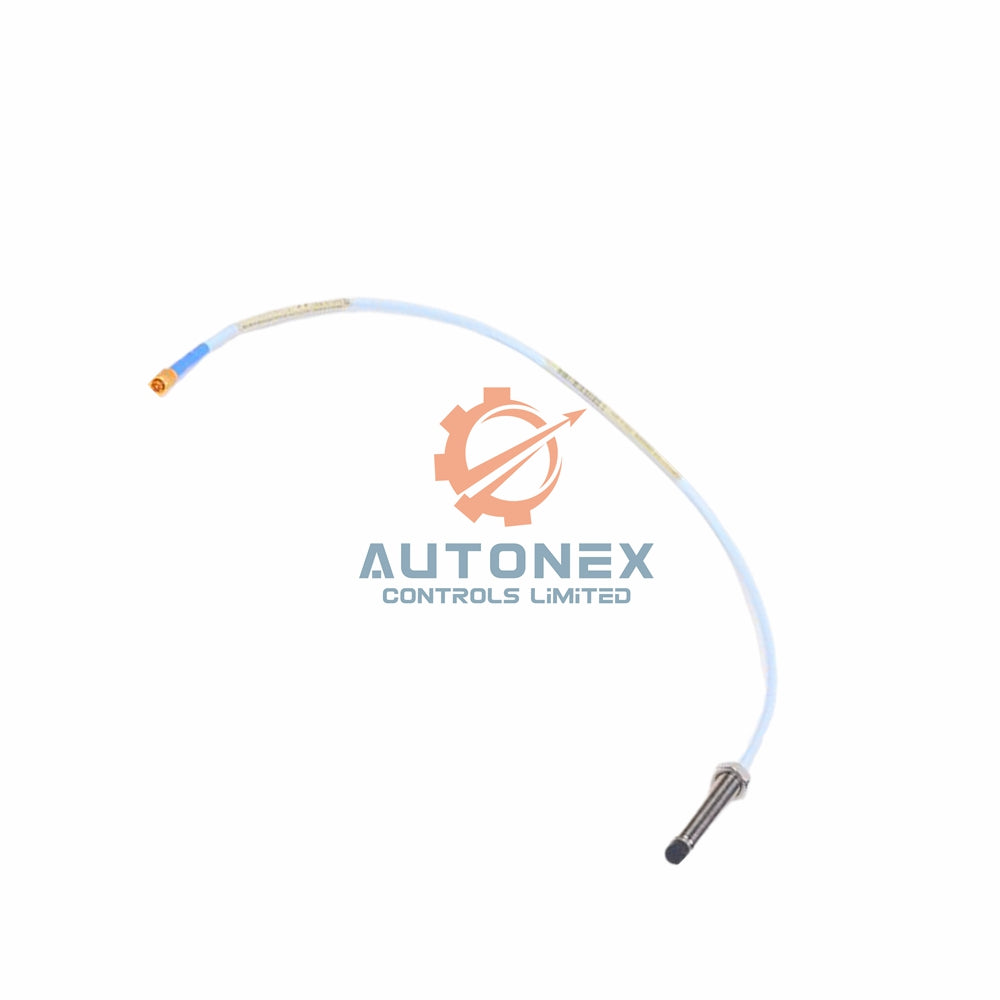

330709 Bently Nevada 3300 XL 11 mm Proximity Probe

• Brand & Series: Bently Nevada, 3300 XL series.
• Model Number: 330709-000-080-50-12-00.
• Probe Type: 11 mm diameter, M16 x 1.5 thread, without armor.
• Unthreaded Length: 0 mm (standard option).
• Overall Case Length: 80 mm.
• Total Probe Length: 5.0 meters (16.4 feet), designed for use with the 5‑meter Proximitor Sensor.
• Cable & Connector: Miniature coaxial ClickLoc connector with FluidLoc cable (option 12).
• Agency Approval: Not required (option 00).

Frequently Asked Questions (FAQ)

• Q: Is the 330709-000-080-50-12-00 compatible with older Proximitor sensors?
  A: This 5‑meter probe specifically works with the 5‑meter Proximitor Sensor. Do not use it with other lengths.
• Q: What is the maximum thread engagement for the M16x1.5 case?
  A: The maximum length of thread engagement is 24 mm. Exceeding this may damage the probe.
• Q: Can I bend the probe cable sharply during installation?
  A: No. Maintain a minimum bend radius of 25.4 mm (1.0 in) to protect the cable and armor.
• Q: Does the probe operate in high-temperature environments?
  A: Yes, up to +177°C continuous, but refer to the temperature classification table for specific EPL ratings.
• Q: What is the resistance tolerance for the 5.0 m probe?
  A: The DC resistance from center to outer conductor is 7.2 ± 0.8 ohms.
• Q: How do I handle the connector torque?
  A: Finger-tight is recommended; do not exceed 0.565 N•m (5 in•lb) to avoid connector damage.
