330702-00-30-50-01-05 Bently Nevada 3300 XL 11 mm Probe

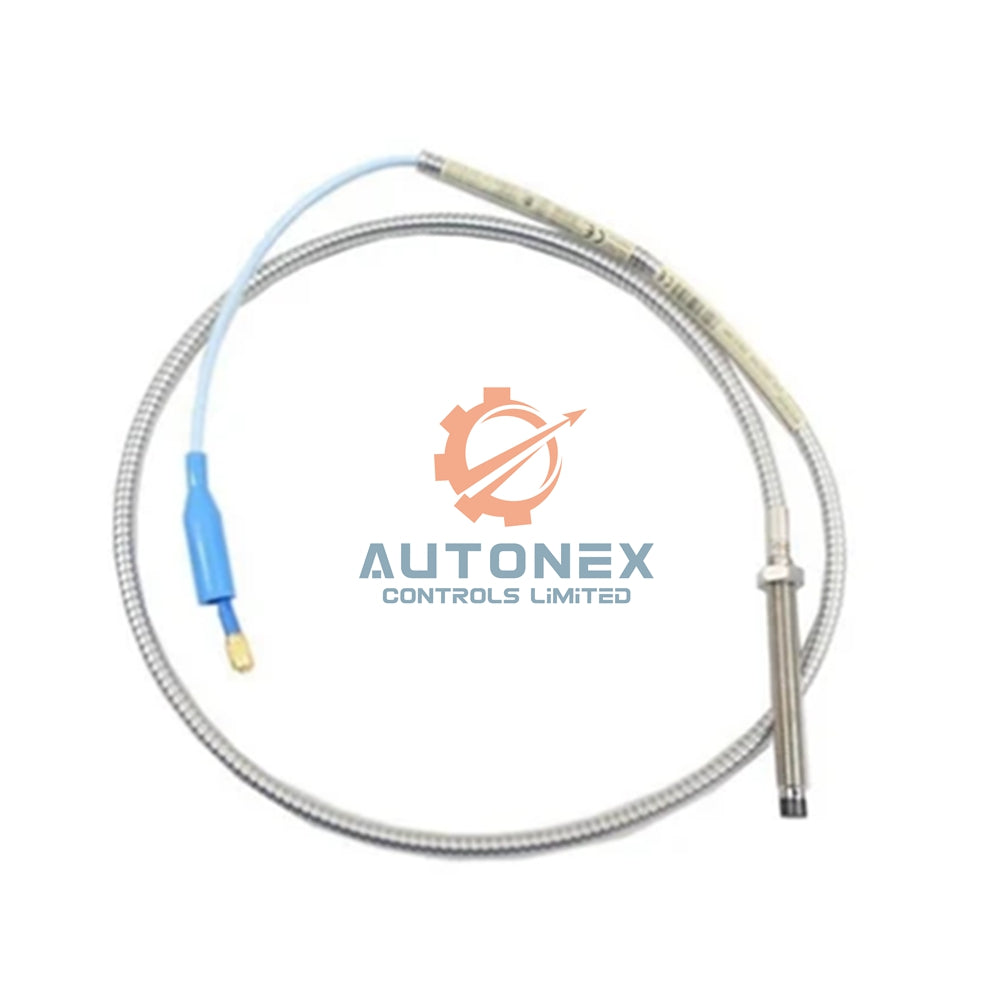

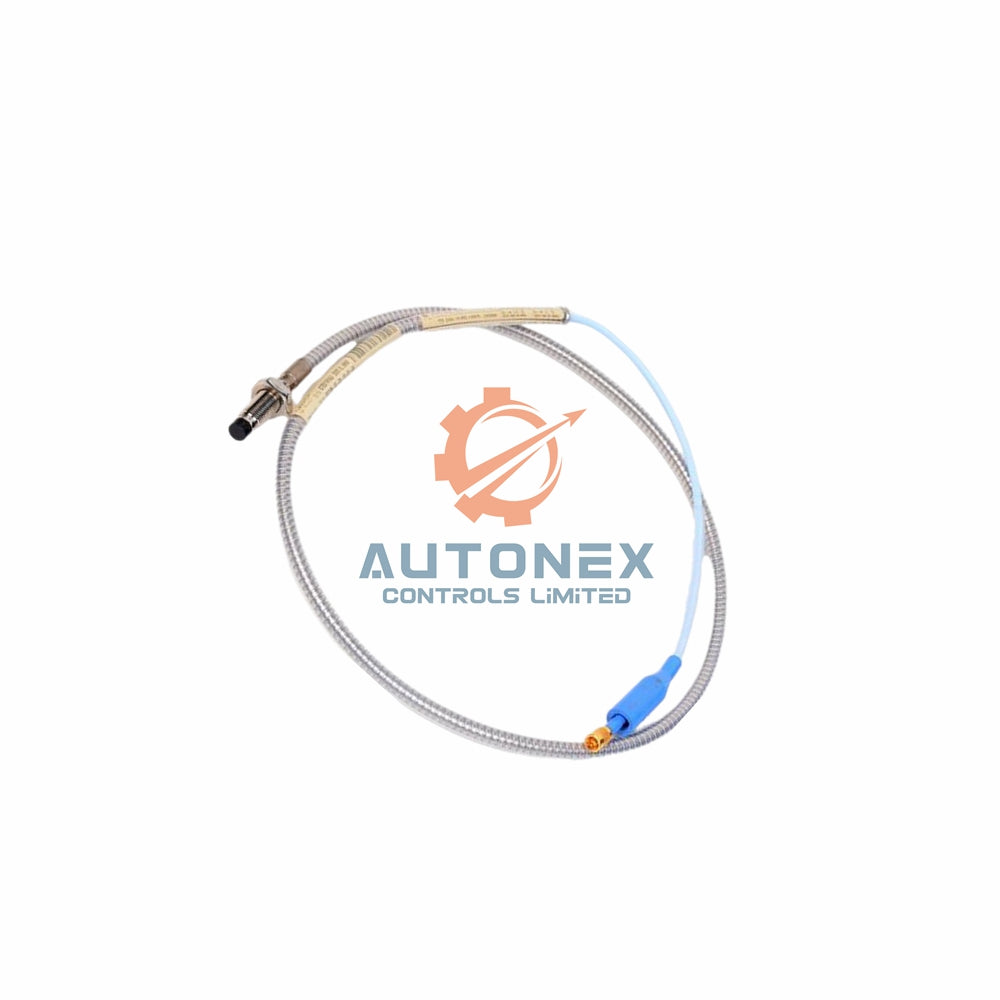

Bently Nevada 3300 XL 11 mm Proximity Probe - 330702-00-30-50-01-05

Key Technical Specifications

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model Number: 330702-00-30-50-01-05.
• Probe Type: 3300 XL 11 mm Probe with armor.
• Thread Size: 1/2-20 UNF.
• Unthreaded Length: 0.0 inches (Option 00).
• Overall Case Length: 3.0 inches (Option 30).
• Total Probe Length: 5.0 meters (Option 50).
• Connector Type: Miniature coaxial ClickLoc with protector, standard cable (Option 01).
• Agency Approval: Multiple Approvals (Option 05).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable Specification: 75 Ω triaxial, FEP insulated.
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F).
• Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F).
• DC Resistance (Center to Outer): 7.2 ± 0.8 ohms.
• Max Thread Engagement: 0.750 inches.
• Recommended Torque (Case): 15.2 N•m (133 in•lb).
• Maximum Torque (Case): 45.2 N•m (400 in•lb).
• Connector Torque (Max): 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch).
• Shipping Weight: 0.17 Kg.

Frequently Asked Questions (FAQ)

• Q: Is this product brand new and original?
  A: Yes, we supply only brand new, original Bently Nevada parts.
• Q: What is the availability and shipping time?
  A: We have this model in stock. We ship within 5 business days via FedEx, UPS, or DHL.
• Q: Can I return this probe if it does not fit?
  A: Yes, we accept returns within 30 days of delivery.
• Q: What is the total length of this probe?
  A: The total length is 5.0 meters (16.4 feet) as indicated by the "50" option.
• Q: Does this probe work with any Proximitor Sensor?
  A: No, this 5.0 meter probe requires the five meter Proximitor Sensor for proper operation.
• Q: Is the probe cable armored?
  A: Yes, this model includes stainless steel armor for cable protection.
• Q: What agency approvals does this probe have?
  A: This version (Option 05) carries Multiple Approvals for various industrial standards.
