330701-00-10-50-01-05 - Bently Nevada 3300 XL 11mm Probe

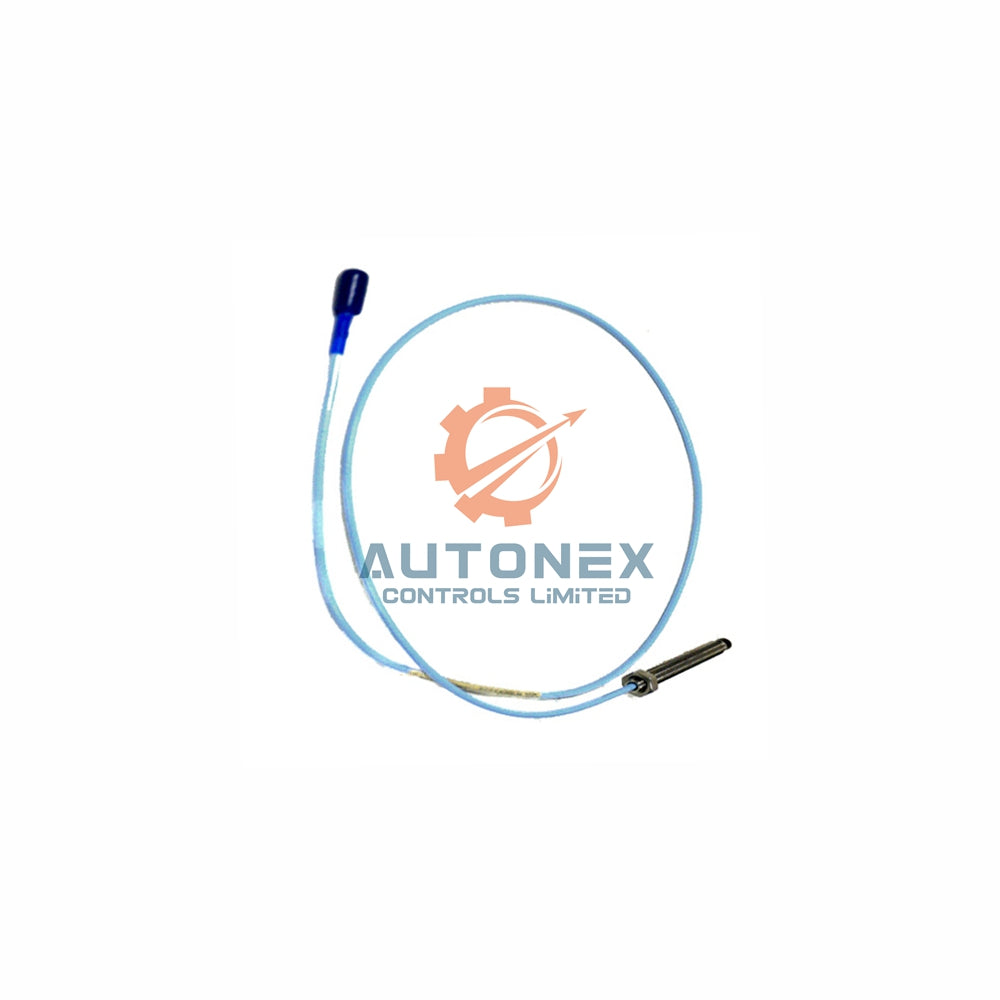

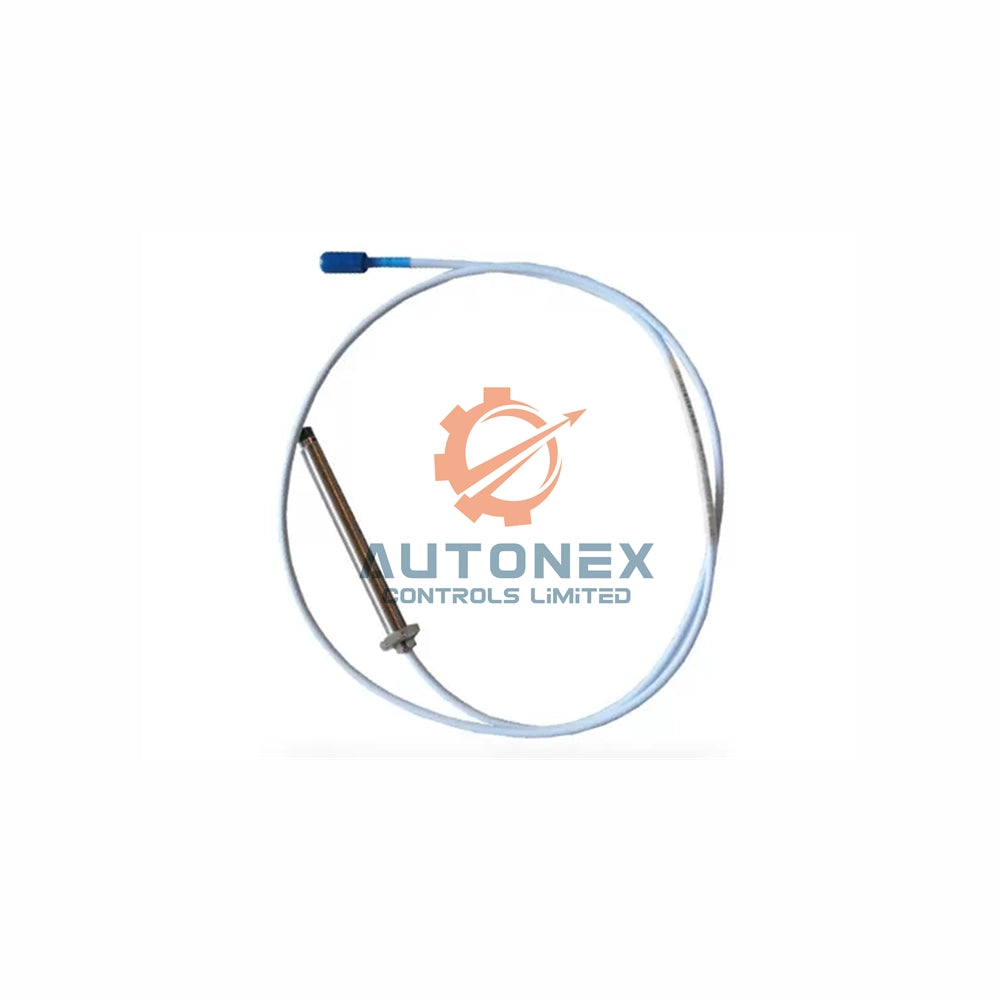

Bently Nevada 330701-00-10-50-01-05 3300 XL 11 mm Proximity Probe

• Probe Type: 3300 XL 11 mm Proximity Probe, 1/2-20 UNF thread, without armor.
• Unthreaded Length: 00 = 0 inches for standard applications.
• Overall Case Length: 10 = 1.0 inch (25.4 mm) case.
• Total Length: 50 = 5.0 meters (16.4 feet) for dedicated 5m Proximitor sensors.
• Connector: 01 = Miniature coaxial ClickLoc with connector protector, standard cable.
• Agency Approval: 05 = Multiple Approvals (ATEX, CSA, FM, etc.).

Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable Specification: 75 Ω triaxial, FEP insulated, 5.0 meters total.
• DC Resistance (RPROBE): 7.2 ± 0.8 ohms (center to outer conductor).
• Operating Temperature: -51°C to +177°C (-60°F to +351°F).
• Storage Temperature: Same as operating range.
• Pressure Seal: Viton O-ring; probes seal differential pressure.
• Maximum Thread Engagement: 0.750 inch for 1/2-20 threads.
• Recommended Torque (Case): 15.2 N•m (133 in•lb).
• Maximum Torque (Case): 45.2 N•m (400 in•lb).
• Connector Torque: Finger tight recommended; max 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without armor.
• Shipping Weight: 0.17 kg (0.37 lb) per probe.

Frequently Asked Questions

• Is this probe genuine and new? Yes, we supply 100% new original Bently Nevada probes.
• Do you have this probe in stock? Yes, we have regular stock of the 330701-00-10-50-01-05.
• How long is the cable? Total length is 5.0 meters (16.4 feet) exactly.
• What is the thread size? 1/2-20 UNF with 0.750 inch max engagement.
• Can I use this with an 8mm Proximitor? No, this 5m probe only works with 5m Proximitor sensors.
• What approvals does it carry? Multiple approvals including ATEX, CSA, and FM (option 05).
• What is the operating temperature? -51°C to +177°C (-60°F to +351°F).
• What is the return policy? We accept returns within 30 days of delivery.
• What is the minimum bend radius? 25.4 mm (1.0 inch) for cable longevity.
