330500-02-CN Bently Nevada Piezo-velocity Sensor M8 Thread

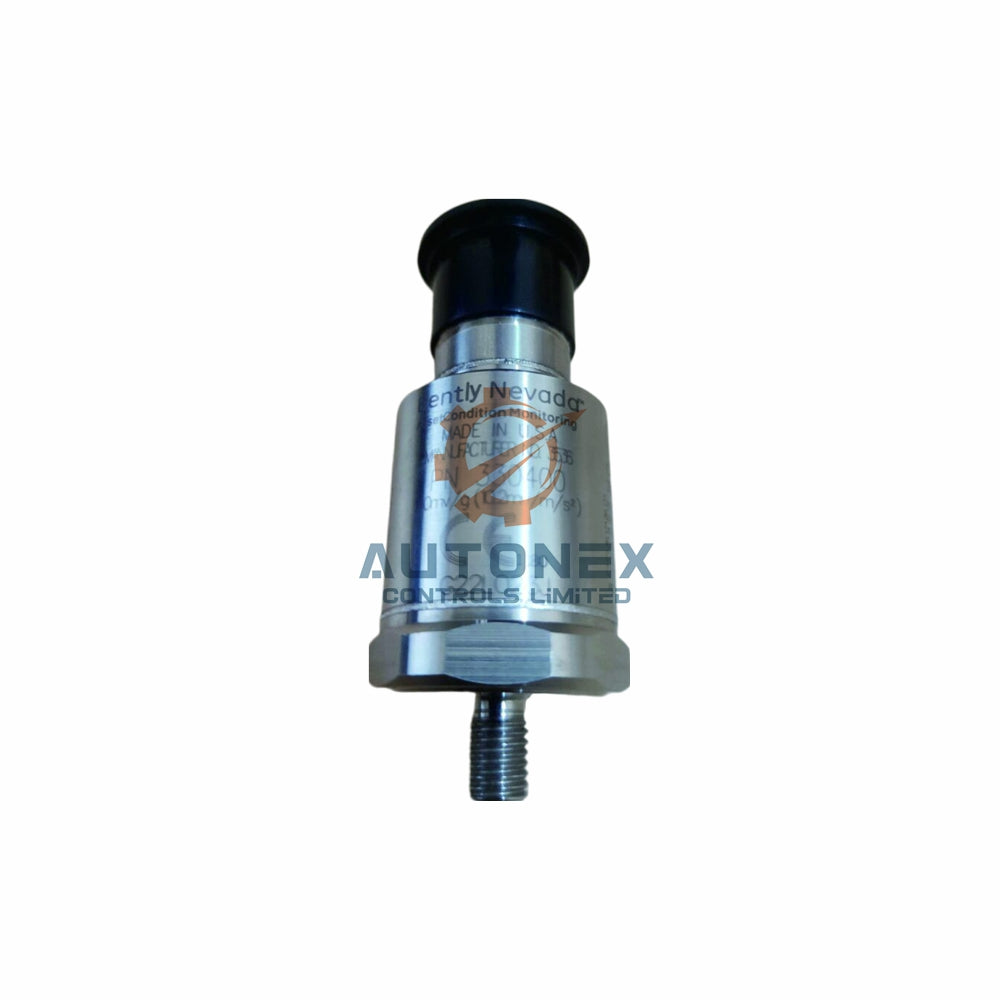

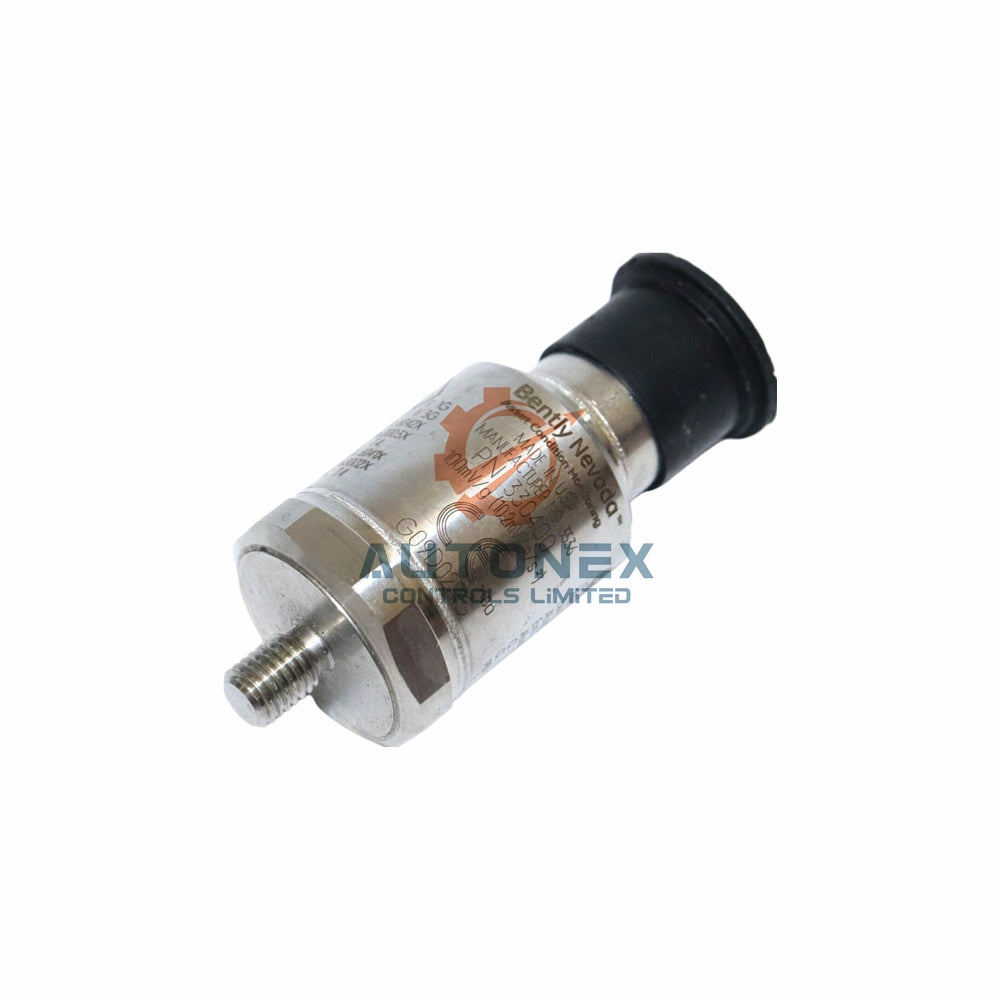

Bently Nevada 330500-02-CN Velomitor Piezo-velocity Sensor

• Manufacturer: Bently Nevada (Made in U.S.A).
• Model: 330500-02-CN Velomitor Piezo-velocity Sensor.
• Mounting Thread: M8 x 1 (Option -02).
• Agency Approval: -CN Country Specific approval.
• Electrical Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5% at +20°C to +30°C, 100 Hz.
• Frequency Response: 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB; 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB.
• Velocity Range: 1270 mm/s (50 in/s) peak.
• Transverse Sensitivity: Less than 5% of sensitivity.
• Amplitude Linearity: ±2% up to 152 mm/s (6 in/s) peak.
• Mounted Resonant Frequency: Greater than 12 kHz.
• Output Bias Voltage: -12 ±3.0 VDC over temperature referenced to Pin A.
• Dynamic Output Impedance: Less than 2400 Ω.
• Broadband Noise Floor (4.5 Hz to 5 kHz): 0.004 mm/s (160 μin/s) rms nominal.
• Grounding: Case isolated.
• Maximum Cable Length: 305 meters (1,000 feet) of cable part number 02173006 with no signal degradation.

Environmental Limits and Durability

• Operating Temperature Range: -55°C to 121°C (-67°F to 250°F).
• Shock Survivability: 5,000 g peak maximum.
• Relative Humidity: Up to 100% non-submerged; case is hermetically sealed.
• Base Strain Sensitivity: 0.005 in/s/mstrain.
• Magnetic Field Susceptibility: <51 min/s/gauss (50 gauss, 50-60Hz).
• Temperature Sensitivity: -14% to +7.5% typical over the operating range.

Physical Specifications and Installation

• Weight: 142 grams (5.0 oz) typical.
• Diameter: 25.3 mm (0.995 in).
• Height: 63.2 mm (2.49 in).
• Case Material: 316L stainless steel.

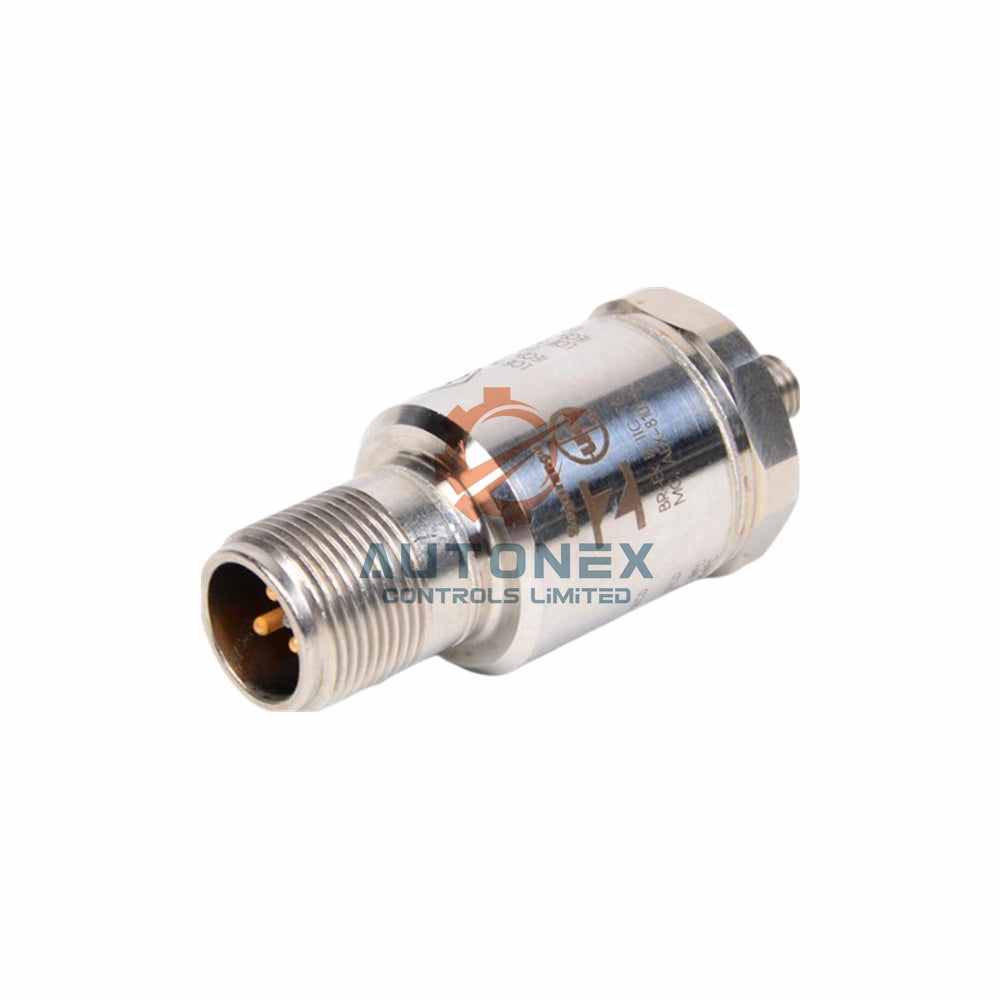

• Connector: 2-pin Mil-C-5015 hermetically sealed with 316L stainless steel shell.
• Mounting Torque: 32-46 kg cm (24-40 in-lb) maximum.
• Polarity: When the sensor case moves toward the connector, Pin A becomes positive with respect to Pin B.
• Recommended cable length (assuming 50g max vibration, 10 kHz frequency, 200 pf/m cable capacitance): 208 ft (63m).

Frequently Asked Questions (FAQ)

• Is this sensor brand new? Yes, we supply a brand new and original 330500-02-CN Velomitor sensor.
• Do you have this item in stock? Yes, we have the 330500 series in stock ready for shipment.
• What is your lead time? We ship within 5 days after order confirmation.
• Which carriers do you use? We use FedEx, UPS, and DHL for fast and reliable delivery.
• Can I return the product? Yes, we support returns within 30 days of receiving the item.
• What is the maximum cable length for this sensor? The sensor allows up to 305 meters of cable without signal loss.
• Does this sensor work in explosive atmospheres? Yes, it carries hazardous area approvals for Class I, II, III locations.
• What is the operating temperature range? The sensor works from -55°C to 121°C (-67°F to 250°F).
