330103-06-20-10-02-00 3300 XL 8 mm Probe Bently Nevada

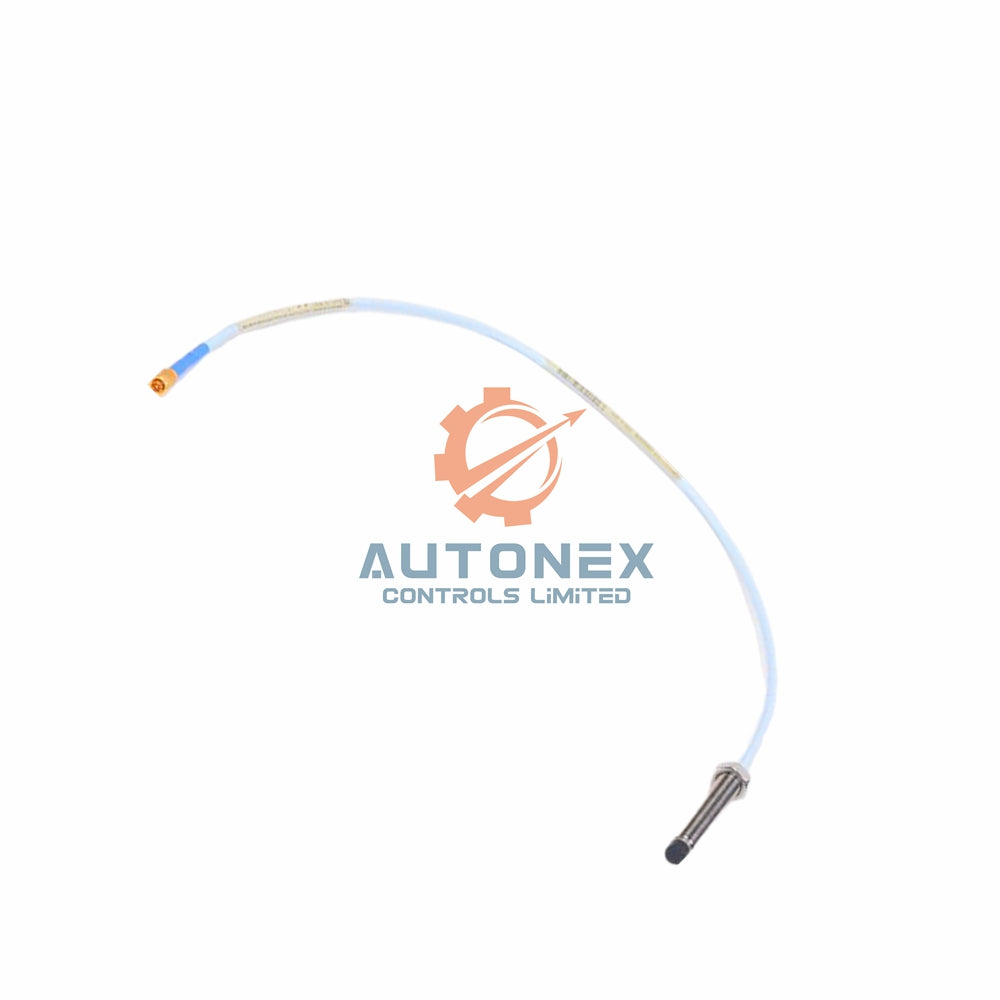

Bently Nevada 330103-06-20-10-02-00 3300 XL 8 mm Proximity Probe

• Manufacturer: Bently Nevada
• Model Number: 330103-06-20-10-02-00
• Product Series: 3300 XL 8 mm Proximity Probes
• Unthreaded Length: 60 mm (Option 06)
• Overall Case Length: 200 mm (Option 20)
• Total Length: 1.0 meter (3.3 feet, Option 10)
• Connector Type: Miniature coaxial ClickLoc connector, standard cable (Option 02)
• Agency Approval: Not required (Option 00)
• Probe Tip Material: Polyphenylene sulfide (PPS) for excellent chemical resistance
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Sealing Material: Viton® O-ring for differential pressure sealing
• Nominal DC Resistance (RPROBE): 7.59 ± 0.50 Ω (for 1.0 m length)

Measurement Performance

• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils)
• Output Voltage Range: Approximately –1 to –17 Vdc across the linear range
• Recommended Radial Vibration Gap: –9 Vdc (approximately 1.27 mm / 50 mils)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad cable recommended
• Maximum Cable Length: 305 meters (1,000 feet) between probe and monitor
• Frequency Response: Refer to Figures 10 and 12 for high-frequency signal rolloff characteristics

Environmental Specifications

• Standard Operating Temperature: –52 °C to +177 °C (–62 °F to +350 °F)
• Extended Temperature (Tip): –52 °C to +218 °C (–62 °F to +425 °F)
• Extended Temperature (Cable/Connector): –51 °C to +260 °C (–60 °F to +500 °F)
• Humidity Stability: Less than 3% change in Average Scale Factor (ASF) after 56 days at 93% RH per IEC 68-2-3
• Probe Mass: 323 g/m (11.4 oz)
• Maximum Thread Engagement: 15 mm (M10x1 thread)

Frequently Asked Questions

• Q: Does Bently Nevada pressure-test the 330103-06-20-10-02-00 probe before shipping?
  A: No, the factory does not pressure-test standard probes. Please contact our custom design department if you require a pressure seal test for your specific application.
• Q: What is the recommended gap setting for this probe?
  A: Set the gap to –9 Vdc, which corresponds to approximately 1.27 mm (50 mils) from the target surface.
• Q: Can I use this 3300 XL probe in high-humidity environments?
  A: Yes, the probe maintains less than 3% ASF change after 56 days at 93% relative humidity per IEC 68-2-3.
• Q: What is the maximum field wiring length for the 330103-06-20-10-02-00?
  A: You can extend field wiring up to 305 meters (1000 feet) between the sensor and the monitor.
• Q: What approvals does this probe carry?
  A: This model has no specific agency approval (Option 00), but it supports intrinsically safe and non-incendive installations with proper barriers or isolators.
• Q: What type of cable should I use for field wiring?
  A: Use 3-conductor shielded triad cable with 16 to 24 AWG tinned conductors for best performance.
