330103-00-02-10-02-05 CSA ATEX Probe Bently Nevada

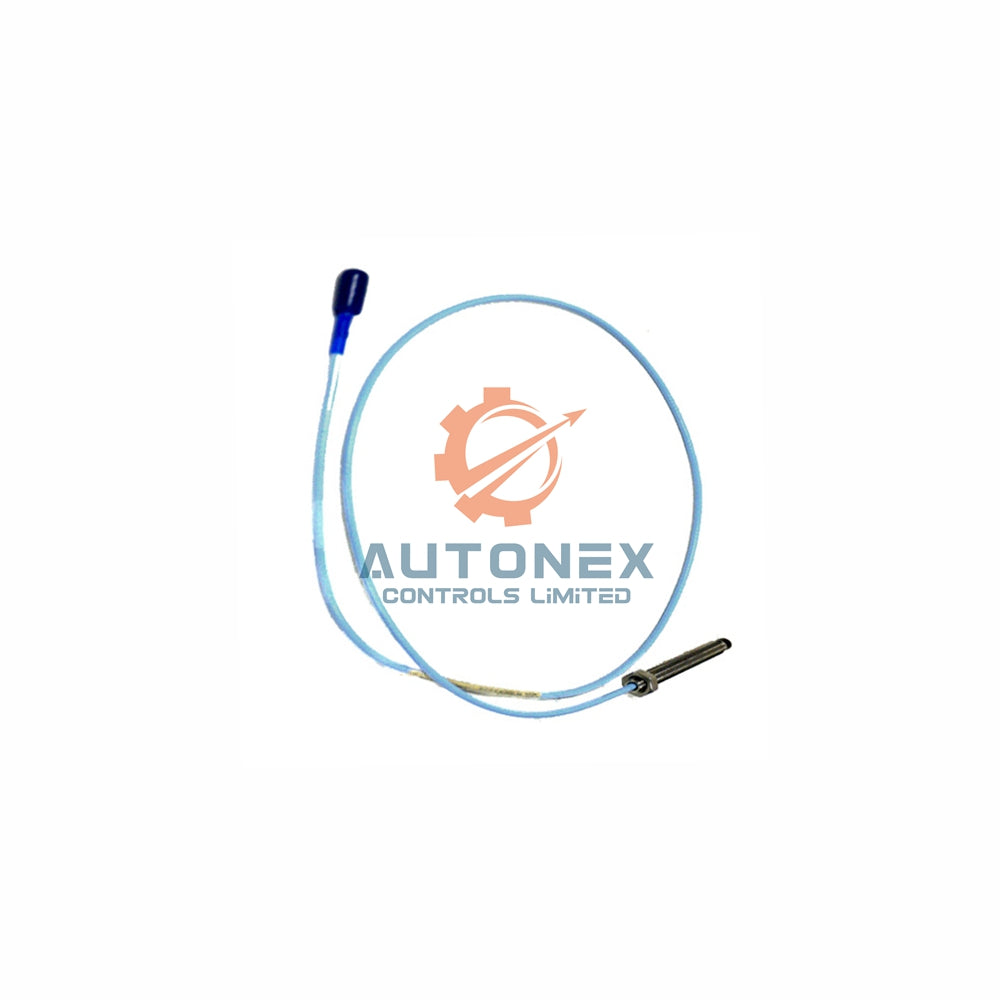

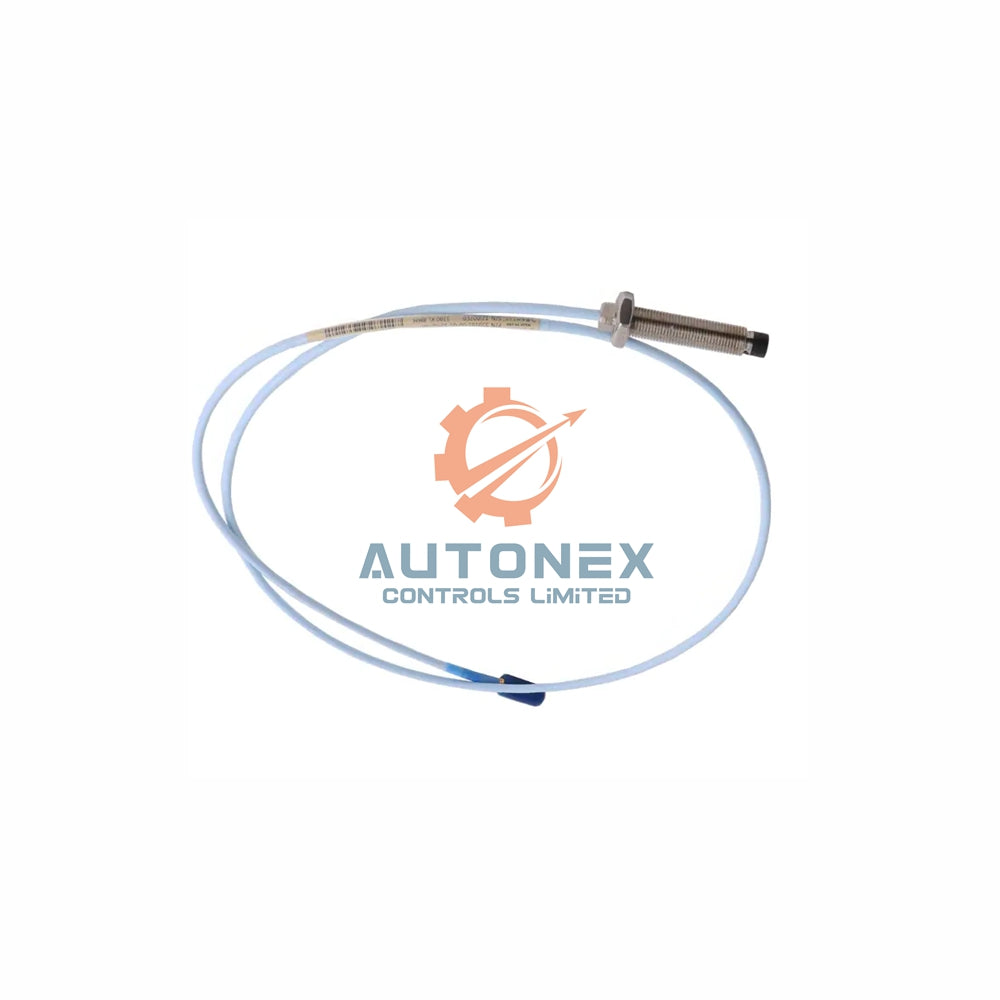

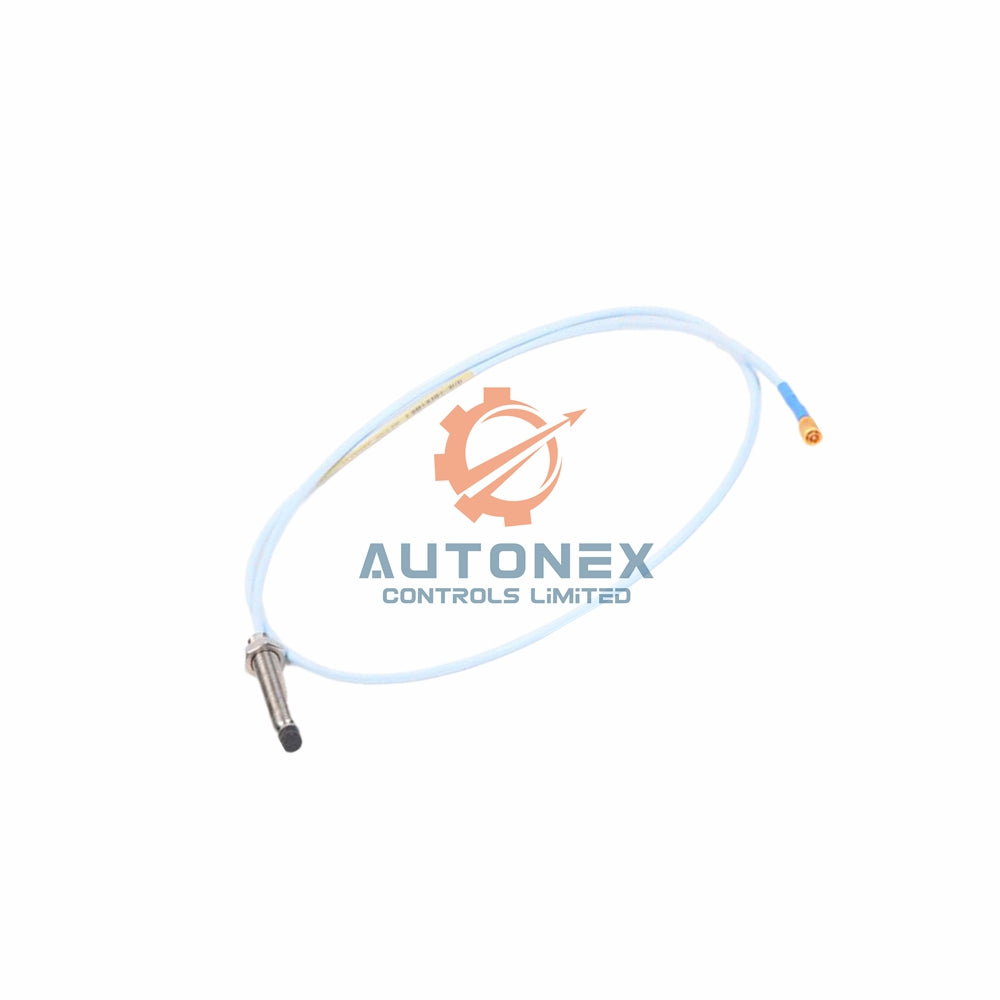

Bently Nevada 3300 XL 8 mm Proximity Probe - Model 330103-00-02-10-02-05

• Manufacturer & Series: Bently Nevada, 3300 XL 8 mm Proximity Probes.
• Product Number: 330103-00-02-10-02-05 (M10 x 1 thread, without armor).
• Unthreaded Length Option: 00 = 0 mm. Zero unthreaded length for consistent mounting.
• Overall Case Length Option: 02 = 20 mm. Compact case length for tight installations.
• Total Length Option: 10 = 1.0 meter (3.3 feet). Pre-assembled 1m cable for flexible routing.
• Connector and Cable Type: Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval Option: 05 = CSA, ATEX, IECEx Approvals. Full hazardous area certification included.

Technical Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Nominal DC Resistance (1.0m length): 7.59 ± 0.50 Ω (center to outer conductor).
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Output Range: Approximately –1 to –17 Vdc over the linear range.
• Recommended Gap for Radial Vibration: -9 Vdc (approx. 1.27 mm / 50 mils).
• Probe Case Thread: M10x1 with 15 mm maximum thread engagement length.
• Probe Weight: 323 g per meter (11.4 oz per meter).

Environmental & Temperature Ratings

• Standard Operating Temperature: -52°C to +177°C (-62°F to +350°F).
• Extended Tip Temperature: -52°C to +218°C (-62°F to +425°F).
• Extended Cable & Connector Temperature: -51°C to +260°C (-60°F to +500°F).
• Low Temperature Caution: Exposure below -34°C (-30°F) may cause premature pressure seal failure.
• Humidity Tolerance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for 56 days (IEC 68-2-3).

Frequently Asked Questions (FAQ)

• Q: Is this probe brand new and original?
  A: Yes, we supply only 100% brand new and original Bently Nevada probes.
• Q: Do you have this 330103-00-02-10-02-05 in stock?
  A: Yes, we keep this model in stock for immediate orders.
• Q: How many days for order processing and shipping?
  A: We ship within 5 business days after order confirmation.
• Q: Which shipping carriers do you use?
  A: We use FedEx, UPS, and DHL for fast and tracked worldwide delivery.
• Q: What is your return policy?
  A: We support a 30-day return window for unused items in original condition.
• Q: What approvals does this probe carry?
  A: This probe includes CSA, ATEX, and IECEx certifications for hazardous areas.
• Q: Can I use this probe with extended field wiring lengths?
  A: Yes, but check frequency response rolloff above 305 meters (1,000 feet).
• Q: Does the probe seal pressure before shipment?
  A: No, standard units do not receive pressure testing; contact custom design for special needs.
