32000-16-05-05-080-03-02 Bently Nevada Probe Housing

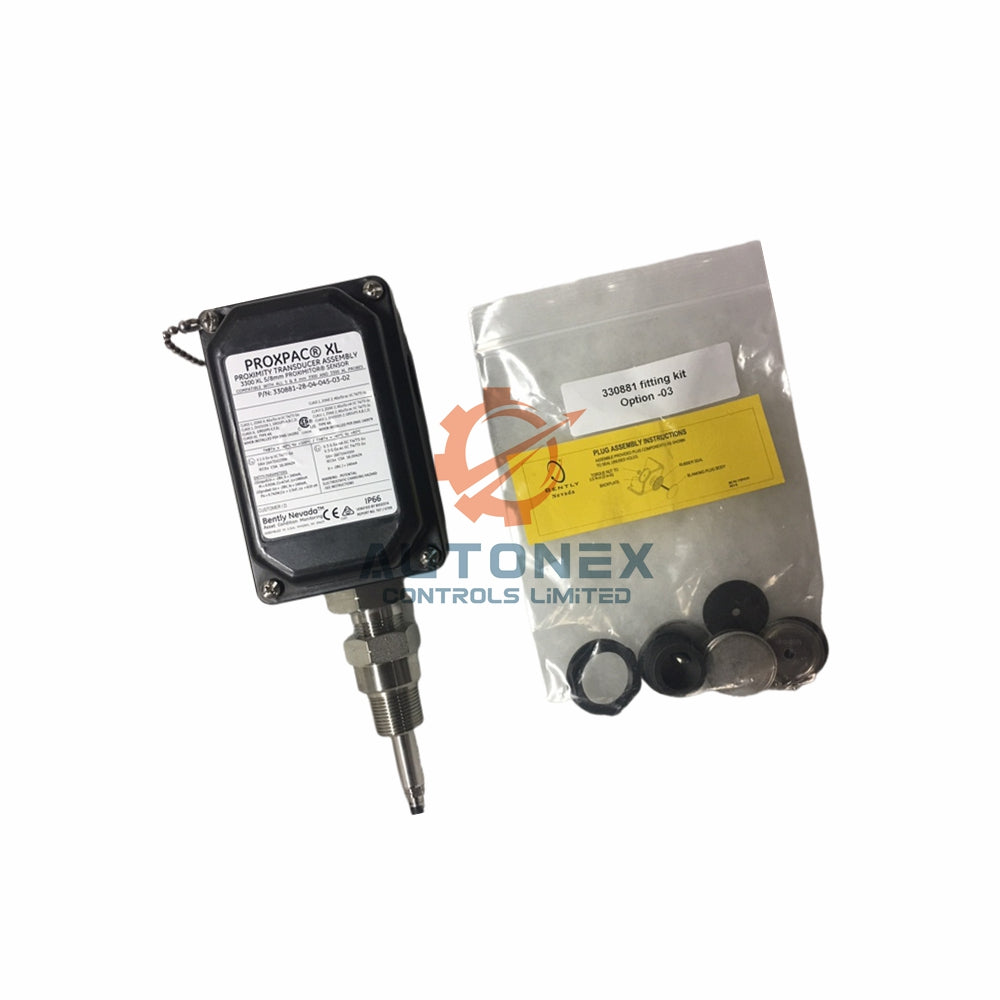

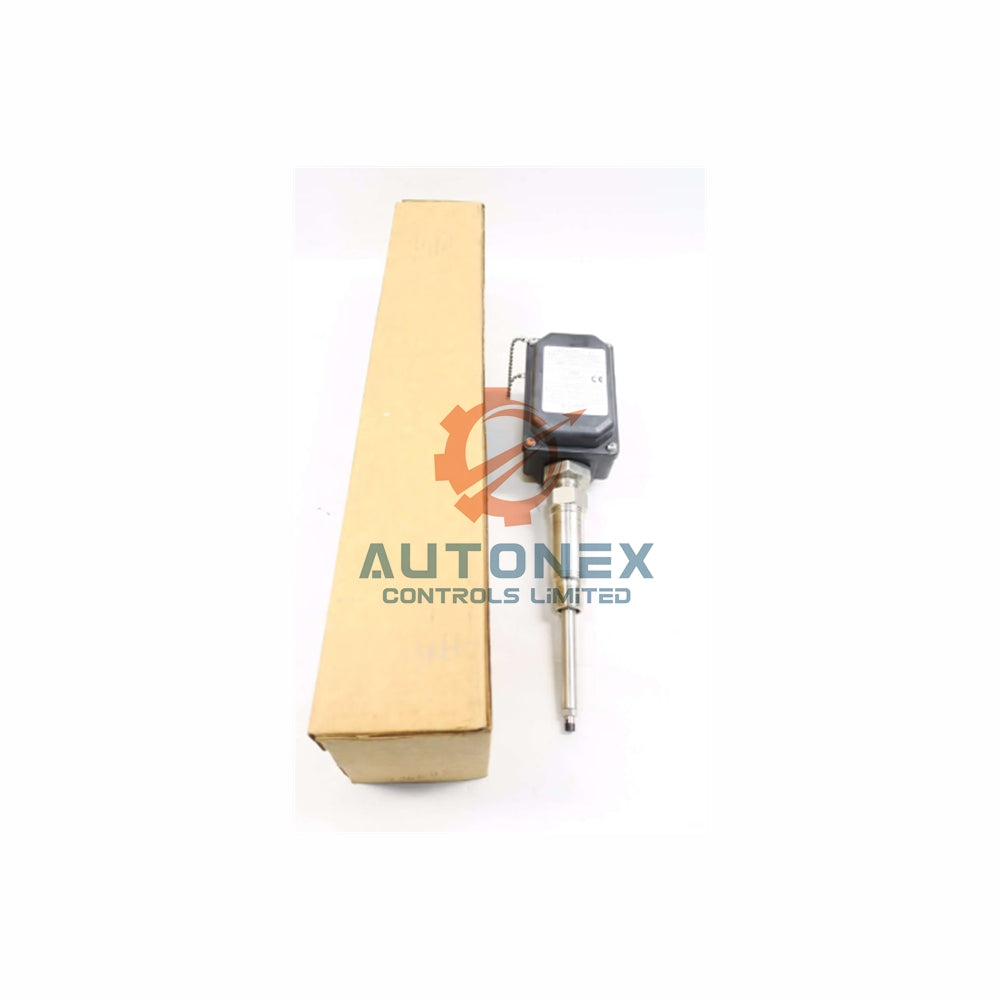

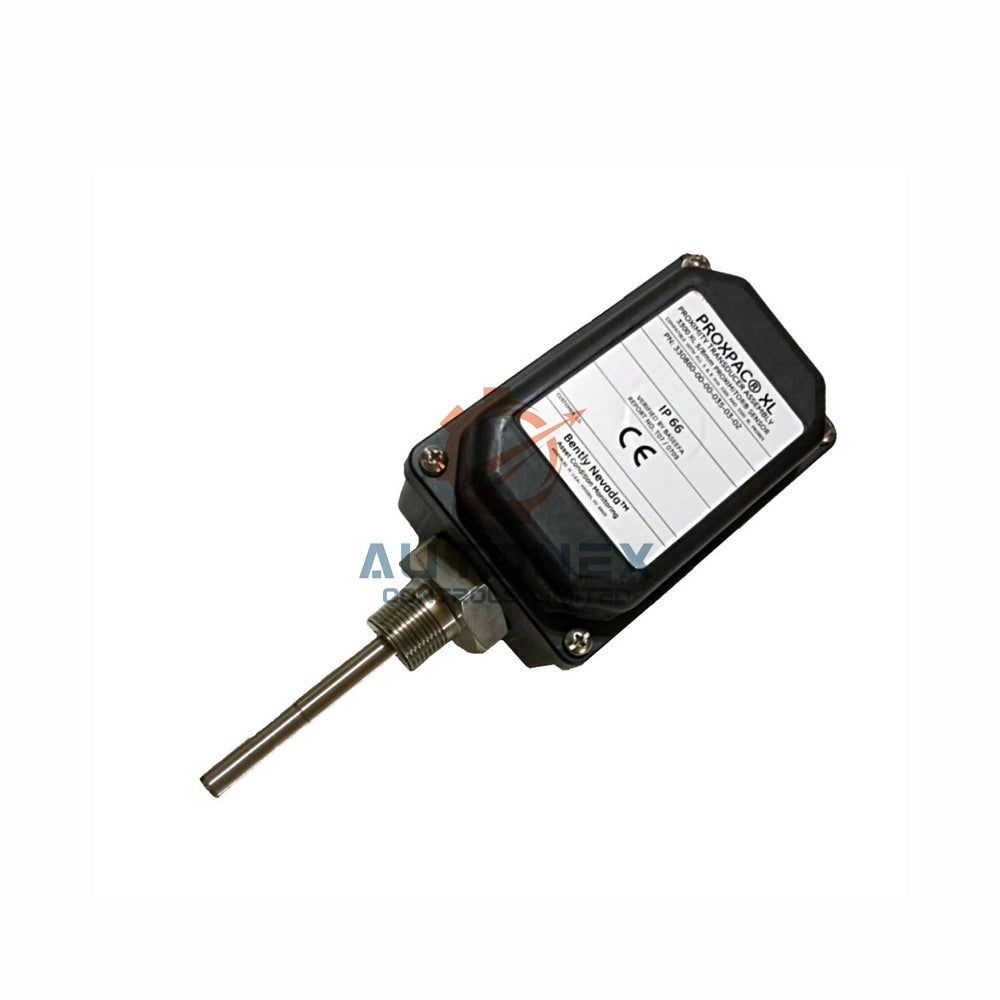

Bently Nevada 32000-16-05-05-080-03-02 Metric Proximity Probe Housing

• Manufacturer: Bently Nevada – a leader in machinery condition monitoring.
• Model number: 32000-16-05-05-080-03-02 – a complete metric housing assembly.
• Probe option: 3300 XL 8 mm probe with connector (option code 16).
• Probe cable length: 0.5 metre (option code 05).
• Standoff adapter: 50 mm (option code 05).
• Probe penetration depth: 80 mm (option code 080).
• Fittings: two plugs, one M20 fitting, one cable seal grip with grommet for armored cable (option 03).
• Mounting thread: 3/4-14 NPT (option 02 – required with standoff adapter).

Technical Specifications

• Temperature rating: -51°C to +105°C (-60°F to +221°F).
• Protection ratings: Type 4X (CSA certified) and IP66 (verified by SC115582-1(e)106).
• Hazardous area compliance: CENELEC EN50014 for electrostatic dissipation of plastic material.
• Housing material: glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve material and retaining chain: AISI 304 stainless steel.
• Outer sleeve and exterior screws: AISI 303 stainless steel.
• O-Ring material: Neoprene® for reliable sealing.
• Impact strength: BASEEFA certified for two 4 Joule (3.0 ft·lb) impacts at -39°C and 115°C. CSA verified a 7 Joule (5.2 ft·lb) impact at ambient room temperature.
• Weight: 1.2 kg – compact yet durable.

Frequently Asked Questions (FAQ)

• Is the 32000-16-05-05-080-03-02 a genuine new product?
  Yes. We supply only genuine new Bently Nevada units directly from our stock.
• Does this housing work with other 8 mm probes?
  No. It specifically fits the 3300 XL 8 mm probe from Bently Nevada.
• Can I use this housing in very cold environments?
  Yes. The temperature rating goes down to -51°C (-60°F) safely.
• What is the IP rating of the 32000-16-05-05-080-03-02 housing?
  IP66. It also carries a Type 4X rating from CSA.
• How long will shipping take?
  We dispatch within 5 days. Delivery then depends on FedEx, UPS, or DHL.
• Do you offer returns for this probe housing?
  Yes. We provide a 30-day return window for eligible items.
