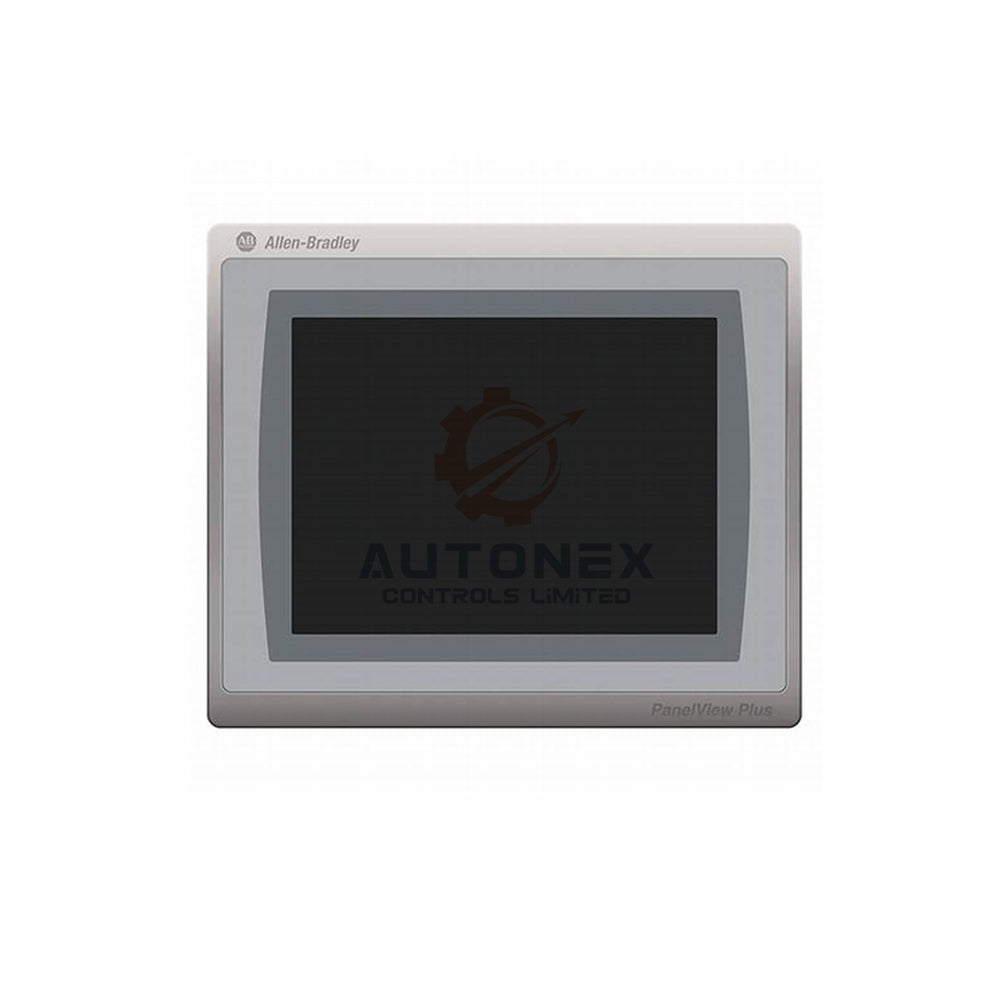

2711P-T12C4A8 Allen-Bradley PanelView Plus 6 1250 HMI

Allen-Bradley 2711P-T12C4A8 PanelView Plus 6 1250 Touchscreen Terminal

Technical Specifications at a Glance

• Brand: Allen‑Bradley
• Model: 2711P-T12C4A8
• Product Family: PanelView Plus 6 Operator Terminals
• Product Line: PanelView Plus 6 1250
• Display Size: 12.1 inches diagonal
• Display Type: Color active‑matrix TFT
• Display Area: 246 x 184 mm (9.7 x 7.2 in.)
• Resolution: 800 x 600 (SVGA), 18‑bit color
• Luminance: 300 cd/m² (Nits)
• Operator Input: Analog resistive touchscreen
• Touch Lifespan: 1 million actuations (10 to 110 G)
• Internal Memory: 512 MB Flash + 512 MB RAM (~79 MB free user memory)
• Integrated Ports: Ethernet, RS‑232, 2 USB host
• Input Voltage: 100‑240 VAC, 50‑60 Hz
• Thermal Dissipation: 240 BTU/hour
• Shock & Vibration: 30 G shock, 2 G vibration (10‑500 Hz)
• Operating Temperature: 0 to 55 °C (32 to 131 °F)
• Relative Humidity: 5 to 95% (non‑condensing)
• Altitude: 2000 m (6561 ft) without derating
• Battery: Real‑time clock, 4‑year life, replaceable (2711P‑RY2032)
• Shipping Weight: 10 pounds
• Shipping Dimensions: 20 x 14 x 8 inches

Frequently Asked Questions (FAQ)

• Is this a brand new unit? – Yes, we supply 100% genuine new original stock.
• Do you have this model in stock? – Yes, the 2711P-T12C4A8 is available for immediate order.
• What is your return policy? – We offer a 30‑day return window for defective or incompatible items.
• Can I replace the backlight? – Yes, the CCFL backlight is field‑replaceable (50,000 hrs).
• How much user memory is available? – Approximately 79 MB of free Flash memory for applications.
• Does it support FTP or PDF viewing? – Yes, it supports FTP, ActiveX, and PDF viewer.
• What is the battery life for the RTC? – Approximately 4 years; replacement part 2711P‑RY2032.
• Can I mount it outdoors? – Indoor use only (NEMA/UL Type 12, 13, 4X, IP54, IP6).
