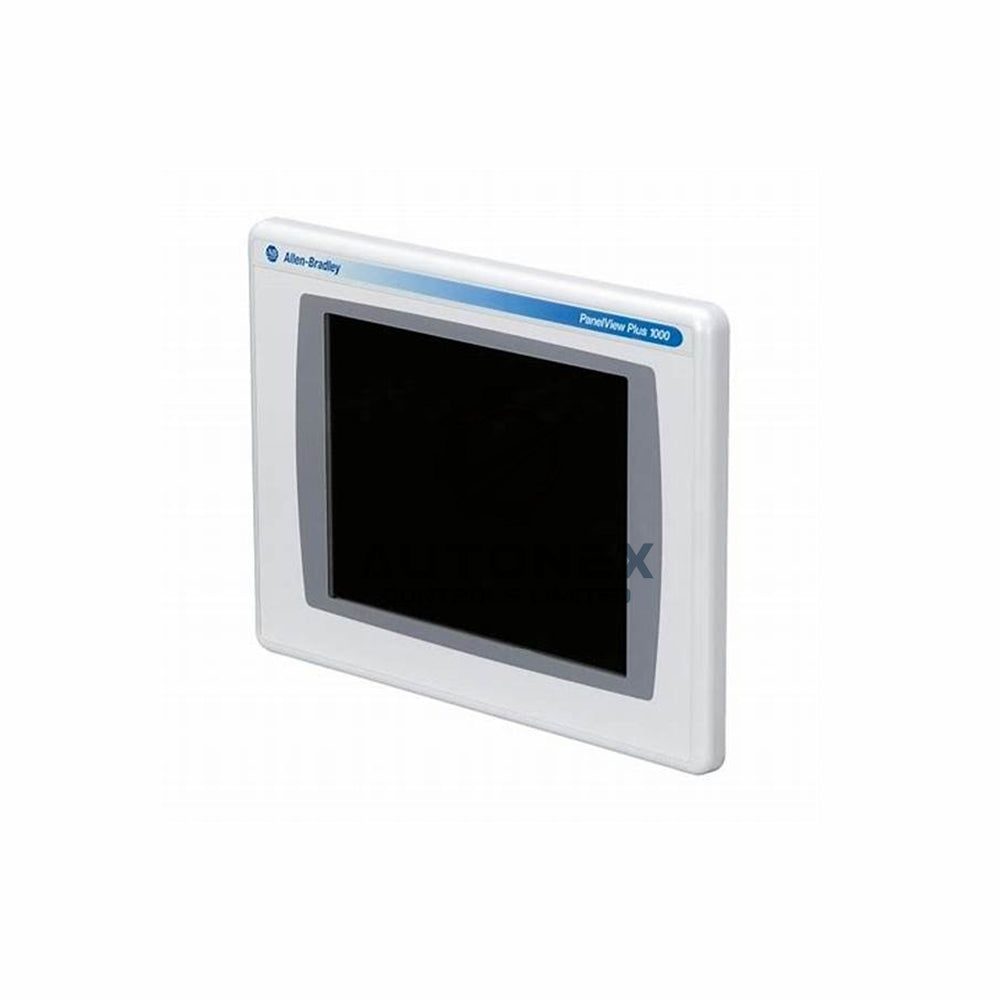

2711P-T10C4D8 Allen-Bradley PanelView Plus 6 DC Terminal

Allen‑Bradley 2711P‑T10C4D8 PanelView Plus 6 1000 DC Terminal

Core Technical Specifications

• Display & Touch: 10.4‑inch active‑matrix TFT with analog resistive touch; 8‑wire sensor supports up to 1 million actuations.
• Resolution & Color: 640 x 480 pixels, 18‑bit color depth; display area measures 211 x 158 mm (8.3 x 6.2 in.).
• Backlight: CCFL type with 50,000 hours minimum life at 25 °C; field‑replaceable for extended service.
• Memory: 512 MB Flash non‑volatile storage plus 512 MB RAM for runtime operations.
• Power Input: 18‑30 VDC (nominal 24 VDC); maximum consumption 160 VA.
• Communication Ports: Ethernet (10/100Base‑T, RJ45), RS‑232 (9‑pin D‑sub), and 2 USB hosts; optional DH+, RIO, or DH‑485 modules.
• Real‑time Clock: battery‑backed for time‑stamped events and data logging.
• External Storage: supports SD cards (1784‑SD1 / 1784‑SD2) and USB drives.
• Environmental: operates from 0 to 55 °C; storage from ‑25 to 70 °C; 5‑95% non‑condensing humidity.
• Dimensions & Weight: 16 x 14 x 8 inches; ships at 8 lbs.

Frequently Asked Questions (FAQ)

• Is the 2711P‑T10C4D8 still in production?
  This model is End‑of‑Life, but we supply new old‑stock and surplus units with full function guarantee.
• What is the backlight lifespan?
  CCFL backlight lasts 50,000 hours minimum at 25°C; field replacement is possible.
• Can I connect a DH+ network?
  Yes, you can install an optional DH+ communication module (sold separately).
• Does it support PDF viewing?
  Yes, the terminal includes a PDF file viewer for manuals and diagrams.
• What is the return policy?
  We accept returns within 30 days of delivery for a full refund (buyer pays return shipping).
• How do I transfer applications?
  Use the Ethernet port, USB drive, or SD card with FactoryTalk View Studio.
• Is the touchscreen replaceable?
  The touchscreen is integrated; the display module must be replaced if damaged.
