22D PowerFlex 40P Allen-Bradley | 22D-E012N104

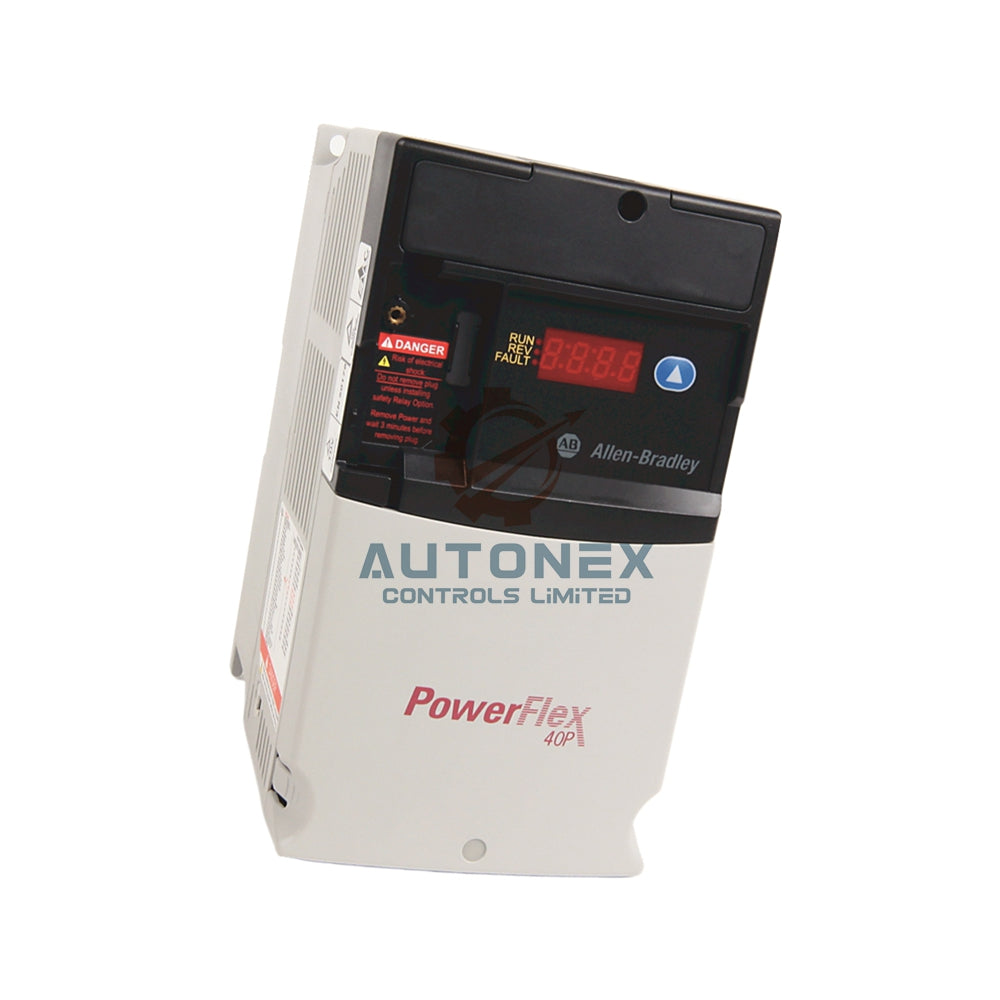

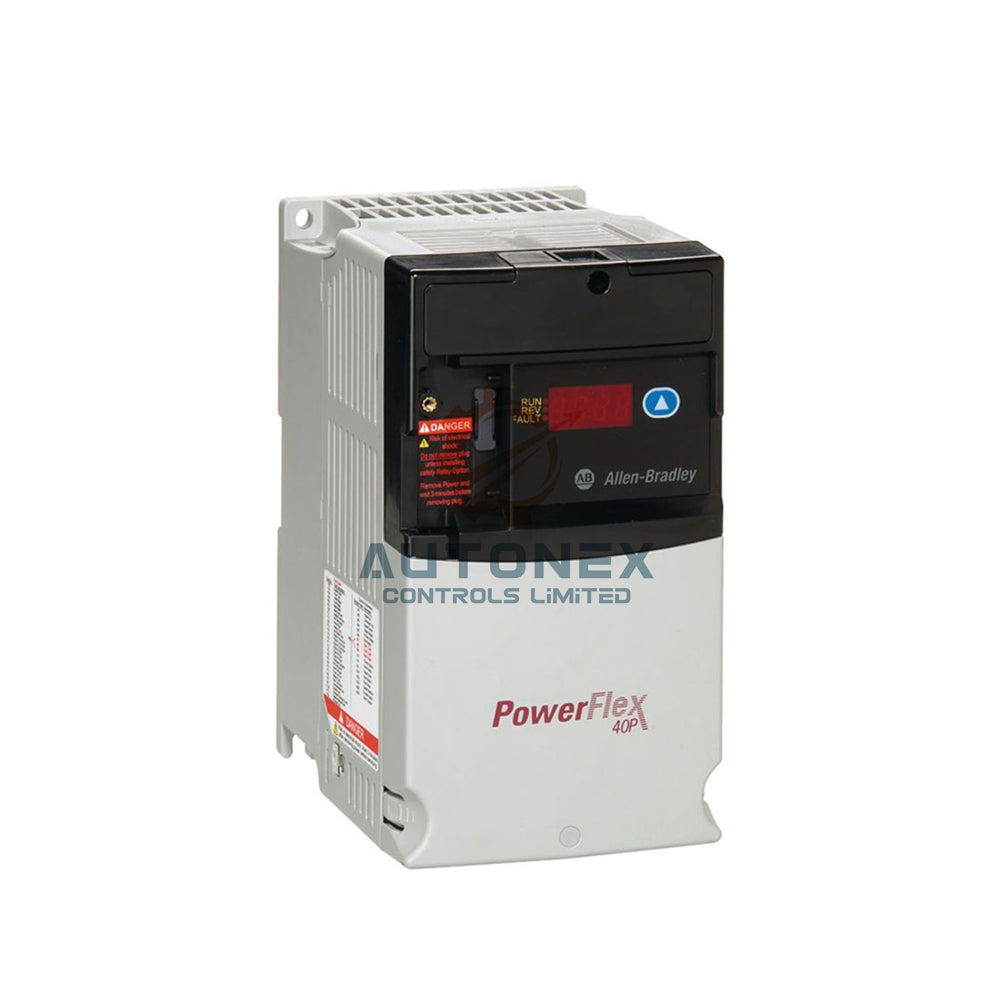

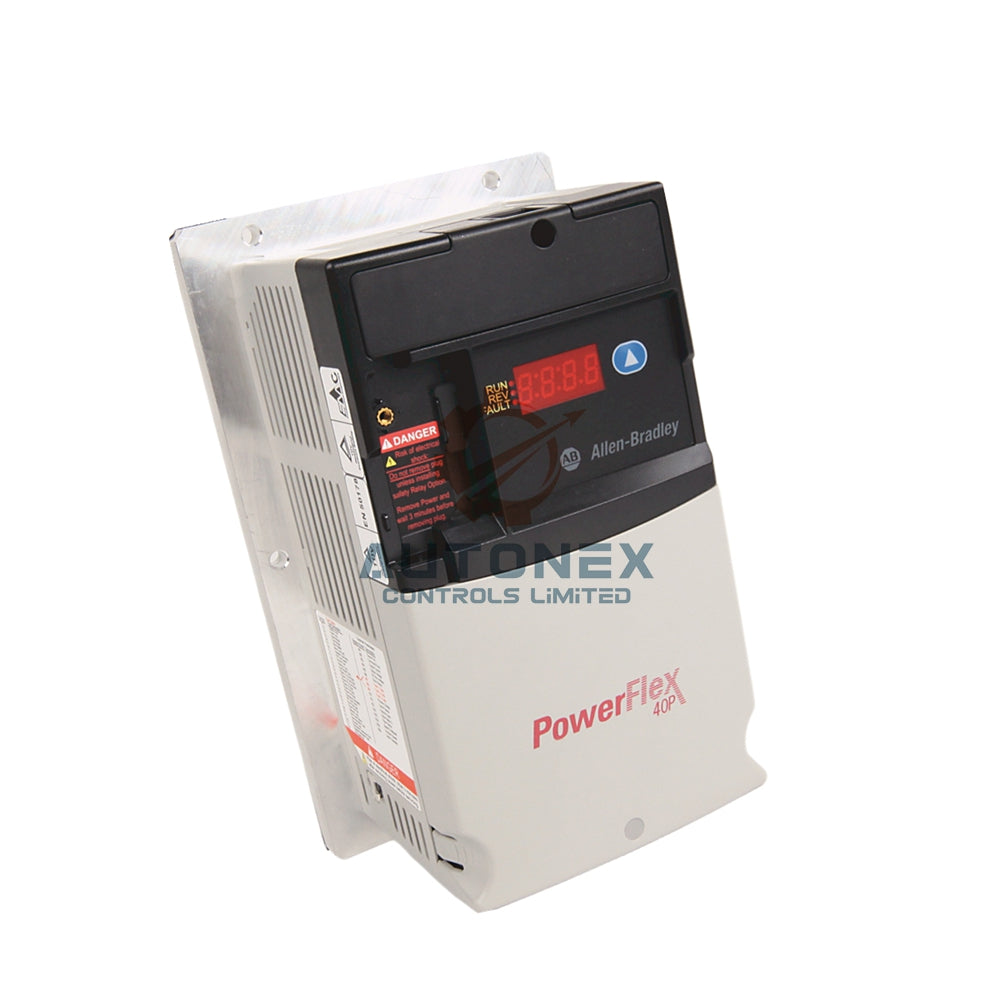

Allen-Bradley 22D-E012N104 PowerFlex 40P Drive

Electrical Specifications

• Input Voltage: 600 VAC, 3-phase power systems
• Output Power: 10 HP (7.5 kW) motor capacity
• Output Current: 12 Amps continuous rating
• Power Range: Covers 0.2 to 11 kW applications
• Voltage Classes: Supports 120, 240, 480, 600 VAC systems
• Frame Size: C compact design
• EMC Compliance: CE compliant filtering standard

Design & Installation Features

• Mounting Options: DIN-rail or panel mount installation
• Enclosure Rating: Panel mount, IP20 protection
• Space Efficiency: Zero stacking capability up to 40°C
• Operator Interface: Built-in keypad with 10 status LEDs
• Compact Design: Space-saving footprint for control panels
• Installation Flexibility: Multiple mounting methods available
• Thermal Management: Efficient cooling with zero stacking

Control & Operation

• Motor Control: Precise speed and torque regulation
• User Interface: Integrated keypad for easy operation
• Status Indication: 10 LED lights for clear drive status
• Application Range: Wide power coverage from 0.2 to 11 kW
• System Compatibility: Multiple voltage class support
• Space Optimization: Compact design maximizes panel space
• Installation Density: Zero stacking allows high-density mounting

Frequently Asked Questions

What is the power rating of this drive?

• The 22D-E012N104 delivers 10 HP (7.5 kW) output power

What input voltage does it support?

• It operates on 600 VAC and supports multiple voltage classes

Can I mount multiple drives side by side?

• Yes, zero stacking is supported with ambient temperatures up to 40°C

What mounting options are available?

• You can choose DIN-rail or panel mount installation methods

Does it include an operator interface?

• Yes, it features a built-in keypad with 10 status LEDs

How quickly do you ship orders?

• We process and ship all products within 5 business days

Access complete technical documentation: PowerFlex 4 and 40 AC Drives Manual
