22D PowerFlex 40P Allen-Bradley | 22D-D024N104

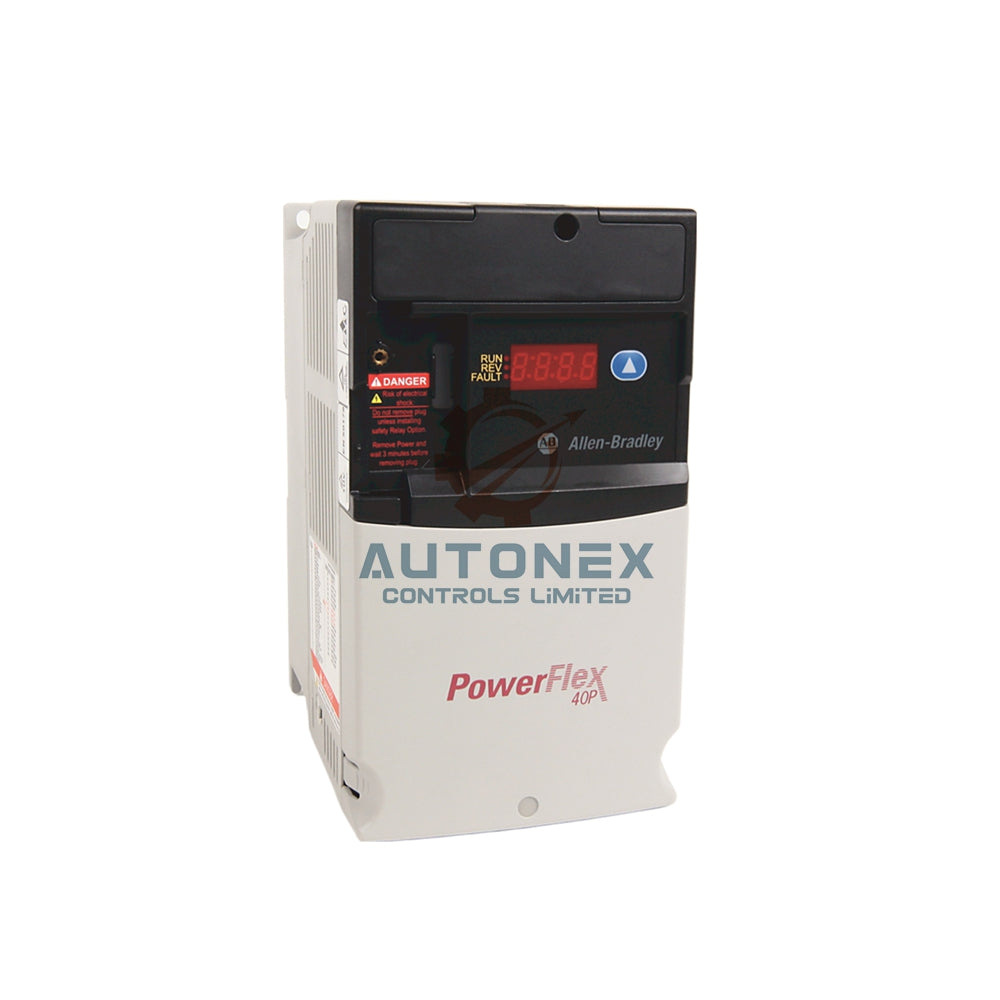

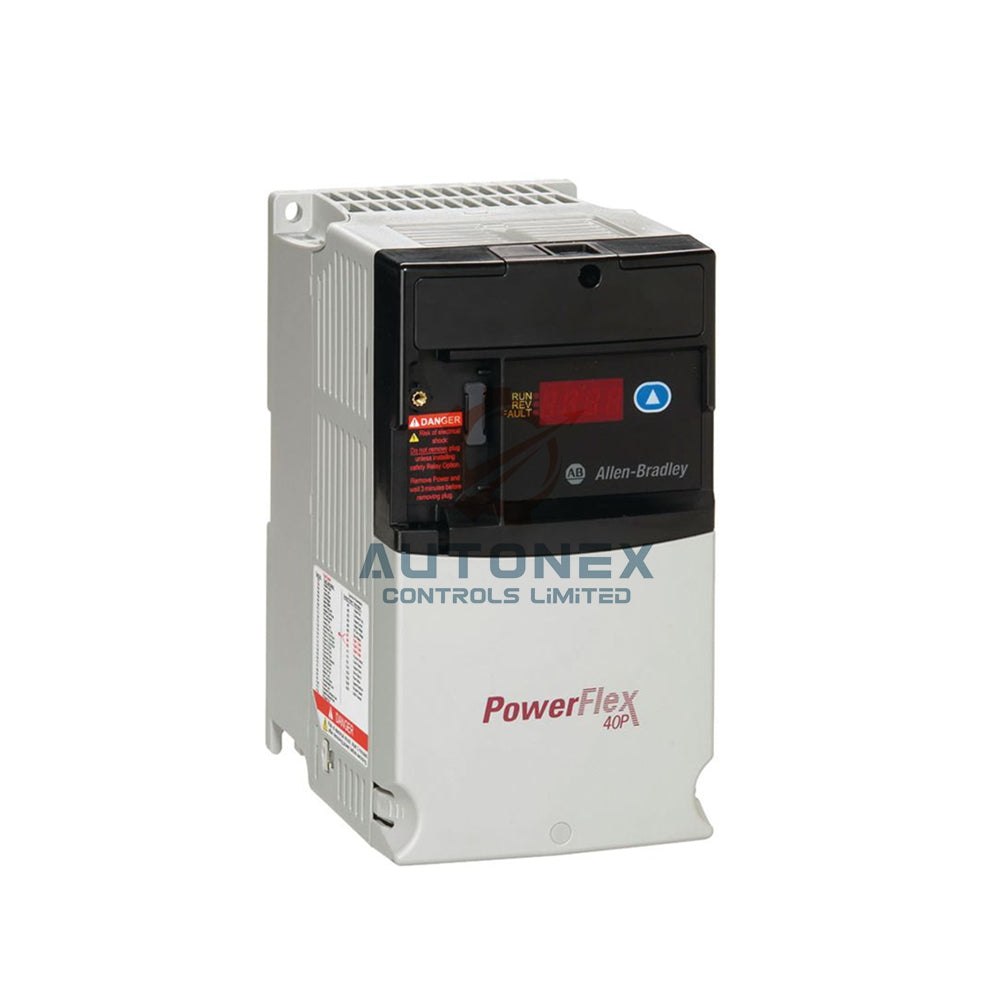

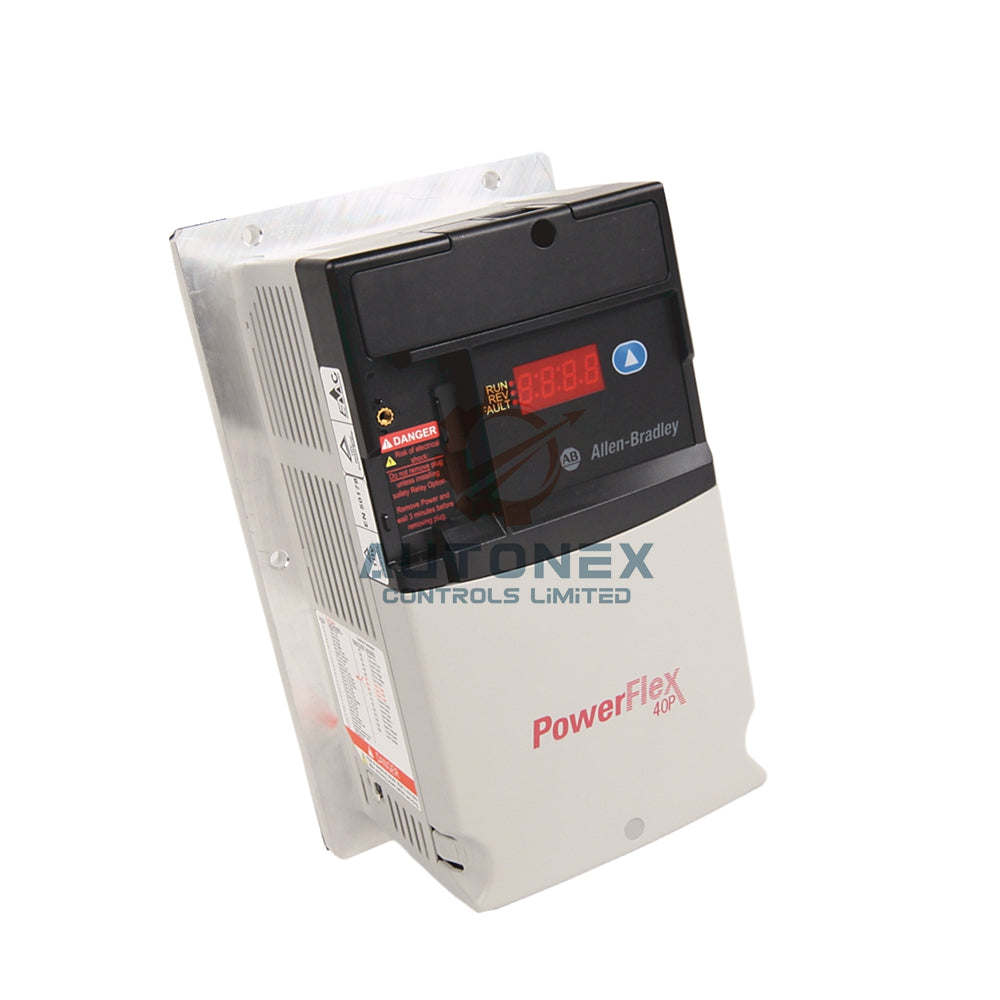

Allen-Bradley PowerFlex 40P Adjustable Frequency Drive: 22D-D024N104

Power Specifications

• Input Voltage: 342-528V AC wide range compatibility
• Input Current: 26 A maximum input rating
• Input Power: 23.4 kVA apparent power
• Output Power: 11 kW / 15 HP motor capacity
• Output Current: 24 A continuous output
• Output Voltage: 0-460V AC variable output
• Output Frequency: 0-500 Hz programmable range

Control & Programming Features

• Control Methods: V/Hz, PWM, Sensorless Vector
• Acceleration/Deceleration: 4 programmable times (0-600s)
• Discrete Inputs: 7 sink/source configurable inputs
• Opto Outputs: 2 programmable outputs
• Relay Output: 1 Form C contact (250V AC, 2A)
• Analog Input: 1 input (0-10V DC / 0-20mA)
• Analog Output: 1 output (0-10V DC / 0-20mA)

Physical & Environmental Specifications

• Enclosure: IP20 / NEMA Open Type
• Mounting: Panel mount configuration
• Operating Temperature: 14-122°F (-10 to 50°C)
• Humidity Range: 0-95% RH non-condensing
• Bus Undervoltage Trip: 390V DC protection

Frequently Asked Questions

Product & Availability

• Is this drive new and in stock?
  Yes, we supply 100% new and original Allen-Bradley drives with current stock availability.
• What is your shipping timeframe?
  Orders ship within 5 business days via DHL, FedEx, or UPS carriers.
• Do you offer international shipping?
  Yes, we ship worldwide using reliable international logistics partners.

Technical Specifications

• What is the horsepower rating?
  This drive delivers 15 HP (11 kW) of motor control power.
• What input voltage range does it support?
  The unit operates from 342-528V AC for flexible power compatibility.
• What control methods are available?
  V/Hz, PWM, and Sensorless Vector control for various applications.

Operation & Support

• What is your return policy?
  We offer 30-day returns for unused products in original condition.
• What is the output frequency range?
  Programmable output from 0-500 Hz for speed control.
• What I/O features are included?
  Comprehensive I/O with 7 discrete inputs, analog I/O, and relay output.

Download complete technical documentation: PowerFlex 4 and 40 AC Drives
