22D PowerFlex 40P Allen-Bradley | 22D-D012N104

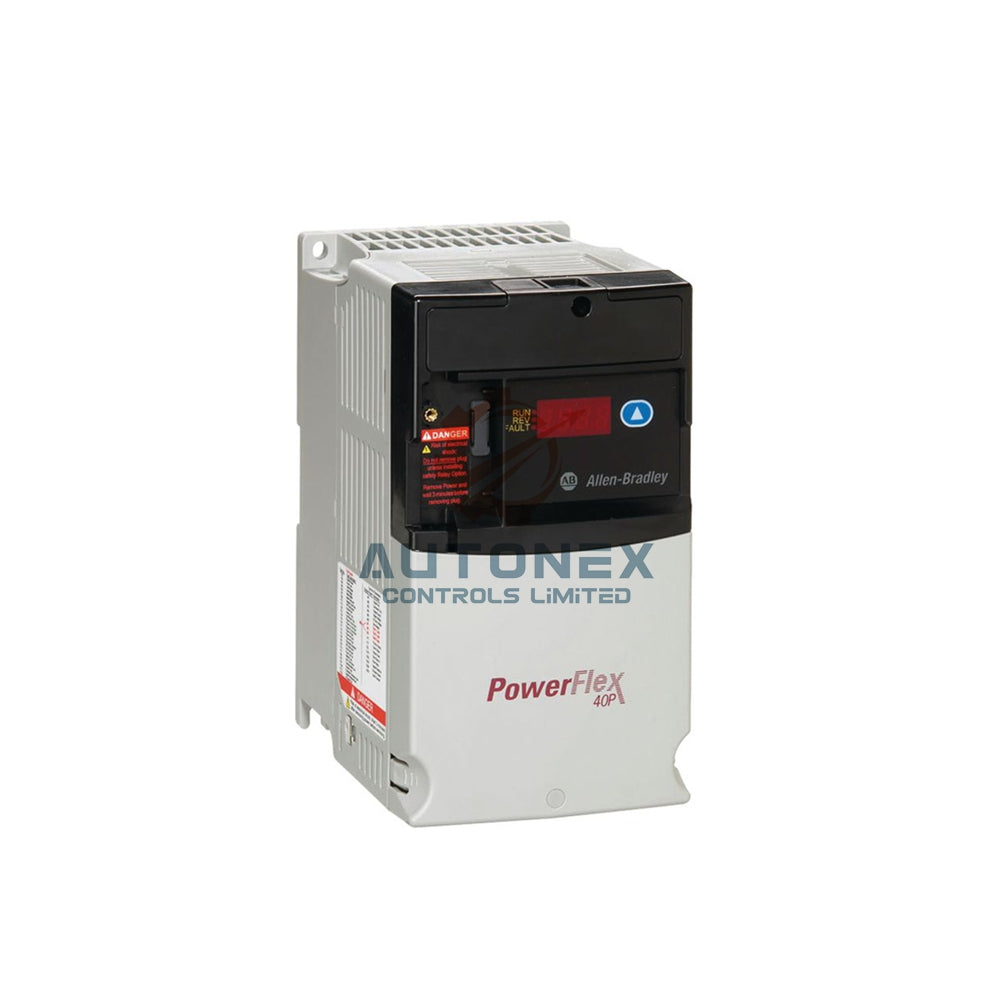

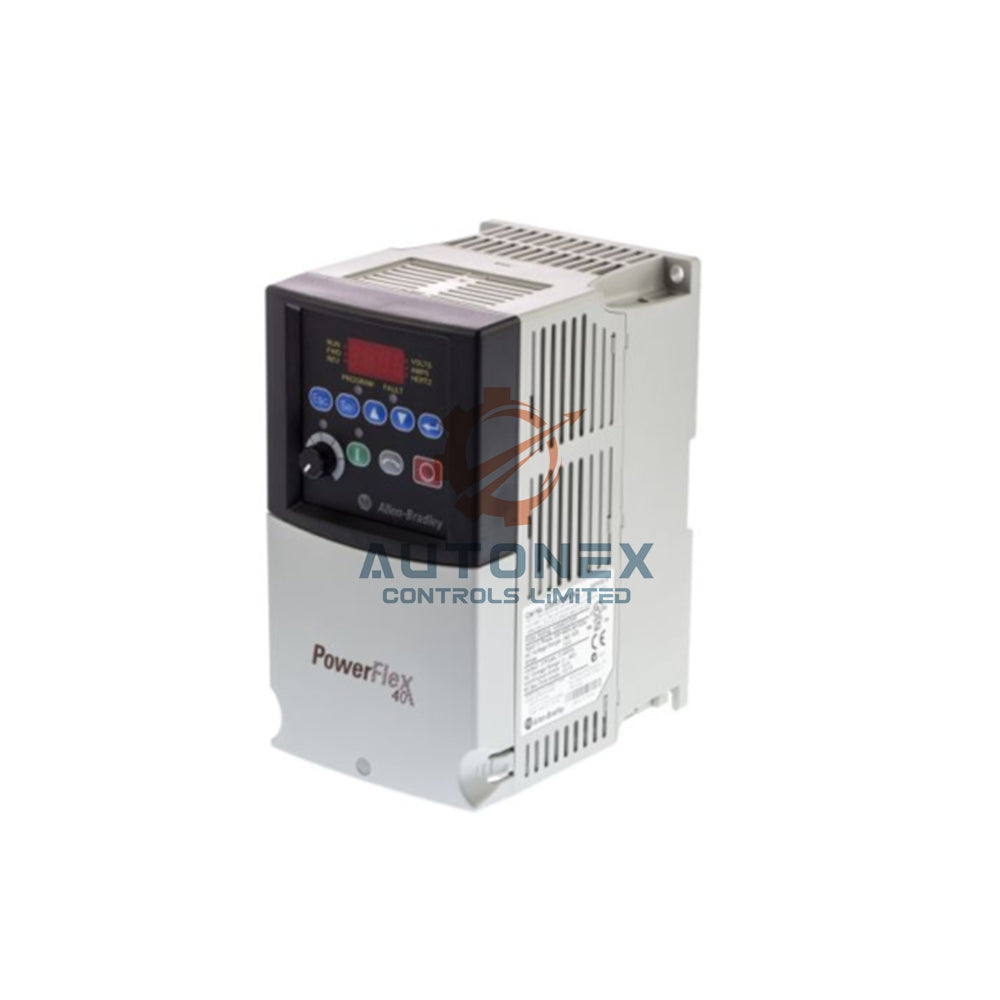

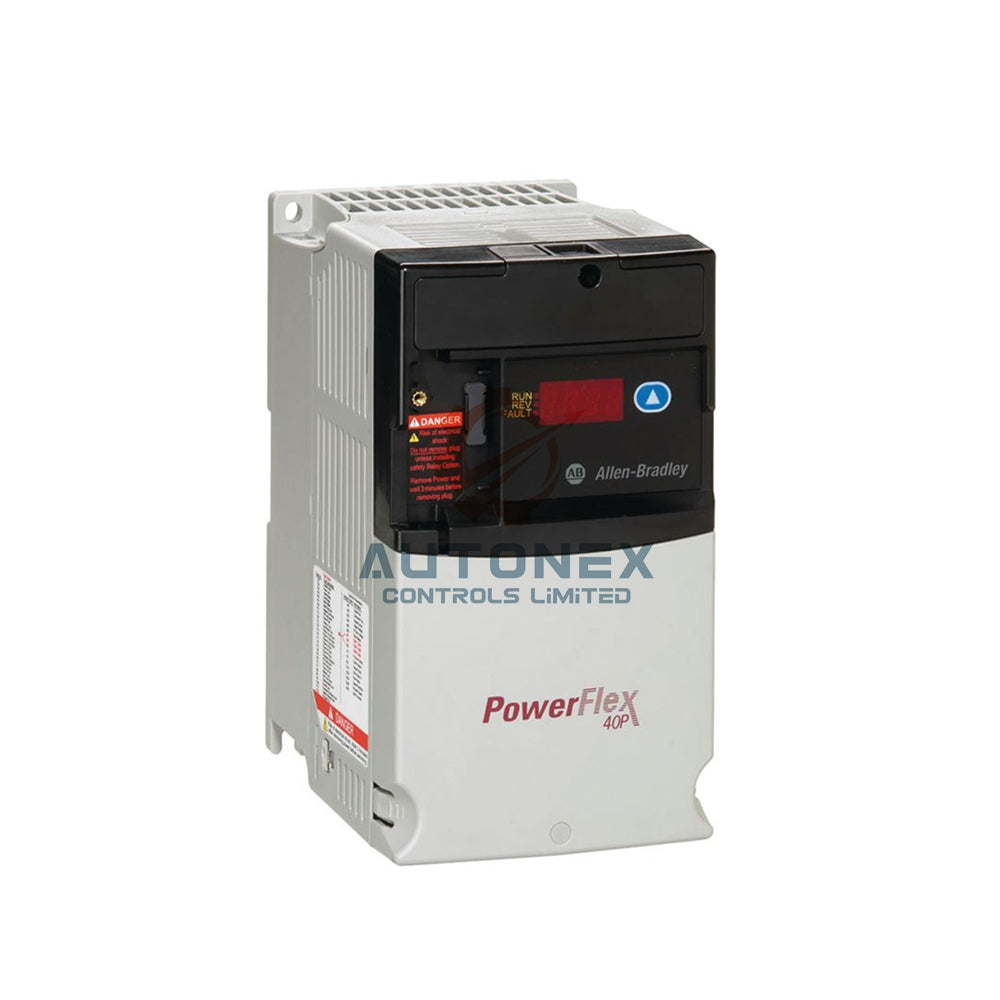

Allen-Bradley PowerFlex 40P AC Drive: 22D-D012N104

Electrical Specifications

• Input Voltage: 480 VAC three-phase power supply
• Output Power: 7.5 HP (5.5 kW) maximum capacity
• Output Current: 12.0 A continuous rating
• Frequency Range: 50-60 Hz standard operation
• Power Factor: 0.98 high efficiency rating
• Control Methods: Volts/Hz and Sensorless Vector

Physical Design & Features

• Enclosure Type: IP20 Open Type panel mount
• Frame Size: Compact Size C footprint
• EMC Filter: Not included (no CE filter)
• Display: 4-digit LCD with keypad
• Status Indicators: 10 LED lights for monitoring
• Communication: Built-in RS-485 port

Installation & Compatibility

• Designed for panel mounting applications
• Requires proper ventilation and spacing
• Compatible with standard industrial networks
• Works with Allen-Bradley control systems
• Easy integration with existing equipment
• Simple wiring and setup process

Documentation & Support

• Complete user manual provided
• Wiring diagrams and specifications
• Programming parameter guide
• Installation instructions included
• Troubleshooting documentation
• Download full manual: PowerFlex 4 and 40 AC Drives

Frequently Asked Questions

Product & Availability

• Is this drive new and available?
  Yes, we supply 100% new and original Allen-Bradley drives from stock.
• What is the shipping time?
  We process and ship orders within 5 business days worldwide.
• Which carriers do you use?
  We ship via DHL, FedEx, and UPS for reliable delivery.

Technical Information

• What is the horsepower rating?
  This model provides 7.5 HP (5.5 kW) output power.
• What input voltage does it use?
  The drive requires 480 VAC three-phase input power.
• Is an EMC filter included?
  No, this model does not include a CE EMC filter.

Returns & Support

• What is your return policy?
  We offer 30-day returns for unused products in original condition.
• Is technical support available?
  Yes, our team provides comprehensive technical support.
• What communication features are included?
  Built-in RS-485 communication with status display.

Contact us for pricing and technical specifications: sales@nex-auto.com
