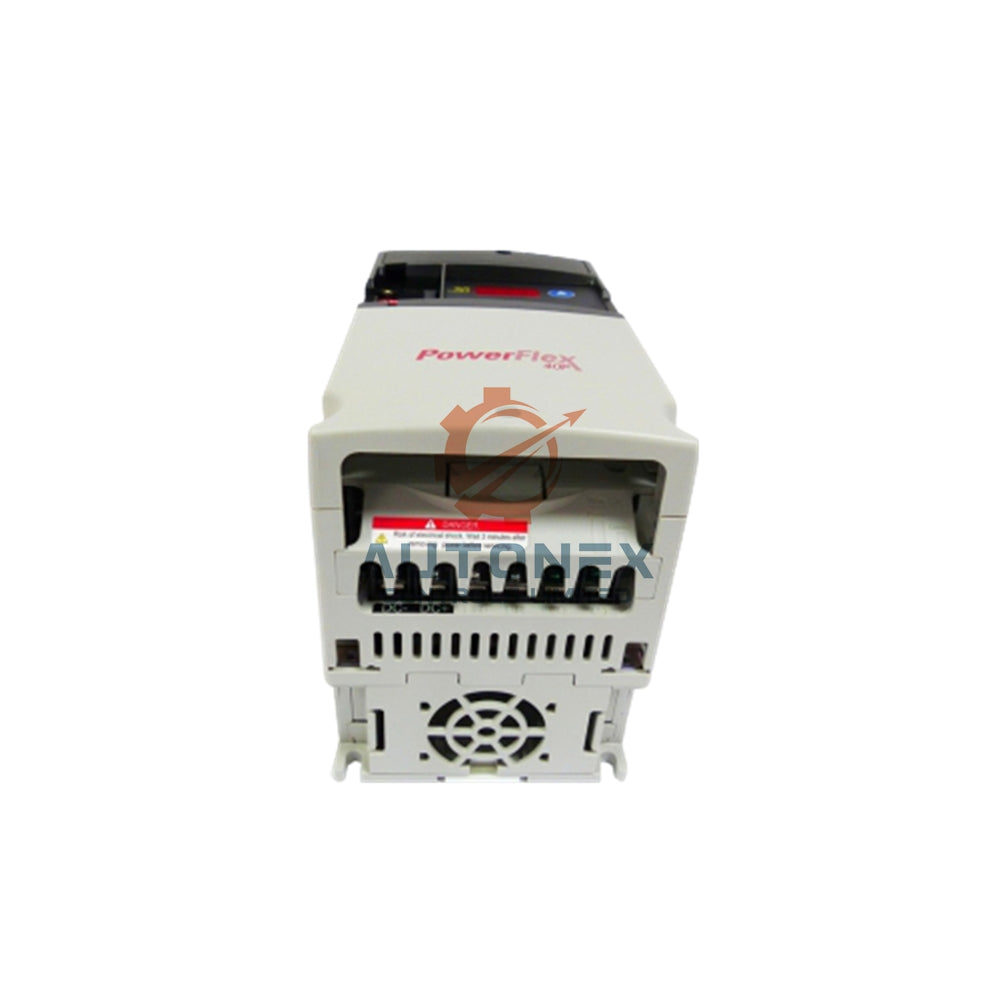

22D PowerFlex 40P Allen-Bradley 22D-B5P0H204

Allen-Bradley PowerFlex 4 Plate-Mount AC Drive

Model Identification & Configuration

• Brand & Model: Allen-Bradley 22D-B5P0H204
• Suffix Description: Plate-mount with display and reset
• Filter Option: No EMC filter included in this configuration

Electrical Specifications & Ratings

• Input Voltage: 240 VAC, 50-60 Hz operation
• Rated Current: 5.0 amps continuous output
• Output Power: 1 horsepower (0.75 kilowatts)
• Heat Dissipation: 40 watts maximum power loss

Control Features & Communication Options

• Control Methods: Closed-loop sensorless vector technology
• Alternative Control: Standard volts/Hz operation available
• Safety Feature: Optional Category 3 Safe Torque Off
• Communication Protocol: RS-485 with CIP compatibility
• Interface Options: Optional serial converter for DF1 protocol
• Platform Integration: Remote HMI or PC via Logix platform

Packaging & Shipping Information

• Package Contents: One 22D-B5P0H204 drive unit
• Product Condition: Factory new in original packaging
• Shipping Methods: FedEx, UPS, and DHL express services
• Order Processing: We ship within five business days
• Inventory Status: We maintain current stock availability
• Return Policy: 30-day return window for all orders

Frequently Asked Questions

• What does the H204 suffix indicate? Plate-mount with display but no filter.
• What motor size does this drive support? It controls 1 HP (0.75 kW) motors.
• What communication protocols are available? RS-485 CIP with optional DF1 converter.
• Does it include Safe Torque Off? Available as an optional safety feature.
• What control methods does it offer? Sensorless vector and volts/Hz modes.
• Are these drives brand new? Yes, we supply only genuine new products.

Download complete technical documentation: PowerFlex 4 and 40 AC Drives PDF
