22D PowerFlex 40P Allen-Bradley 22D-B033N104

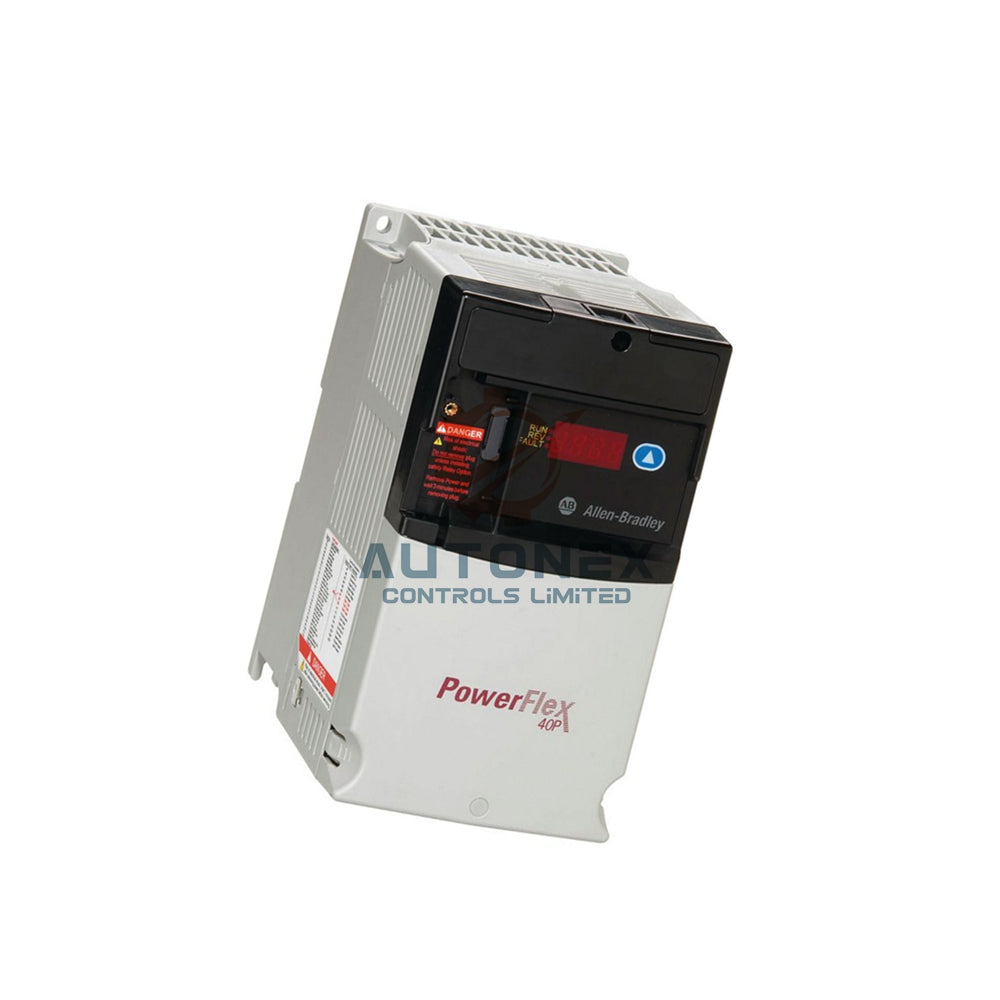

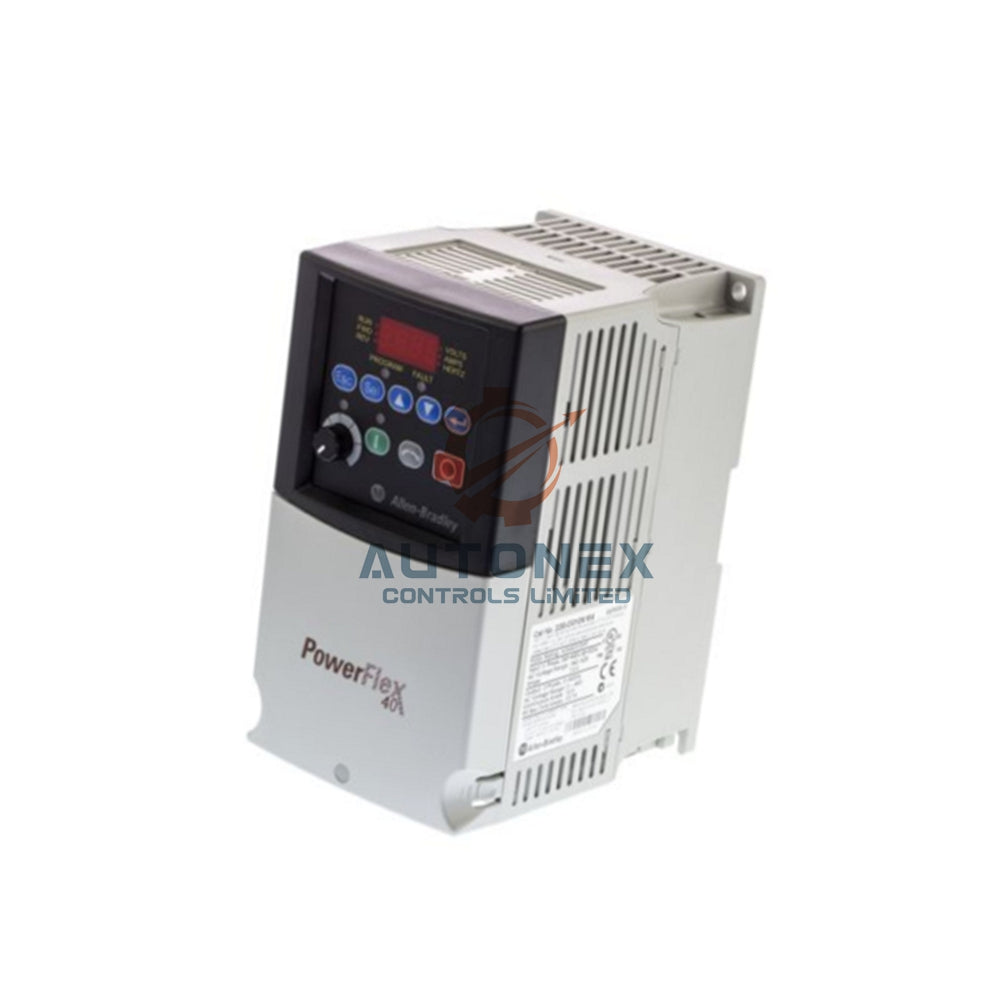

Allen-Bradley PowerFlex 40 AC Drive: Reliable Motor Control

Key Technical Specifications

• Brand & Model: Allen-Bradley 22D-B033N104
• Input Voltage: 240 VAC
• Rated Current: 33.0 A
• Output Power: 10 HP (7.5 kW)
• Enclosure: Open NEMA Type, Panel Mount (IP 20)

Performance and Control Features

• Control Method: Sensorless Vector with encoder trim
• Speed Accuracy: Autotune maintains ±1% across the full range
• Overload Capacity: 150% for 60 seconds and 200% for 3 seconds
• PWM Frequency: Operates at up to 16 kHz for smooth motor performance
• Transient Protection: Withstands surges up to 6000 V
• Safety Rating: Safe-Off meets Category 3 standards

Environmental Durability and Limits

• Operating Temperature: From -10 °C to +50 °C
• Storage Temperature: From -40 °C to +85 °C
• Humidity Range: 0 to 95% in non-condensing conditions
• Vibration Resistance: 5 to 2000 Hz at 1 G peak
• Shock Resistance: 15 G for 11 milliseconds duration
• Maximum Altitude: Suitable for use up to 1000 meters

Installation and Packaging

• This panel-mount drive requires a standard NEMA open enclosure.
• Ensure adequate clearance around the unit for proper ventilation.
• Our packaging secures the product for safe transit and handling.
• We ship all orders via reliable carriers like FedEx, UPS, or DHL.
• You will receive the AC drive unit and the user manual.

Download Product Documentation

• For complete technical details and wiring diagrams, please download the PDF file.
• PDF Manual: PowerFlex 4 and 40 AC Drives

Frequently Asked Questions (FAQ)

What is the brand and model of this drive?

This is the Allen-Bradley PowerFlex 40 AC drive, specifically model 22D-B033N104.

What is the output power rating?

The drive provides an output power of 10 Horsepower (7.5 Kilowatts) for your motor.

What input voltage does it require?

You need a standard 240 VAC power supply to operate this unit correctly.

Is the product new and in stock?

Yes, we supply only brand new, original units, and we currently have them in stock.

How quickly do you ship orders?

We process and ship all orders within five business days from our warehouse.

Which logistics carriers do you use?

We typically ship using major global carriers such as DHL, FedEx, and UPS.

Do you accept returns?

We offer a 30-day return policy from the date you receive your product.
