22D PowerFlex 40P Allen-Bradley | 22B-B017H204

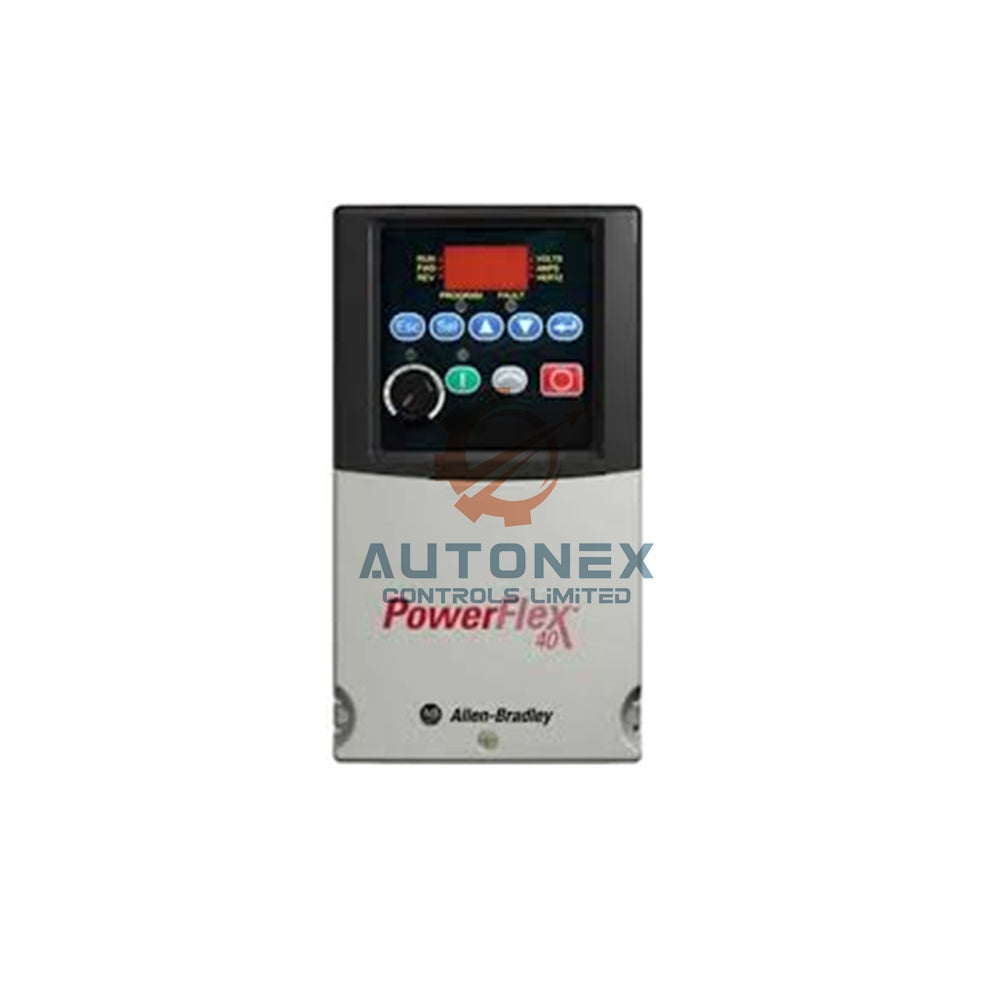

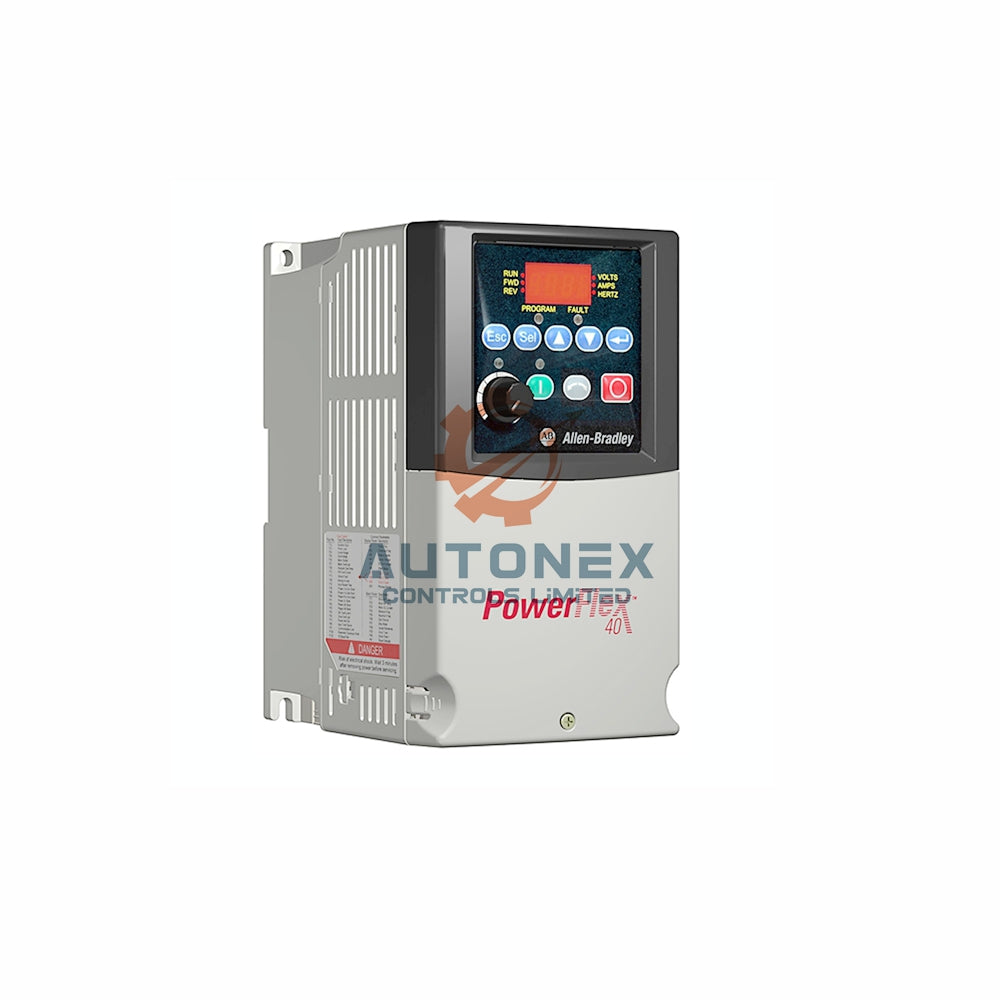

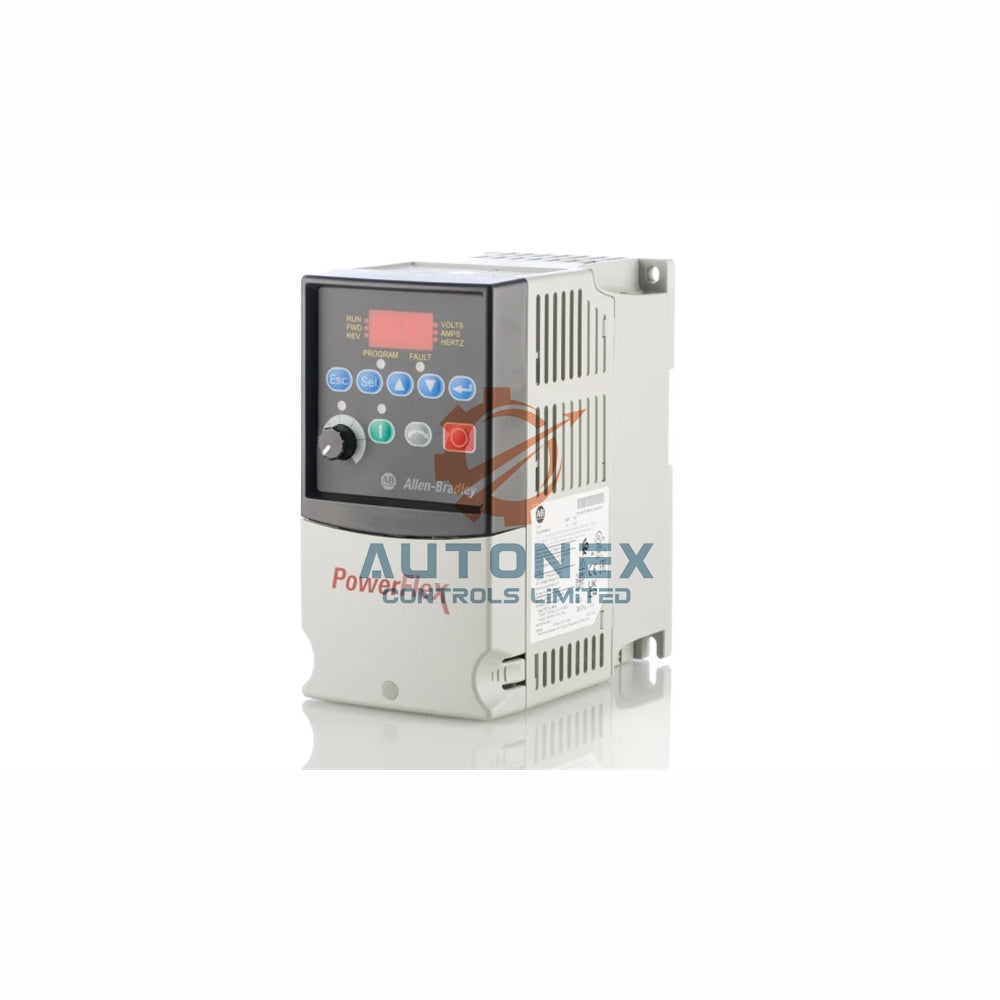

Allen-Bradley 22B-B017H204 PowerFlex 40 Adjustable Frequency Drive

Technical Specifications

• Brand & Model: Allen-Bradley 22B-B017H204 PowerFlex 40 series
• Input Voltage: 240V AC, 3-Phase power supply
• Output Current: Maximum 17.0 Amps output capacity
• Power Rating: 3.7 kW (5 HP) motor control capability
• Frequency Range: Wide 48-63 Hz operating range
• Enclosure Type: IP20 open type with heatsinkless plate mount design
• Communication: RS-485 and DSI-compatible interfaces

Key Performance Features

• High Switching Frequency operates from 2-16 kHz for optimized motor performance
• Built-in Display provides clear status monitoring through LED and keypad interface
• Advanced Protection includes 40A fuse and 140M-F8E-C32 motor protection circuit
• Robust Design handles 100,000 A symmetrical short circuit rating
• Efficient Cooling features heatsinkless design with 180W total power loss
• Wide Temperature Range operates from 14-122°F (-10 to 50°C) ambient conditions
• Humidity Tolerance functions in 0-95% non-condensing environments

Installation & Packaging

• Mount the drive using the plate mount design for easy panel installation
• Ensure adequate ventilation around the unit for optimal heat dissipation
• Package includes the complete Allen-Bradley 22B-B017H204 drive unit
• All necessary documentation and mounting instructions accompany each unit
• We ship worldwide using reliable carriers including FedEx, UPS, and DHL
• Orders typically process and ship within five business days from confirmation

Frequently Asked Questions

• What is the power rating of this drive?
  This model delivers 3.7 kW (5 HP) for motor control applications
• Does this drive include a CE compliant filter?
  No, this specific model does not include built-in CE compliant filtering
• What temperature range can this drive operate in?
  It operates reliably from 14-122°F (-10 to 50°C) ambient temperature
• Is this product new and in stock?
  We supply only new, original units and maintain regular stock
• What communication protocols are supported?
  The drive supports RS-485 and DSI communication interfaces
• What is the short circuit protection rating?
  The unit has a 100,000 A symmetrical short circuit rating

Download technical documentation: PowerFlex 4 and 40 AC Drives Manual
