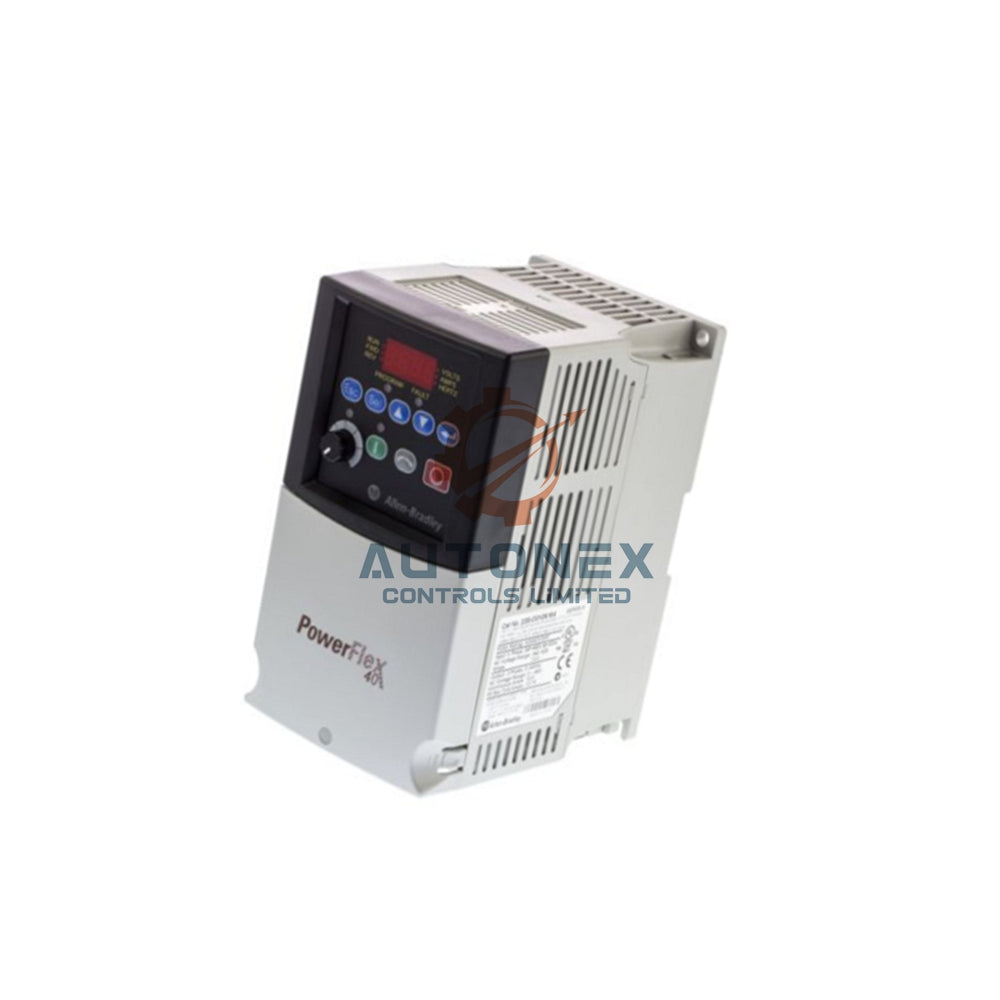

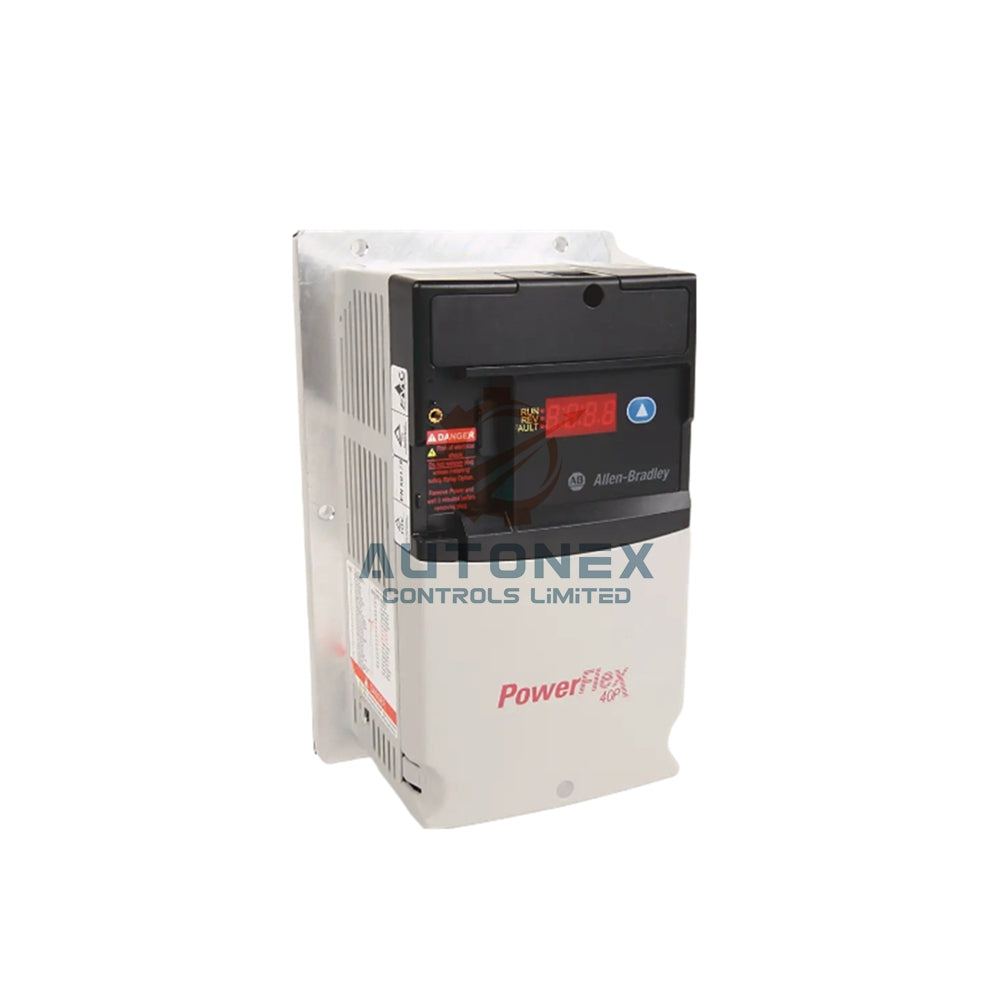

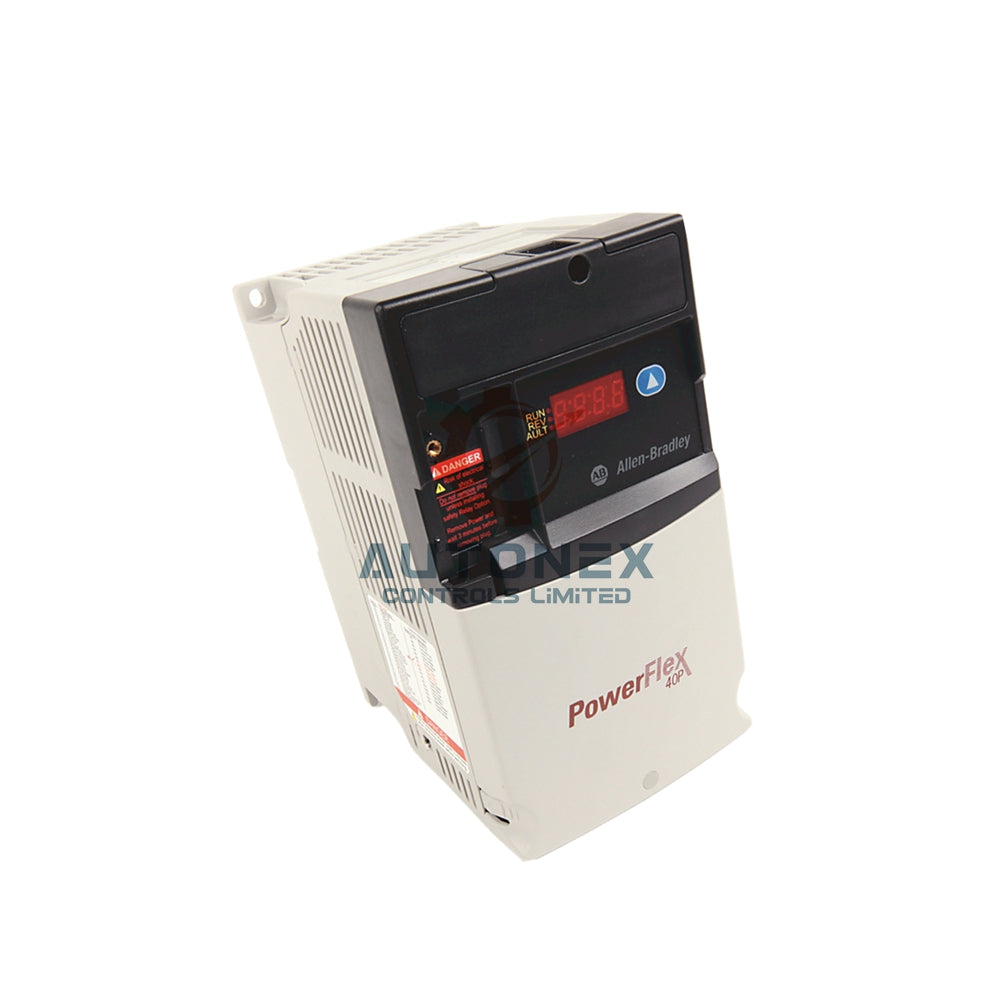

Allen-Bradley PowerFlex 40P AC Drive – Model 22D-B017N104

Main Features

• Input Voltage: 240V AC, 3-phase power supply
• Output Power: 5 HP / 3.7 kW motor capacity
• Output Current: 17.5 Amps maximum output
• Frequency: 50–60 Hz operating range
• Frame Size: B compact design
• Weight: 1.905 kg total unit weight
• Mount Type: Panel Mount (Open NEMA, IP20)
• Filter: No CE filter included
• Warranty: 12 months manufacturer warranty

Performance and Control

• Sensorless vector control provides excellent low-speed torque
• Speed and basic position control enhances motor response
• Compact design saves valuable panel space and reduces costs
• Built-in RS-485 communication enables easy PC programming
• Advanced control algorithms for smooth motor operation
• Multiple preset speed configurations available

User Interface and Programming

• Display: 4-digit backlit with 10 LED indicators
• Reset Button: Allows quick fault clearing and reset
• Remote Options: Supports NEMA Type 1 or 4X keypad
• CopyCat Function: Speeds up programming on Type 4X keypad
• Intuitive menu structure for easy parameter adjustment
• Multiple language support for global applications

Protection and Safety

• Overload and overcurrent protection safeguards motor operation
• Removable MOV-to-ground enables use with ungrounded systems
• Short circuit protection for wiring and components
• Over-temperature monitoring with automatic shutdown
• Phase loss detection for input power monitoring
• Ground fault protection for enhanced safety

Installation Requirements

• Provide adequate clearance for proper heat dissipation
• Ensure correct 3-phase power connection
• Follow local electrical codes and safety standards
• Use appropriate circuit breakers and protection devices
• Maintain clean, stable power supply within specifications
• Implement proper grounding for safety and performance

Package Contents

• One 22D-B017N104 AC drive unit
• Complete installation and operation manual
• Mounting hardware and accessories
• Programming quick start guide

Frequently Asked Questions

• What is the input voltage requirement?
  This drive requires 240V AC, 3-phase power input.
• What motor power can this drive handle?
  It supports 5 HP / 3.7 kW motor applications.
• What communication interface is included?
  Features built-in RS-485 for programming and control.
• What type of mounting does this drive use?
  Designed for Panel Mount (Open NEMA, IP20) installation.
• Does this include EMC filters?
  No, this model ships without CE-compliant filters.
• What safety features are included?
  Includes overload protection and removable MOV-to-ground for safety.
