22D PowerFlex 40P 22D-B017F104 Allen-Bradley

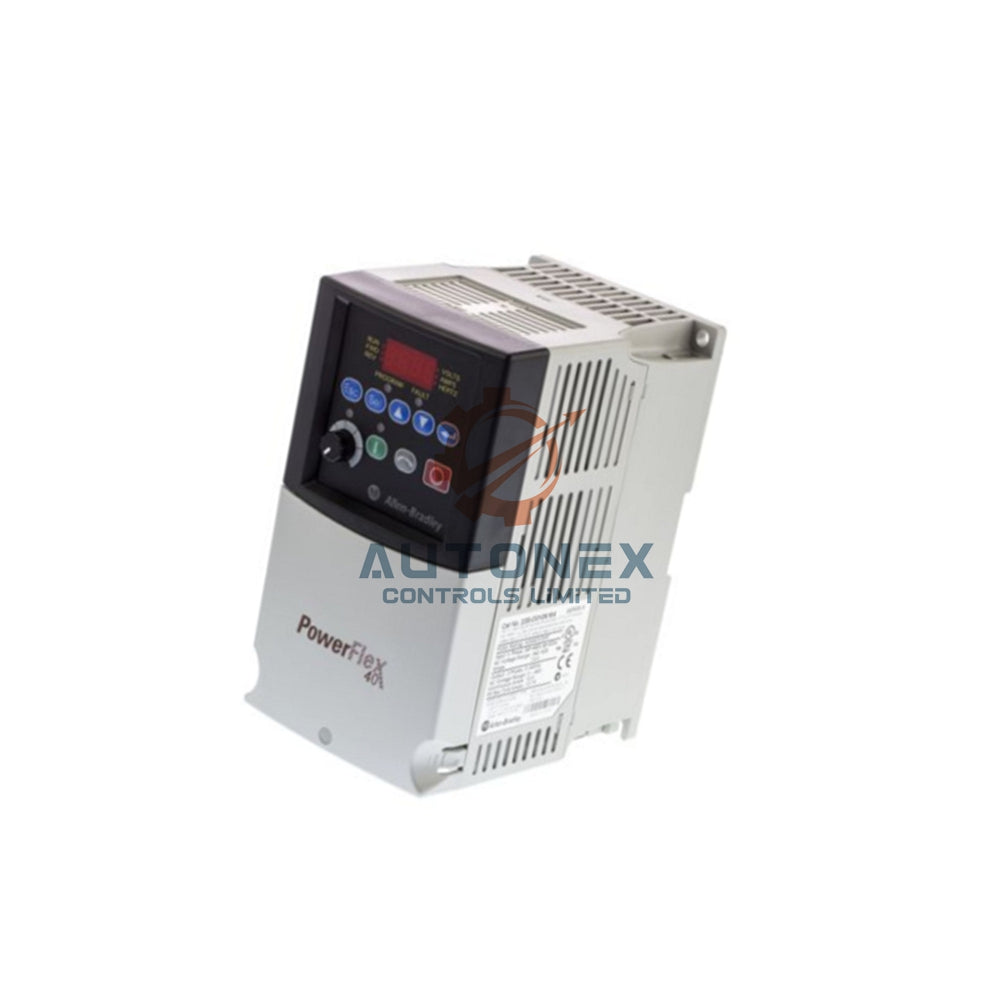

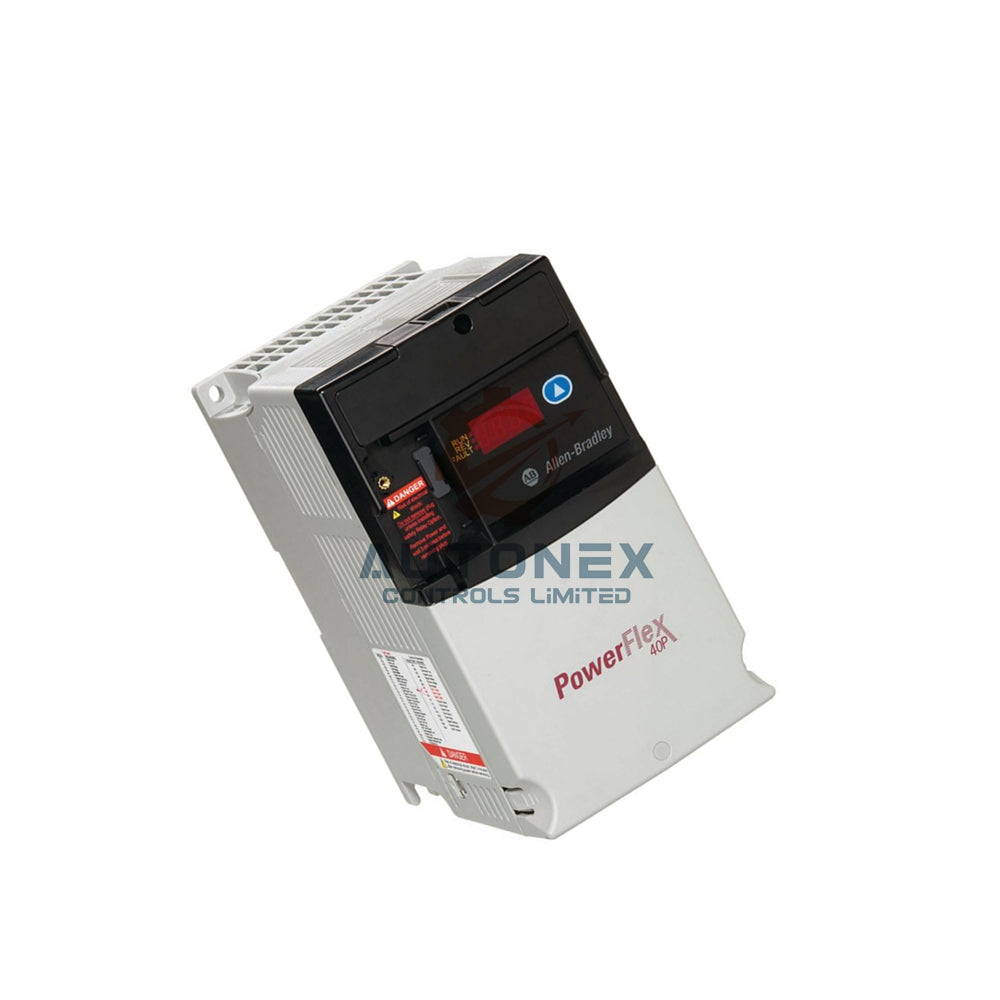

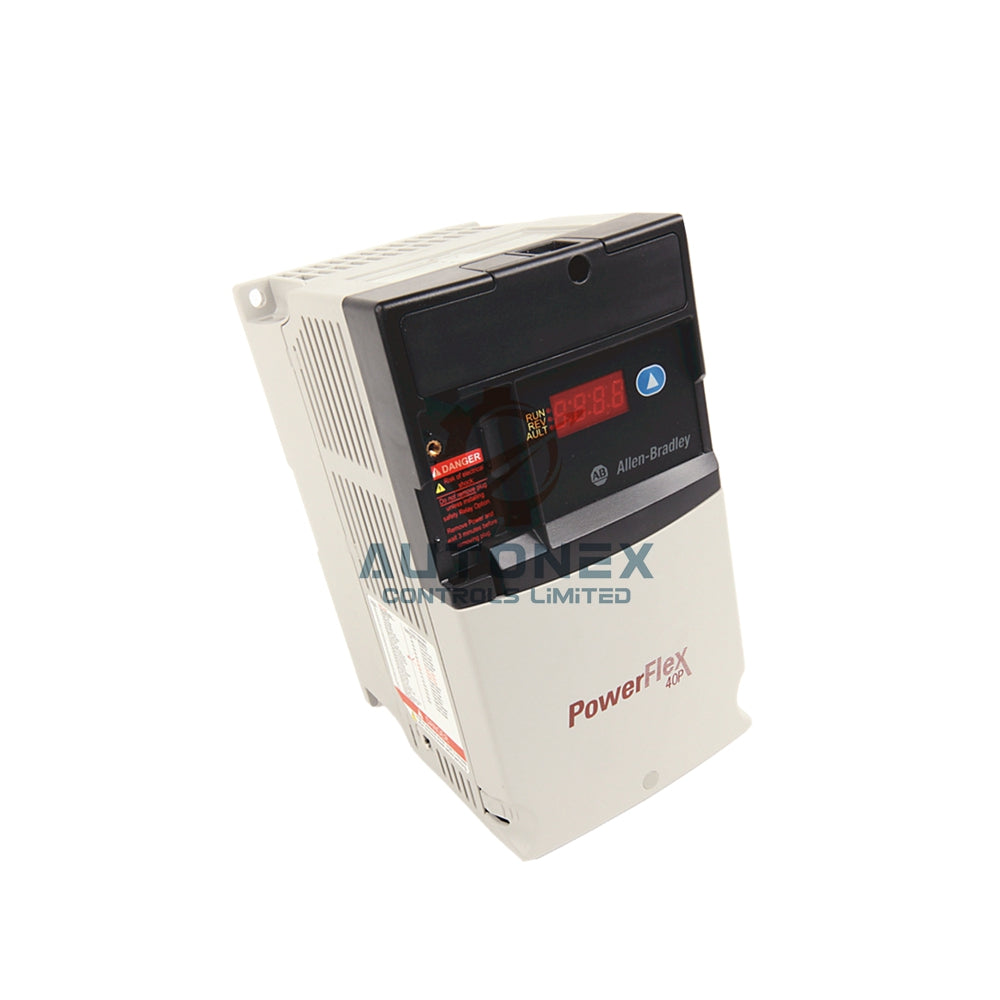

Allen-Bradley PowerFlex 40P AC Drive – Model 22D-B017F104

Key Specifications

• Rated Current: 17.5 Amps continuous output
• Output Power: 5 Horsepower / 3.7 kW capacity
• Input Voltage Range: 180–264V AC single phase
• Input Power: 11.8 kVA / 26.1 Amps requirement
• Frame Size: B compact design
• Enclosure Type: Open NEMA Flange Mount (IP20)
• Filter: No CE-compliant filter included
• Warranty Period: 12 months manufacturer coverage

Control and Protection Features

• Output Frequency: 0–500 Hz fully adjustable range
• Control Modes: Sensorless Vector, V/Hz, and PWM
• Motor Overload Protection: Built-in Class 10 (NEC 430)
• Motor Temperature Protection: Complies with NEC 430.125
• Trip Limits: 405V DC over-voltage, 210V DC under-voltage
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds

Installation Requirements

• Ensure proper ventilation around the drive unit
• Follow all local electrical codes and standards
• Use appropriate circuit protection devices
• Maintain clean power supply within voltage range
• Implement correct grounding for safety
• Allow sufficient space for heat dissipation

Package Contents

• One 22D-B017F104 AC drive unit
• Complete installation manual and documentation
• All necessary mounting hardware
• Basic configuration quick start guide

Frequently Asked Questions

• What is the horsepower rating of this model?
  This drive rated for 5 Horsepower / 3.7 kW motor applications.
• What input voltage does this drive accept?
  It operates on 180–264V AC single phase power input.
• What control methods are available?
  Supports Sensorless Vector, V/Hz, and PWM control modes.
• What is the output current capacity?
  Provides 17.5 Amps maximum continuous output current.
• Does this include EMC filters?
  No, this model ships without CE-compliant filters.
• What overload protection is provided?
  Features 150% for 60 seconds and 200% for 3 seconds overload capacity.

Download technical documentation: PowerFlex 4 and 40 AC Drives
