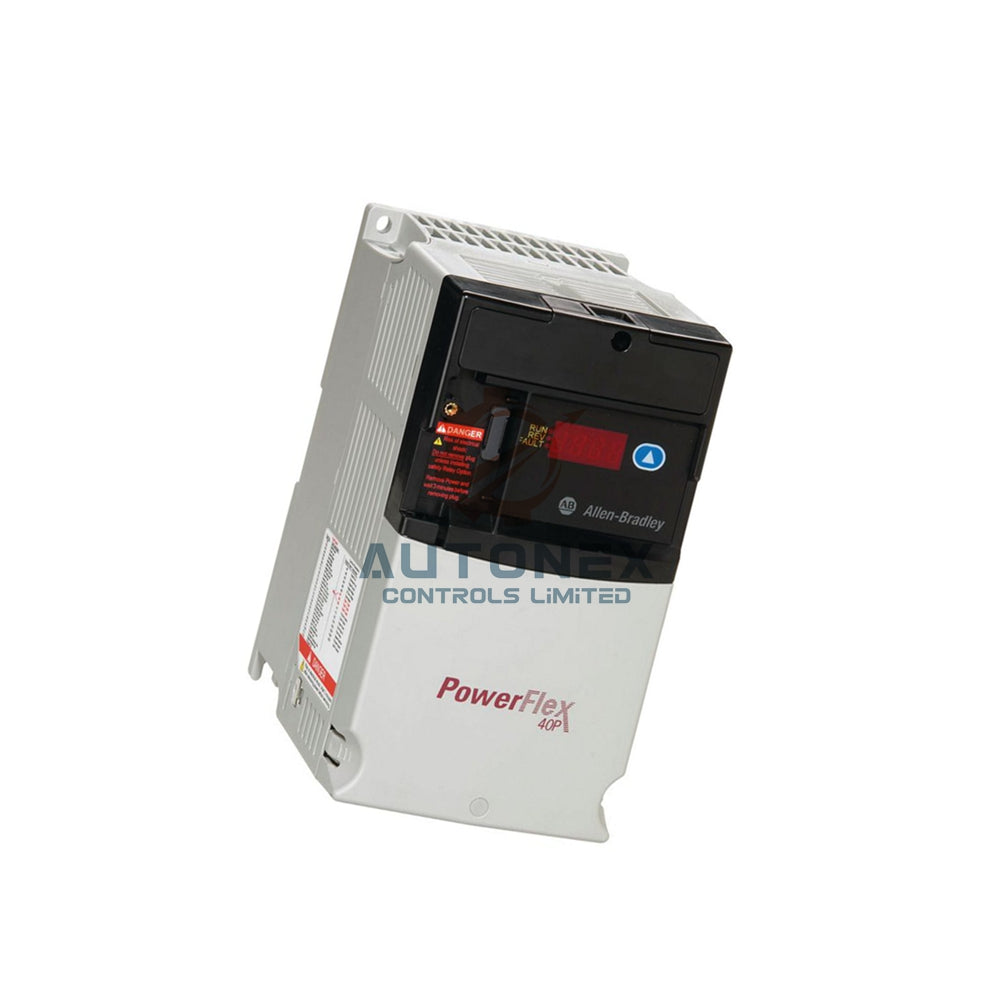

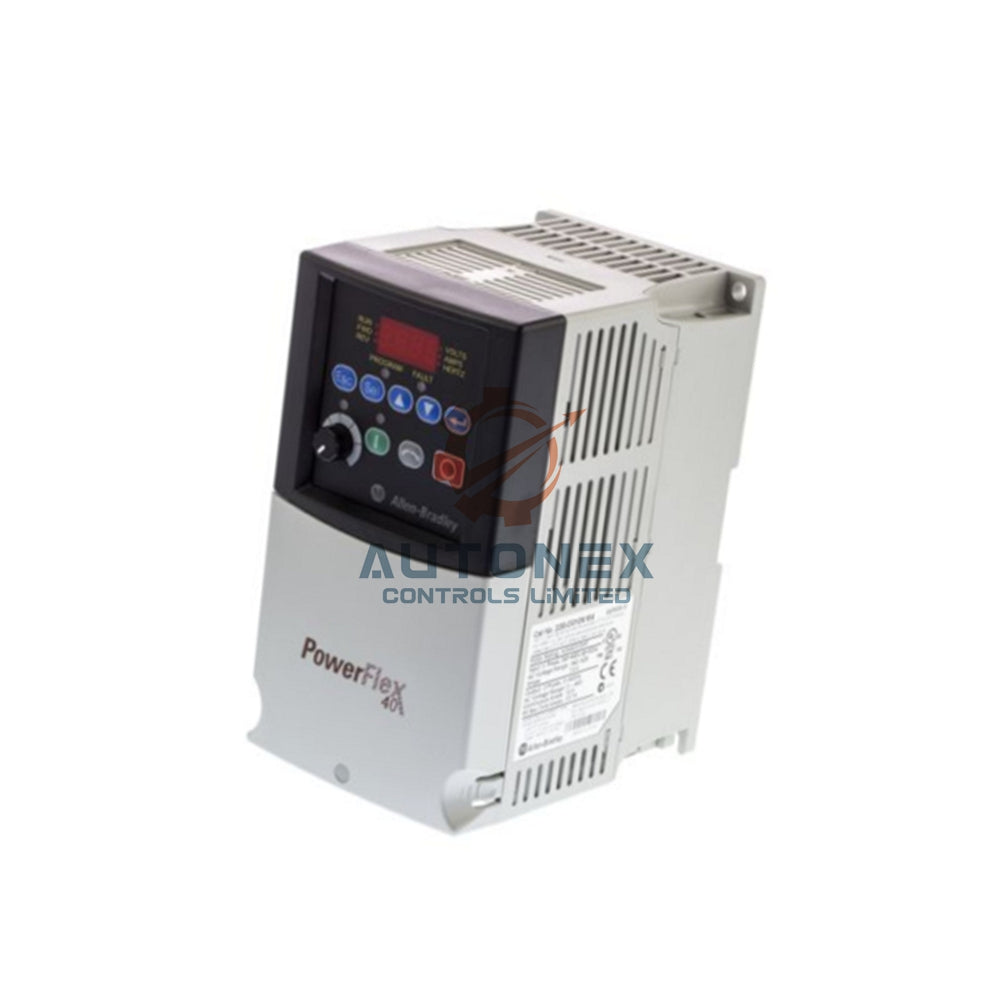

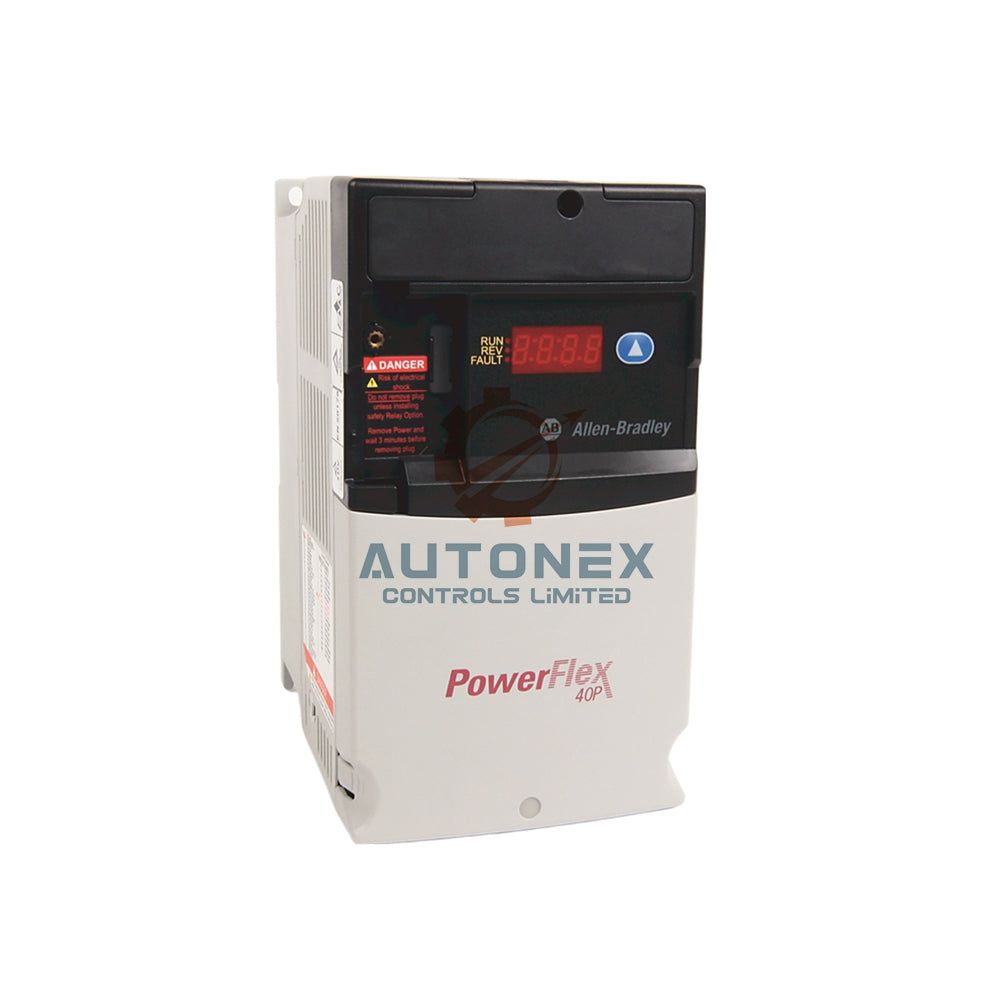

22D-B033H204 22D PowerFlex 40P Allen-Bradley

Allen-Bradley PowerFlex 40 AC Drive Introduction

Key Electrical Specifications

• Brand & Model: Allen-Bradley 22D-B033H204
• Input Voltage: 240 VAC single or three-phase
• Rated Current: 33.0 amps continuous
• Output Power: 10 horsepower (7.5 kilowatts)
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
• PWM Frequency: Adjustable up to 16 kilohertz
• Transient Protection: Withstands 6000-volt spikes

Physical Design & Environmental Ratings

• Enclosure Type: Open chassis NEMA Type plate mount (IP20)
• Operating Temperature: -10°C to +40°C continuous, +50°C maximum
• Maximum Altitude: 1000 meters above sea level
• Product Weight: Lightweight at only 2.7 kilograms
• Storage Period: One year shelf life under proper conditions

Control Features & Communication Options

• User Interface: Integrated 4-digit display with reset button
• Status Indicators: Ten LED lights for clear operation feedback
• Network Communication: RS-485 Modbus RTU multi-drop protocol
• Programming Methods: External HMI or PC via DSI connection port
• Configuration: DIP switch for 24 VDC sink/source selection

Packaging & Shipping Information

• Package Contents: One 22D-B033H204 drive unit and documentation
• Shipping Carriers: We ship via FedEx, UPS, and DHL worldwide
• Order Processing: We dispatch all orders within five business days
• Inventory Status: We maintain fresh stock of all products
• Return Policy: We accept returns within 30 days of purchase

Frequently Asked Questions

• What is the motor power rating? This drive controls motors up to 10 HP (7.5 kW).
• What input voltage does it require? It operates on standard 240 VAC power.
• How do I program the unit? You can use the display or connect a PC.
• What communication protocols work? It supports Modbus RTU over RS-485.
• Are these drives brand new? Yes, we supply only factory fresh units.
• What is your shipping time? We process and ship within five working days.

Download the complete product manual here: PowerFlex 4 and 40 AC Drives PDF

Contact our sales team for pricing and technical support: sales@nex-auto.com
