22D-B024H204 22D PowerFlex 40P Allen-Bradley

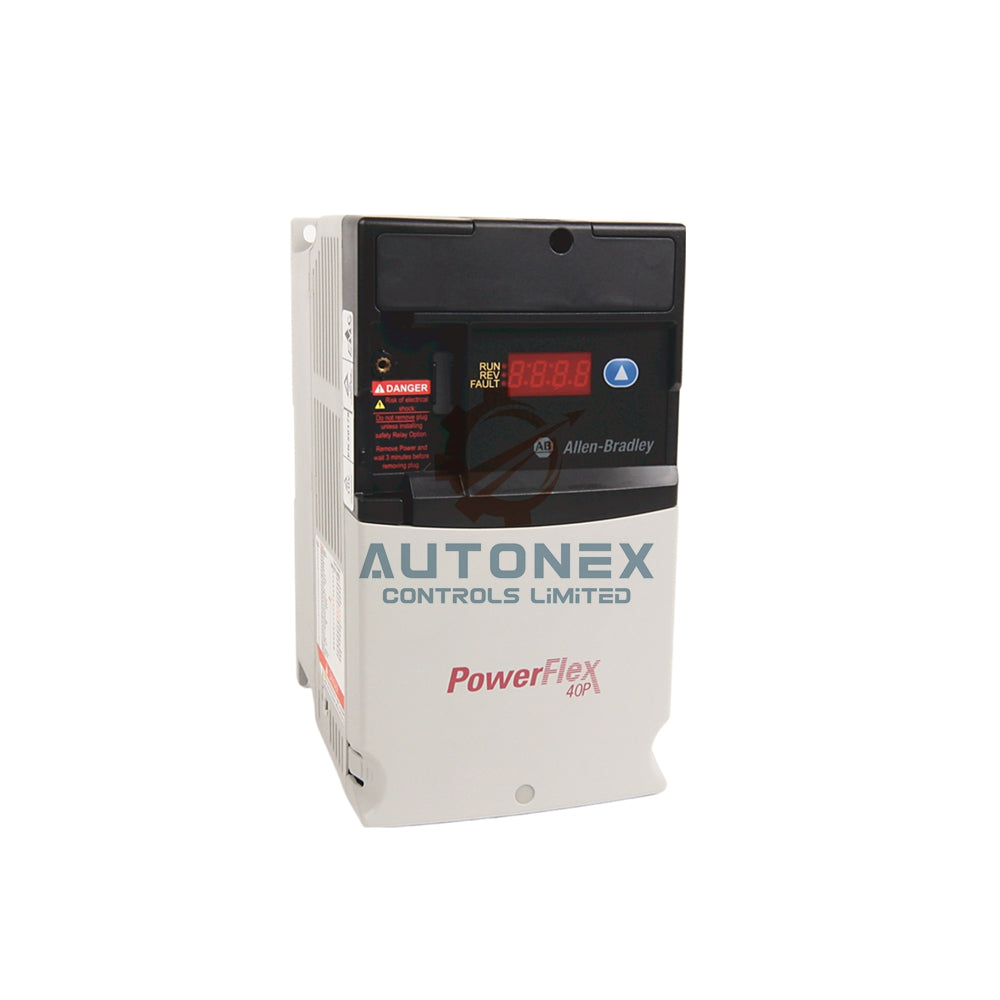

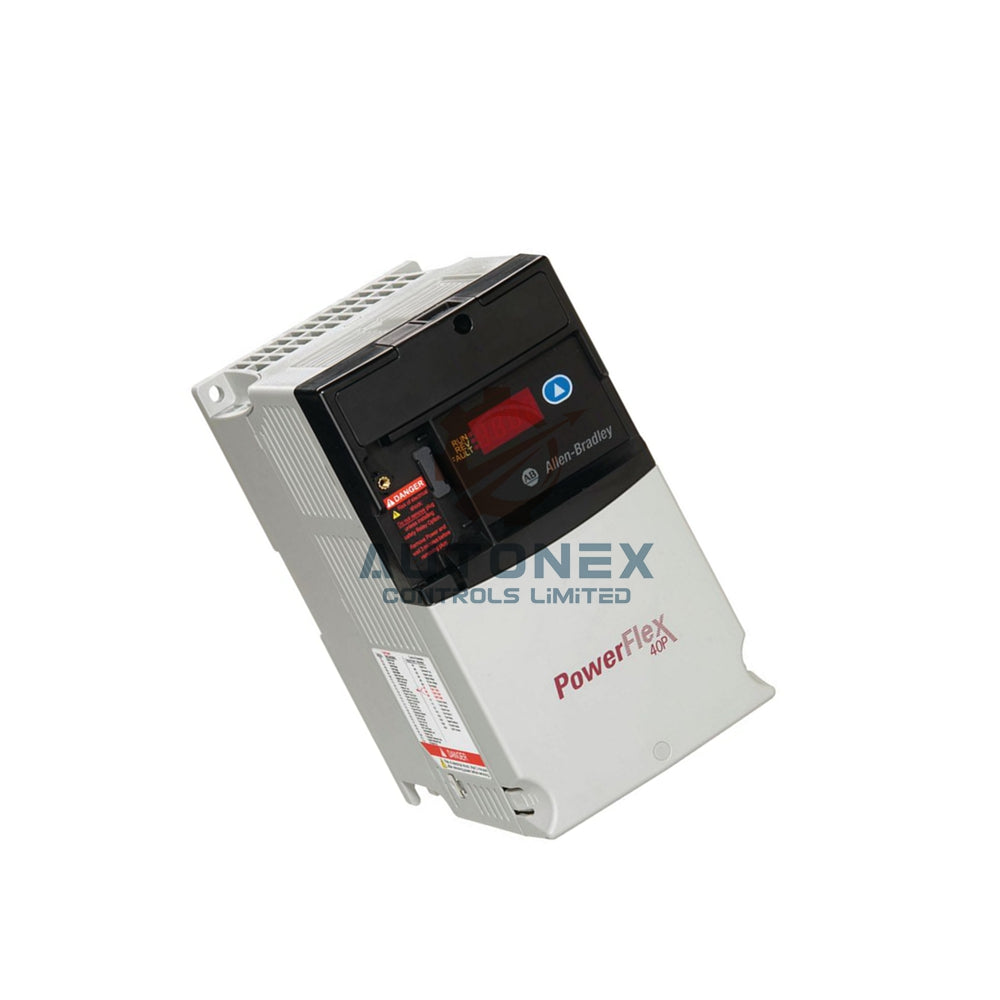

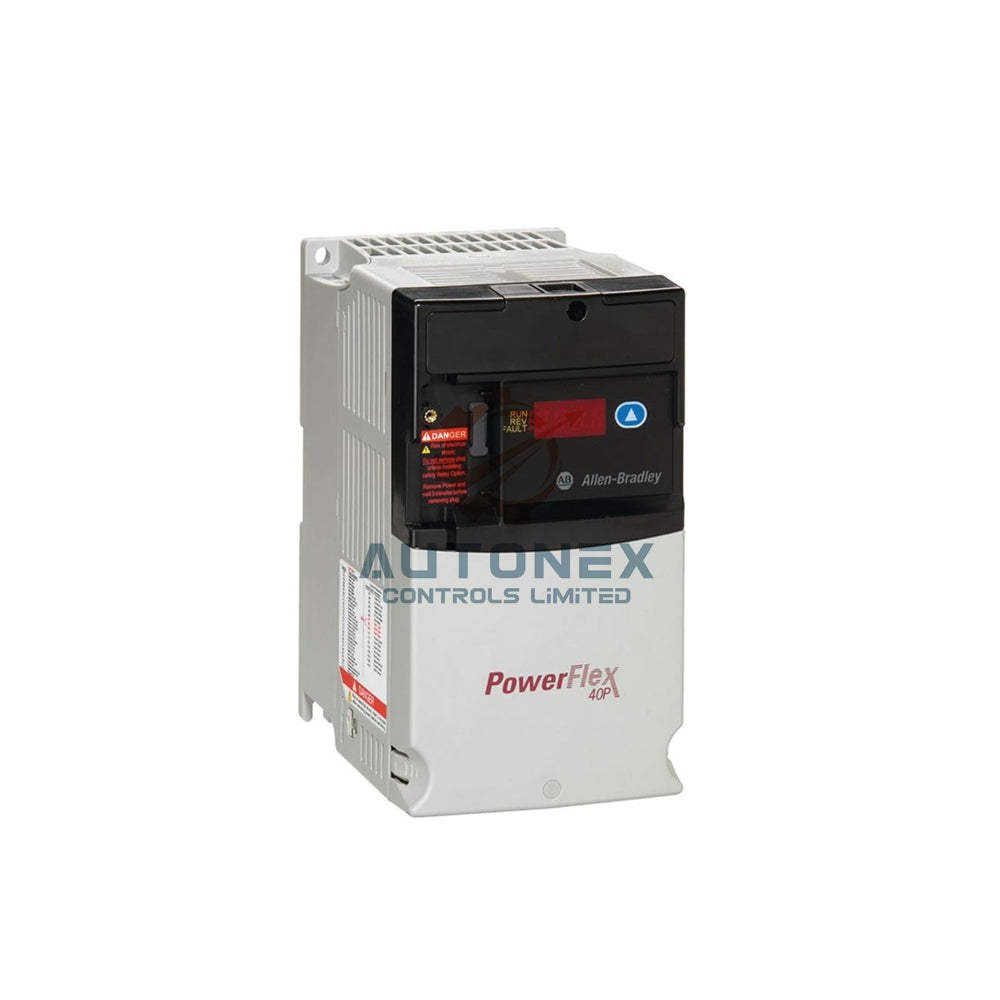

PowerFlex 40P Drive – Model 22D-B024H204

Core Specifications

• Three-phase Input: 200–240 VAC at 48–63 Hz (±10%)
• Rated Current: 24.0 Amps continuous output
• Output Power: 5.5 kW (7.5 HP) motor capacity
• Frame Size: Type C plate mount design
• Enclosure: IP20 open, NEMA Type plate mount
• Real Input Power: 11.8 kVA at 26.1 Amps
• Short-Circuit Rating: 100 kA maximum capacity

Performance & Protection

• Control Modes: Sensorless Vector, Volts/Hertz
• PWM Carrier Range: 2–16 kHz adjustable frequency
• Programmable Frequency: 0–500 Hz output range
• Displacement PF: 0.98 power factor
• Bus Trip Levels: Overvoltage 405 VDC, Undervoltage 210 VDC
• Ride-Through: Power 100 ms, Logic 2 seconds
• Overload Capacity: 150%/60 seconds, 200%/3 seconds
• EMO Protection: Class 10 electronic overload, MOV ground-fault

Environmental & I/O Details

• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Humidity Range: 5–95% non-condensing
• Shock/Vibration: 15 G/11 ms and 1 G/5–2000 Hz
• Max Altitude: 1000 meters without derating
• Digital Inputs: 7 channels (24 VDC sink/source)
• Analog I/O: Two 10-bit inputs, one 10-bit output
• Communications: RS-485 multi-drop port
• Interface: Integrated LCD with reset function
• Certifications: CE and cUL-us compliant
• Warranty Period: 12 months manufacturer coverage

Frequently Asked Questions

• What is the horsepower rating of this drive?
  This model rated for 7.5 HP (5.5 kW) motor applications.
• What input voltage does this drive accept?
  It operates on 200–240 VAC three-phase power.
• What communication interface is included?
  Features RS-485 multi-drop port for network connectivity.
• What is the maximum output current?
  Provides 24.0 Amps maximum continuous output.
• What control modes are available?
  Supports Sensorless Vector and Volts/Hertz control modes.
• What is the operating temperature range?
  Operates from 14°F to 122°F (-10°C to 50°C).

Download technical documentation: PowerFlex 4 and 40 AC Drives

Contact our sales team for technical support: sales@nex-auto.com
