22D-B024F104 22D PowerFlex 40P Allen-Bradley

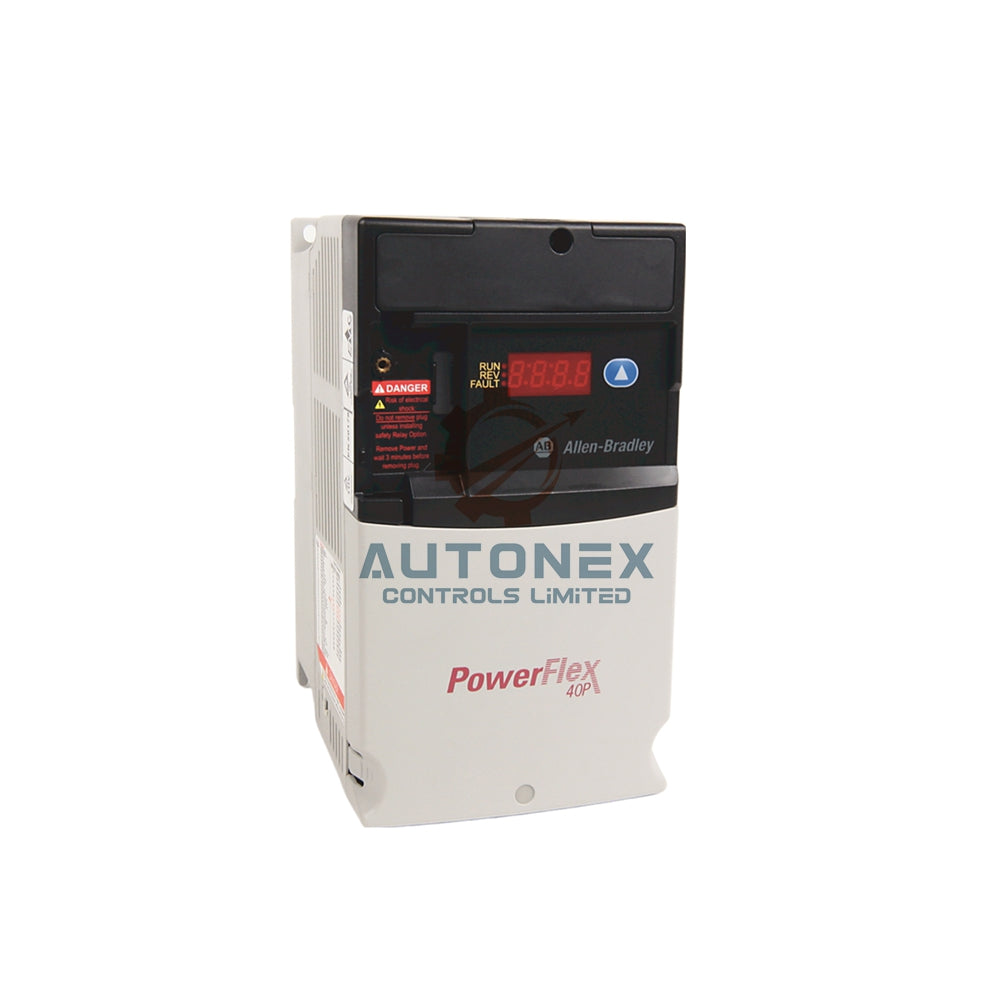

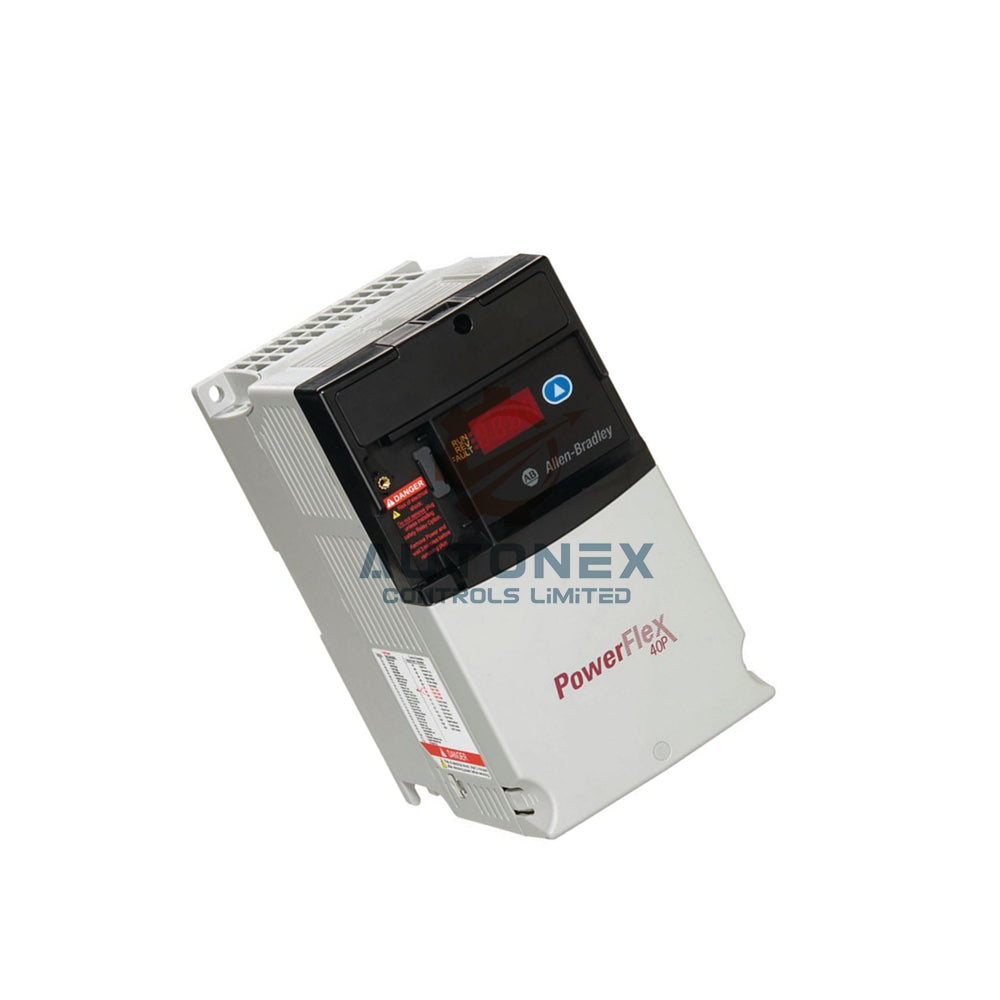

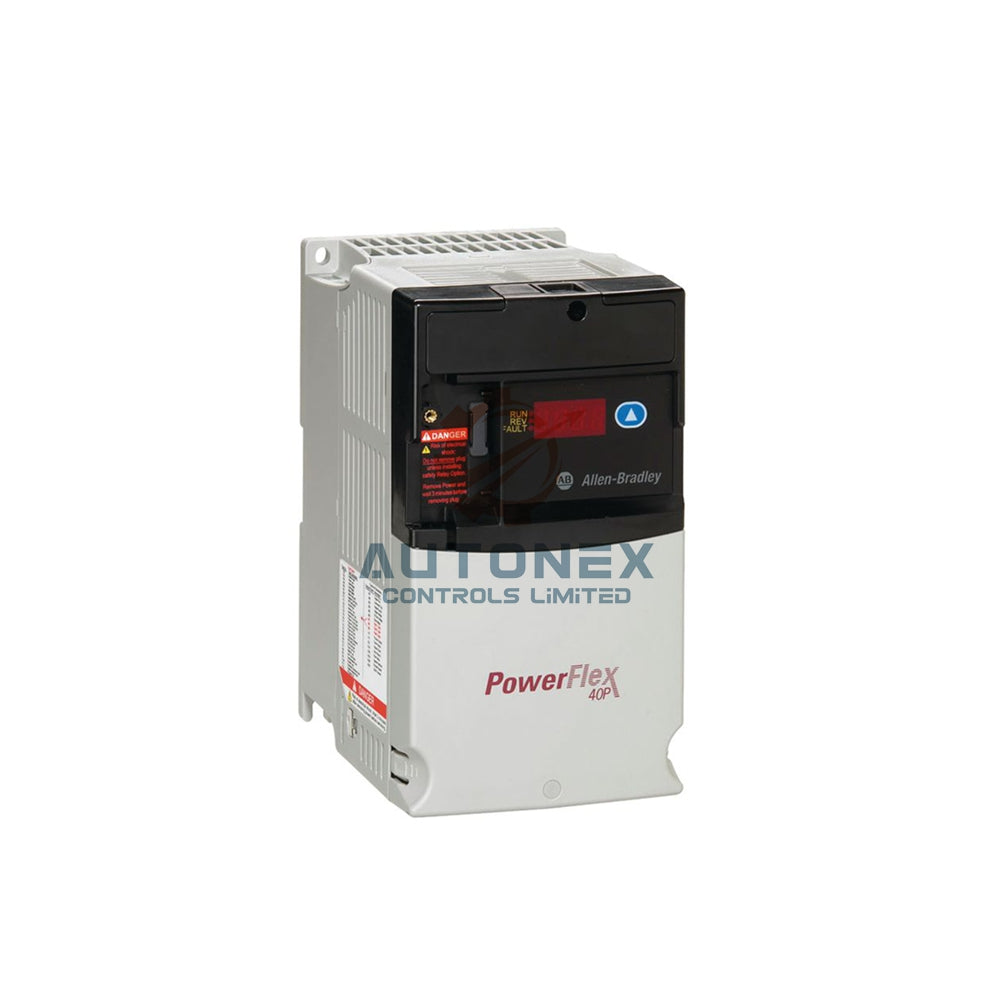

Allen-Bradley 22D-B024F104 PowerFlex 40P AC Drive

Technical Specifications

• Model: 22D-B024F104
• Brand: Allen-Bradley
• Input Voltage: 240V AC, three-phase
• Output Current: 24.0 Amps
• Output Power: 7.5 HP / 5.5 kW (up to 15 HP capable)
• Frequency Range: 50-60 Hz input / 0-500 Hz output
• Frame Size: C industrial grade
• Mounting Type: Flange Mount (Open NEMA, IP20)
• Filter Type: No CE EMC filter included
• Warranty: 12 months manufacturer coverage

Environmental Specifications

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity Range: 0-95% RH (non-condensing)
• Shock Resistance: 15G peak for 11 milliseconds
• Vibration Resistance: 1G from 5-2000 Hz
• Environmental Protection: IP20 rated enclosure

Industrial Applications

• Heavy-duty conveyor systems and material handling
• Industrial pump and fan control applications
• Machine tools and processing equipment
• Packaging machinery and production lines
• HVAC systems and building automation

Frequently Asked Questions

What is the maximum power rating of this drive?

• The 22D-B024F104 delivers 7.5 HP (5.5 kW) standard power. It can handle applications up to 15 HP (11 kW) in specific configurations.

What control methods does this drive support?

• It supports sensorless vector control, PWM control, and V/Hz control. These methods provide flexibility for different motor types and applications.

What are the environmental operating limits?

• The drive operates from -10°C to 50°C with 0-95% humidity. It withstands 15G shock and 1G vibration for reliable industrial use.

Does this drive include an EMC filter?

• No, this model does not include a CE EMC filter. Additional filtering may be required for specific electromagnetic compatibility needs.

What user interface is provided?

• The drive features a basic display with fault reset capability. This simplifies operation and troubleshooting in industrial environments.

For technical documentation, download the PDF file here: PowerFlex 4 and 40 AC Drives

For purchasing information or technical support, please contact our sales team: sales@nex-auto.com
