22D-B012F104 22D PowerFlex 40P Allen-Bradley

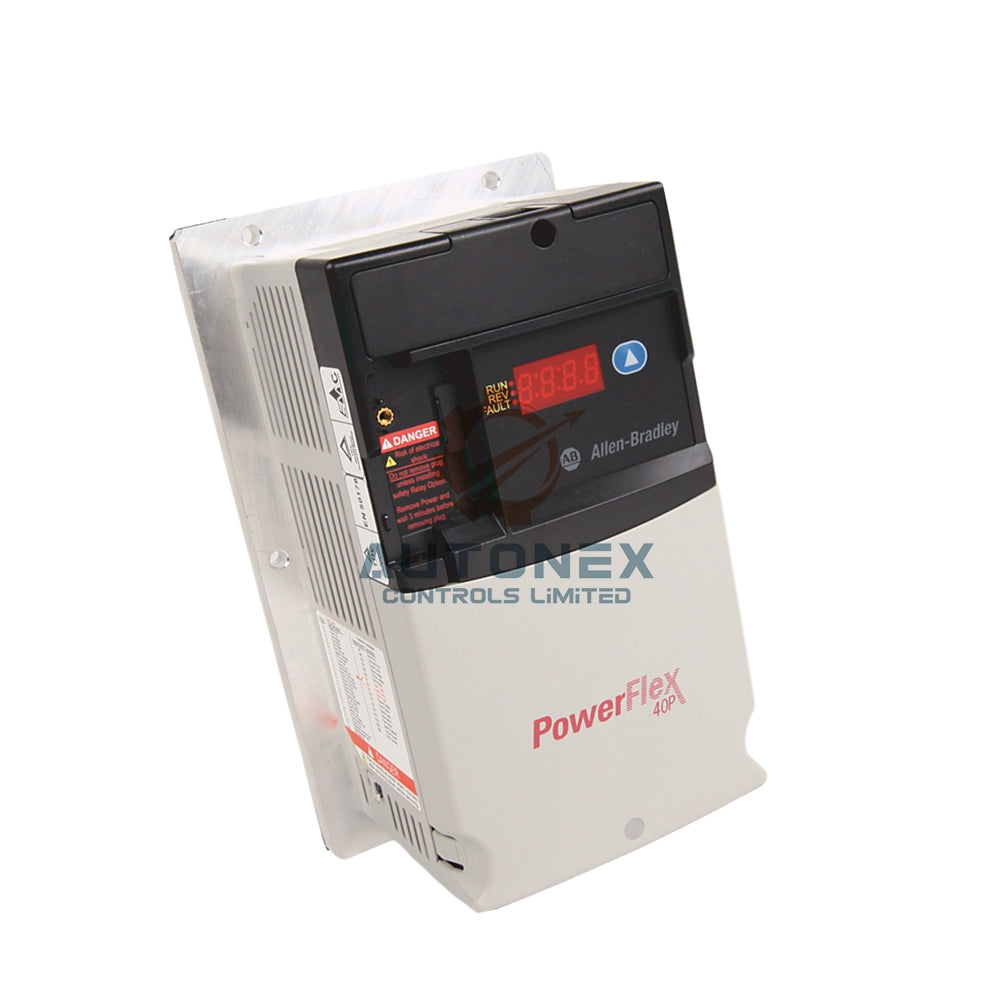

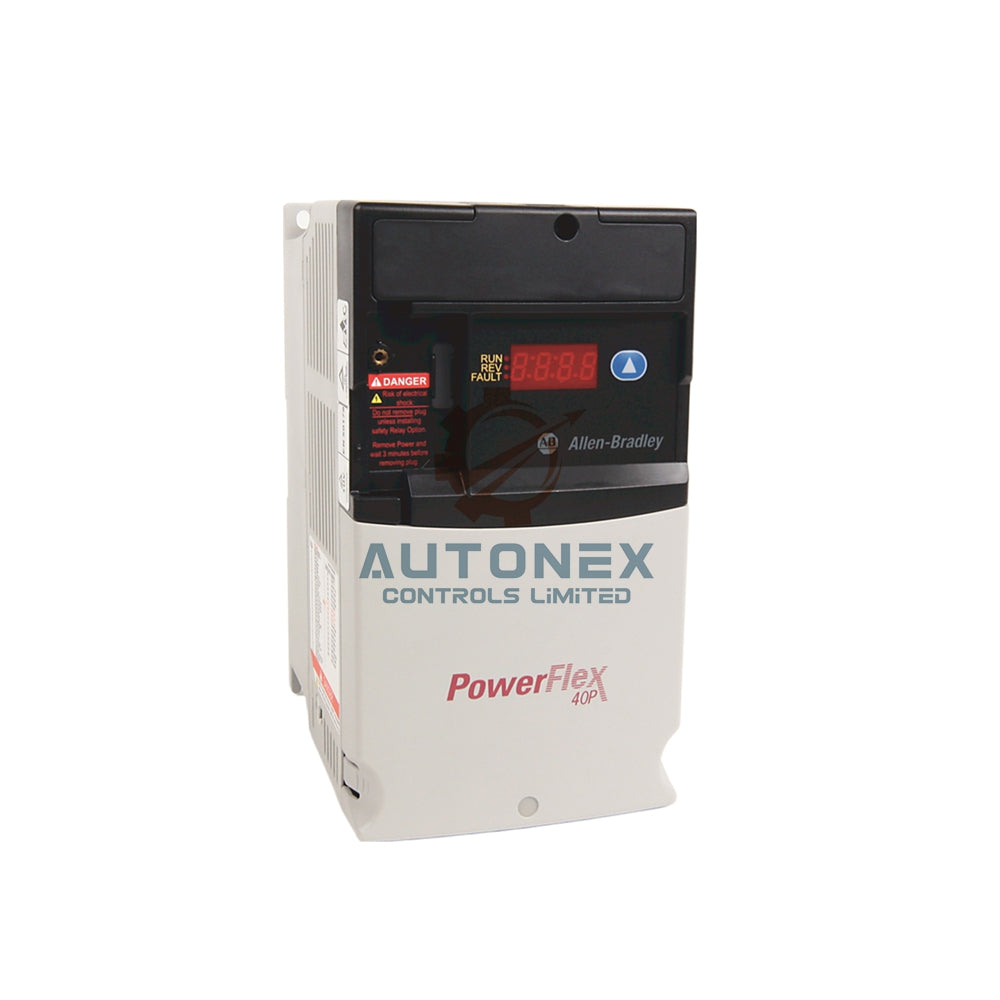

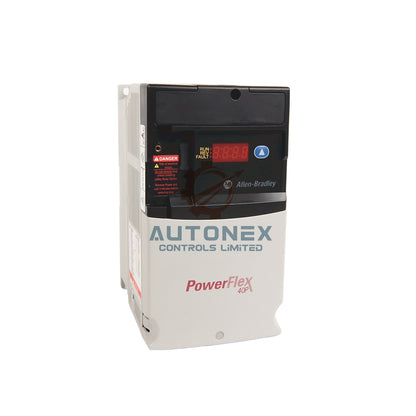

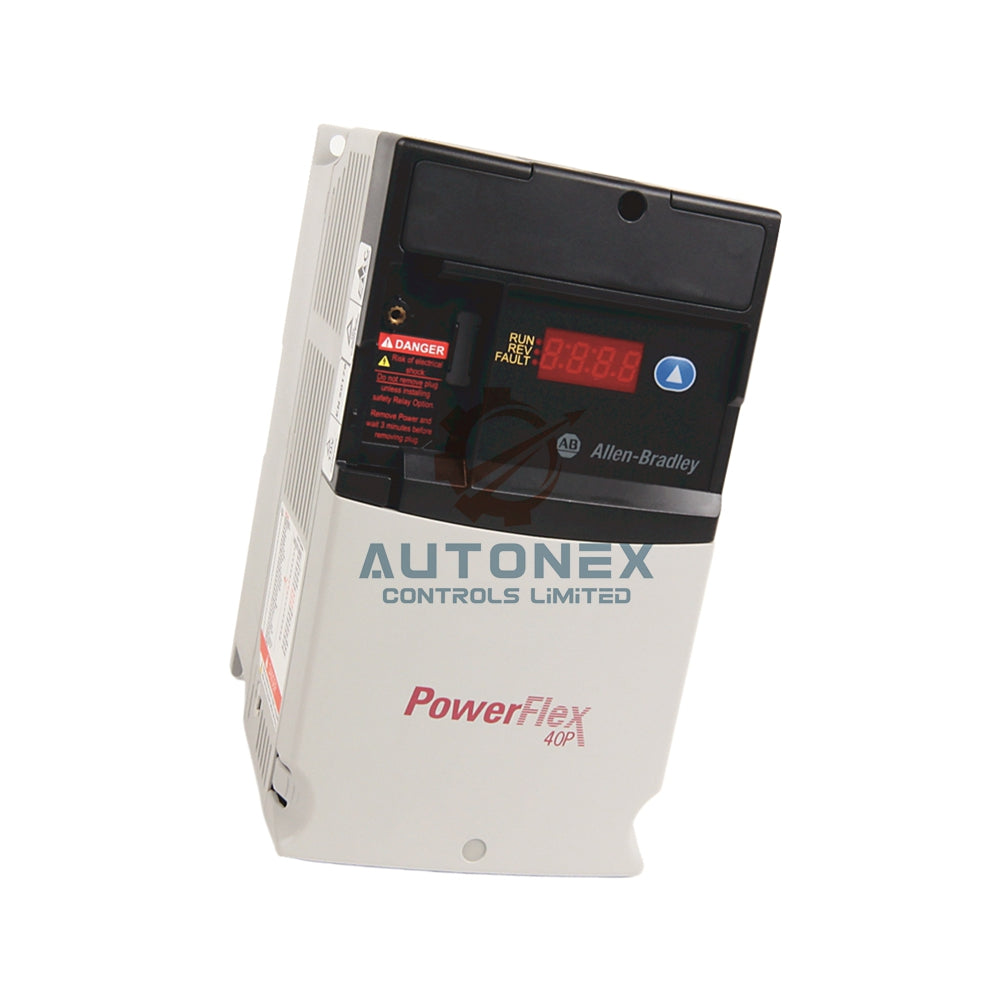

Allen-Bradley 22D-B012F104 PowerFlex 40P AC Drive

Key Features

• Model: 22D-B012F104
• Brand: Allen-Bradley
• Motor Power: 3 HP capacity
• Input Voltage: 208-240V 3-phase
• Output Current: 12 Amps maximum
• Mounting Type: Easy flange installation
• Warranty Coverage: 1-year manufacturer protection

Technical Specifications

• Control Methods: V/Hz and Sensorless Vector
• Display Interface: 4-digit LCD with reset function
• Protection Rating: IP20 (NEMA Open Type)
• Operating Temperature: -10°C to 50°C range
• Enclosure Type: Compact industrial design
• Communication Options: Basic control terminals

Industrial Applications

• Conveyor belt speed control systems
• Industrial pump and fan applications
• Machine tool drive mechanisms
• Packaging equipment automation
• Material handling systems
• Production line machinery

Performance Advantages

• Auto-tune function adapts to any motor
• Built-in PID controller for precise regulation
• Comprehensive overload protection circuitry
• Simple configuration and setup process
• Reliable operation in industrial environments
• Energy-efficient motor control technology

Package Contents & Shipping

• One complete PowerFlex 40P AC drive unit
• Note: CE filter not included with this model
• Documentation available as digital download only
• Fast worldwide shipping via FedEx, UPS, DHL
• Typically ships within 5 business days
• All items are brand new and factory sealed

Frequently Asked Questions

What motor size does this drive support?

• The 22D-B012F104 controls 3 HP motors effectively. It handles various motor types with its auto-tune capability.

What input voltage does this drive require?

• This drive operates on 208-240V 3-phase power systems. The voltage range accommodates most industrial applications.

Is the drive easy to install and configure?

• Yes, the flange mounting simplifies installation. The intuitive interface makes configuration straightforward for users.

What protection features does the drive include?

• The drive offers IP20 protection against solid objects. It also includes comprehensive overload and thermal protection.

Is documentation included with the drive?

• Documentation comes as a digital download only. You can access the manual through the provided PDF link.

What is the operating temperature range?

• The drive operates reliably from -10°C to 50°C. This range covers most industrial environment conditions.

For technical documentation, download the PDF file here: PowerFlex 4 and 40 AC Drives

For purchasing information or technical support, please contact our sales team: sales@nex-auto.com
