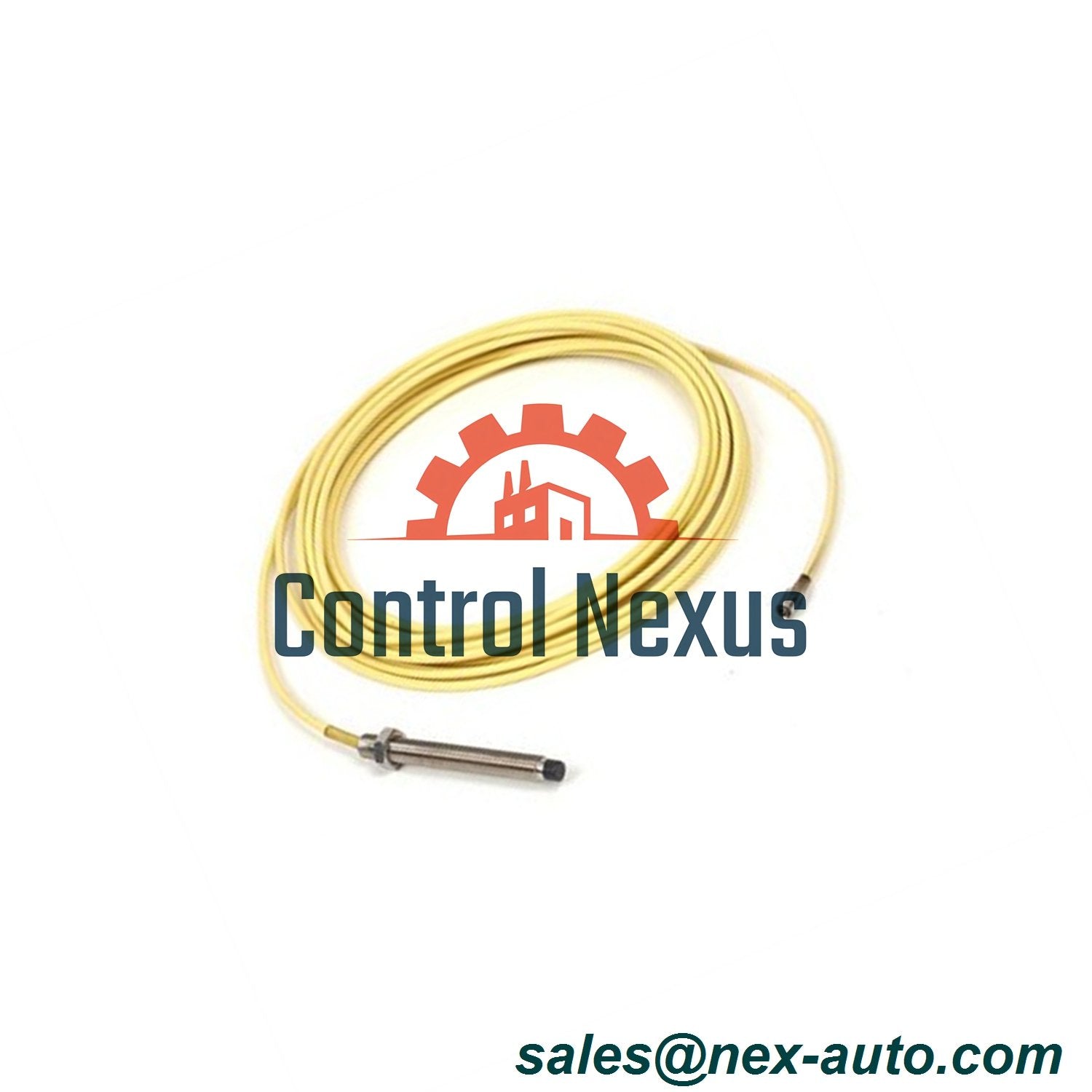

21505-00-40-10-02 Standard Mount Probe | Bently Nevada

Bently Nevada 7200 Series Proximity Transducer System

Quick Specification Table

Product Configuration

• Brand: Bently Nevada
• Model: 21505-00-40-10-02
• Series: 7200 Proximity Transducer System
• Probe Diameter: 8mm standard measurement
• Thread Size: 3/8-24 standard threading
• Construction: Stainless Steel Armored

Electrical Specifications

• Frequency Response: 0 Hz to 10 kHz range
• Rise Time: 10μs for rapid response
• Output Signal: -2V to -18V DC linear range
• Sensitivity: 200 mV/mil standard rating
• Linearity: ±1.5% across measuring range
• Resolution: 0.1 mils precision measurement

Mechanical Specifications

• Case Length: 4.0 inches overall dimension
• Unthreaded Length: 0 inches seamless design
• Cable Length: 39 inches total flexible cable
• Connector Type: Model 02 Miniature Male Coaxial
• Housing Material: Stainless Steel Armored
• Environmental Rating: IP67 Protection

Performance Characteristics

• Linear Range: 2mm measuring capability
• Temperature Range: -50°C to +150°C operational
• Linearity: ±1.5% across full range
• Stability: Excellent long-term performance
• Response Time: 10μs for dynamic measurements
• Accuracy: High precision displacement reading

Environmental Ratings

• IP Rating: IP67 dust and water protection
• Temperature Range: -50°C to +150°C
• Humidity Resistance: 100% operational
• Vibration Resistance: 20g maximum
• Shock Resistance: 50g operational
• EMI/RFI Protection: Enhanced shielding

Certification & Compliance

• API 670 Compliance for machinery protection
• CE Certified for European markets
• RoHS Compliant for environmental standards
• Optional Certificate of Origin available
• Industrial safety standard adherence
• Quality manufacturing certification

Application Environments

• Turbine shaft position monitoring
• Compressor vibration analysis
• Pump bearing condition monitoring
• Rotating machinery protection
• Industrial equipment alignment
• Critical machinery health monitoring

Installation Requirements

• Mounting: 3/8-24 standard thread
• Cable Routing: Flexible armored design
• Connector: Miniature male coaxial
• Gap Setting: 1.27mm recommended
• Wiring: Follow API 670 guidelines
• Calibration: Factory pre-calibrated

Frequently Asked Questions

• What is the frequency response range? 0 Hz to 10 kHz for dynamic measurements
• What is the total cable length? The 21505-00-40-10-02 has 39-inch cable
• Is this API 670 compliant? Yes, meets API 670 requirements
• What connector type does it use? Model 02 miniature male coaxial
• What is the temperature range? -50°C to +150°C operational
• Do you have current stock available? Yes, we maintain inventory
• How quickly do you ship orders? Within 5 business days
• What is your return policy? 30-day satisfaction guarantee
