1791-0B16 Allen-Bradley 16-Point DC Output Block I/O

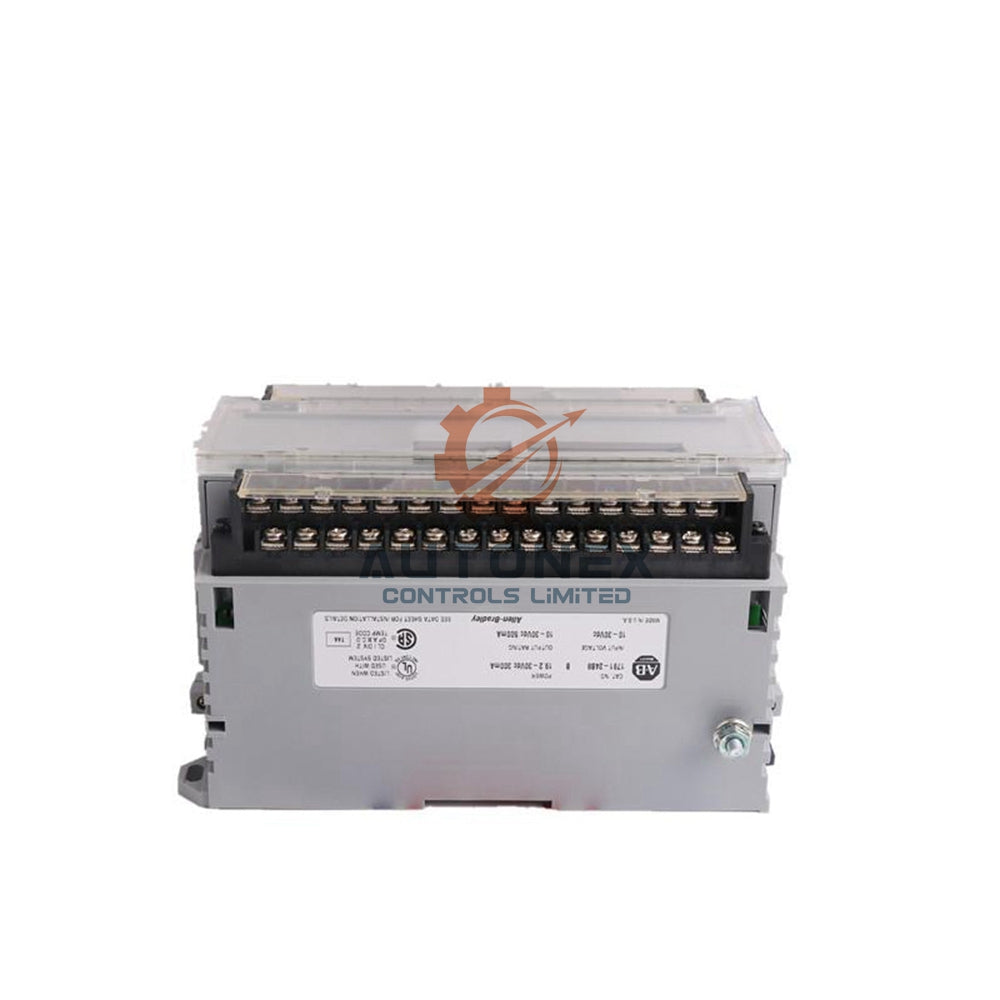

Allen‑Bradley 1791-0B16 24V DC Block I/O Output Module

Key Technical Specifications

• Output channels: 16, 10‑30 VDC nominal 24 VDC; minimum on‑state current 1 mA per output.
• Output current rating: 500 mA per output at 60 °C (vertical mounting); 250 mA at 60 °C (horizontal).
• Built‑in protection: Internal fusing eliminates need for external power fuses.
• Voltage drop: Maximum 1 V at rated current; off‑state leakage ≤ 0.5 mA.
• Signal delay: 0.5 ms ON, 1.0 ms OFF (maximum).
• External power required: 19.2‑30 VDC, 300 mA continuous.
• Power dissipation: 12.5 W maximum (43 BTU/hr).

Frequently Asked Questions

• What is the output voltage range of the 1791-0B16?
  It accepts 10‑30 VDC, with a nominal 24 VDC. External control power must be 19.2‑30 VDC.
• Does this module need external fusing?
  No – the 1791-0B16 has built‑in internal fusing, eliminating the need for external fuses.
• Which controllers work with this module?
  It works with PLC‑2, PLC‑3, PLC‑5/250, PLC‑5 series, and SLC 5/02 controllers via Universal Remote I/O.
• How does mounting orientation affect output current?
  Vertical mounting provides 500 mA per output at 60 °C; horizontal reduces it to 250 mA at 60 °C.
• What do the status LEDs indicate?
  COMM and STATUS LEDs show communication and module health; 16 individual LEDs display each output’s state.
• When must I add a termination resistor?
  If the 1791-0B16 is the last block on the RIO link, you need an external termination resistor.
• Do you offer same‑day shipping?
  We dispatch within five days via FedEx, UPS, or DHL. Stock is available.
