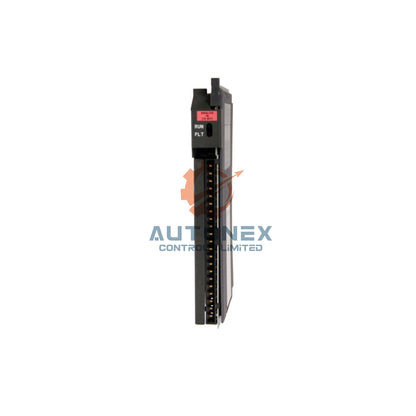

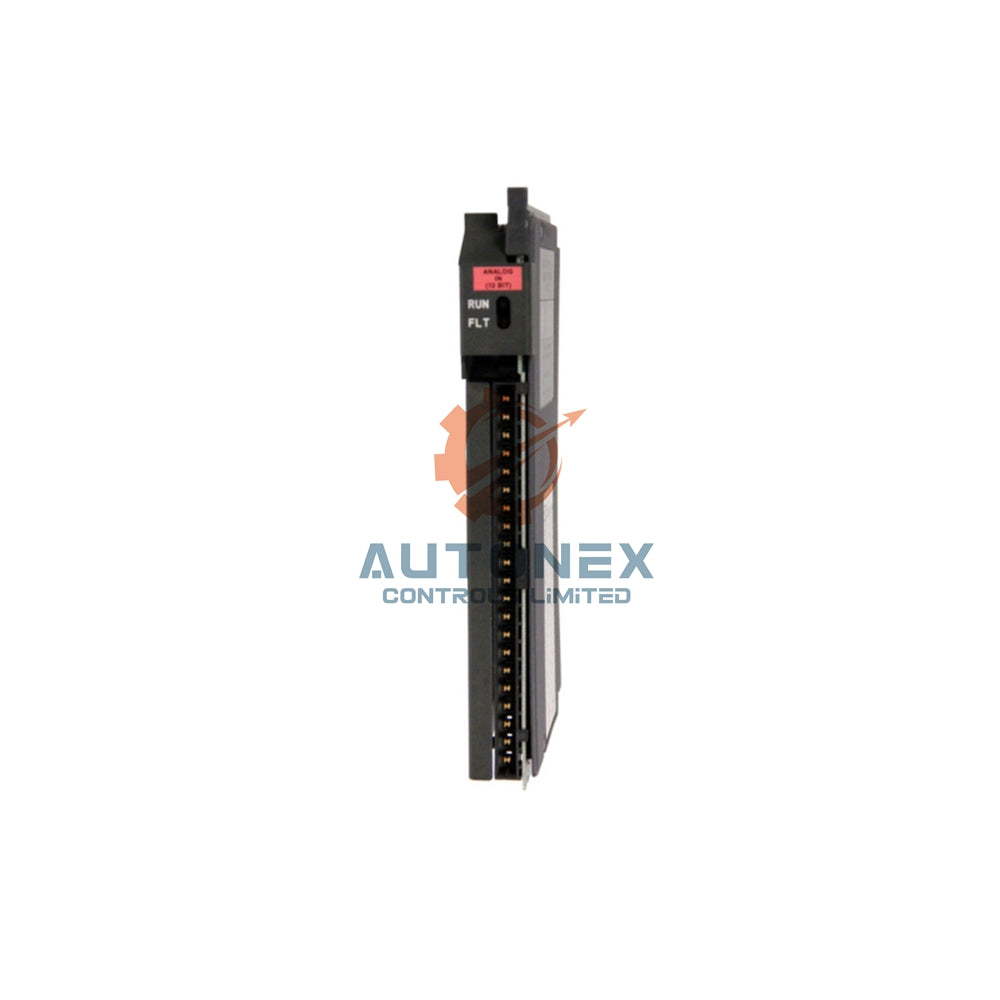

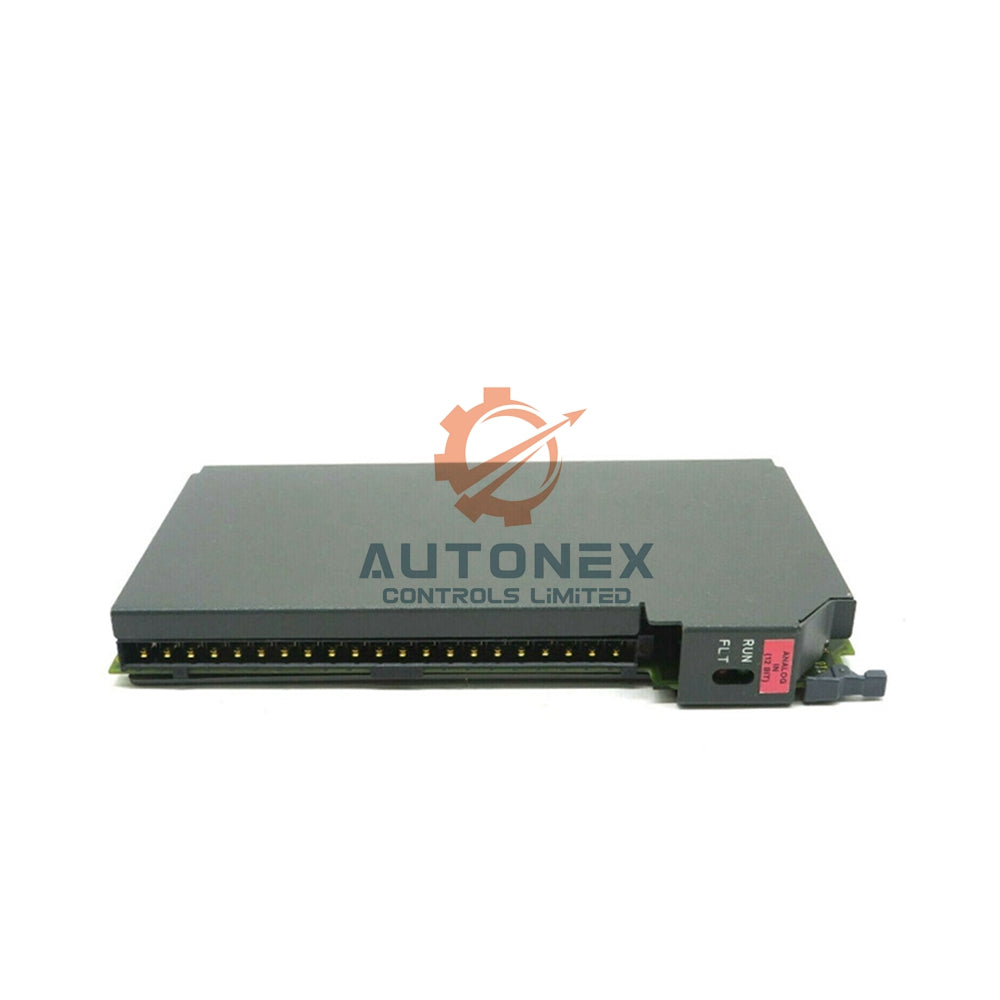

1771-IFMS Allen-Bradley Intrinsically Safe Millivolt Input Module

Allen-Bradley 1771-IFMS Intrinsically Safe Fast Millivolt Input Module for PLC5

Key Technical Specifications

• Brand & Model: Allen-Bradley 1771-IFMS intrinsically safe fast millivolt input module.
• Input Channels: 8 differential inputs through intrinsically safe connection.
• Input Voltage Range: 0-50 mV DC (low-level millivolt signals).
• Resolution & Accuracy: 12-bit binary; accuracy 0.1% of range @ 25°C.
• Linearity & Repeatability: ±1 LSB linearity, ±1 LSB repeatability.
• A/D Converter: Monotonic output with no missing codes.
• Update Time: 14.5 ms for all 8 differential channels (without digital filtering).
• Data Format: ±32,767 binary or ±9999 BCD scaling.
• Input Impedance: 1 Megaohm.
• Common-Mode Rejection: 100 dB at 60 Hz.
• Input Overvoltage Protection: 32V DC (maximum input ±10V DC operating range).
• Backplane Current: 750 mA @ 5V DC (no external power required).
• Protective Coating: Conformal coating protects against moisture and contaminants.
• Signal Delays (typical): DC Off 20 ms (±9 ms); AC Off 24 ms (±10 ms).
• Wiring Arm: Includes 1771-WG field wiring arm.
• Temperature & Humidity: Operating 0 to 60°C; humidity 5-95% non-condensing.
• Shock Rating: Operating 15G, non-operating 30G.

Installation & Wiring Guidelines

• Mounts in any 1771 I/O chassis and occupies a single slot (rack mountable).
• Use the included 1771-WG wiring arm for all field connections; torque screws to 0.8-1.0 Nm (7-9 lb-in).
• Acceptable wire size: 0.25-2.5 mm² (22-14 AWG) solid or stranded copper with 75°C insulation rating.
• Keying bands: install between pins 10-12 (lower) and 24-26 (upper) for correct module insertion.
• Important: The 1771-IFMS does not support removal or insertion under power (RIUP). Always power down the PLC5 system before installation or removal.
• Follow electrostatic discharge (ESD) precautions when handling the module.
• Equipment connected to the non-intrinsically safe side must not generate voltages exceeding 250V RMS.

Intrinsically Safe & Environmental Features

• Designed for hazardous locations with intrinsic safety barriers on field wiring.
• Conformal coating provides additional protection against moisture and corrosion.
• Monotonic A/D converter ensures no missing codes for reliable low-level signal conversion.
• High common-mode rejection (100 dB at 60 Hz) minimizes interference in industrial environments.
• Complies with T6 North American temperature code for hazardous area installations.
• Input overvoltage protection up to 32V safeguards the module against wiring faults.

Package Contents

• Allen‑Bradley 1771-IFMS intrinsically safe fast millivolt input module (1 unit).
• 1771-WG wiring arm (attached or included separately).
• Quick reference documentation leaflet.
• Anti‑static protective packaging.

Frequently Asked Questions (FAQ)

• What does "intrinsically safe" mean for the 1771-IFMS? The module connects to field devices through intrinsic safety barriers, limiting energy in hazardous areas. This prevents ignition in explosive atmospheres while allowing normal signal measurement.
• What types of sensors work with the 1771-IFMS? It accepts low-level millivolt signals from thermocouples, strain gauges, pressure transducers, and other sensors with 0-50 mV output.
• Why choose the 1771-IFMS over standard analog modules? Its 0-50 mV range, 14.5 ms fast update, and intrinsic safety certification make it the only choice for hazardous locations requiring precise low-voltage measurement.
• Can I install or remove this module while the system is powered? No, the 1771-IFMS does not support RIUP. You must power down the PLC5 chassis before installation or removal to prevent damage.
• What wire size and torque should I use for the 1771-WG wiring arm? Use 22-14 AWG copper wire with 75°C insulation. Tighten screws to 0.8-1.0 Nm (7-9 lb-in) for reliable connections.
• What is the update time for all eight channels? The module scans all eight differential inputs in 14.5 ms without digital filtering, providing fast response for critical millivolt signals.
• Does the module provide overvoltage protection? Yes, it includes input overvoltage protection up to 32V, though the normal operating range is ±10V DC maximum.
• What is your typical shipping time for the 1771-IFMS? We stock this item as new original surplus. We ship within 5 days after order confirmation via FedEx, UPS, or DHL.
• Can I return the module if it doesn't meet my needs? Yes, we accept returns within 30 days. The module must be in new, unused condition with its original packaging.
