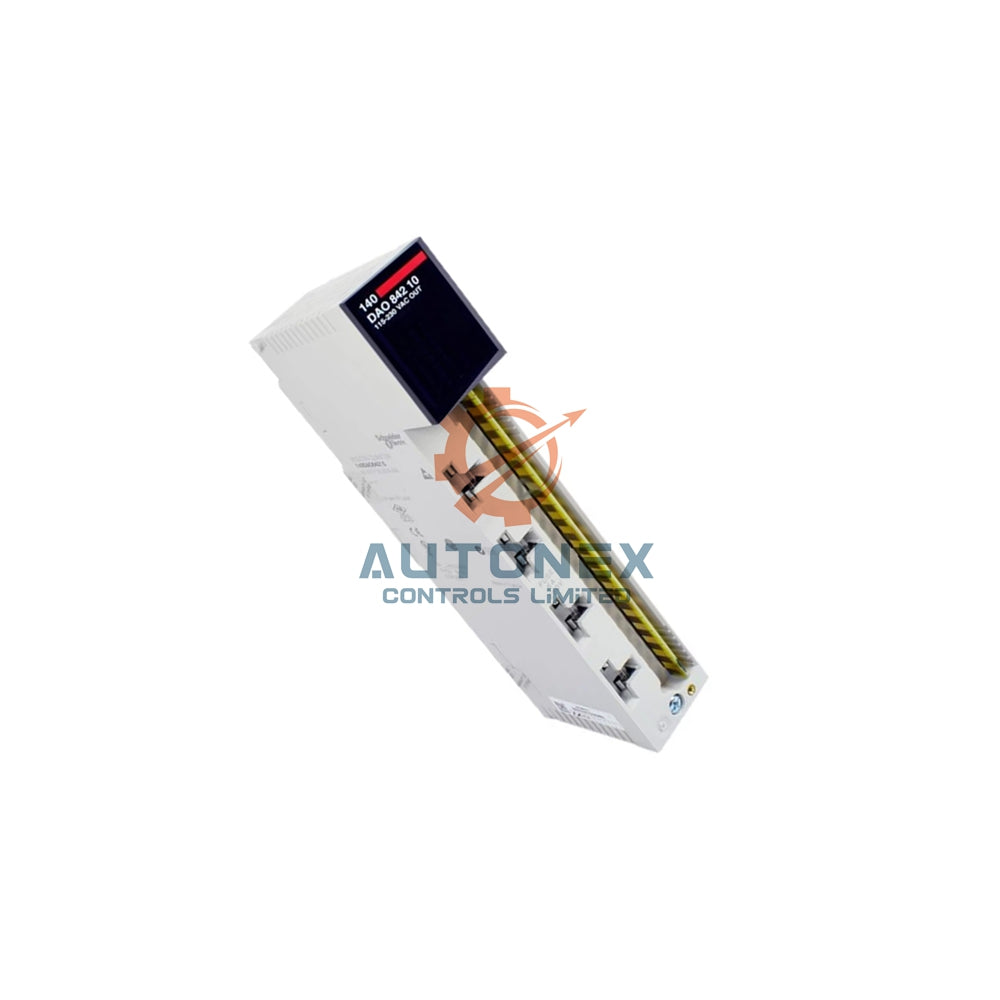

140DAO84010C Schneider Electric Discrete Output Module

Schneider Electric 140DAO84010C Discrete Output Module

Core Technical Specifications

• Brand & Model: Schneider Electric 140DAO84010C.
• Output Channels: 16 isolated channels for flexible device control.
• Output Voltage Range: Operates from 20 to 132 Volts AC.
• Addressing: Requires only 1 output word for simplified configuration.
• Switching Speed (DV/dt): High 400 V/ms rating for fast signal transitions.
• Load Current: Handles up to 4 A RMS per point continuously.
• Response Time: Fast switching, ≤ 0.5 ms for both ON and OFF states.
• Internal Protection: Features an RC filter and a 5 A fuse for circuit safety.
• Environmental Rating: Operational from 0°C to 60°C (32°F to 140°F).
• Certifications: Complies with UL 508, CSA, and FM Class 1 Div 2 standards.

Frequently Asked Questions (FAQ)

• Q: What is the output voltage range of this module?
  A: The 140DAO84010C provides an output range from 20 to 132 Volts AC.
• Q: How many output channels does it have?
  A: This module offers 16 individually isolated output channels.
• Q: What is the purpose of the high DV/dt rating?
  A: The 400 V/ms rating ensures reliable and fast switching of inductive AC loads.
• Q: Is internal protection included?
  A: Yes, it includes internal protection via an RC filter and a 5 A fuse.
• Q: What are the key safety certifications?
  A: The module is certified to UL 508, CSA, and FM Class 1 Division 2 standards for industrial use.
