IS200EROCH1ABB GE қоздырғыш реттегіш картасы EX2100

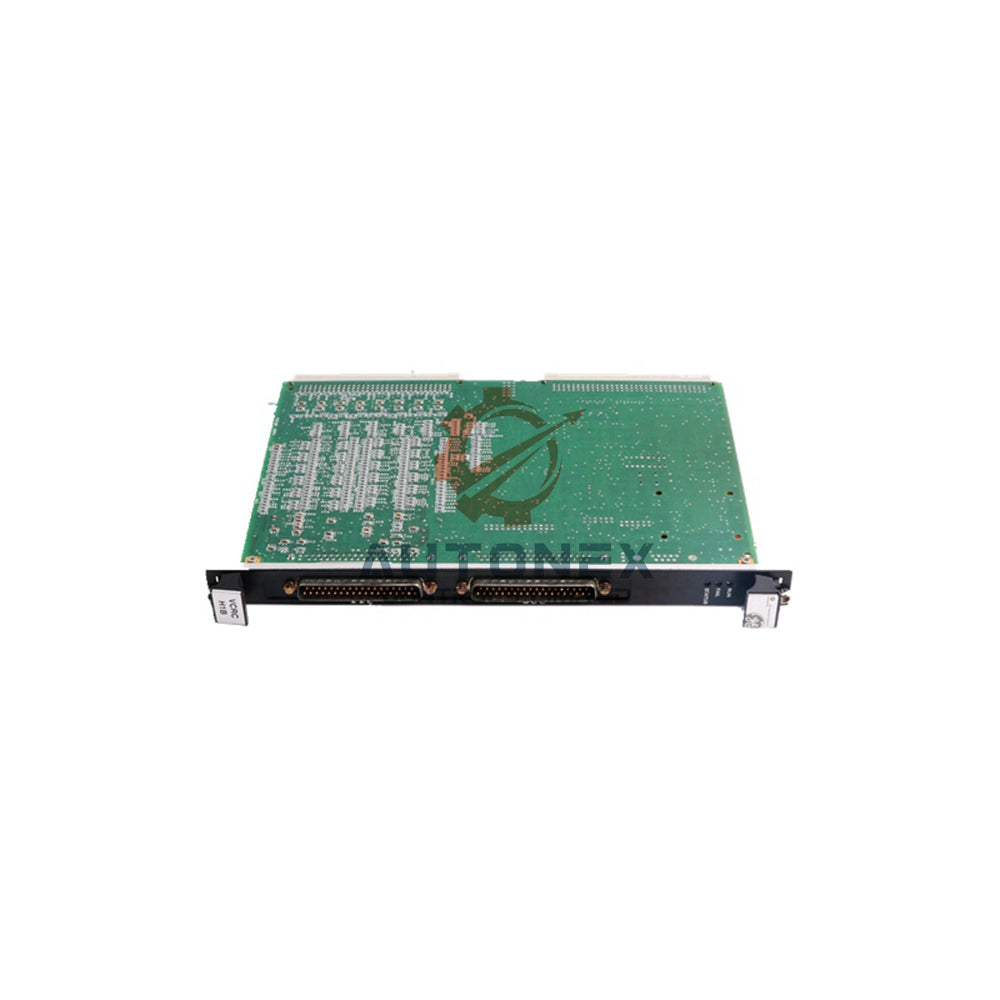

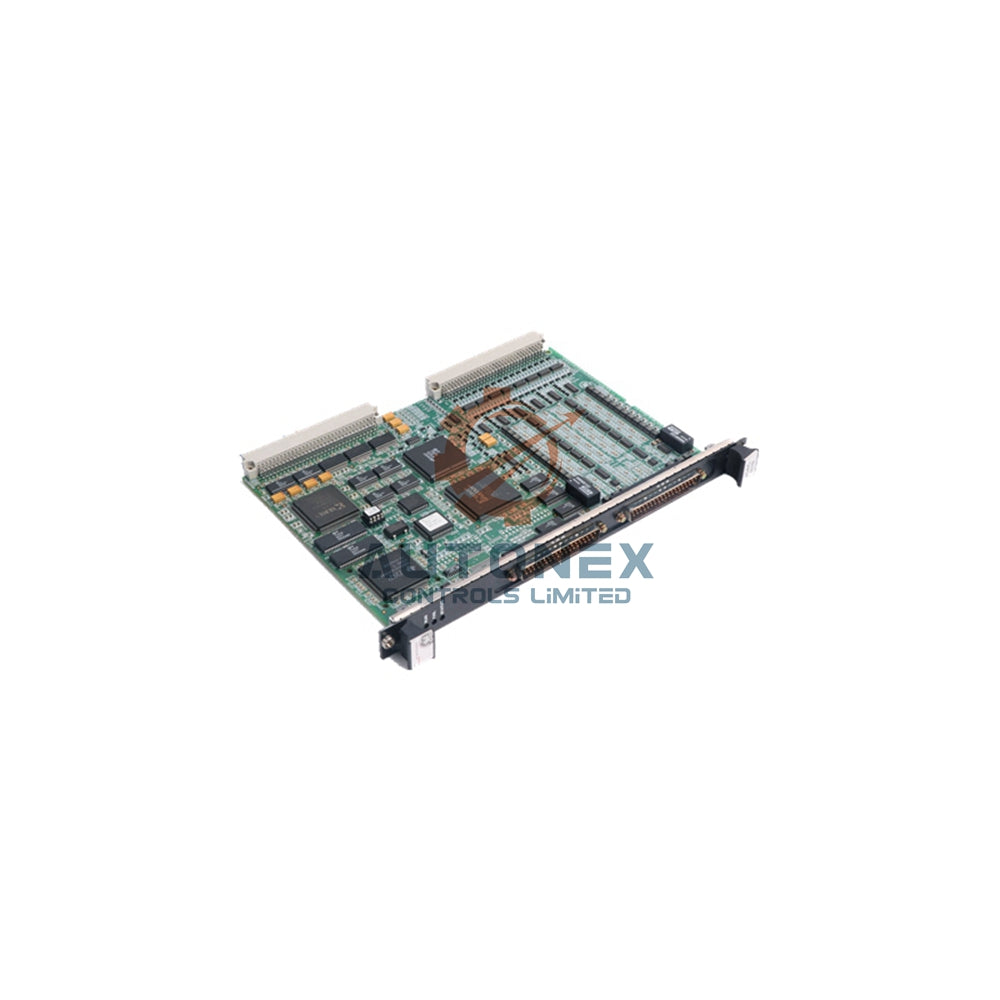

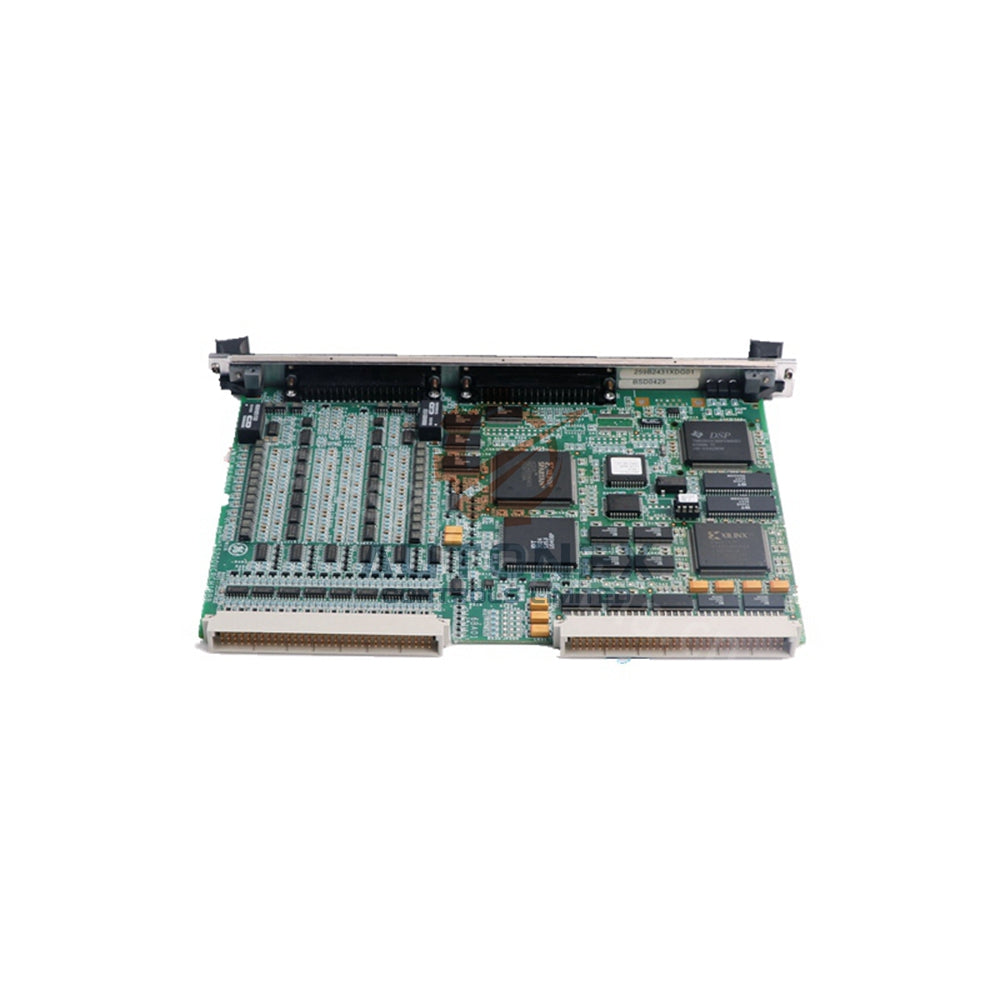

IS200EROCH1ABB – GE Exciter Regulator Options Card for EX2100

• Brand: General Electric (GE).
• Model: IS200EROCH1ABB.
• Part No.: IS200EROCH1ABB.
• Technology: Surface-mount technology for compact integration.
• Temperature Operating: -30 to 65°C, suitable for harsh environments.
• Country of Manufacture: United States of America (USA).
• Series: EX2100.
• Availability: In Stock.

Key Features and Board Identification

• Integrated board identification device stores barcode serial number, board type, and hardware revision.
• Green LED on the faceplate indicates power status – it lights up when the board receives power.
• Supports GE and third-party ground detectors for flexible system integration.
• Provides keypad interface, tool interface, and terminal board power connection.
• Faceplate includes a keypad connector and a tool connector for external access.
• Uses RS-232C communication from 1200 to 38.4 K baud for reliable data exchange.

Technical Specifications – Detailed Parameters

• IS200EROCH1ABB delivers stable positive 70 V DC power to the IS200ECTB Exciter Contact Terminal board.
• Ground loop isolation: integrated DC converter isolates the tool connector effectively.
• Communication protocol: RS-232C (1200 – 38.4 K baud) for keypad and tool connectors.
• Keypad connector type: 8-pin circular DIN with specific pin assignment (KPP24, KPTX232, KPRX232, KPCOM, KPRTS232).
• Tool connector: 9-pin plug connector interfaces with the IS200DSPX Digital Signal Processor Control board.
• ISBus interface: uses RS-422 transceivers while the card operates with RS-485 (includes RS-422 subset).
• Signal integrity: direct coupling between M2 and C sections reduces distortion and optimizes reliability.
• Environmental tolerance: operates from -30°C to 65°C, resistant to industrial electrical noise.

Keypad Connector Pinout and Signal Details

• Pin 1 (KPP24) provides positive 24 V power supply to the keypad.
• Pin 2 (KPTX232) transmits data from the keypad to IS200EROCH1ABB via RS-232C.
• Pin 3 (KPRX232) receives data from the card to the keypad.
• Pins 4,5,6 (KPCOM) serve as common ground for stable electrical reference.
• Pin 7 (KPP24) duplicates the positive 24 V supply for redundancy.
• Pin 8 (KPRTS232) manages Request to Send flow control for RS-232C communication.

Frequently Asked Questions (FAQ)

• Q: Do you have this model in stock?
  A: Yes, we keep IS200EROCH1ABB in stock for immediate orders.
• Q: What is the typical shipping time?
  A: We dispatch within 5 business days after order confirmation.
• Q: Which carriers do you use?
  A: We ship via FedEx, UPS, and DHL – fast and trackable worldwide.
• Q: What is the return policy?
  A: We support 30-day returns for unused items in original condition.
• Q: Can this card work in redundant configurations?
  A: Absolutely. IS200EROCH1ABB fully supports redundant setups with ERRB backplane and ISBus interface.
• Q: Does the tool connector provide ground loop isolation?
  A: Yes, the integrated DC converter ensures complete isolation for the tool connector.
• Q: What communication baud rates does the keypad interface support?
  A: It supports RS-232C from 1200 baud up to 38.4 K baud.
