1785-L80C15 Allen-Bradley ControlNet PLC5 Controller

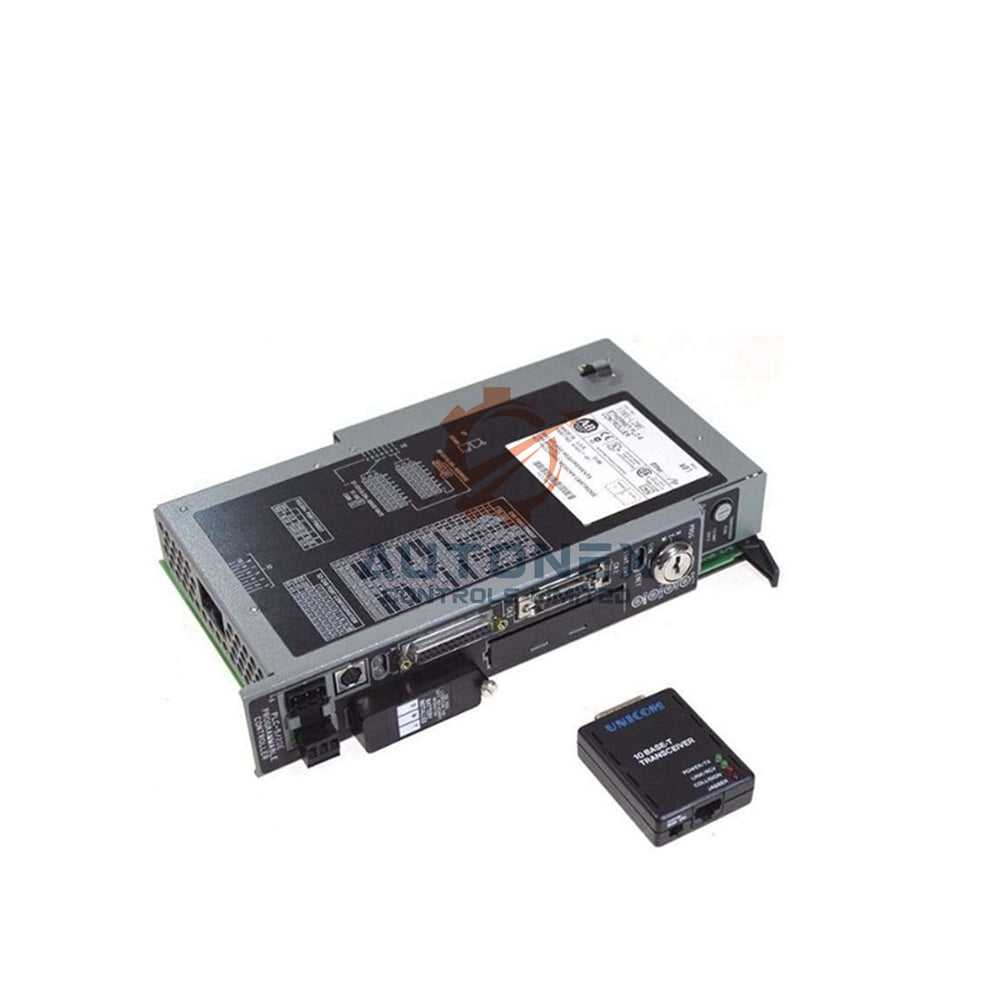

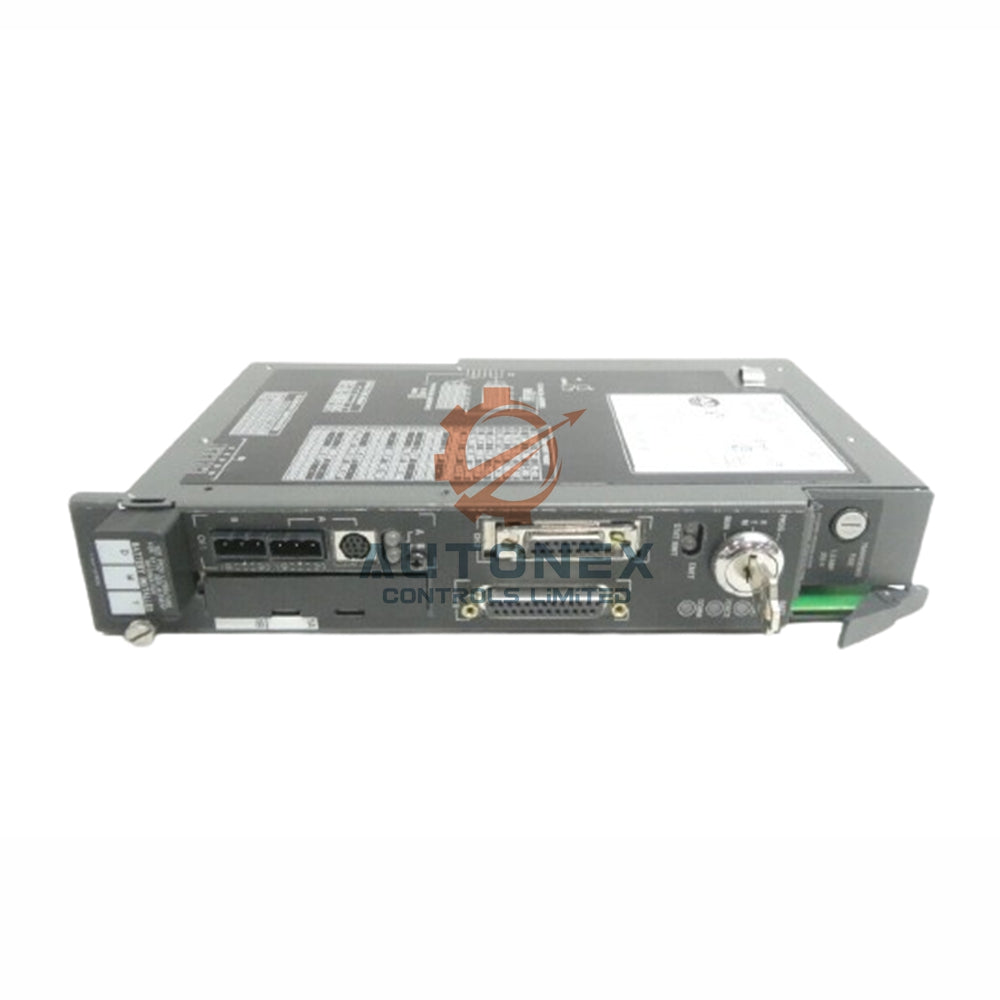

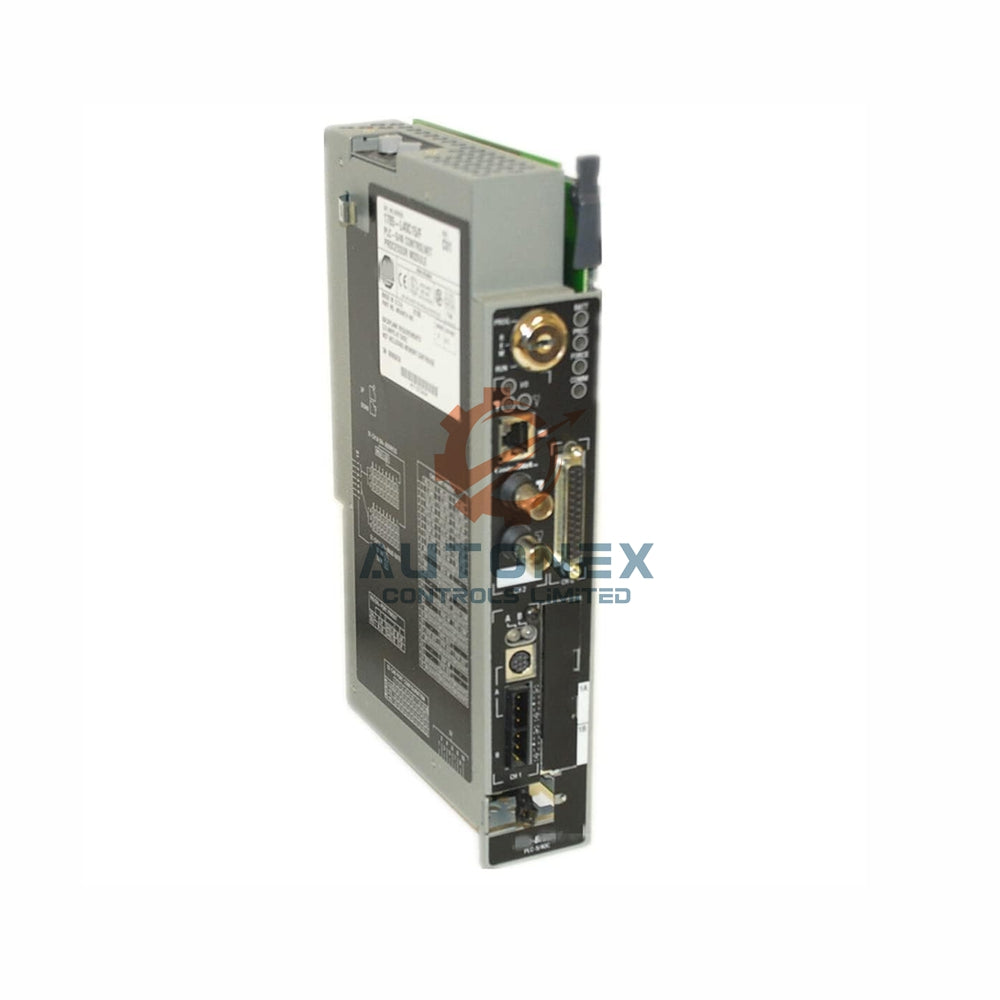

Allen-Bradley 1785-L80C15 ControlNet PLC5 Programmable Logic Controller

Technical Specifications

• Brand:Allen-Bradley
• Model & Part Number: 1785-L80C15
• Module Type: Processor (PLC-5/80C Series)
• Max User Memory: 100 Kilowords
• Total I/O Capacity: 3072 points any mix; or 3072 inputs / 3072 outputs in complimentary mode
• Communication Ports: Data Highway Plus (DH+), Remote I/O (RIO), Serial, DH using 1785-KA, and two (2) ControlNet ports
• ControlNet Data Rate: 5 Mbps using RG6 coax cable
• DH+ & RIO Data Rates: 57.6 Kbit/s, 115.2 Kbit/s, or 230.4 Kbit/s
• Hardware Addressing: 2-slot, 1-slot, or 1/2-slot configurations
• Program Scan Time: 0.5 ms per K word for bit logic; 2 ms per K word typical
• I/O System Compatibility: Bulletin 1771 I/O, 1794 I/O, 1746 I/O, and 1791 I/O including 8-, 16-, 32-point, and intelligent modules
• Max Analog I/O: 3072 forcible; 50176 nonforcible
• Max I/O Chassis Total: 125
• Max Universal Remote I/O Chassis: 60
• RS-232-C/422-A/423-A Ports: 1
• Battery: Allen-Bradley 1770-XYC (replaceable)
• Memory Modules Supported: 1785-ME32, 1785-ME64, 1785-M100
• Redundancy: Supported
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Relative Humidity: 5 to 95% non-condensing
• Operating Shock: 30 g (3 pulses, 11 ms)
• Non-Operating Shock: 50 g (3 pulses, 11 ms)
• ESD Immunity: 4 kV contact discharge
• Weight: Approximately 1.42 kg (3 lbs, 2 oz)

Frequently Asked Questions (FAQ)

• Q: Do you have this PLC-5/80C controller in stock?
  A: Yes, we keep the 1785-L80C15 in stock for immediate orders.
• Q: What is the typical shipping time?
  A: We dispatch all orders within 5 business days after payment confirmation.
• Q: Which carriers do you use for delivery?
  A: We ship via DHL, FedEx, or UPS depending on your location.
• Q: Can I return this module if it does not fit my system?
  A: Yes, we support returns within 30 days of receiving the item.
• Q: Does this processor support redundant media?
  A: Yes, the 1785-L80C15 includes dedicated ControlNet redundant media ports (BNC).
• Q: What is the maximum scan time for bit logic?
  A: The scan time is 0.5 ms per K word for bit logic operations.

Contact Information Inquiries: Email: sales@nex-auto.com | Phone/WhatsApp: +86 153 9242 9628
Partner: NexAuto Technology Limited
