پراب 11 میلی‌متری بنتلی نوادا 3300 XL

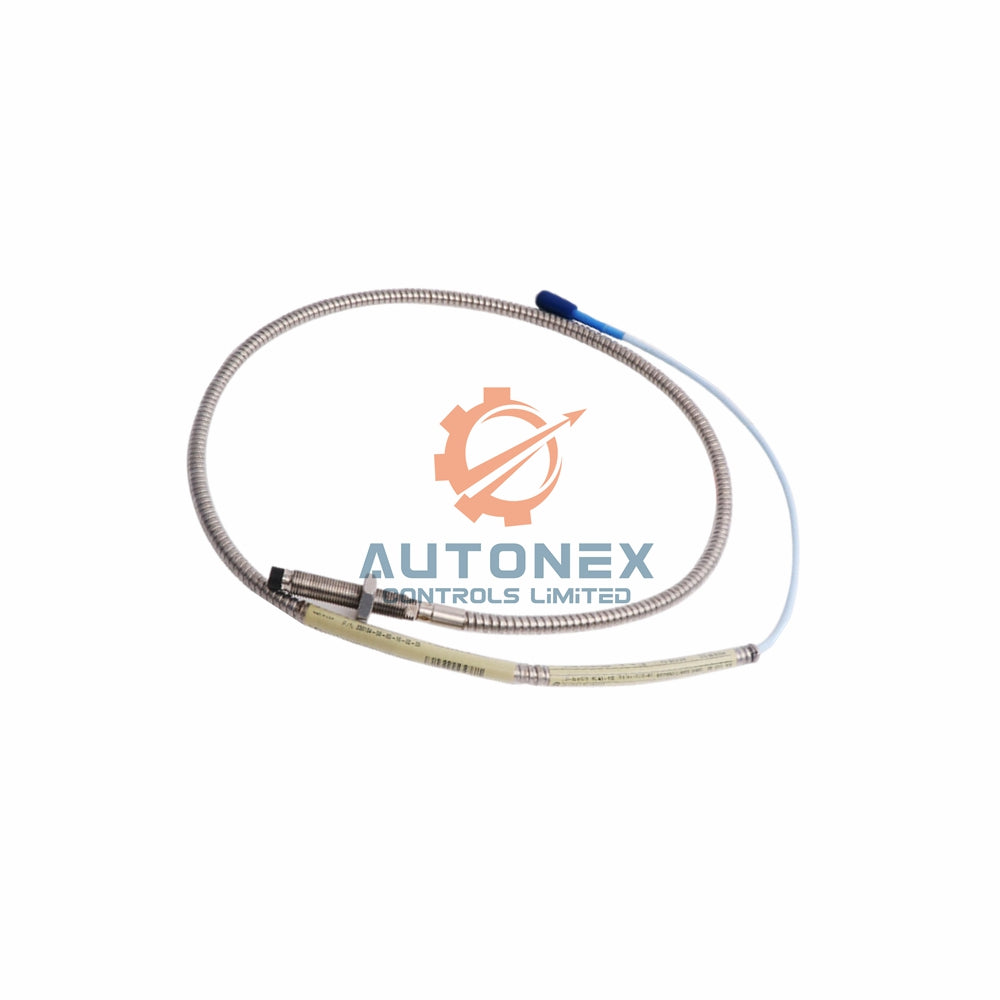

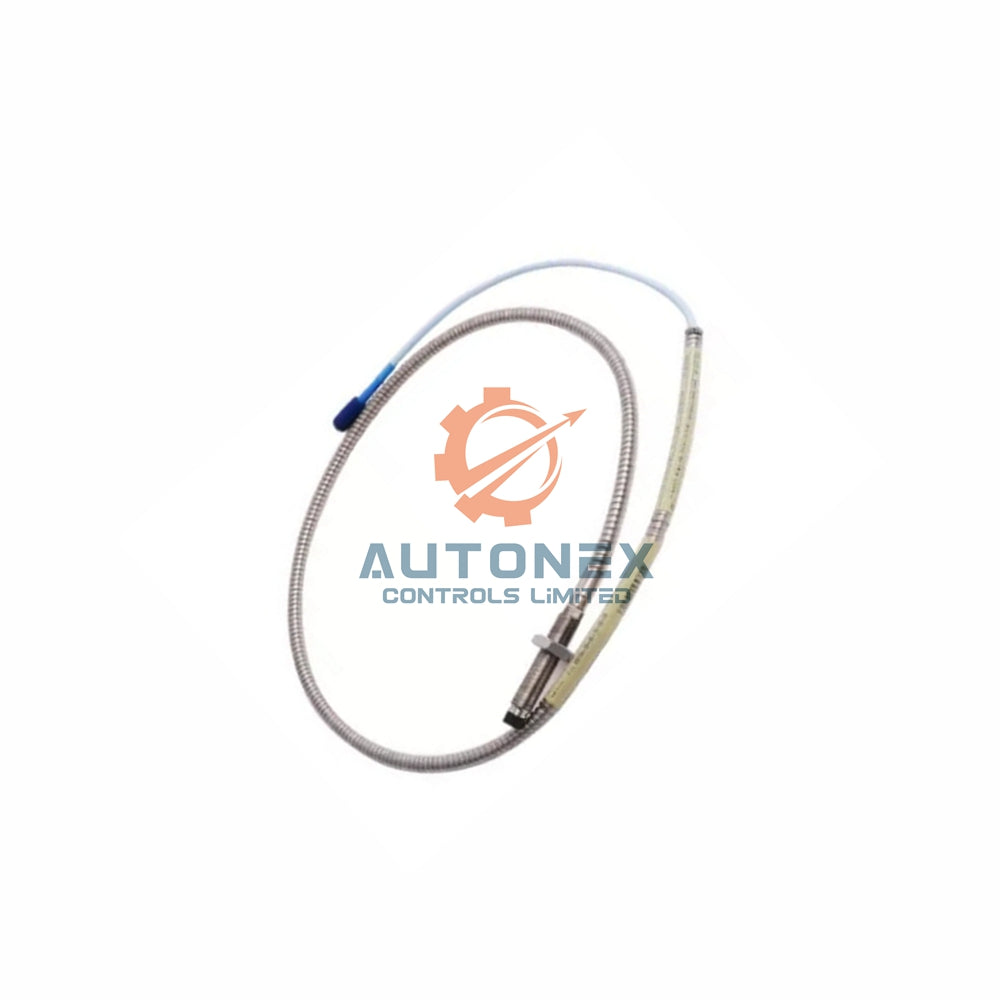

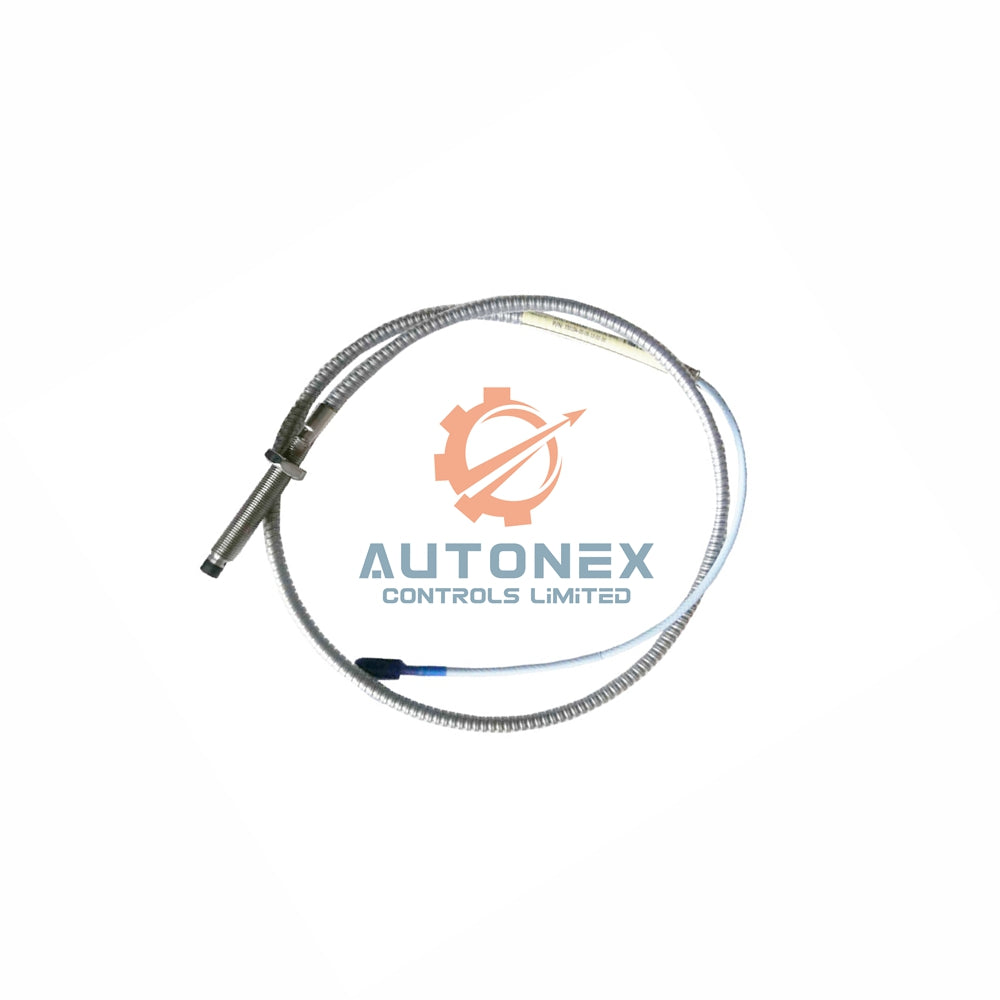

3300 XL 11 mm Proximity Probe - Full Model 330704-000-060-90-02-CN

Key Technical Specifications

• Full Model Number: 330704-000-060-90-02-CN. This is a 3300 XL 11 mm probe with M14 x 1.5 thread and armor.
• Unthreaded Length Option (000): 00 mm. This gives you a zero unthreaded length for precise mounting.
• Overall Case Length Option (060): 60.0 mm. The longer case provides additional mounting flexibility.
• Total Length Option (90): 9.0 meters (29.5 feet). You get a long cable for remote connections.
• Connector and Cable Type Option (02): Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval Option (CN): Country Specific approval. This probe meets local regulatory requirements for China.
• Probe DC Resistance: For 9.0 meter length, resistance from center to outer conductor is 8.5 ± 1.1 ohms.
• 60 Hz Magnetic Field Effect: Up to 300 Gauss. Output at 0.5 mm gap: 0.001 mil pp/gauss. At 2.5 mm gap: 0.009 mil pp/gauss. At 4.6 mm gap: 0.027 mil pp/gauss.
• Probe Tip Material: Polyphenylene sulfide (PPS). This material resists chemicals and heat.
• Probe Case Material: AISI 304 stainless steel (SST). It provides excellent corrosion resistance.
• Probe Cable Specification: 75 Ω triaxial with fluoroethylene propylene (FEP) insulation. Total probe length is 9.0 meters.

Frequently Asked Questions (FAQ)

• Q: Is the 330704-000-060-90-02-CN probe truly new and original?
  A: Yes, we supply only New & Original in Factory Packing from Bently Nevada.
• Q: Do you have this 3300 XL 11 mm probe in stock?
  A: Yes, we have this item in stock for immediate order processing.
• Q: How long will delivery take after I place an order?
  A: We ship within 5 days using FedEx, UPS, or DHL. Transit time depends on your location.
• Q: Can I return this proximity probe if it does not fit my machine?
  A: Yes, we support 30-day returns for unused items in original packaging.
• Q: What does the CN approval option mean for this probe?
  A: The CN option indicates Country Specific approval. This probe meets local Chinese regulatory standards.
• Q: What happens if I use this probe below -34°C (30°F)?
  A: The pressure seal may fail prematurely. Always stay within the -52°C to +177°C range.
• Q: Does the 9.0 meter length include the connector?
  A: Yes, the total length of 9.0 meters (29.5 feet) includes the probe cable and ClickLoc connector.
• Q: Can I replace the cable on this 330704-000-060-90-02-CN probe?
  A: No, the cable is integral to the probe. You must replace the whole unit if the cable breaks.
