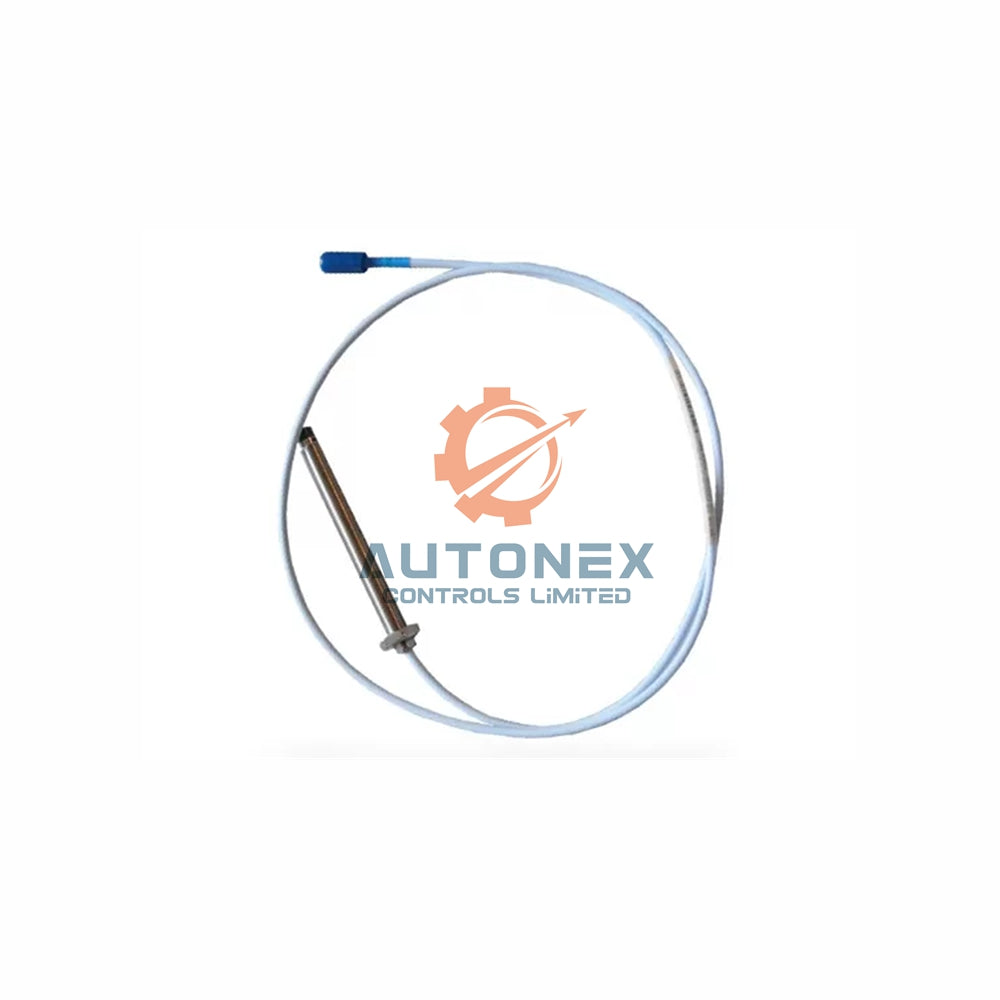

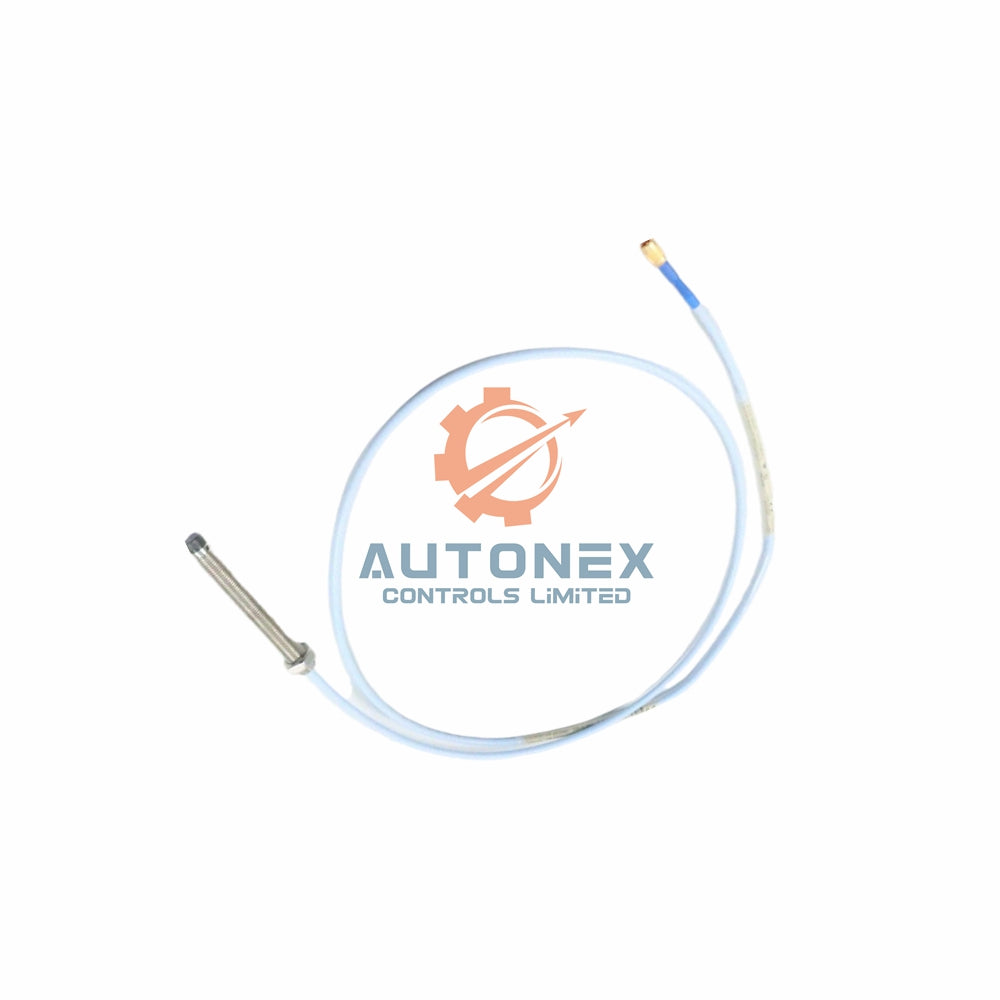

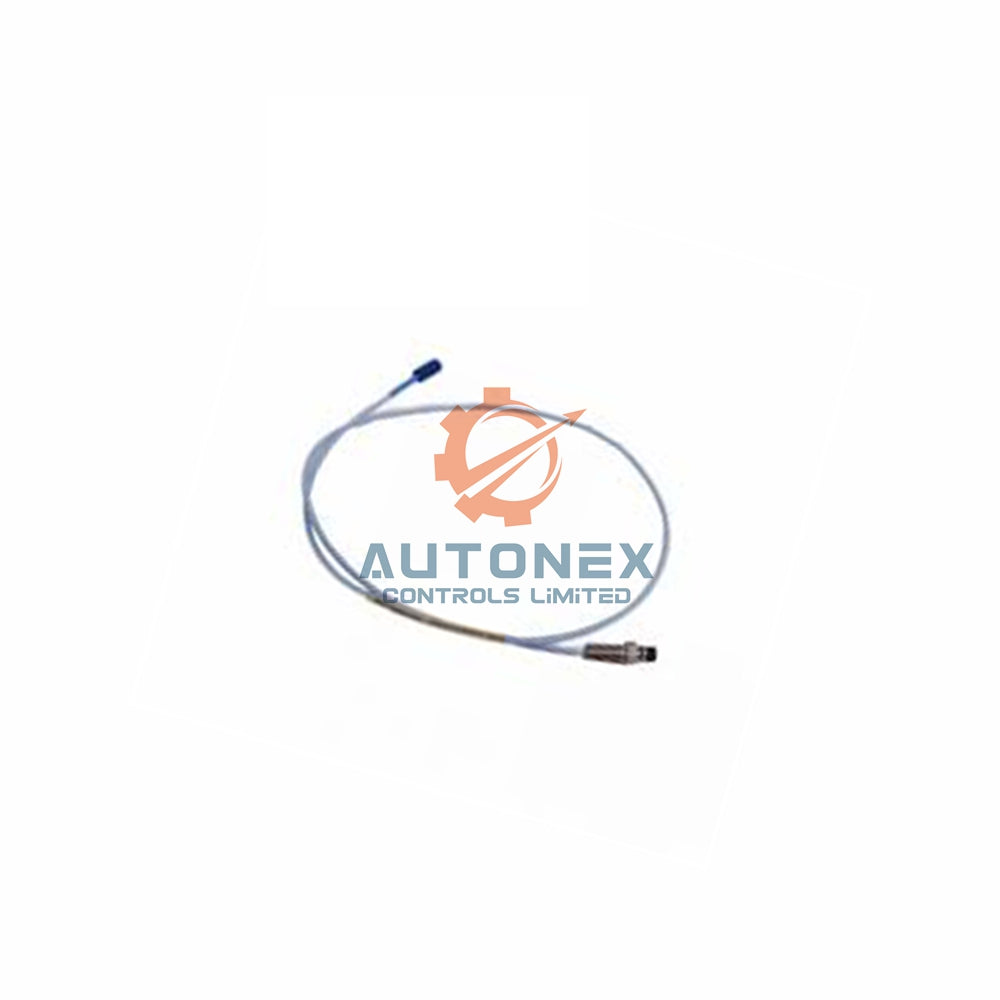

Bently Nevada 330101-00-12-10-11-05 3300 XL 8 mm Probe with FluidLoc & Approvals

Key Technical Specifications

• Brand & Model: Bently Nevada 330101-00-12-10-11-05 (3300 XL 8 mm Probe).
• Thread Type: 3/8-24 UNF thread without armor.
• Unthreaded Length Option: 00 = 0.0 inches.
• Overall Case Length: 12 = 1.2 inches.
• Total Length Option: 10 = 1.0 meter (3.3 feet).
• Connector & Cable Type: Miniature coaxial ClickLoc connector with connector protector and FluidLoc cable.
• Hazardous Area Approvals: CSA, ATEX, IECEx (option code 05).
• Nominal DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0 meter length.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Recommended Gap for Radial Vibration: -9 Vdc [approx 1.27 mm (50 mils)].
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for standard 1m system.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) at 0°C to +45°C.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Standard Probe Temperature Range: -52°C to +177°C (-62°F to +350°F).
• FluidLoc Cable Benefit: Prevents oil and liquid leakage from the machine through the cable interior.
• Weight: 323 g/m (11.4 oz).

Frequently Asked Questions (FAQ)

• Is the 330101-00-12-10-11-05 brand new and original?
  Yes, we supply only brand new and original Bently Nevada products. Every probe meets factory specifications with full traceability.
• What is the shipping time and carrier?
  We ship within 5 days after order confirmation. We use DHL, FedEx, or UPS for fast worldwide delivery with tracking.
• Can I return this probe if it does not suit my application?
  Yes, we support 30-day returns. The item must remain unused and in original packaging.
• What approvals does this probe carry?
  This probe includes CSA, ATEX, and IECEx approvals (option code 05). It suits hazardous area installations requiring explosion-proof certification.
• How does FluidLoc cable differ from standard cable?
  FluidLoc prevents oil and other liquids from leaking out of the machine through the cable's interior. Standard cable does not offer this sealing feature.
• What is the linear range of this 8 mm probe?
  The linear range spans 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils) from the target. Output voltage ranges approximately -1 to -17 Vdc.
• Can I use this probe with a 3300 XL Proximitor Sensor?
  Yes, the 330101-00-12-10-11-05 directly works with the 3300 XL Proximitor Sensor system. Keep field wiring length within 305 meters for best performance.
