21000-34-05-20-066-03-02 Proximity Probe Assembly | Bently Nevada

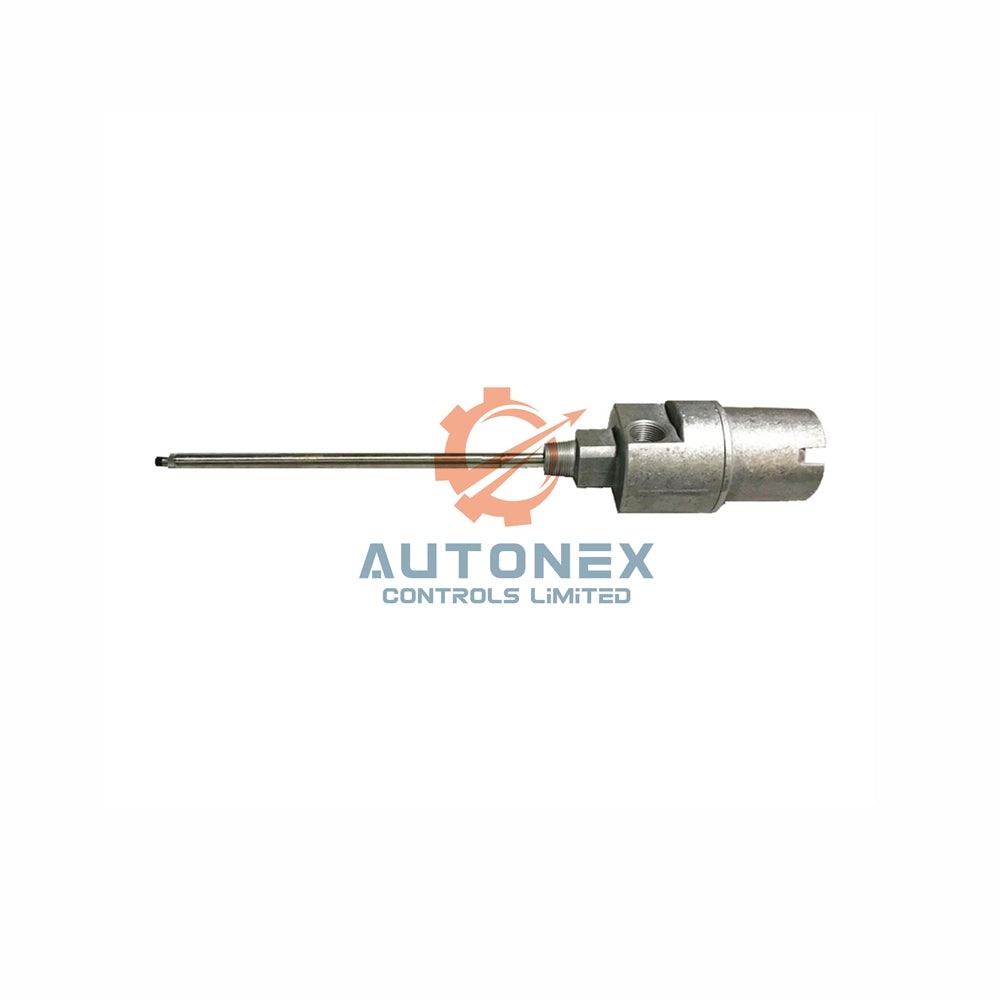

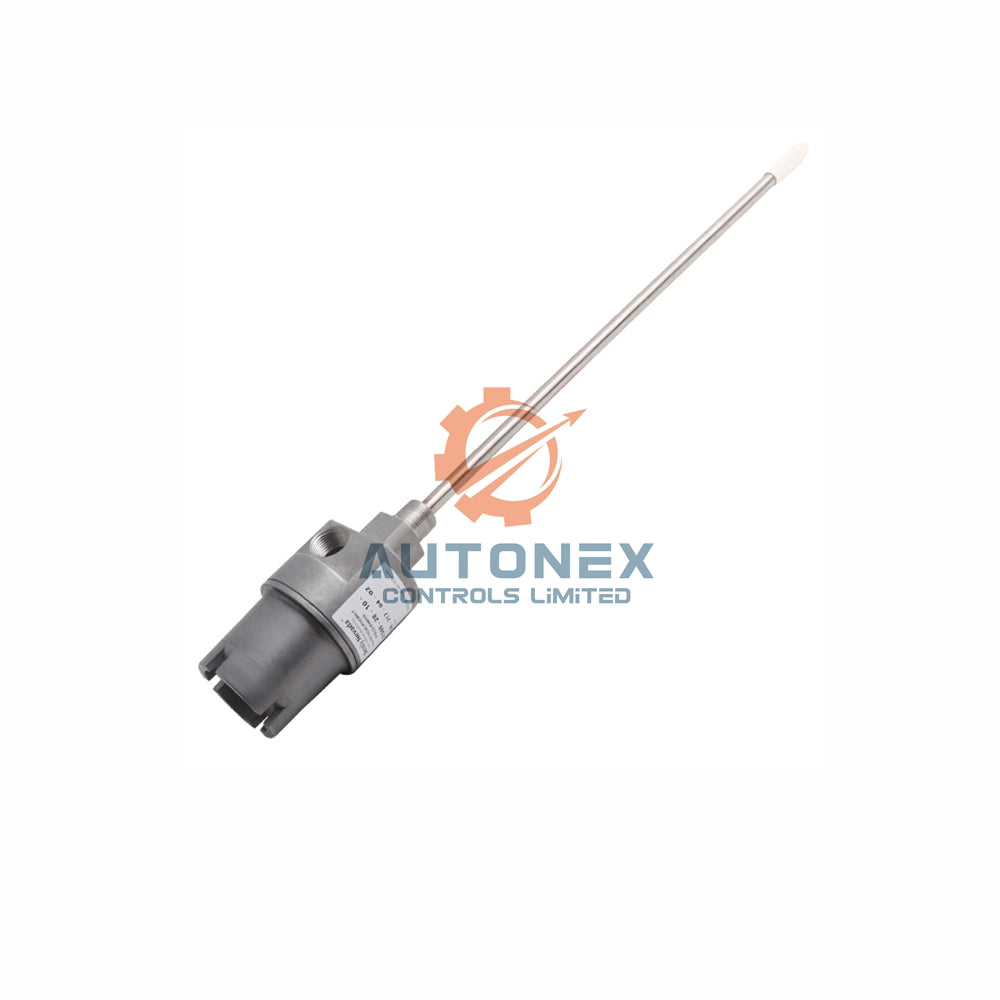

21000-34-05-20-066-03-02 Proximity Probe Housing Assemblies – Precision by Bently Nevada

• Brand & Model: Bently Nevada 21000-34-05-20-066-03-02 – 3300 XL 8 mm probe with connector protector.
• Probe Cable Length: 0.5 m (20 inches) – flexible for tight installations.
• Standoff Adapter: 2.0 (option 20) provides proper gap positioning.
• Probe Penetration: 6.6 inches (066 option) ensures deep insertion accuracy.

Technical Specifications & Key Parameters

• Measurement Range: Compatible with 3300 XL 8 mm probes for non-contact displacement.
• Frequency Response: 0 to 10 kHz (system dependent on probe driver).
• Sensitivity: 7.87 mV/µm (200 mV/mil) typical for 3300 XL systems.
• Linearity: Within ±1.27 µm (0.05 mil) over middle 80% of range.
• Resolution: 0.38 µm (0.015 mil) with proper driver.
• Temperature Range: -51°C to +177°C (-60°F to +350°F) for probe and housing.
• Environmental Protection: CSA Type 4 enclosure (explosion-proof).
• Immunity: Resists RFI/EMI interference per API 670 standards.
• Housing Material: Aluminum body with 304 stainless steel sleeve.
• Mounting Thread: 3/4-14 NPT (option -02) mandatory for standoff adapters.
• Fittings Included: One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, cable seal grip with three grommets (1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in).
• Weight: 1.1 kg (2.4 lb) typical without fittings.
• Max (C)+(D) Dimension: 13.5 inches (34.3 cm) – visible probe P/N and S/N not visible.

Frequently Asked Questions (FAQ)

• Q: Is this 21000-34-05-20-066-03-02 assembly brand new and original?
  A: Yes, we supply only new & original Bently Nevada factory-sealed products.
• Q: Do you have the model 21000-34-05-20-066-03-02 in stock?
  A: Absolutely. We keep stock of all common suffix codes, including this exact configuration.
• Q: How long for delivery?
  A: We dispatch within 5 days via FedEx, UPS, or DHL. Transit takes 3-7 business days typical.
• Q: Can I use this housing in a Class I hazardous area?
  A: Yes, the 21000 housing carries CSA explosion-proof and intrinsically safe approvals.
• Q: What cable length does this assembly include?
  A: It includes a 0.5 m (20 in) probe cable with connector protector (suffix 05).
• Q: Does the housing fit API 670 standards?
  A: Yes, fully compliant with American Petroleum Institute (API) 670 for externally mounted proximity probes.
• Q: What is the penetration depth?
  A: Suffix 066 gives a 6.6 inch probe penetration for deep insertion requirements.
• Q: Can I return the item if not used?
  A: We offer 30 days return from delivery – item must be unopened and original packing.
