330701-00-24-90-02-05 Proximity Probe - Bently Nevada 9.0m Cable

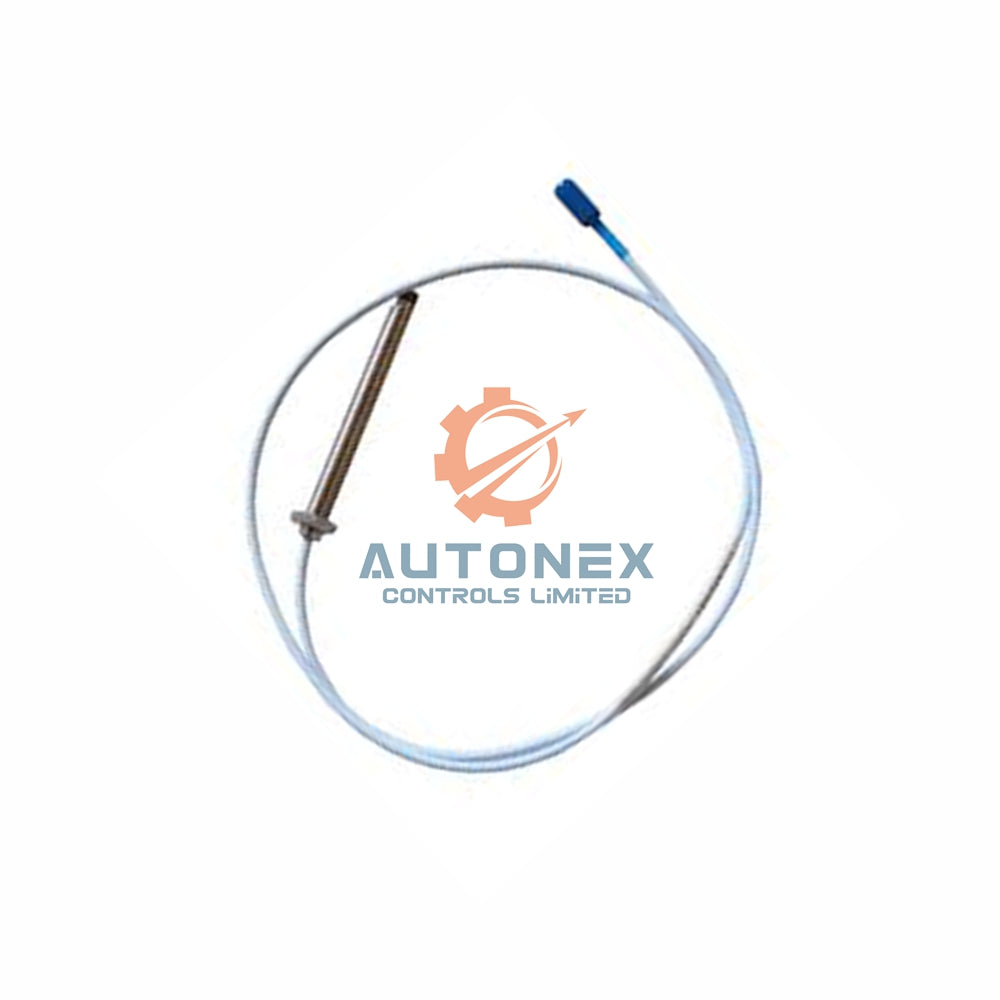

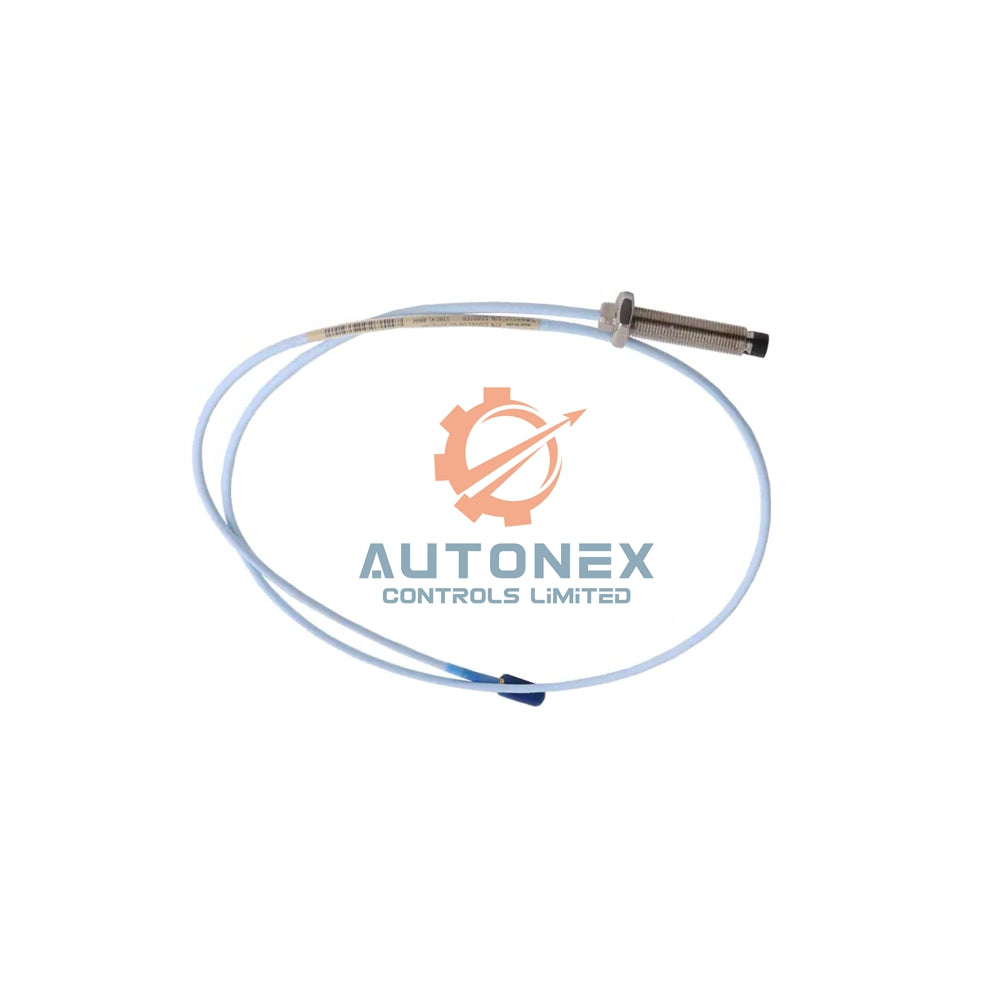

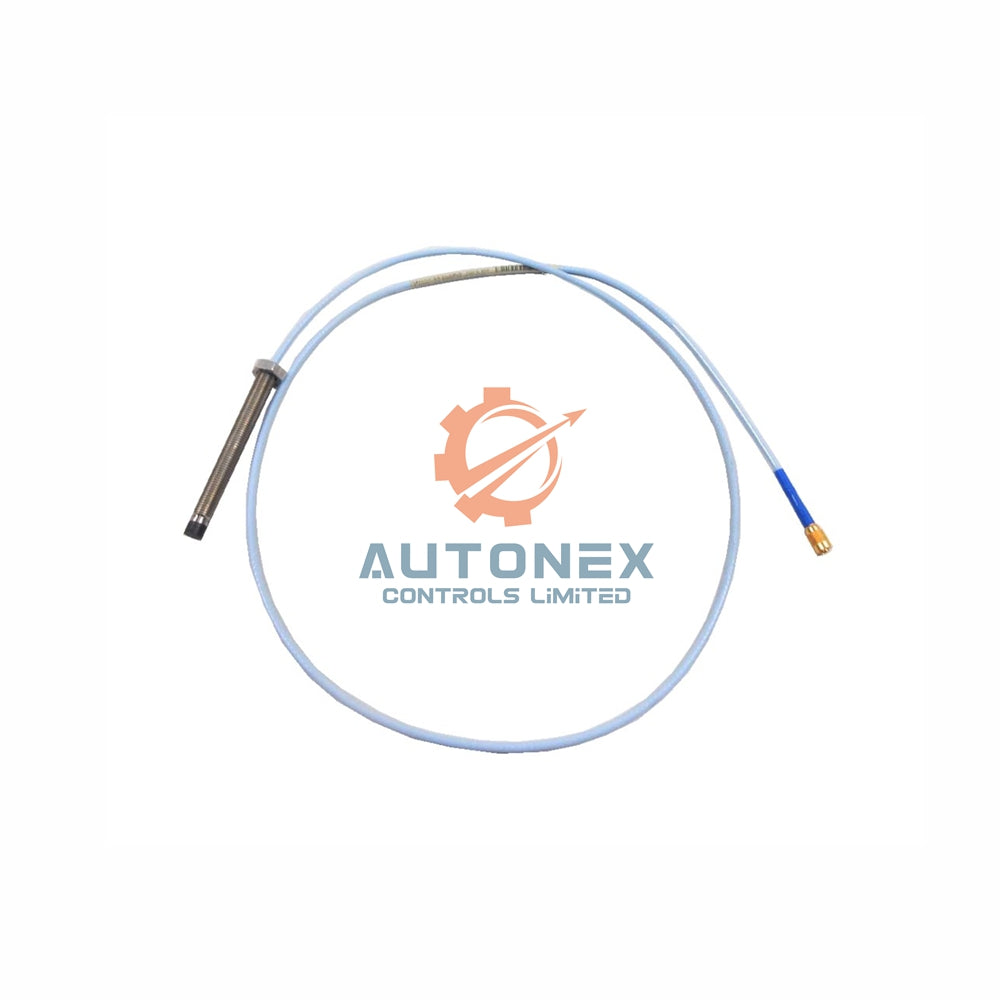

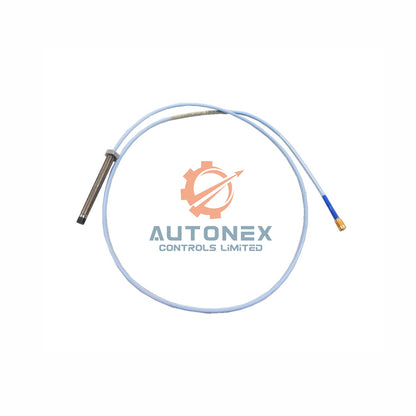

Bently Nevada 330701-00-24-90-02-05 3300 XL 11mm Proximity Probe – Long-Reach Precision Monitoring

• Product number: 330701-00-24-90-02-05 – 3300 XL 11mm Probe with 1/2-20 UNF thread and no armor.
• Unthreaded length option: 00 = 0.0 inches for compact mounting.
• Overall case length option: 24 = 2.4 inches (61 mm).
• Total probe length: 9.0 meters (90 code, 29.5 feet).
• Connector type: Miniature coaxial ClickLoc connector with standard cable.
• Agency approval option: 05 = Multiple Approvals (global compliance).
• Manufacturer: Bently Nevada – new and original in factory packing.
• Made in U.S.A. – ensures high quality and traceability.
• Shipping weight: 0.17 kg (lightweight despite long cable length).

Core Technical Specifications of 3300 XL 11mm Probe

• Probe DC resistance (RPROBE): 8.5 ± 1.1 ohms for 9.0 meter length (measured from center conductor to outer conductor).
• Probe cable: 75 Ω triaxial with fluoroethylene propylene (FEP) insulation. Available total lengths: 1, 5, or 9 meters.
• Probe tip material: Polyphenylene sulfide (PPS) for excellent chemical resistance.
• Probe case material: AISI 304 stainless steel (SST) for durability in harsh environments.
• Operating and storage temperature: -51°C to +177°C (-60°F to +351°F). Exposing the probe below -34°C (30°F) may cause premature failure of the pressure seal.
• Probe pressure sealing: The probe uses a Viton O-ring to seal differential pressure between tip and case. Bently Nevada does not pressure test probes prior to shipment. Contact custom design department for pressure seal testing.

Mechanical Installation & Torque Specifications

• Probe case thread: 1/2-20 UNF. Maximum length of thread engagement: 0.750 inches (19.05 mm).
• Maximum rated torque for 1/2-20 probe cases: 45.2 N•m (400 in•lb). Recommended torque: 15.2 N•m (133 in•lb).
• Connector-to-connector torque: Recommended finger tight. Maximum torque: 0.565 N•m (5 in•lb).
• Minimum bend radius (with or without SST armor): 25.4 mm (1.0 inch). Avoid sharp bends to protect the long 9.0m cable.
• Alternative thread option (M16x1.5): Maximum length of thread engagement 24 mm.

Compatibility & Field Wiring Information

• The 3300 XL 11mm Proximity Probes work seamlessly with Bently Nevada 3300 XL extension cables and Proximitor sensors.
• Field wiring: Use three-conductor shielded triad cable for best signal integrity.
• Maximum field wiring length between the Proximitor sensor and monitor: 305 meters (1000 feet).
• Target size for flat target: Minimum diameter 8.9 mm (0.35 inch). Recommended minimum diameter 13 mm (0.5 inch).
• For shaft diameters smaller than 13 mm, the scale factor may change. Reducing the gap helps minimize this effect.

Frequently Asked Questions (FAQ)

• Q: Is this 3300 XL 11mm probe brand new and original?
  Yes. We supply Bently Nevada 330701-00-24-90-02-05 in new and original factory packing. No refurbished or counterfeit items.
• Q: Do you have the 330701-00-24-90-02-05 in stock?
  Yes. We maintain regular stock of this 3300 XL 11mm probe with 9.0m cable. We ship within 5 days after payment.
• Q: What is the linear measurement range of this probe?
  The linear range spans 1.5 mm (60 mils) from 0.25 mm to 1.75 mm away from the target. Output voltage goes from -1 Vdc to -13 Vdc.
• Q: Can this probe operate at high temperatures?
  Yes. The 3300 XL 11mm probe works between -51°C and +177°C (-60°F to +351°F). However, avoid prolonged exposure below -34°C (30°F) to prevent pressure seal failure.
• Q: What torque should I apply when installing the 1/2-20 probe case?
  We recommend 15.2 N•m (133 in•lb). Maximum rated torque is 45.2 N•m (400 in•lb). For the connector, finger tight is sufficient.
• Q: Which shipping carriers do you use?
  We ship via FedEx, UPS, and DHL. You can choose the preferred method at checkout.
• Q: Can I return this probe if it does not meet my needs?
  We accept returns within 30 days of delivery. The item must remain unused and in original packing.
• Q: Does the probe come with pressure testing before shipment?
  Standard probes do not include pressure testing. Contact Bently Nevada's custom design department if your application requires a pressure seal test.
• Q: What is the cable type for this 9.0m probe?
  The 330701-00-24-90-02-05 uses 75 Ω triaxial FEP insulated cable. Available lengths: 1, 5, or 9 meters.
• Q: Is this probe compatible with 3300 XL extension cables?
  Yes. The 3300 XL 11mm probe works seamlessly with Bently Nevada 3300 XL extension cables and Proximitor sensors.

Contact Information Inquiries: Email sales@nex-auto.com or call +86 153 9242 9628 for quotes and technical support. Partner NexAuto Technology Limited: https://www.nex-auto.com/
