330701-00-10-10-12-05 Bently Nevada 3300 XL 11mm Probe

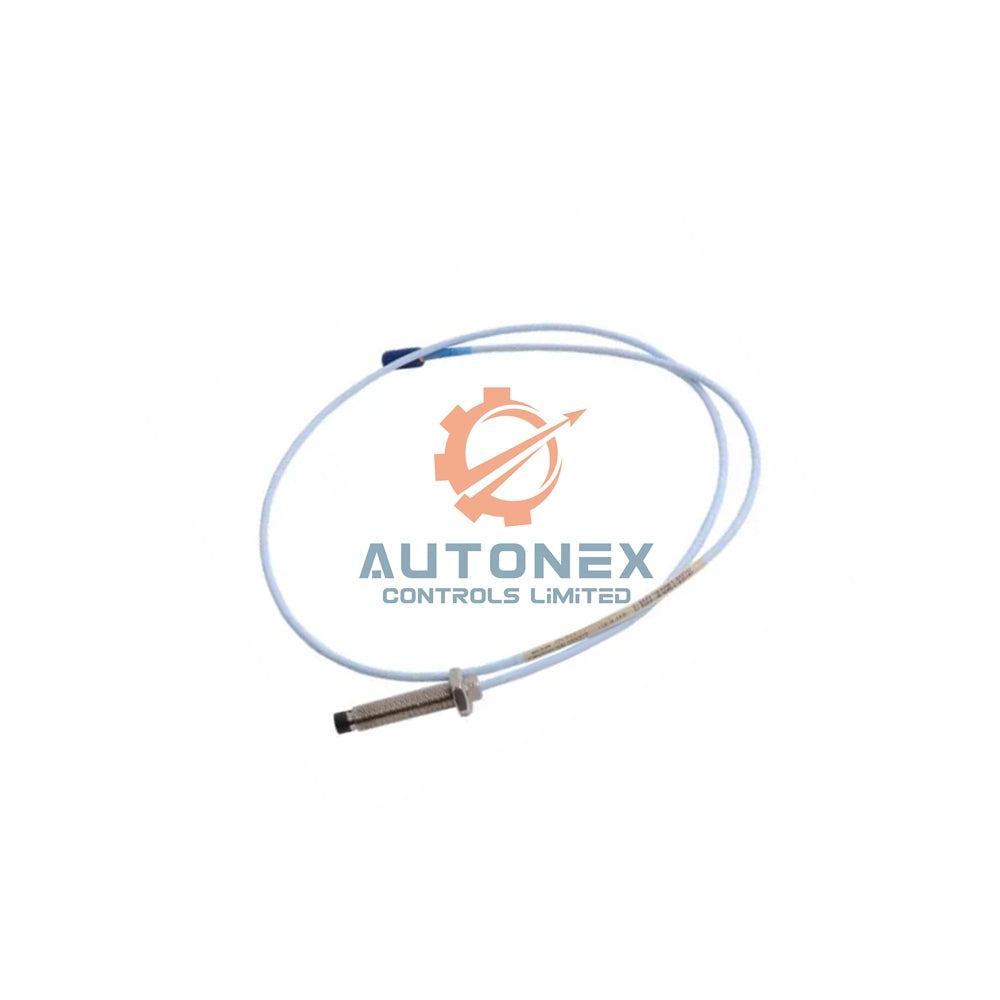

Bently Nevada 330701-00-10-10-12-05 3300 XL 11 mm Proximity Probe

Key Technical Specifications

• Brand: Bently Nevada (Made in U.S.A).
• Model Number: 330701-00-10-10-12-05.
• Probe Type: 3300 XL 11 mm probe with 1/2-20 UNF thread.
• Unthreaded Length: 0 inches (00 option).
• Overall Case Length: 1.0 inch (10 option).
• Total Probe Length: 1.0 meter or 3.3 feet (10 option).
• Connector Type: Miniature coaxial ClickLoc with FluidLoc cable (12 option).
• Agency Approval: 05 = Multiple Approvals.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable Specification: 75 Ω triaxial FEP insulated cable.
• Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Pressure Seal: Viton O-ring design for differential pressure sealing.

Electrical & Mechanical Ratings

• DC Resistance (RPROBE): 5.9 ± 0.5 ohms for 1.0 meter probe.
• Probe Case Thread: 1/2-20 UNF.
• Maximum Thread Engagement: 0.750 inches.
• Maximum Recommended Torque: 15.2 N•m (133 in•lb).
• Maximum Rated Torque: 45.2 N•m (400 in•lb).
• Connector Torque (Max): 0.565 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without armor.
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).

Frequently Asked Questions (FAQ)

• Do you have stock for 330701-00-10-10-12-05?
  We have this exact model in stock now.
• How fast will you ship the probe?
  We ship within 5 days after order confirmation.
• Which carriers do you use?
  We use FedEx, UPS, and DHL for fast delivery.
• Can I return the probe later?
  We support 30-day returns for unused items.
• Can I use this probe without armor?
  Yes, this version has no armor by design.
• Does the probe seal high pressure?
  The Viton O-ring seals differential pressure, but we do not pressure test it.
• What happens below -34°C (-30°F)?
  Low temperature may cause early pressure seal failure.
