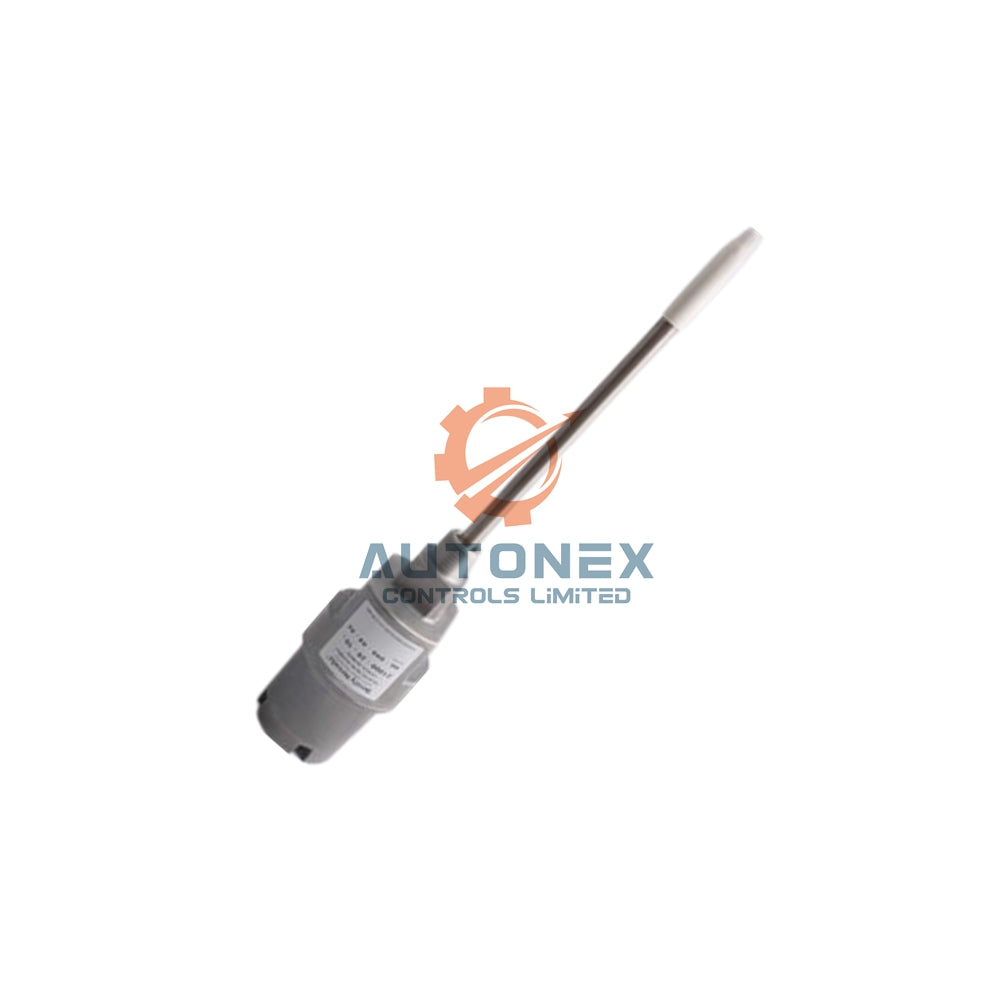

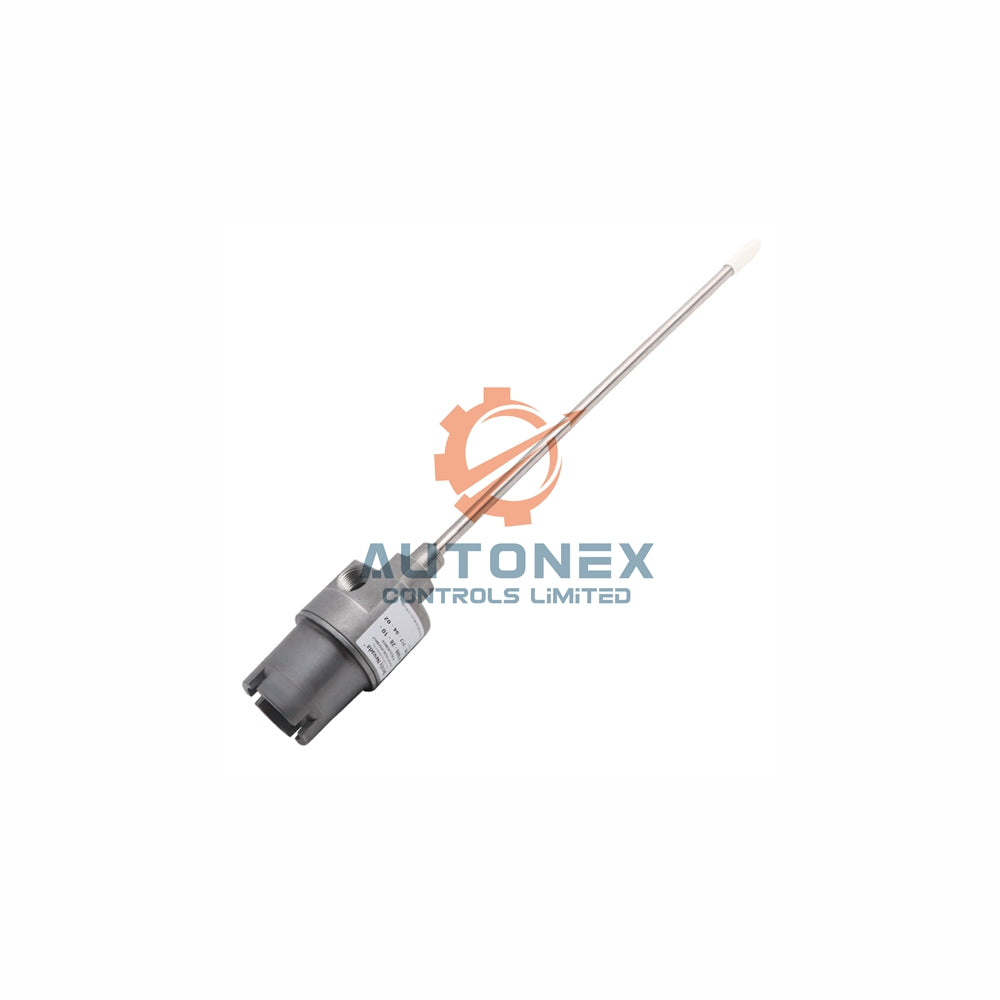

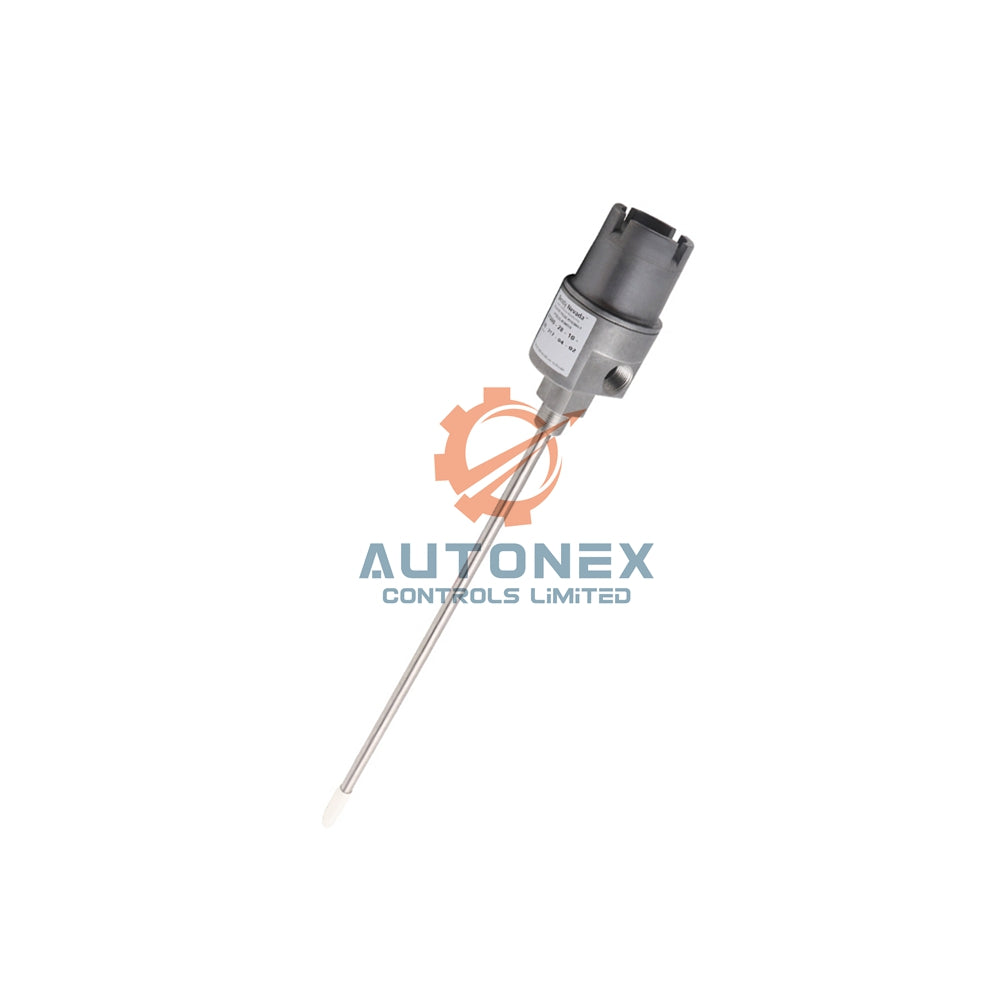

21000-34-05-00-030-04-02 3300 XL 8mm Probe Housing | Bently Nevada

Skladem (16 kusů), připraveno k odeslání
  • Dodavatel:

    Bently Nevada

  • Typ:

    Proximity Probe Housing

  • Country of Origin:

    USA

  • Dimensions:

    80*15*10cm

  • Weight:

    1100 g

  • Štítky: Proximity probe housing

21000-34-05-00-030-04-02 Proximity Probe Housing Assemblies – Precision by Bently Nevada

  • Brand & Model: Bently Nevada 21000-34-05-00-030-04-02 – 3300 XL 8 mm probe with connector protector.
  • Probe Cable Length: 0.5 m (20 inches) for flexible installation in tight spaces.
  • Standoff Adapter: None (option 00) – direct mounting without extra adapter.
  • Probe Penetration: 3.0 inches (030 option) ensures accurate sensing depth.
  • Mounting Thread: 3/4-14 NPT (option -02) mandatory when no standoff adapter is used.
  • Fitting Option: One 3/4-14 NPT plug only (04) – simple conduit connection.

Technical Specifications & Core Parameters

  • Measurement Range: Compatible with 3300 XL 8 mm probes for non-contact displacement from 0 to 2 mm.
  • Frequency Response: 0 to 10 kHz (system depends on the driver and probe).
  • Sensitivity: 7.87 mV/µm (200 mV/mil) typical for all 3300 XL systems.
  • Linearity: Within ±1.27 µm (0.05 mil) over the middle 80% of the range.
  • Resolution: 0.38 µm (0.015 mil) with a compatible Bently Nevada driver.
  • Temperature Range: -51°C to +177°C (-60°F to +350°F) for the probe and housing.
  • Environmental Protection: CSA Type 4 enclosure – watertight and dust-tight.
  • Hazardous Area Rating: Explosion-proof for Class I hazardous locations (CA versions).
  • Immunity: High resistance to RFI/EMI interference per API 670 standard.
  • Housing Material: Aluminum body with a 304 stainless steel sleeve for durability.
  • Maximum (C)+(D) Dimension: 13.5 inches (34.3 cm) – probe P/N and S/N not visible externally.
  • Weight: 1.1 kg (2.4 lb) typical without conduit fittings.

Frequently Asked Questions (FAQ)

  • Q: Is this 21000-34-05-00-030-04-02 brand new and original?
    A: Yes, we supply only new & original Bently Nevada products with factory packing.
  • Q: Do you have this exact model in stock?
    A: Yes, we keep stock of all common suffix codes including penetration 030 and no standoff adapter.
  • Q: What is the delivery time?
    A: We ship within 5 days via FedEx, UPS, or DHL. Typical transit takes 3-7 business days.
  • Q: Can I use this housing in a hazardous area?
    A: Yes, 21000 aluminum housings with CA version and E:00/E:01/E:02/E:04 fittings are CSA explosion-proof.
  • Q: Does this model include a standoff adapter?
    A: No, suffix 00 means no standoff adapter. It mounts directly using 3/4-14 NPT threads.
  • Q: What is the probe penetration depth?
    A: Suffix 030 gives a 3.0 inch probe penetration – ideal for shallow mounting.
  • Q: Is the housing API 670 compliant?
    A: Absolutely. Both 21000 and 24701 housings fully meet API 670 for externally mounted proximity probes.
  • Q: What fittings come with this assembly?
    A: Option 04 includes only one 3/4-14 NPT plug. No reducer or cable seal grip.
  • Q: Can I return the product if I change my mind?
    A: We offer 30 days return from delivery – item must be unopened and in original packing.
  • Q: What cable length does the probe have?
    A: The probe includes a 0.5 m (20 inch) cable with connector protector (suffix 05).
