330195-02-12-90-CN مسبار تركيب عكسي 3300 XL بنتلي نيفادا

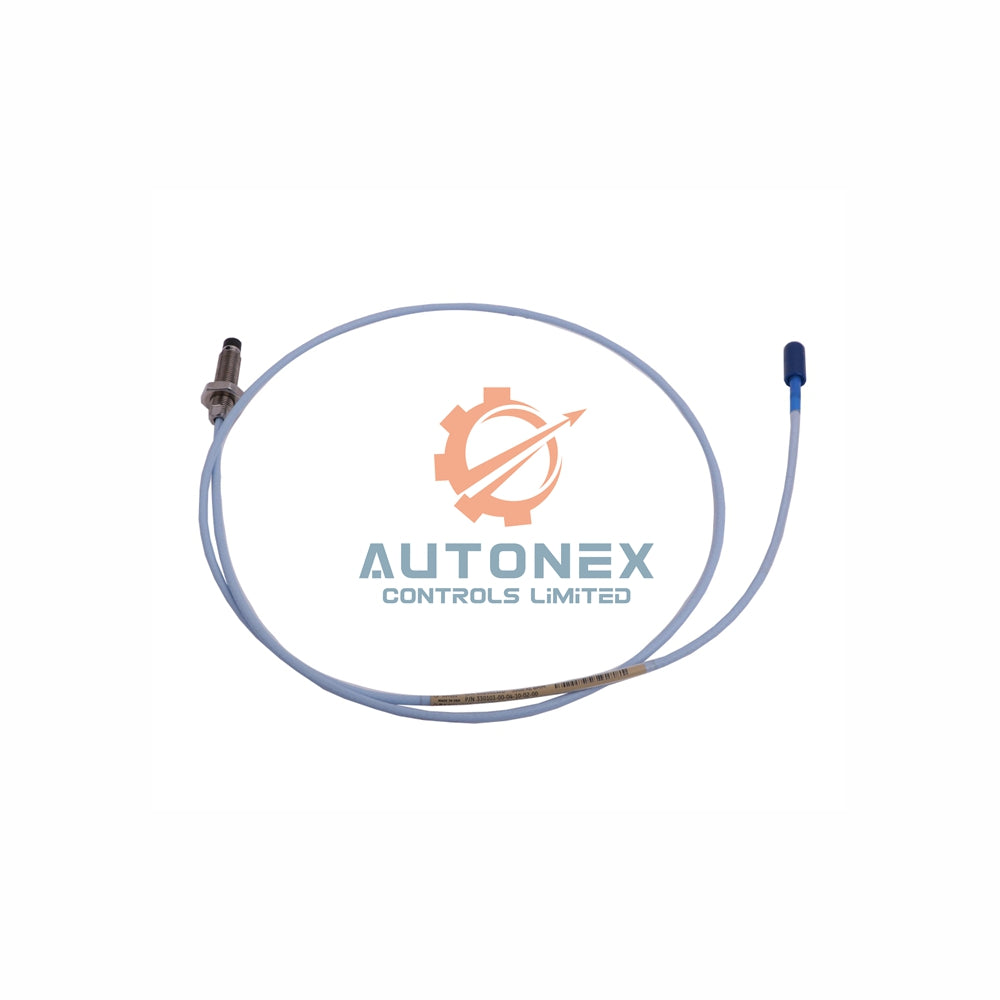

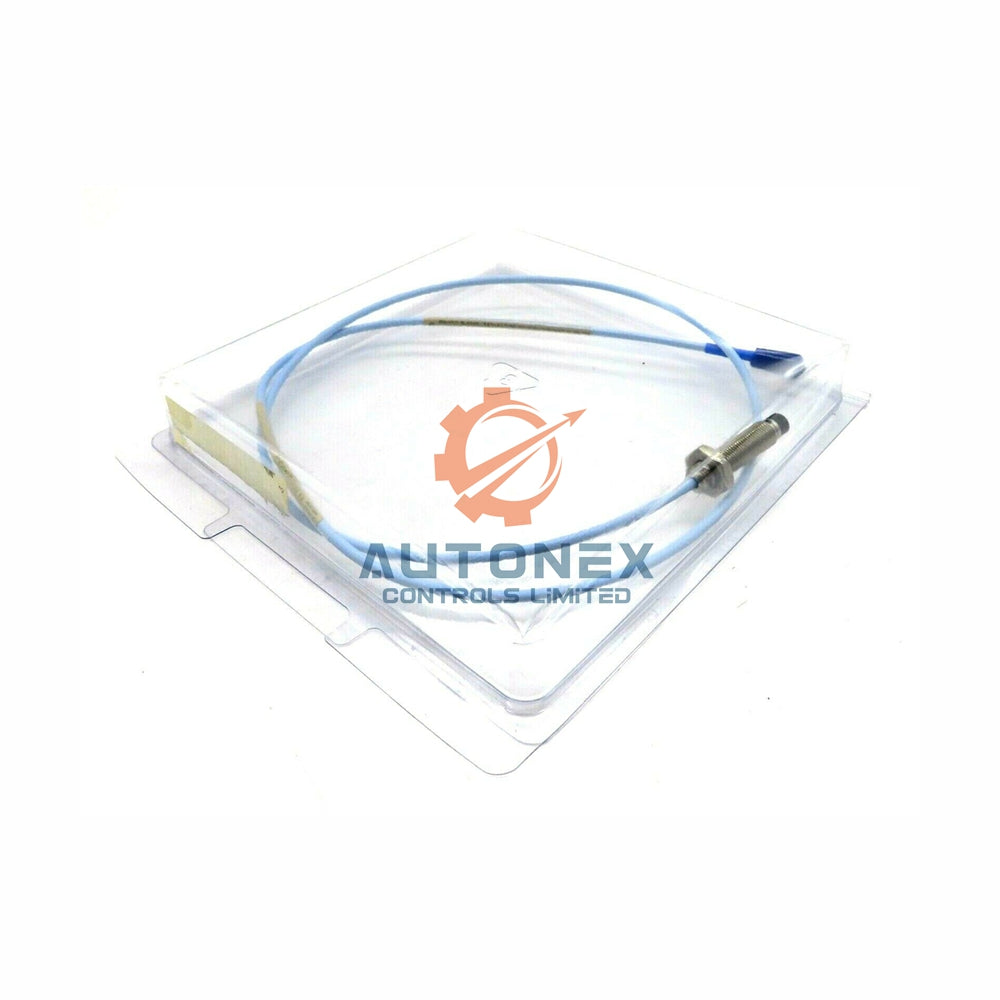

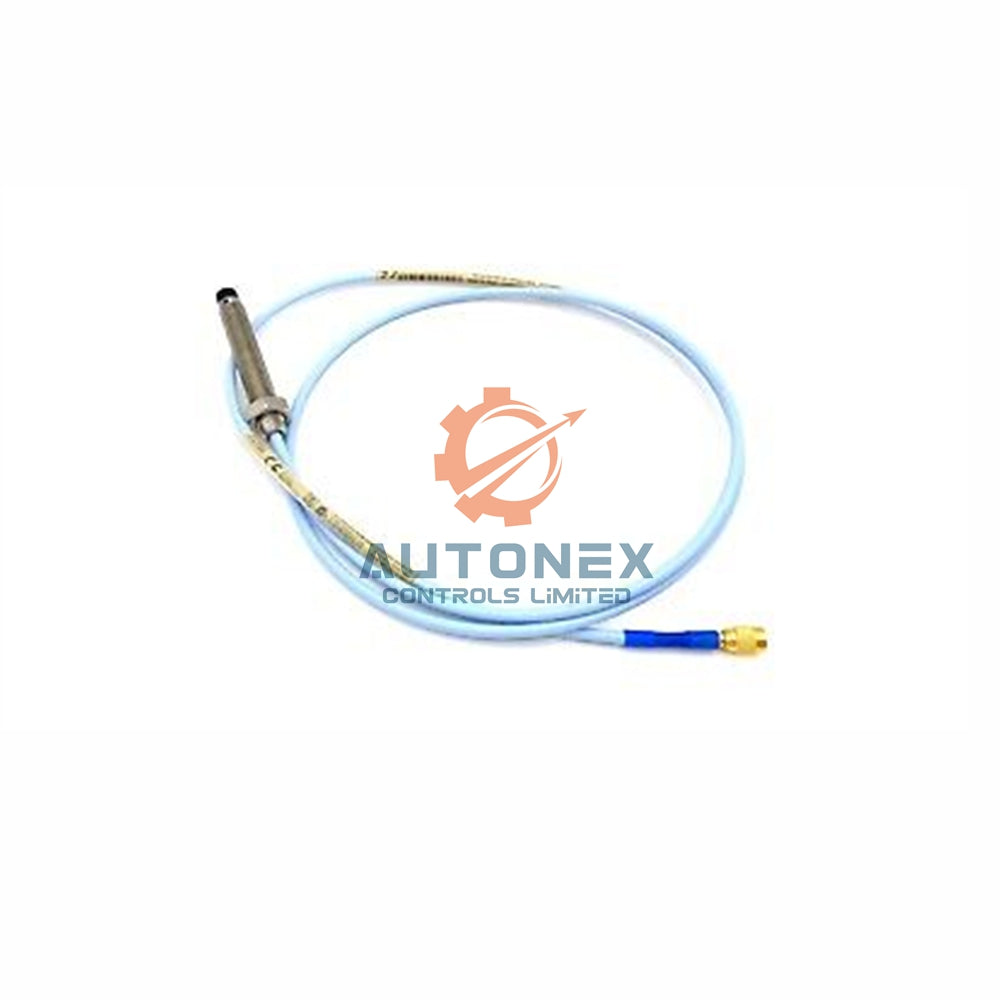

330195-02-12-90-CN Bently Nevada 3300 XL 8 mm Proximity Probe

Key Technical Specifications

• Brand: Bently Nevada
• Model Number: 330195-02-12-90-CN
• Product Type: 3300 XL 8 mm Proximity Probes, Reverse Mount
• Total Length: 9.0 meters (29.5 feet)
• Thread Type: 3/8-24 UNF
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Maximum Thread Engagement Length: 0.563 inches
• Nominal DC Resistance (RPROBE): 9.87 ± 0.50 Ω at 9.0 m length
• Standard Temperature Range: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range (Tip): -52°C to +218°C (-62°F to +425°F)
• Extended Temperature Range (Cable/Connector): -51°C to +260°C (-60°F to +500°F)
• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for up to 56 days (IEC 68-2-3)

Frequently Asked Questions (FAQ)

• Is the 330195-02-12-90-CN brand new and original?
  Yes, we supply only brand new and original Bently Nevada probes.
• Do you have this 3300 XL 8 mm probe in stock?
  Yes, we keep the 330195-02-12-90-CN in stock for immediate orders.
• How soon can you ship this reverse mount probe?
  We ship within 5 days after order confirmation.
• Which carriers do you use for shipping?
  We use DHL, FedEx, and UPS for fast and reliable delivery.
• Can I return this product?
  Yes, we support returns within 30 days of receipt.
• Does this probe work in high humidity areas?
  Yes, it shows less than 3% ASF change at 93% humidity for 56 days.
• What happens if I use it below -34°C?
  The pressure seal may fail prematurely below -34°C (-30°F).
• Can I request a pressure seal test before shipping?
  Please contact our custom design department for this service.
