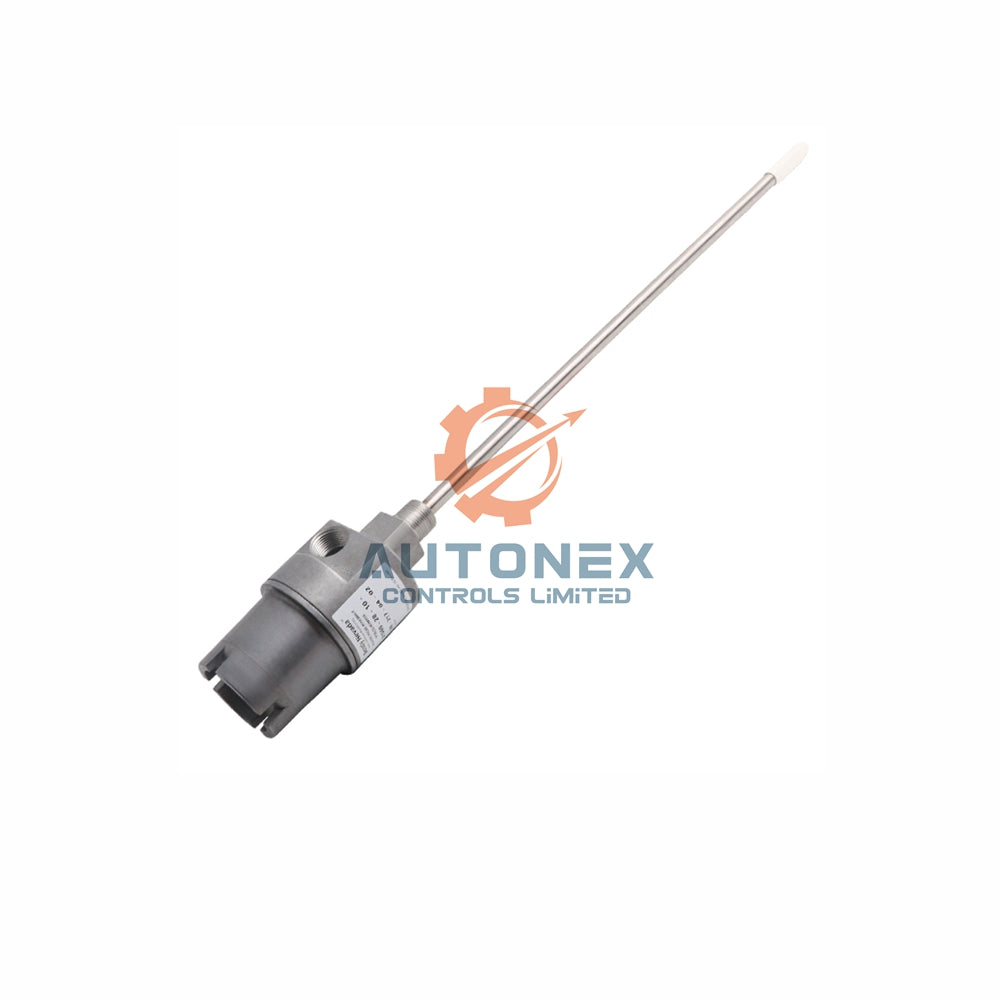

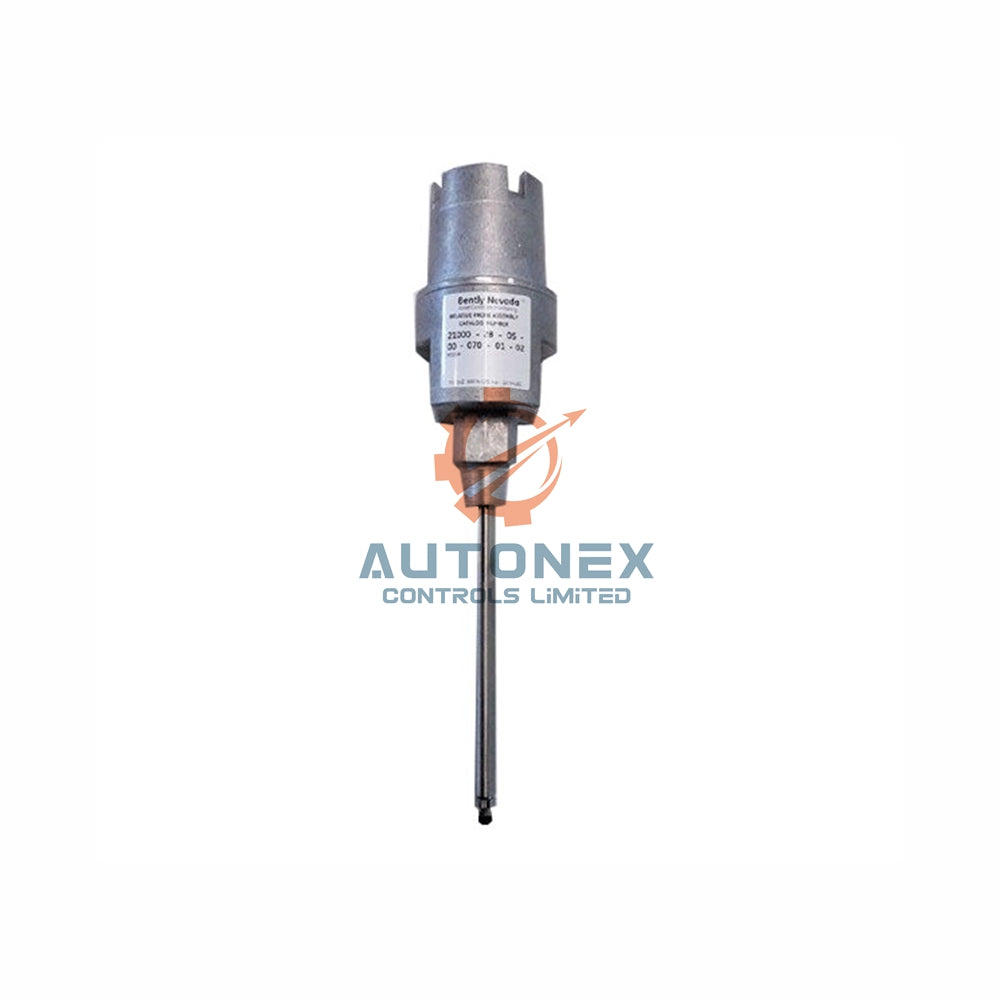

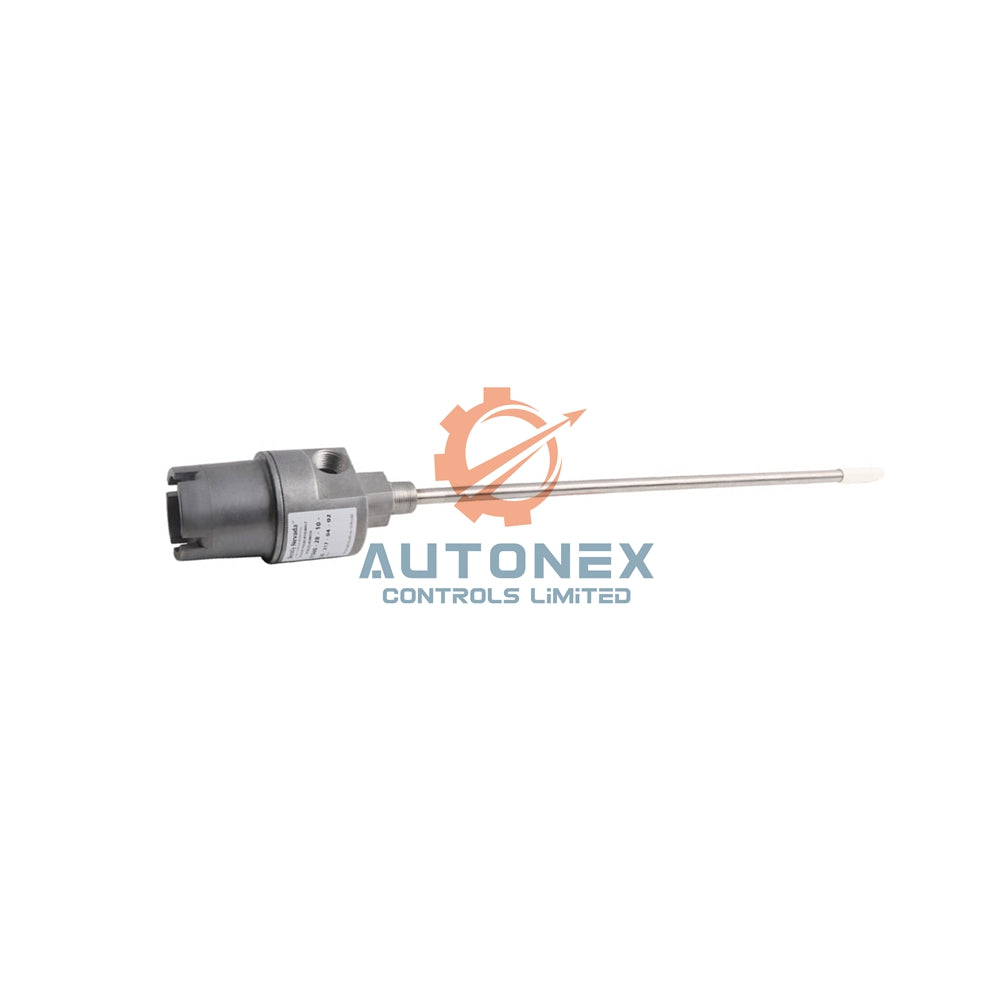

21000-34-10-00-066-03-02 6.6in Penetration Probe Assembly Bently Nevada

21000-34-10-00-066-03-02 – Bently Nevada Proximity Probe Housing Assembly

• Full Model Number: 21000-34-10-00-066-03-02
• Manufacturer: Bently Nevada – a leader in vibration monitoring solutions.
• Probe Option (34): 3300 XL 8 mm probe with connector protector. Selectable hazardous area approvals are available.
• Cable Length (10): 1.0 meter (39 inches).
• Standoff Adapter (00): No standoff adapter included.
• Probe Penetration (066): 6.6 inches.
• Fitting Option (03): One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets for three cable sizes (1/8 to 3/16 in, 1/4 to 5/16 in, 5/16 to 3/8 in).
• Mounting Thread Option (-02): 3/4-14 NPT. Required when standoff adapter is -00.
• Housing Material: Aluminum body with a 304 stainless steel sleeve.
• Weight: 1.1 kg (2.4 lb) typical, without fittings.

Technical Specifications – Core Parameters

• Probe Type: 3300 XL 8 mm reverse mount proximity probe.
• Sensitivity: 7.87 mV/µm (200 mV/mil) standard for 3300 XL probes.
• Linearity: Within ±0.25% of full scale.
• Resolution: High resolution for detecting subtle shaft movements.
• Temperature Range (Housing): -51°C to +177°C (-60°F to +350°F).
• Environmental Rating: CSA Type 4 enclosure. Resists water, dust, and corrosion.
• Interference Immunity: Shielded design reduces electromagnetic interference.
• Maximum (C) + (D) with visible probe (P/N & S/N): 17.0 inches (43.18 cm).
• Maximum (C) + (D) Total Dimension: 32.9 inches (83.5 cm).
• CSA Approval: Explosion-proof for hazardous areas when ordered with E:00, E:01, E:02, or E:04 options. Only CA versions carry CSA explosion-proof rating.
• Compliance: Fully compliant with API 670 Standard for externally mounted proximity probe housings.

Frequently Asked Questions (FAQ)

• Is this unit new and original? Yes, this is a new and original product in factory packing.
• Do you have stock available? Yes, we have this model in stock ready to ship.
• What is the delivery time? We ship within 5 days after order confirmation.
• Which carriers do you use? We ship via FedEx, UPS, and DHL for fast and reliable delivery.
• Can I return this product? Yes, we support 30-day returns from the delivery date.
• Is this housing CSA explosion-proof? Only CA versions with E:00/E:01/E:02/E:04 options carry CSA explosion-proof rating. Please verify your option codes.
• What is the maximum (C)+(D) dimension? The total maximum is 32.9 inches (83.5 cm). With visible probe label, it is 17.0 inches (43.18 cm).
• Does this include a standoff adapter? No, suffix 00 means no standoff adapter.
• What mounting thread does this use? It uses 3/4-14 NPT (option -02).
• What cable sizes work with the included seal grip? The grip includes grommets for three ranges: 1/8-3/16 in, 1/4-5/16 in, and 5/16-3/8 in.
