وحدة إدخال التيار المتردد 220 فولت فليكس آي/أو آلن برادلي 1794-IM8

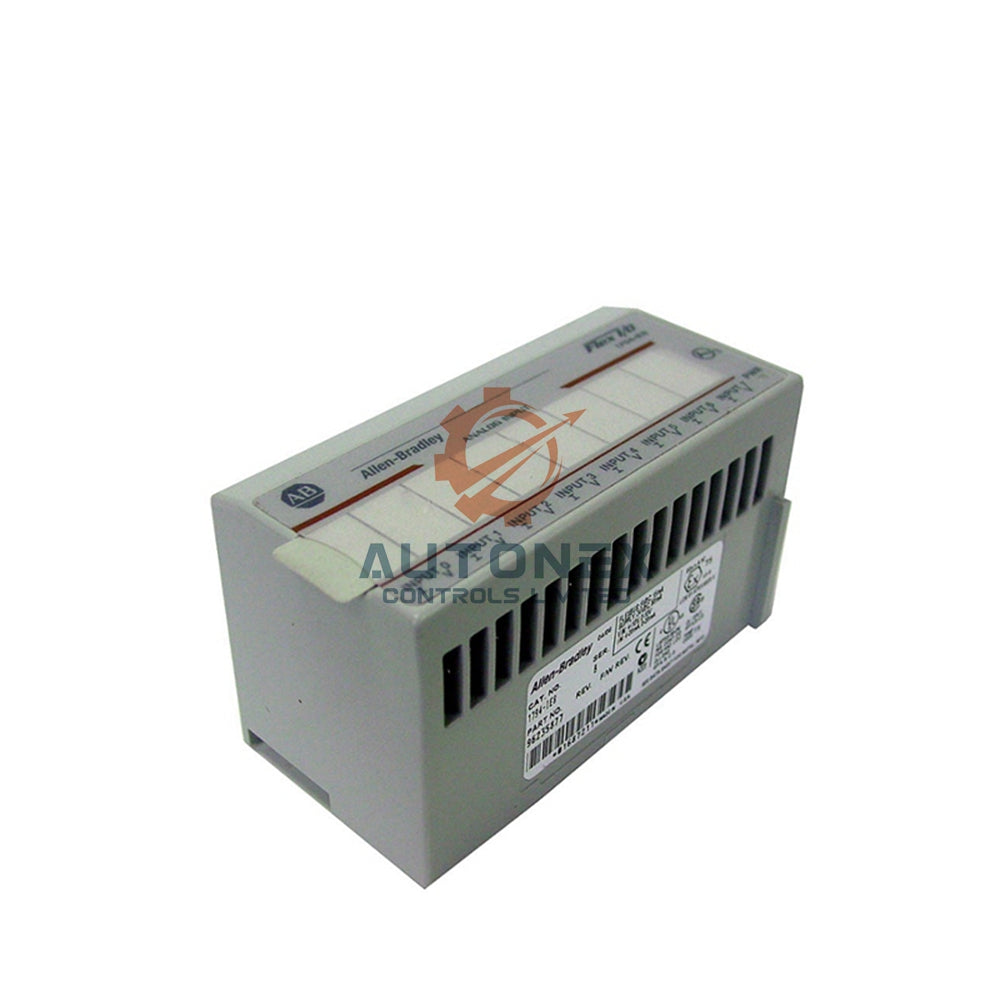

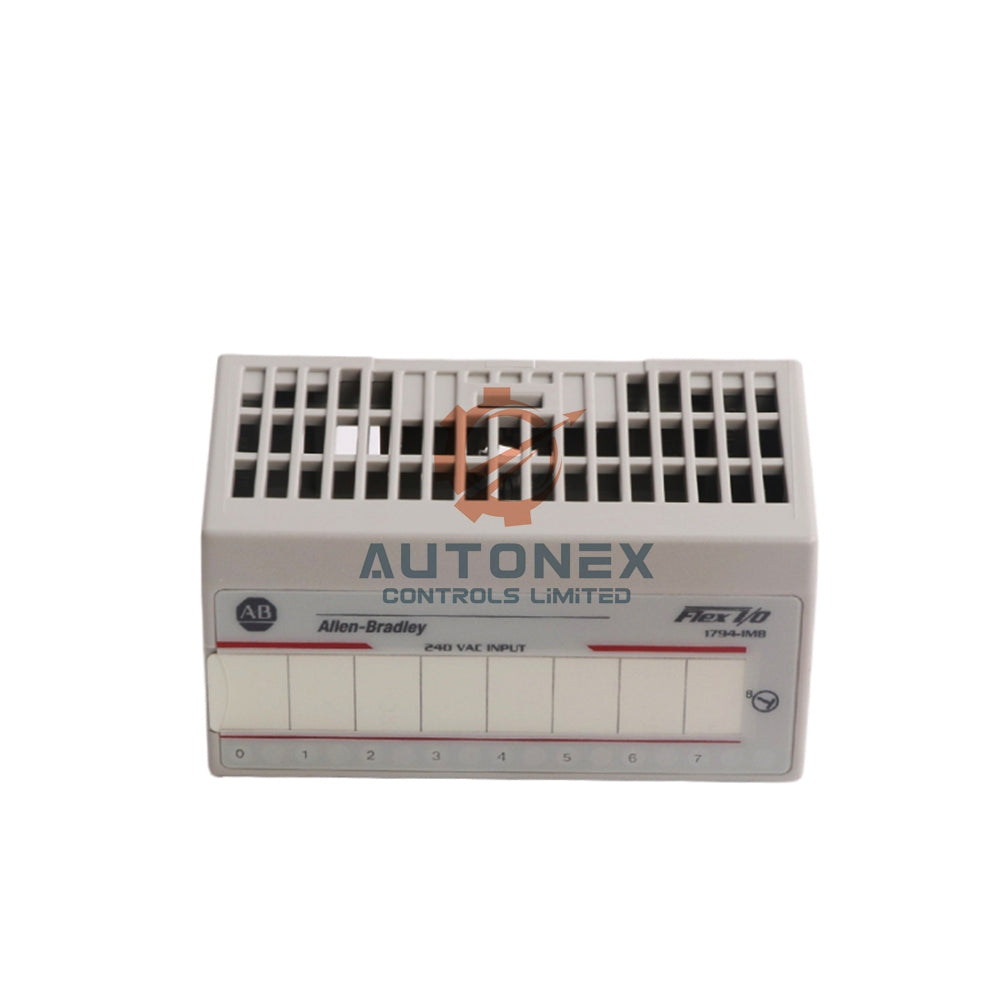

1794-IM8 Allen-Bradley Flex I/O 220V AC Digital Input Module

Key Technical Specifications

• Brand: Allen-Bradley
• Model Number: 1794-IM8
• Input Type: 8 nonisolated 220V AC digital inputs
• On-state Voltage Nominal: 240V AC
• On-state Current Max: 13.21 mA
• Off-state Voltage Max: 40V AC
• Off-state Current Max: 2.6 mA
• Nominal Input Impedance: 22.3 kΩ
• Nominal Input Current: 12 mA at 240V AC
• Isolation Voltage: 250V continuous
• Thermal Dissipation: 16.2 BTU/hr at 264V AC max
• Operating Temperature Range: 0 to 55 °C
• Hazardous Location Approval: Yes, for industrial environments

FAQ

• Q: Is the 1794-IM8 a new original part?
  A: Yes, we supply only a brand new and original 1794-IM8 module.
• Q: How many inputs does this module provide?
  A: The 1794-IM8 gives you eight nonisolated 220V AC digital inputs.
• Q: What is the maximum on-state current?
  A: The maximum on-state current for the 1794-IM8 is 13.21 mA.
• Q: Do you have this item in stock?
  A: Yes, we keep the 1794-IM8 in stock for immediate orders.
• Q: What is your shipping time?
  A: We will ship your 1794-IM8 within 5 business days after payment.
• Q: Which carriers do you use for delivery?
  A: We ship via FedEx, UPS, or DHL depending on your location.
• Q: Can I return the module if it does not fit my system?
  A: Yes, we support a 30-day return policy for the 1794-IM8.
• Q: What terminal base works with this module?
  A: You need the 1794-TBN terminal base for proper wiring connections.
• Q: Is the module approved for hazardous locations?
  A: Yes, the 1794-IM8 carries approval for hazardous industrial locations.
• Q: What is the nominal input impedance value?
  A: The nominal input impedance for the 1794-IM8 is 22.3 kΩ.
