140XBP01600 Backplane - 16 Slots I/O Rack Schneider

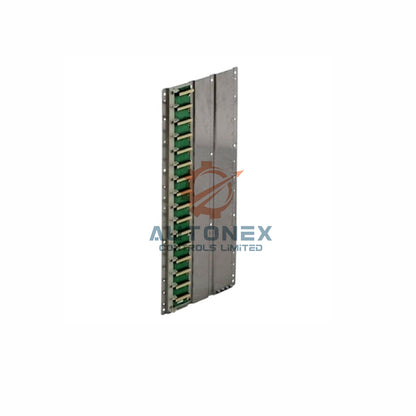

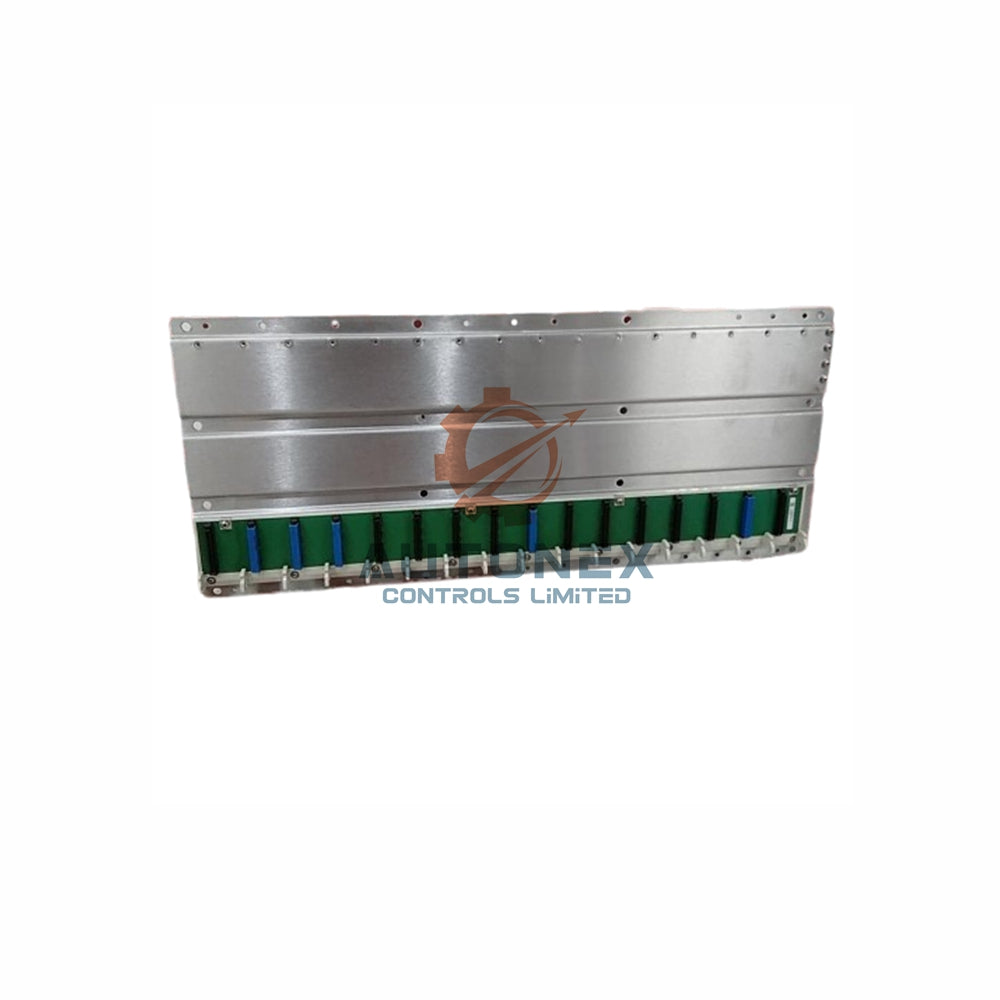

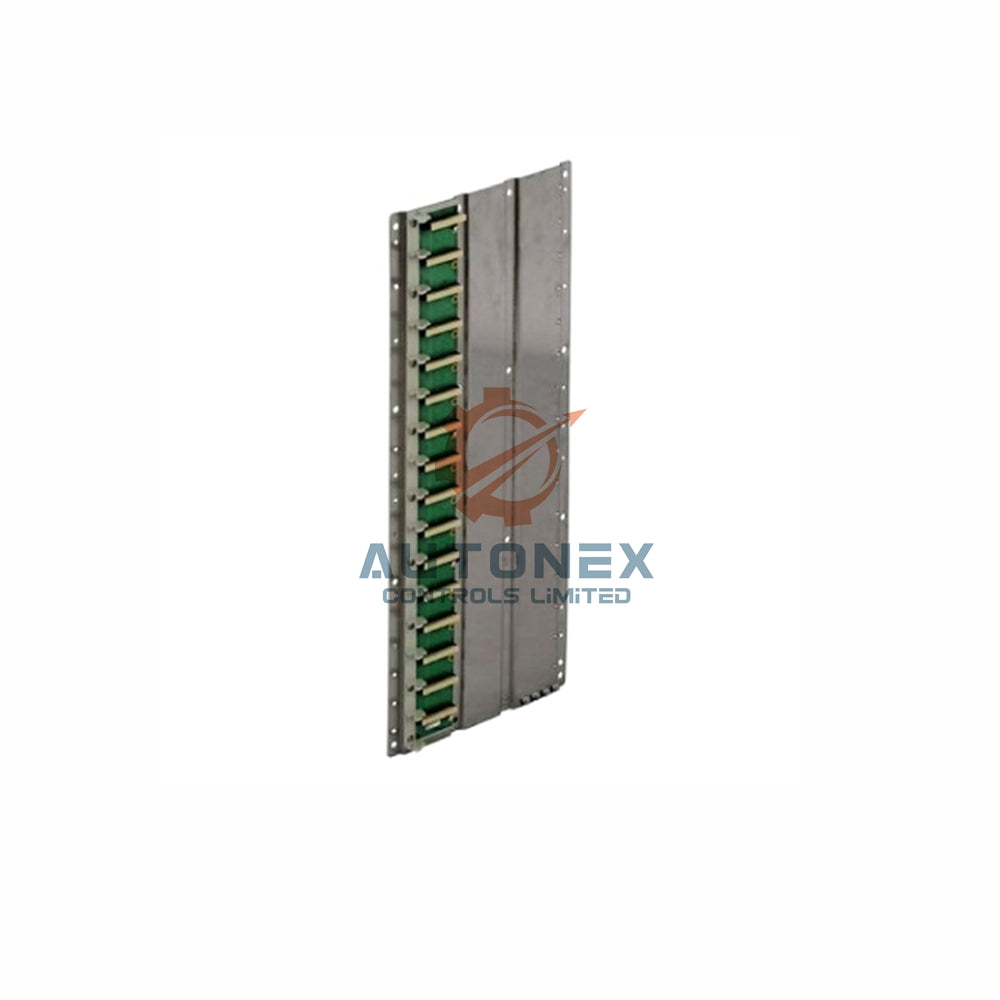

Modicon Quantum 140XBP01600 Rack Backplane – 16-Slot Maximum I/O Capacity

Technical Specifications

• Manufacturer: Schneider Electric – Modicon Quantum series
• Model Number: 140XBP01600 – 16-slot configuration
• Product Type: Rack backplane for I/O modules
• Free Slots: 16 slots support local, remote, or distributed I/O modules
• Mounting Method: Heavy-duty mounting plate with screw fixation
• Dimensions: Package – 5.0 cm x 29.5 cm x 78.0 cm
• Environmental Tolerance: Industrial-grade construction ensures superior noise immunity
• Temperature Range: Full compliance with Quantum industrial operating temperature specifications

FAQ – Frequently Asked Questions

• Is the 140XBP01600 a genuine new Schneider part?
  Yes, we supply only genuine new original Schneider Electric Quantum backplanes.
• What I/O module types work with the 140XBP01600?
  The Modicon Quantum 140XBP01600 accepts all Quantum local, remote, and distributed I/O modules.
• Do you have the 140XBP01600 in stock?
  Yes, we maintain ready stock for same-day or next-day dispatch.
• What is your shipping timeframe for this backplane?
  We dispatch within 5 business days. DHL, FedEx, and UPS deliver in 2-5 business days worldwide.
• Can I return the 140XBP01600 if I don't need it?
  Yes, we accept returns within 30 days. Product must remain unused and sealed.
• Does the package include mounting hardware?
  No, the shipment contains only the 140XBP01600 backplane. You supply your own mounting screws.
• What is the frequency response characteristic?
  The 140XBP01600 passive backplane transmits all signals without bandwidth limitation.
• How does this backplane perform in electrically noisy environments?
  Quantum backplane technology delivers outstanding common-mode rejection and EMI suppression.
• What is the signal resolution through this backplane?
  The backplane introduces zero resolution degradation. Your I/O modules maintain full accuracy.
• What is the maximum I/O capacity for the 140XBP01600?
  Sixteen slots accept any combination of Quantum I/O modules up to the controller's addressing limit.
• Is this backplane suitable for redundant systems?
  Yes, the 140XBP01600 fully supports Quantum hot standby and redundant I/O architectures.
